Technical Specifications
| Item | Specification |
|---|---|

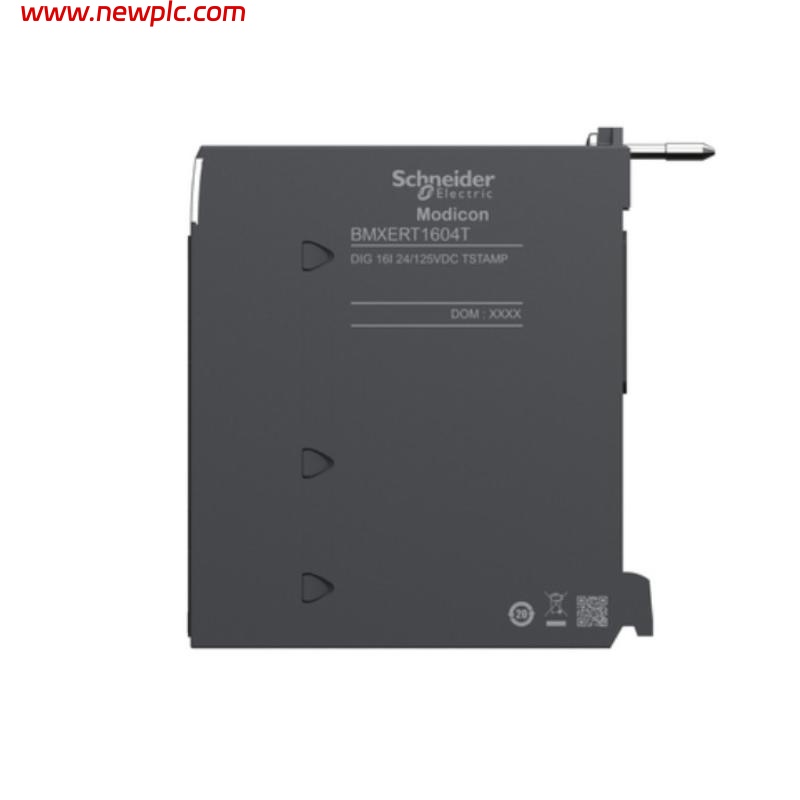

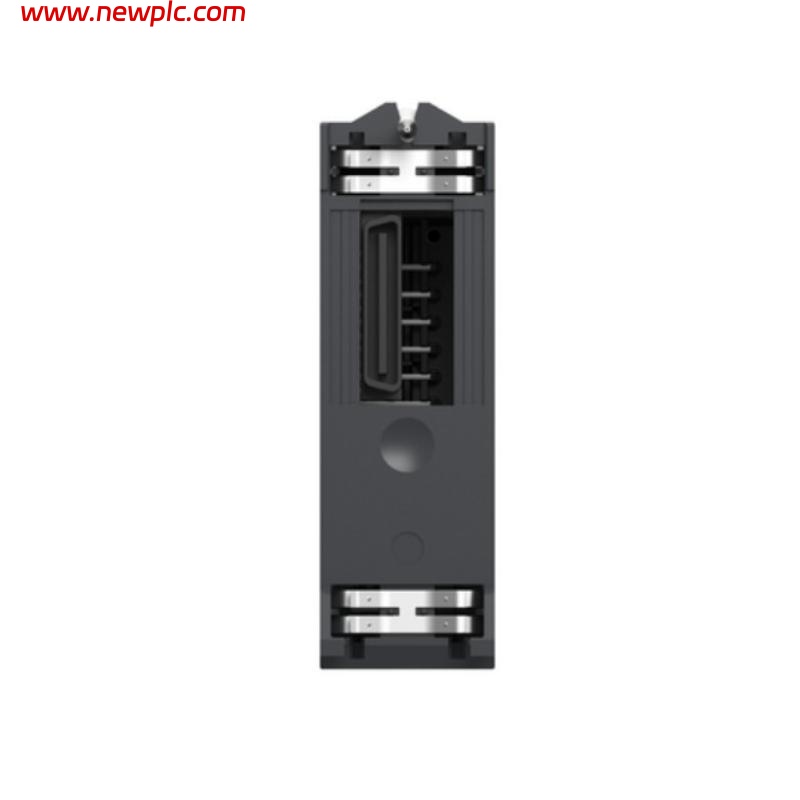

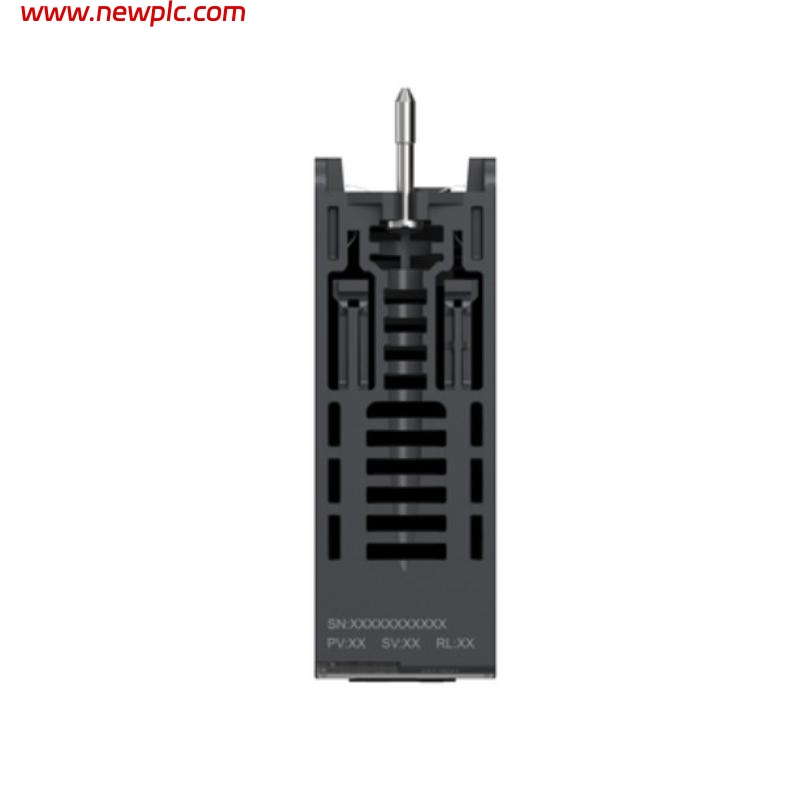

| Model | Schneider BMXERT1604T |
| Product Type | Multi-function Input Module |
| Compatible System | Modicon M340 / M580 PLCs |
| Input Type | Analog (Current/Voltage) and Digital |
| Number of Channels | 16 Inputs |
| Input Voltage Range | 0–10 V DC, ±10 V DC |
| Input Current Range | 0–20 mA, 4–20 mA |
| Input Resolution | 16-bit |
| Sampling Rate | 1 kHz per channel |
| Isolation | Channel-to-backplane isolated |
| Accuracy | ±0.2% FS |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Power Consumption | 2 W |
| Communication | Modbus / PLC backplane |
| Dimensions | 32 x 100 x 86 mm |
| Weight | Package weight 0.15 kg |
FAQ
FAQ
Q1: What is the main function of the BMXERT1604T module?
A1: It provides 16 analog and digital input channels for Modicon M340 and M580 PLCs, allowing flexible signal acquisition.
Q2: Which input types are supported?
A2: The module supports both analog (voltage and current) and digital inputs.
Q3: What is the input voltage and current range?
A3: Voltage: 0–10 V DC, ±10 V DC; Current: 0–20 mA, 4–20 mA.
Q4: What is the input resolution?
A4: The module provides 16-bit resolution for precise measurements.
Q5: Is the module isolated?
A5: Yes, each channel is isolated from the backplane for signal integrity.
Q6: What is the sampling rate?
A6: 1 kHz per channel.
Q7: What is the operating temperature range?
A7: 0°C to 60°C.
Q8: What are the module dimensions and weight?
A8: Dimensions: 32 x 100 x 86 mm; Package weight: 0.15 kg.
