Technical Specifications
| Item | Specification |
|---|---|
| Model | Schneider BMXFTB2020 |

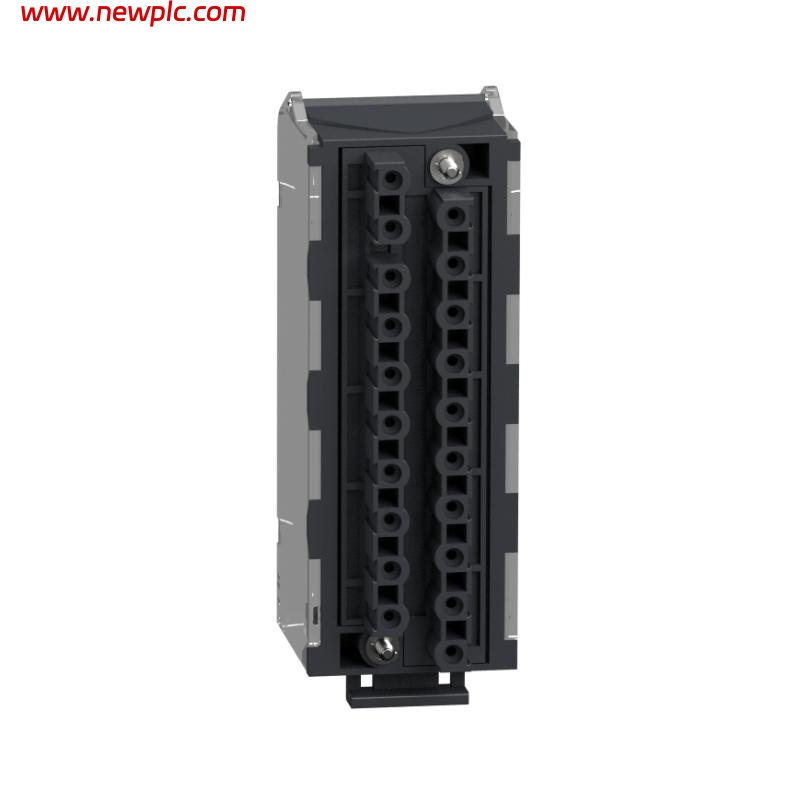

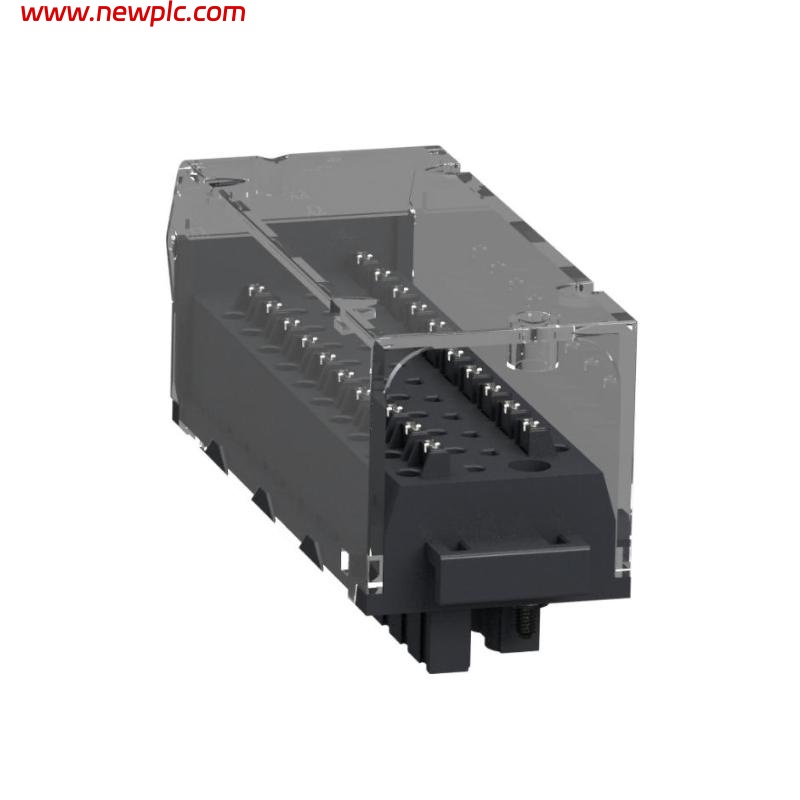

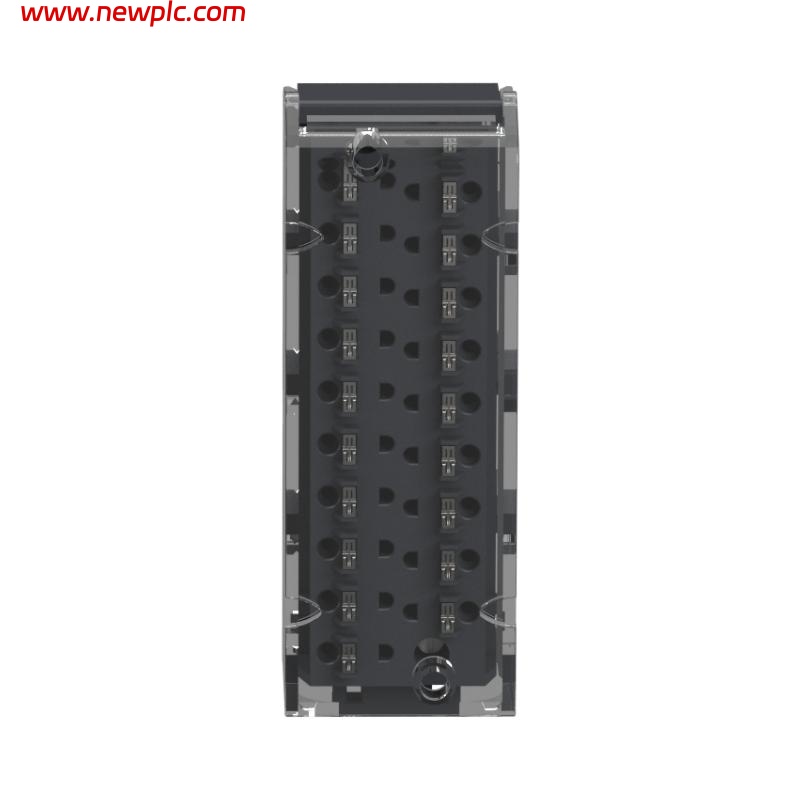

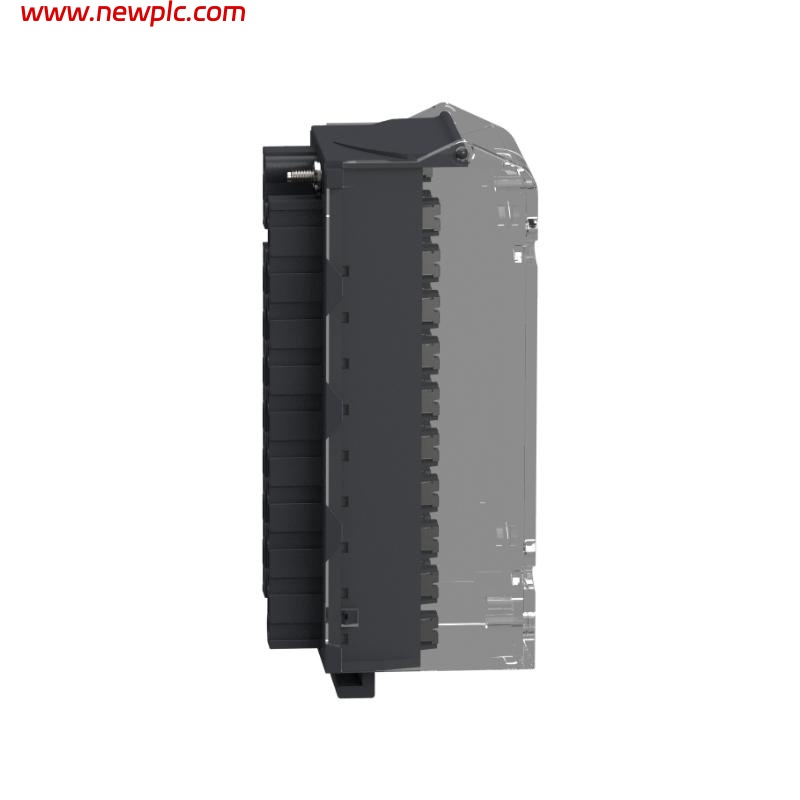

| Product Type | 20-pin Detachable Spring Terminal |
| Compatible System | Modicon M340 / M580 PLCs |
| Number of Pins | 20 |
| Connection Type | Spring clamp |
| Supported Wire Size | 0.34–1.0 mm² (24–18 AWG) |
| Voltage Rating | 300 V AC/DC |
| Current Rating | 8 A max per terminal |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 5% to 95%, non-condensing |
| Material | Flame-retardant plastic housing, tin-plated terminals |
| Mounting Type | Module-compatible slot / detachable |
| Dimensions | 91.4 x 41.8 x 32 mm |
| Weight | 0.093 kg |
FAQ
FAQ
Q1: What is the purpose of the BMXFTB2020 terminal?
A1: It provides a detachable spring clamp terminal interface for wiring Modicon M340 and M580 PLC modules.
Q2: How many pins does this terminal have?
A2: The terminal has 20 pins.
Q3: What wire sizes are supported?
A3: Supports wires from 0.34 mm² to 1.0 mm² (24–18 AWG).
Q4: What is the voltage and current rating?
A4: Rated for up to 300 V AC/DC and 8 A per terminal.
Q5: Is the terminal detachable?
A5: Yes, it can be detached from the module for easy wiring and maintenance.
Q6: What is the operating temperature range?
A6: The operating temperature is 0°C to 60°C.
Q7: What material is used for the terminal?
A7: Made from flame-retardant plastic housing with tin-plated terminals.
Q8: What are the dimensions and weight?
A8: Dimensions: 91.4 x 41.8 x 32 mm; weight: 0.093 kg.
