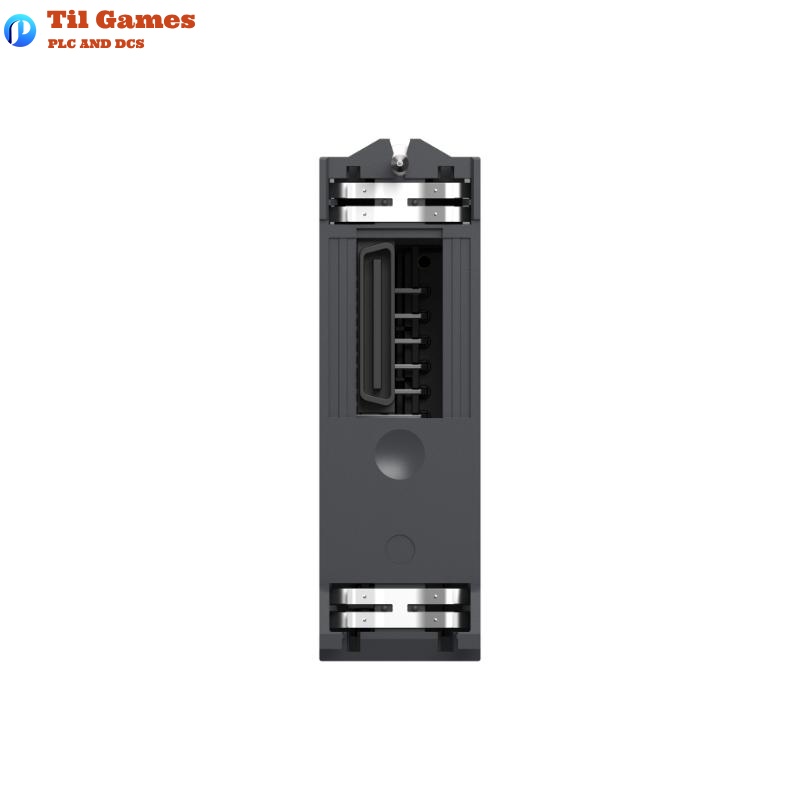

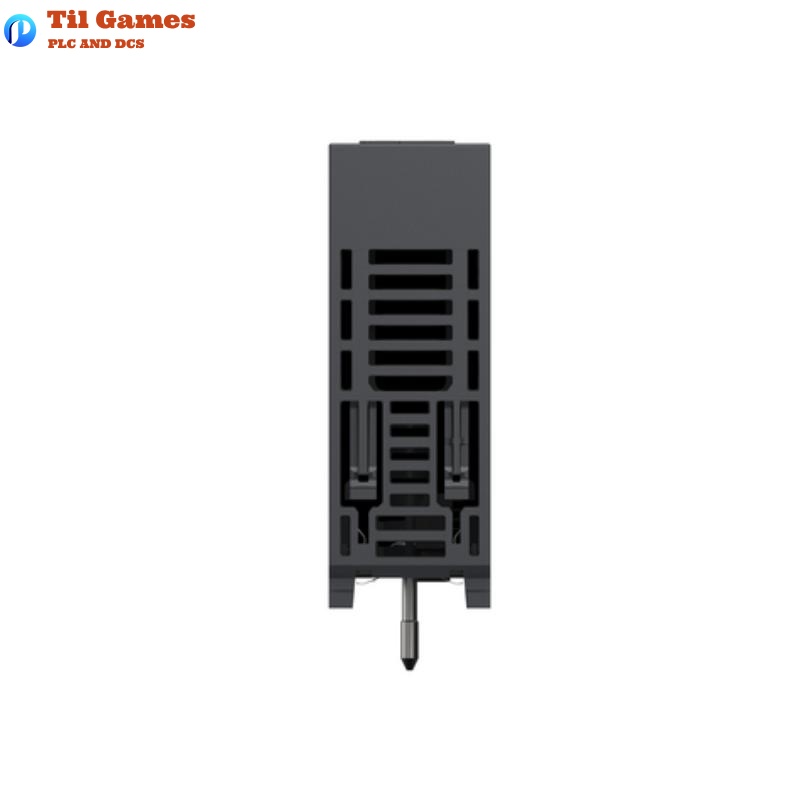

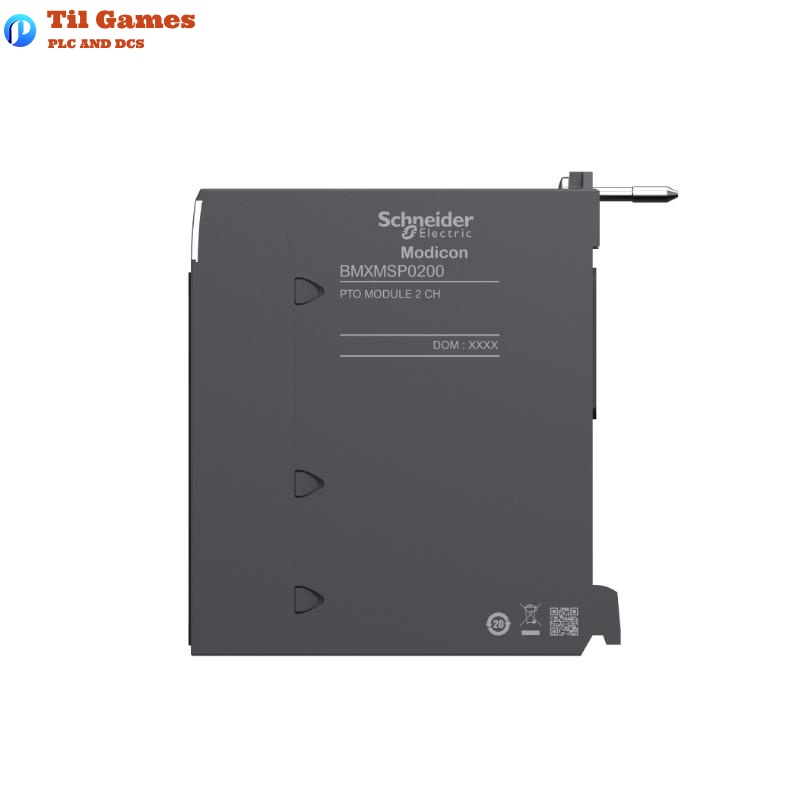

Technical Specifications

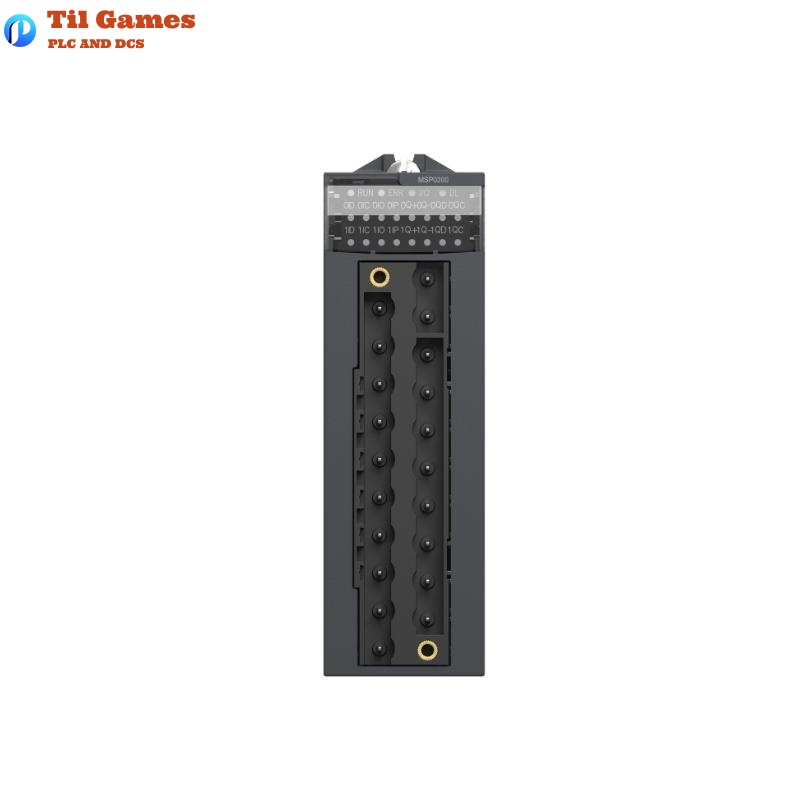

| Parameter | Description |
|---|---|
| Product Range | Modicon X80 |
| Product Type | Pulse Train Output (PTO) Module |
| Number of Channels | 2 |
| Number of Inputs | 4 |
| Discrete Input Type | Current sink (IEC 61131-2 Type 3) |
| Input Compatibility | 2-wire/3-wire proximity sensor, 19.2–30 V (IEC 947-5-2) |
| Output Compatibility | Signal converter (USIC), RS422 (7 mA input), source input (5–24 V) |
| Output Frequency | 200 kHz (<0.5 m with USIC and VW3M8210R05) |
| 100 kHz (<5 m with normal source input) | |
| 200 kHz (<10 m with RS422 compatible circuits) | |
| Operating Threshold | >12 V (no error supply), >8 V (error supply) |
| Input Voltage | 24 V DC |
| Input Current | 4.3 mA |
| Voltage State 1 Guaranteed | ≥11 V |
| Voltage State 0 Guaranteed | 5 V |
| Current State 1 Guaranteed | ≥2 mA |
| Current State 0 Guaranteed | ≤1.5 mA |
| Current Consumption | 35 mA @ 24 V DC (preactuator) |
| 150 mA typical, 200 mA max @ 3.3 V DC | |
| Response Time (Inputs) | <60 µs (origin, proximity) |
| <200 µs (position complete, drive ready) | |
| Number of Outputs | 1 pulse output, 2 auxiliary outputs |
| Output Voltage | 24 V DC |
| Output Voltage Range | 19–30 V |
| Discrete Output Current | 50 mA |
| Current per Channel | 0.4 A |
| Max Leakage Current | 0.05 mA @ State 0 |
| Residual Voltage | 0.15 V @ State 1 |
| Output Response Time | 1.2–1.5 ms (on appearance/disappearance) |
| Load Impedance | 15000 Ohm (ohmic) |
| Output Overload Protection | Current limiter and electronic circuit breaker |
| Output Short-Circuit Protection | Current limiter and electronic circuit breaker |
| Reverse Polarity Protection | By diode on output |
| Insulation Between Channels | None |
| Insulation Primary to Secondary | 1500 Vrms |
| Insulation Resistance | >10 MΩ |
| Local Signaling | RUN: Green LED |
| I/O Fault: Red LED | |
| Module Error: Red LED | |
| Download: Green LED | |
| Channel Status (CH00, CH01): 8 Green LEDs each | |
| Electrical Connection | 2 × 28-pin connectors |
| Module Format | Standard |
| Certifications | CE, UL, CSA, RCM, EAC, ATEX Zone 2/22, IECEx Zone 2/22, Merchant Navy |
| Operating Temperature Range | -25 to +70 °C (-13 to +158 °F) |
| Derating | None |
| Applicable Directives | 2014/35/EU (LVD), 2014/30/EU (EMC), 2014/34/EU (ATEX) |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2, IACS E10 |
| IEC 61850-3 (Location G), IEC 61000-6-5, IEC 60079-0 | |
| Environmental Rating | Class I Division 2 (Hazardous location) |
| Dimensions (W x H x D) | 93 x 33 x 104 mm |
| Weight | 0.145 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many channels does the BMXMSP0200 module support?
A1: It supports 2 channels for pulse train output.
Q2: What types of sensors are compatible with the module inputs?
A2: It supports 2-wire and 3-wire proximity sensors with a voltage range of 19.2 to 30 V.
Q3: What is the maximum pulse output frequency?
A3: Up to 200 kHz depending on cable length and output type.
Q4: Is the module protected against short circuits?
A4: Yes, it includes electronic circuit breaker and current limiter protection.
Q5: What certifications does the module have for hazardous environments?
A5: It is certified for ATEX Zone 2/22 and IECEx Zone 2/22.
Q6: What are the dimensions and weight of this module?
A6: 93 mm × 33 mm × 104 mm, weighing 0.145 kg.
Q7: Can this module be used in maritime applications?
A7: Yes, it is certified for Merchant Navy use.
Q8: What is the insulation voltage between primary and secondary circuits?
A8: It is rated at 1500 Vrms.
