Technical Specifications
| Parameter | Details |
|---|---|
| Range of product | Modicon M580 |
| Product or component type | Communication module |
| Product compatibility | BMEXBP… – Ethernet + X-bus rack (used only on X-bus) |
| Supply | Internal power supply via rack |
| Integrated connection type | 4 Ethernet ports, RJ45 connector, 10/100 Mbit/s, shielded twisted pair |
| Memory usage | Application saving, enabling standard web server |
| Communication service | Bandwidth management, FDR server, SNMP, Modbus TCP I/O Scanner and Messaging, Ethernet/IP I/O Scanner and Messaging, embedded 4-port switch, RSTP, port mirroring, Transparent Ready class B30, web server |
| Current consumption | 555 mA @ 3.3 V DC |
| Local signalling | 1 green LED (RUN), 1 red LED (ERR), 1 amber LED (ETH STS), 1 green/red LED (ETH MS), 1 green/red LED (ETH NS) |
| Dimensions (W x H x D) | 160 x 100 x 35 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Which platform is the BMXNOC0402 module designed for?
A1: This module is designed specifically for the Schneider Modicon M580 automation platform.

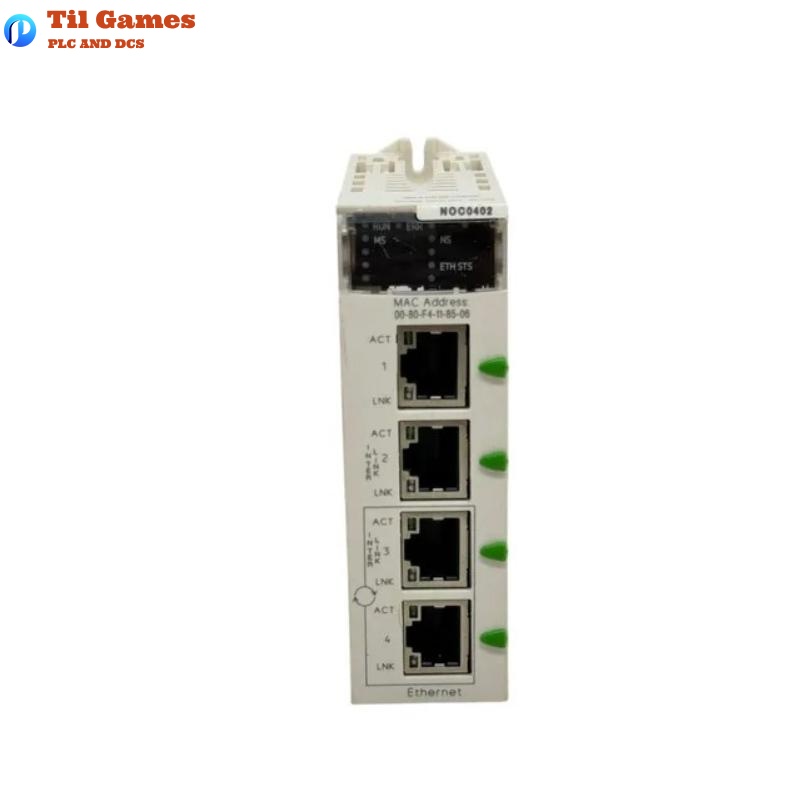

Q2: How many Ethernet ports does BMXNOC0402 provide?
A2: It has 4 Ethernet ports with RJ45 connectors, supporting 10/100 Mbps.
Q3: Does it support both Modbus TCP and EtherNet/IP protocols?
A3: Yes, the module supports I/O scanning and messaging over both Modbus TCP and EtherNet/IP.
Q4: Is an embedded Ethernet switch included?
A4: Yes, a 4-port embedded switch is integrated in the module.
Q5: What network services are supported?
A5: Services include FDR server, SNMP, RSTP, port mirroring, Transparent Ready B30, and a web server.
Q6: How is the module powered?
A6: It is powered internally via the backplane; no external power supply is required.
Q7: Does the module support web server functionality?
A7: Yes, it includes a built-in web server for configuration and monitoring.
Q8: Are status LEDs available on the module?
A8: Yes, the module features LEDs for RUN, ERR, Ethernet status, and network condition indicators.
