Technical Specifications
| Parameter | Description |
|---|---|
| Product Range | Modicon M340 automation platform |
| Product Type | Processor module |
| Number of Racks | 4 |
| Number of Slots | 11 |
| Discrete I/O Capacity (Single Rack) | 704 I/O |
| Discrete I/O Capacity (Multi-Rack) | 1024 I/O |
| Analog I/O Capacity (Single Rack) | 66 I/O |
| Analog I/O Capacity (Multi-Rack) | 256 I/O |
| Application-Specific Channels | 36 |
| Control Functions | Programmable loops, Motion control, Independent axis CANopen |
| Communication Ports | RS232C, RS485, USB (12 Mbit/s), CANopen SUB-D 9 |
| Communication Protocols | Modbus RTU/ASCII, CANopen DS301/303-2/405, Character mode |
| Max Communication Modules | 2 Ethernet, 4 AS-Interface |
| Memory | Internal RAM: 4096 kB (256 kB data + 3584 kB program), MMC backup supported |
| Max Internal Data | 256 kB unlocated data, 1024 %MWi, 256 %KWi, 512 %Mi, 32634 %Mi |
| Application Tasks | 1 master task, 1 fast task, 64 event tasks |
| Instruction Execution Time | Boolean: 0.12 µs, Double-word: 0.17 µs, Single-word: 0.25 µs, Float: 1.16 µs |
| Instructions per ms | Up to 8.1 Kinst/ms (100% Boolean) |
| Power Supply | Via rack, 24 V DC, 90 mA |

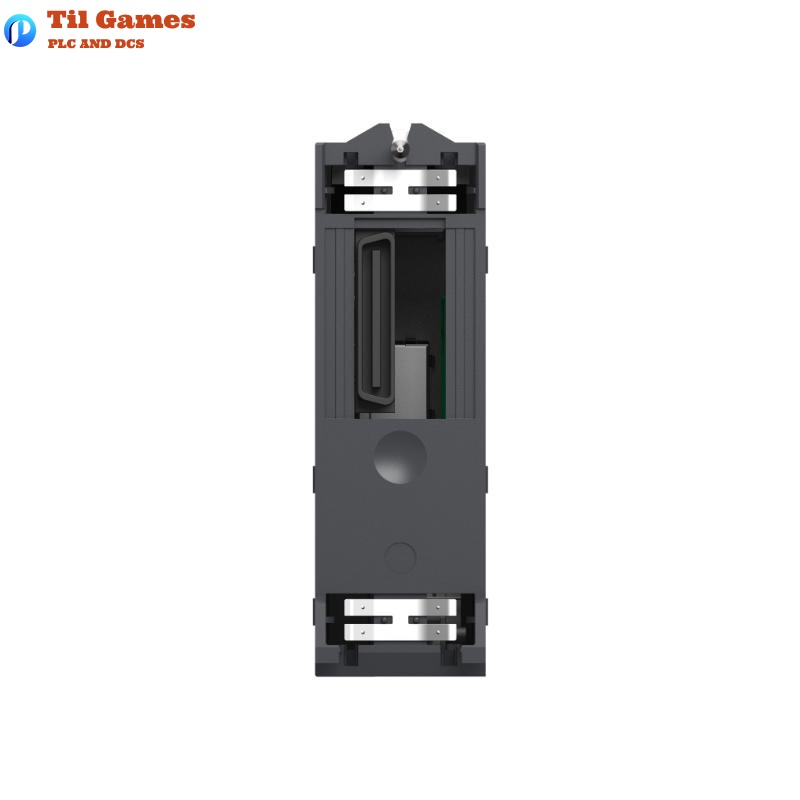

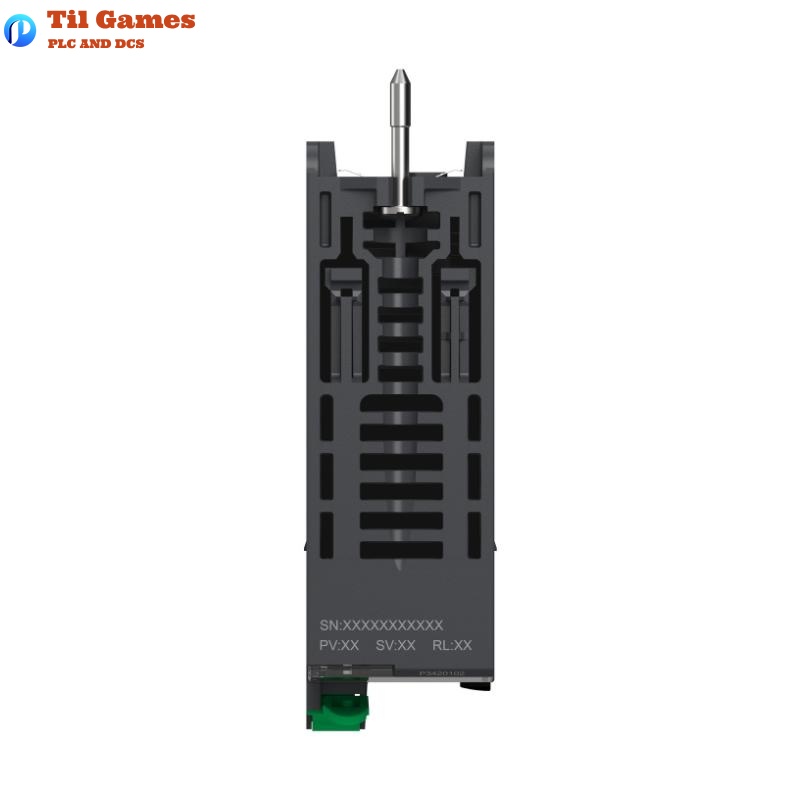

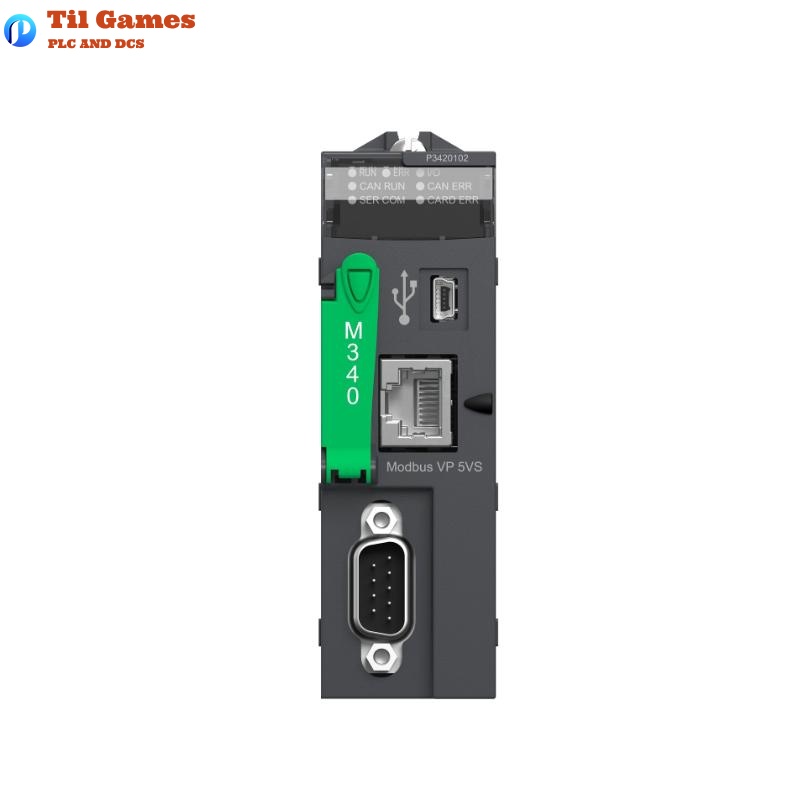

| LEDs | CAN RUN, RUN, I/O, CAN ERR, CARD ERR, ERR, SER COM |
| Protection Class | IP20 |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Relative Humidity | 10…95% non-condensing |
| Certifications | CE, UL, CSA, RCM, EAC, IACS E10, Merchant Navy |
| Compliance Standards | EN 61131-2, IEC 61010-2-201, IEC 61000-6-5, IEC 61850-3 |
| Dimensions (W x H x D) | 160 x 100 x 35 mm |
| Net Weight | 0.21 kg (0.46 lb) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of I/O points supported by the BMXP3420102?
A1: The module supports up to 1024 discrete I/O and 256 analog I/O in multi-rack configurations.
Q2: Which communication protocols are supported by this processor?
A2: It supports Modbus RTU/ASCII, CANopen (DS301, DS303-2, DS405), and character mode protocols.
Q3: Is the module compatible with CANopen networks?
A3: Yes, it includes a CANopen master interface supporting up to 63 devices.
Q4: Can the processor module back up program and data?
A4: Yes, using the supplied BMXRMS008MP memory card for program and data retention.
Q5: How many application tasks can be handled by the processor?
A5: The processor can handle 1 master task, 1 fast task, and 64 event-driven tasks.
Q6: What power source is required for the BMXP3420102?
A6: It is powered through the rack at 24 V DC, consuming 90 mA.
Q7: What is the environmental protection level of this module?
A7: The module has IP20 protection and supports operating temperatures from 0 to 60 °C.
Q8: What are the module’s dimensions and weight?
A8: The module measures 160 x 100 x 35 mm and weighs 0.21 kg.
