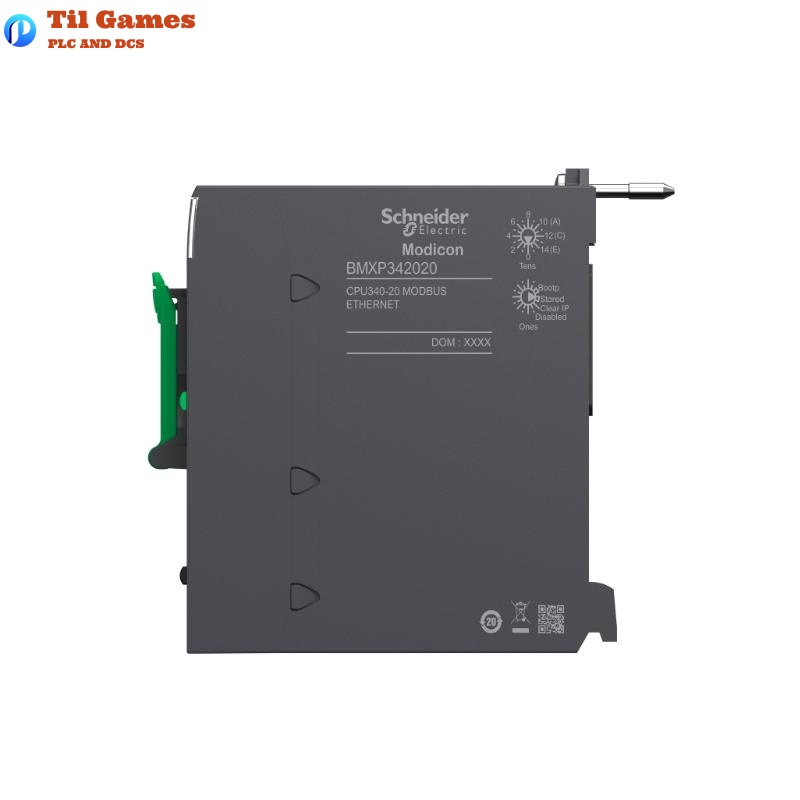

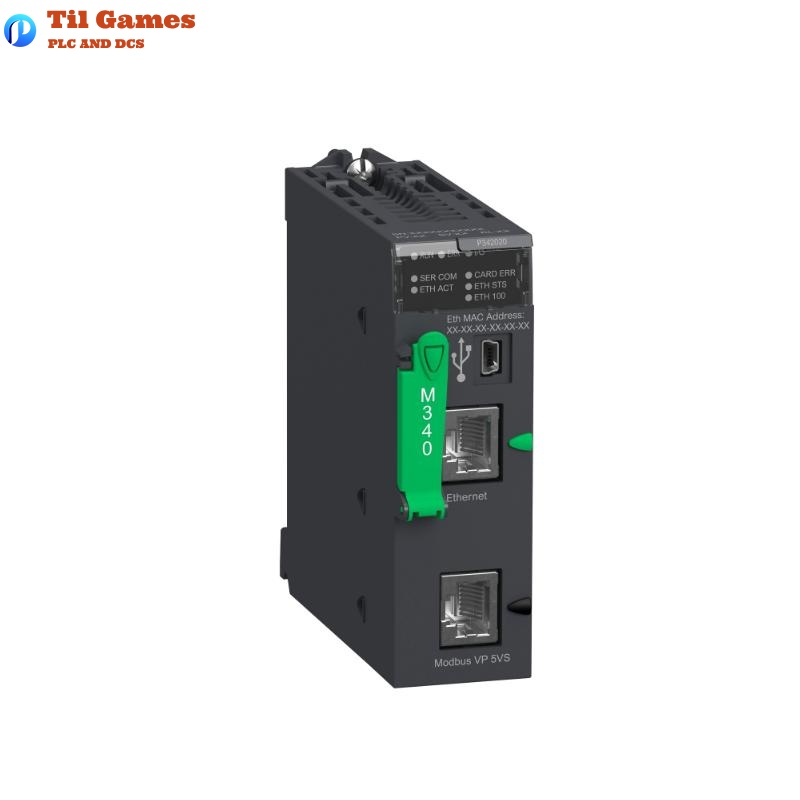

Technical Specifications

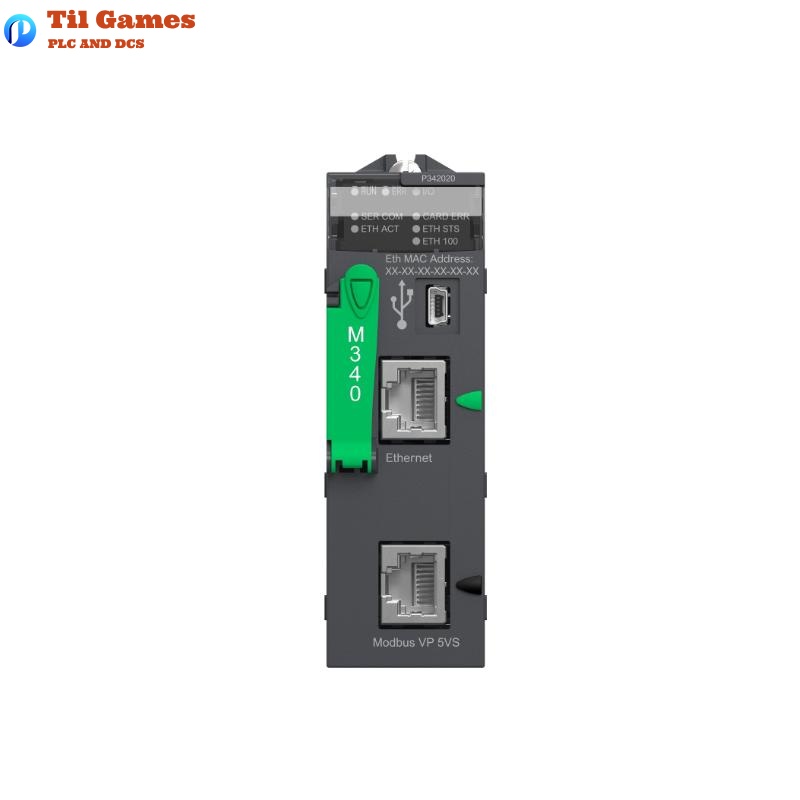

| Parameter | Description |
|---|---|
| Product Range | Modicon M340 Automation Platform |
| Product Type | Processor Module |
| Concept | Transparent Ready, CANopen |
| Number of Racks Supported | 4 |
| Number of Slots | 11 |
| Discrete I/O Capacity (Single Rack) | 704 I/O points |
| Discrete I/O Capacity (Multi-Rack) | 1024 I/O points |
| Analog I/O Capacity (Single Rack) | 66 I/O points |
| Analog I/O Capacity (Multi-Rack) | 256 I/O points |
| Application Specific Channels | 36 |
| Monitoring Functions | Diagnostic Counters (Modbus), Event Counters (Modbus) |
| Control Loops | Programmable Loops |
| Communication Ports | RJ45 (RS232C, RS485 – Character Mode and Modbus), USB, Ethernet TCP/IP |
| Ethernet Interface | 10BASE-T/100BASE-TX (RJ45, 1 port) |
| Communication Module Capacity | 2 Ethernet Modules, 4 AS-Interface Modules |
| Embedded Services | Bandwidth Management, Data Editor, Modbus TCP Messaging, Rack Viewer, SNMP |
| Number of Devices (Character/Modbus) | Up to 32 per segment |
| Point-to-Point Connections | 2 (Character Mode), 2 (Modbus) |
| Bus Length (Non-Isolated Serial Link) | Up to 10 m |
| Bus Length (Isolated Serial Link) | Up to 1000 m |
| Maximum Tap Length | Up to 15 m (Non-Isolated), 40 m (Isolated) |
| Address Range | 0–248 (Character Mode/Modbus) |
| Data Request Size | 1 KB (Character Mode), 252 Bytes (RTU), 504 Bytes (ASCII) |
| Memory Description | 4096 kB RAM (3584 kB Program/Symbols, 256 kB Data), BMXRMS008MP Card |
| Object Area – Maximum | 256 kB internal data, 32634 %Mi bits |
| Object Area – Default | 1024 %MWi, 256 %KWi, 512 %Mi |
| Task Structure | 1 Master Task, 1 Fast Task, 64 Event Tasks |
| Instruction Execution Time | 0.12 µs (Boolean), 0.17 µs (Double-Word), 0.25 µs (Word), 1.16 µs (Float) |
| Instructions per Millisecond | 8.1 Kinst/ms (Boolean), 6.4 Kinst/ms (Mixed) |
| System Overhead | 0.13 ms (Fast Task), 0.7 ms (Master Task) |
| Power Supply | Internal via Rack |
| Current Consumption | 95 mA @ 24 VDC |
| Status Indicators | RUN, ERR, I/O, CARD ERR, ETH ACT, ETH STS, ETH 100, SER COM |
| Dimensions | 104 x 100 x 33 mm |
| Weight | 0.205 kg |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Relative Humidity | 10–95% (non-condensing) |
| IP Protection | IP20 |
| Protective Treatment | TC |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Standards | EN 61131-2, IEC/EN/UL 61010-2-201, IEC 61850-3, IACS E10 |
| Environment Classification | Class I, Division 2 (Hazardous Location) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of controller platform does the BMXP342020 belong to?
A1: It is part of the Modicon M340 automation platform by Schneider Electric.
Q2: What is the maximum discrete I/O capacity supported?
A2: The module supports up to 1024 discrete I/O points in a multi-rack configuration.
Q3: How much memory is integrated into the processor?
A3: The processor includes 4096 kB internal RAM and supports an external memory card BMXRMS008MP.
Q4: What communication protocols are supported?
A4: It supports Modbus (RTU/ASCII), character mode (RS232C/RS485), USB, and Ethernet TCP/IP.
Q5: What is the execution time for a Boolean instruction?
A5: The execution time is 0.12 microseconds per Boolean instruction.
Q6: What environmental conditions can this processor operate in?
A6: Operating temperature ranges from 0 to 60 °C, and it tolerates 10–95% relative humidity without condensation.
Q7: What diagnostic capabilities does the module provide?
A7: It features diagnostic and event counters via Modbus for system monitoring.
Q8: Is the module suitable for hazardous environments?
A8: Yes, it is rated for Class I, Division 2 hazardous locations.
