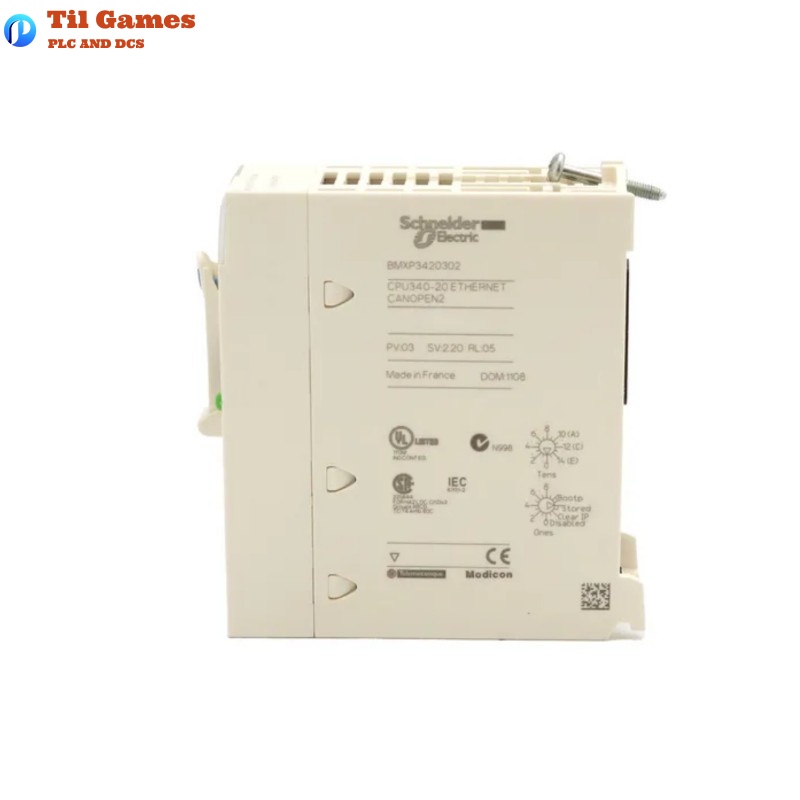

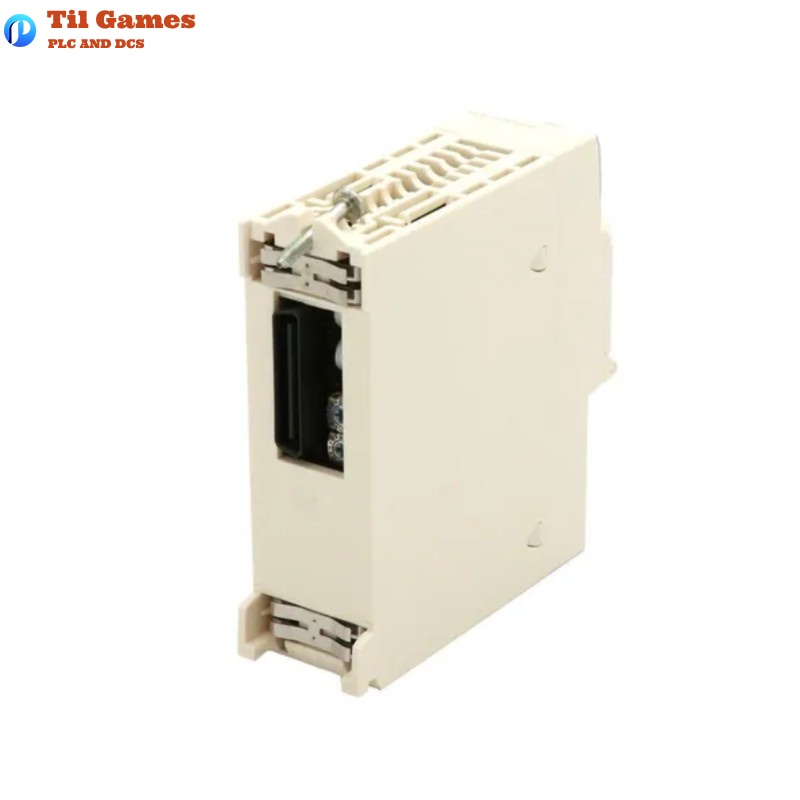

Technical Specifications
| Parameter Category | Specification Details |
|---|---|
| Range of Product | Modicon M340 Automation Platform |
| Product Type | Processor Module |
| Communication Support | USB, CANopen, Ethernet TCP/IP |
| Supported Racks | Up to 4 racks |
| Supported Slots | Up to 11 slots |
| Discrete I/O Capacity (Multi) | Up to 1024 I/O points |
| Discrete I/O Capacity (Single) | Up to 704 I/O points |
| Analog I/O Capacity (Multi) | Up to 256 I/O points |
| Analog I/O Capacity (Single) | Up to 66 I/O points |
| Application Specific Channels | 36 channels |
| Control Capabilities | Programmable loops, Motion control, Independent CANopen axes |

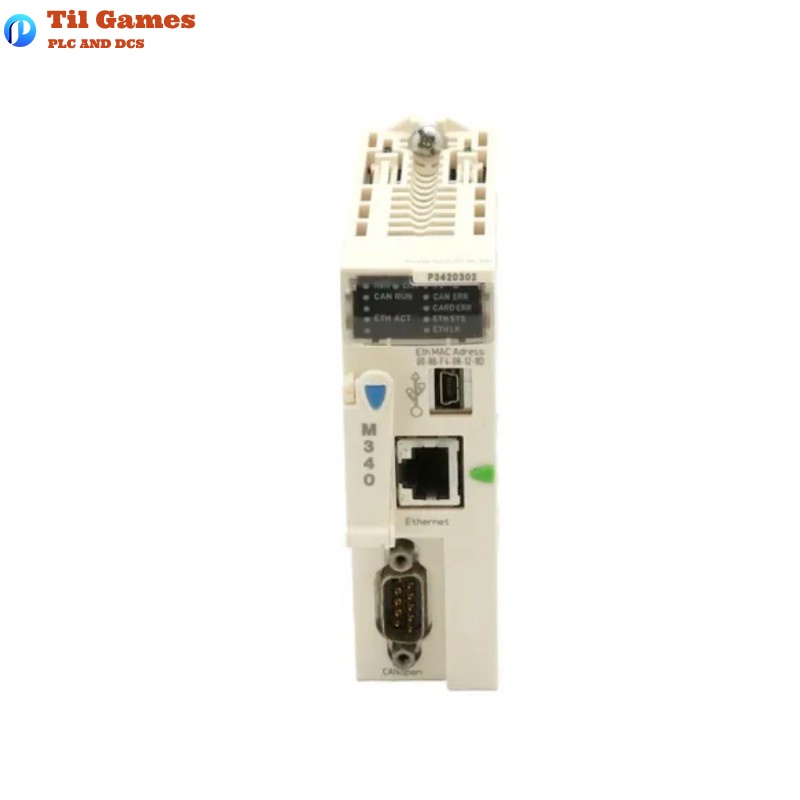

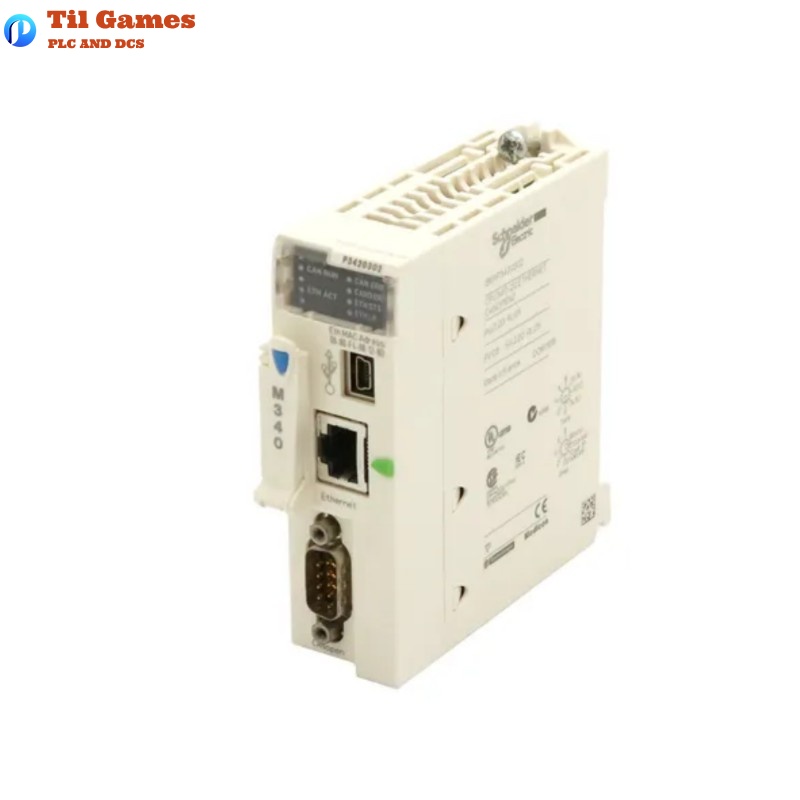

| Integrated Ports | USB (12 Mbit/s), CANopen Master SUB-D 9, Ethernet RJ45 (10/100 Mbit/s) |
| Communication Module Capacity | 2 Ethernet modules, 4 AS-Interface modules |
| Memory | 4096 KB RAM (3584 KB program, 256 KB data), BMXRMS008MP memory card supplied |
| Object Area Default Size | 1024 %MWi, 256 %KWi, 512 %Mi |
| Object Area Max Size | 256 KB unlocated data, 32634 %Mi |
| Execution Time per Instruction | Boolean: 0.12 µs; Word: 0.25 µs; Double Word: 0.17 µs; Float: 1.16 µs |
| Instruction Execution Rate | 6.4 Kinst/ms (65% Boolean + 35% Arithmetic), 8.1 Kinst/ms (Boolean) |
| System Overhead | 0.13 ms fast task; 0.7 ms master task |
| Current Consumption | 135 mA at 24 V DC |
| Power Supply | Internal via rack |
| Status LEDs | Green (ETH ACT, CAN RUN, RUN, ETH STS), Red (ETH 100, I/O, CAN ERR, CARD ERR, ERR), Yellow (SER COM) |
| Ethernet Standard | 10BASE-T/100BASE-TX |
| CANopen Protocols | NMT, PDO, SDO, SYNC, EMCY, TIME |
| CANopen Devices Supported | Up to 63 devices |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Relative Humidity | 10–95%, non-condensing |
| Protection Rating | IP20 |
| Dimensions | 104 x 100 x 33 mm |
| Weight | 0.215 kg (0.474 lb) |
| Certifications and Standards | CE, UL, CSA, RCM, EAC, Marine, EN/IEC 61131-2, 61010-2-201, IACS E10, etc. |
| Protective Treatment | TC |
| Environment Rating | Suitable for Class I Division 2 hazardous locations |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the BMXP3420302 support multi-rack setups?
A1: Yes, it supports up to 4 racks with a total of 1024 discrete I/O points.
Q2: Is Ethernet connectivity built into the module?
A2: Yes, the module includes a built-in RJ45 Ethernet port supporting 10/100 Mbit/s.
Q3: Can BMXP3420302 control multiple devices over CANopen?
A3: Yes, it supports up to 63 CANopen slave devices as a master.
Q4: Is the internal memory sufficient for complex programs?
A4: Yes, it offers 4096 KB total RAM, with 3584 KB for programs and constants.
Q5: Does it support floating point operations?
A5: Yes, with a floating point instruction execution time of 1.16 µs.
Q6: Can programs be downloaded via USB?
A6: Yes, it features a 12 Mbit/s USB port for programming and diagnostics.
Q7: Are there diagnostic LEDs on the module?
A7: Yes, multiple LEDs indicate status for Ethernet, CANopen, I/O, memory, and system.
Q8: Is the module suitable for industrial environments?
A8: Yes, it has IP20 protection and multiple industrial certifications for harsh conditions.
