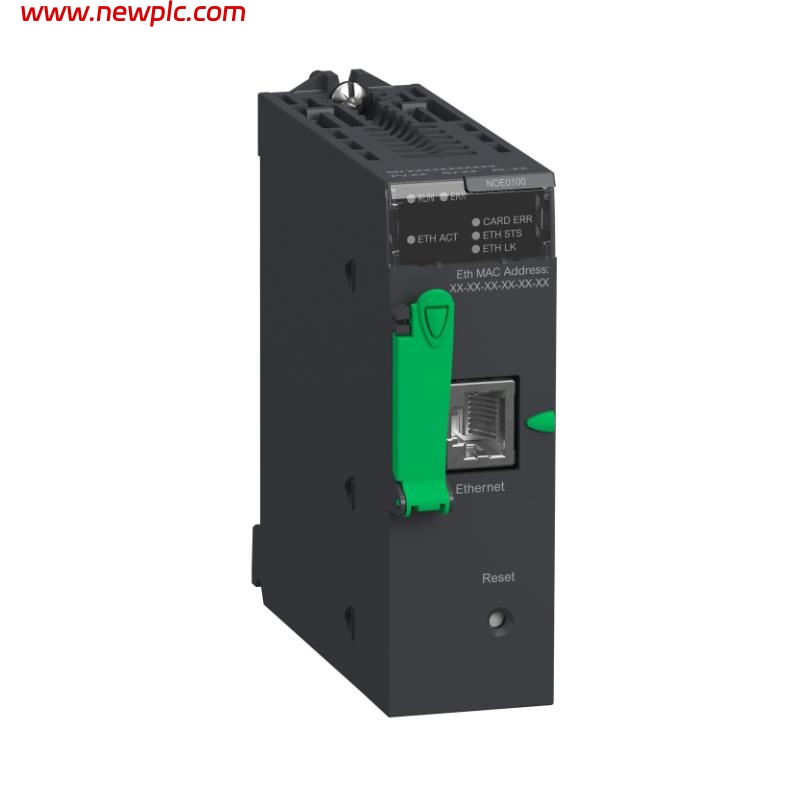

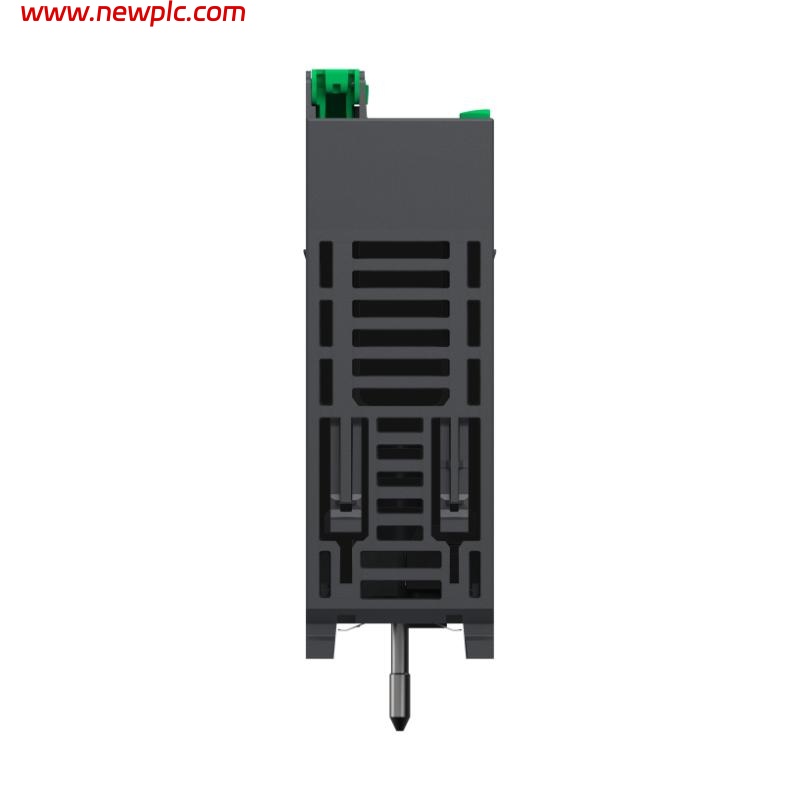

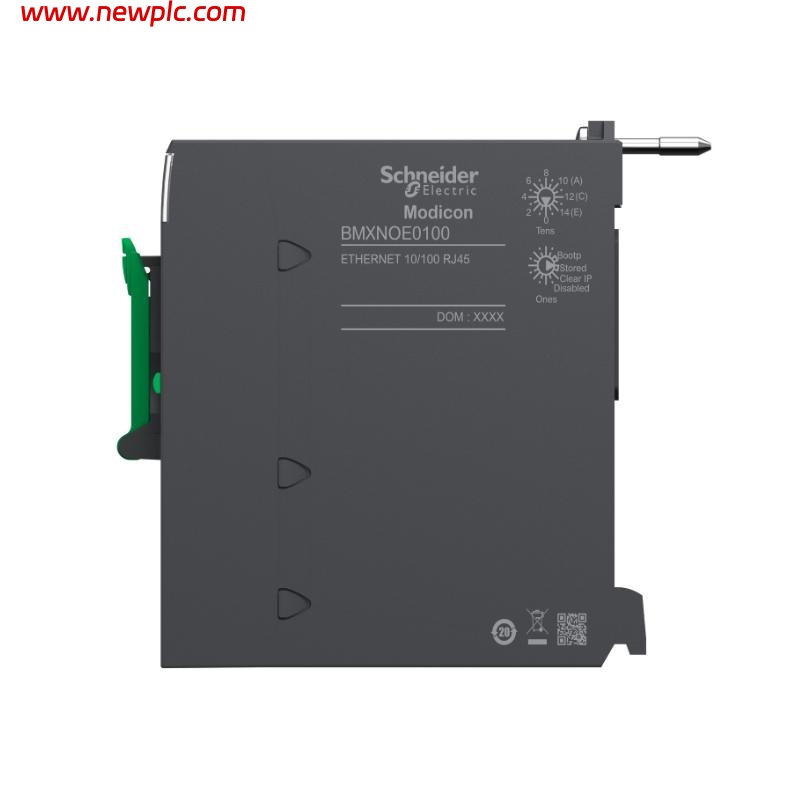

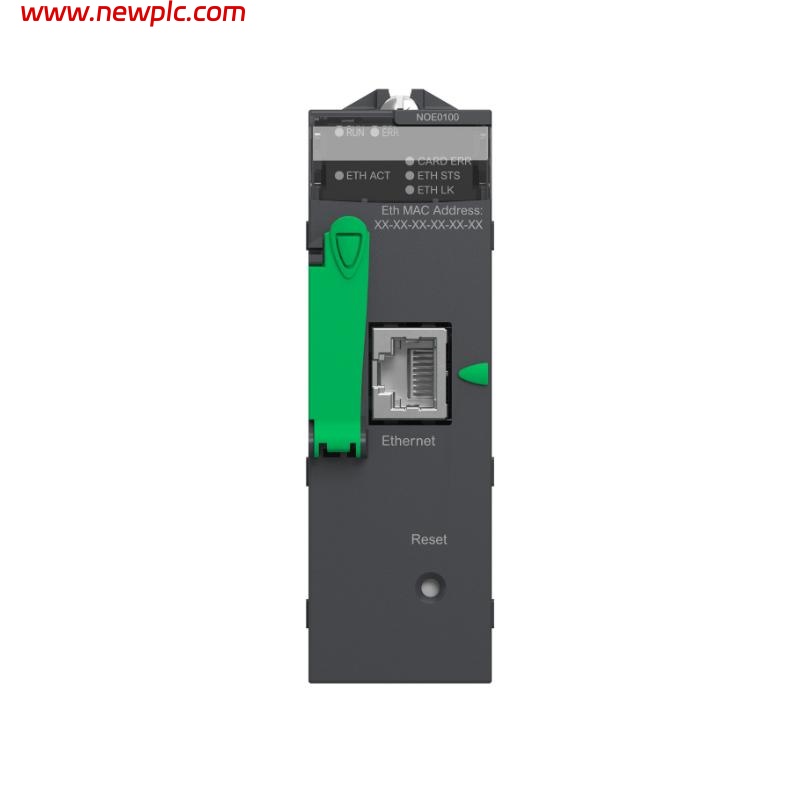

Schneider BMXNOE0100 Ethernet TCP/IP Network Module

FAQ

Q1: What is the function of the Schneider BMXNOE0100 module?
A1: It enables Ethernet TCP/IP network communication for Modicon PLCs, allowing data exchange with other devices and systems.

Q2: Which controllers are compatible with this module?
A2: The BMXNOE0100 is compatible with Modicon M340, M580, and Premium PLC platforms.

Q3: What communication protocols does it support?
A3: It supports Modbus TCP, HTTP, FTP, and SNMP protocols.

Q4: How many Ethernet connections can it handle simultaneously?
A4: It can manage up to 32 simultaneous Ethernet connections.

Q5: Does it require an external power supply?
A5: No, it draws power directly from the PLC backplane.

Q6: How is the module configured?
A6: Configuration and diagnostics are performed via a built-in web server accessible through a standard web browser.

Q7: What are the dimensions and weight of the module?
A7: The module measures 104 x 100 x 33 mm and weighs is 0.2 kg.

Q8: In what environments can it operate?
A8: It operates in temperatures from 0°C to +60°C and humidity up to 95%, non-condensing.

BMXNOE0100 Ethernet TCP/IP Network Module Schneider
