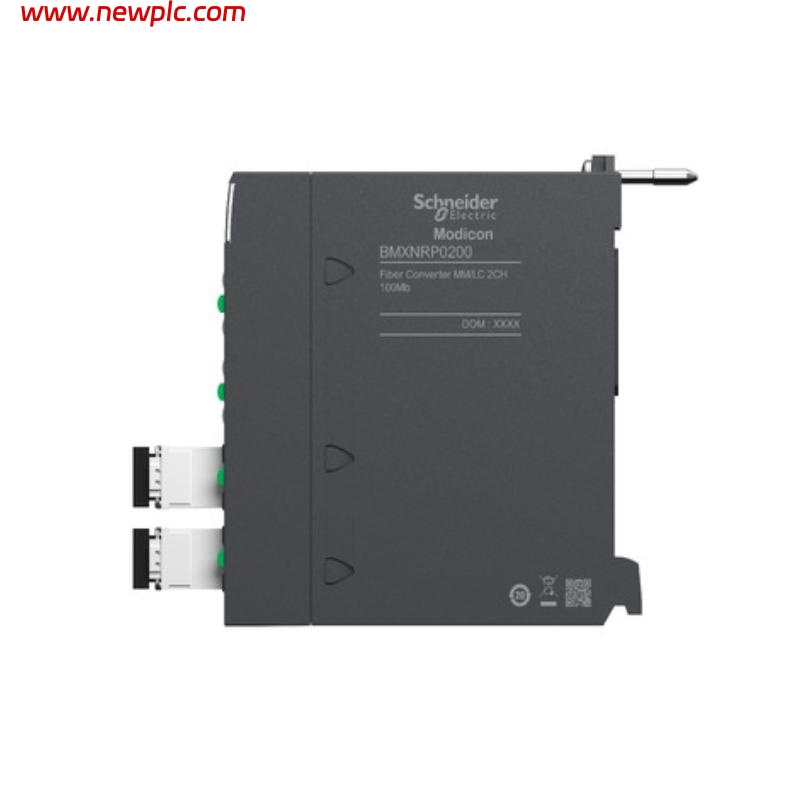

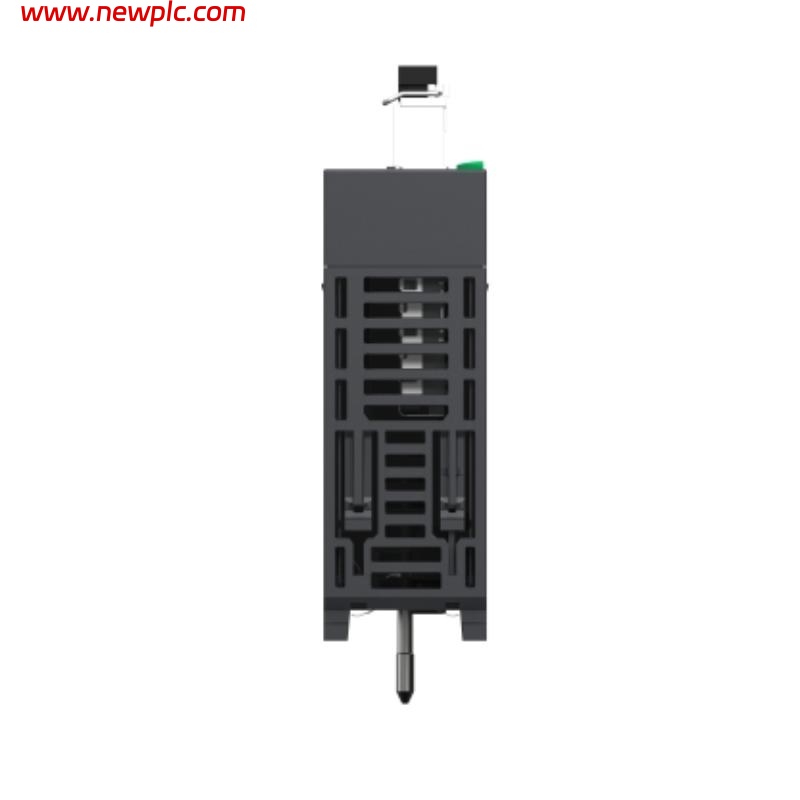

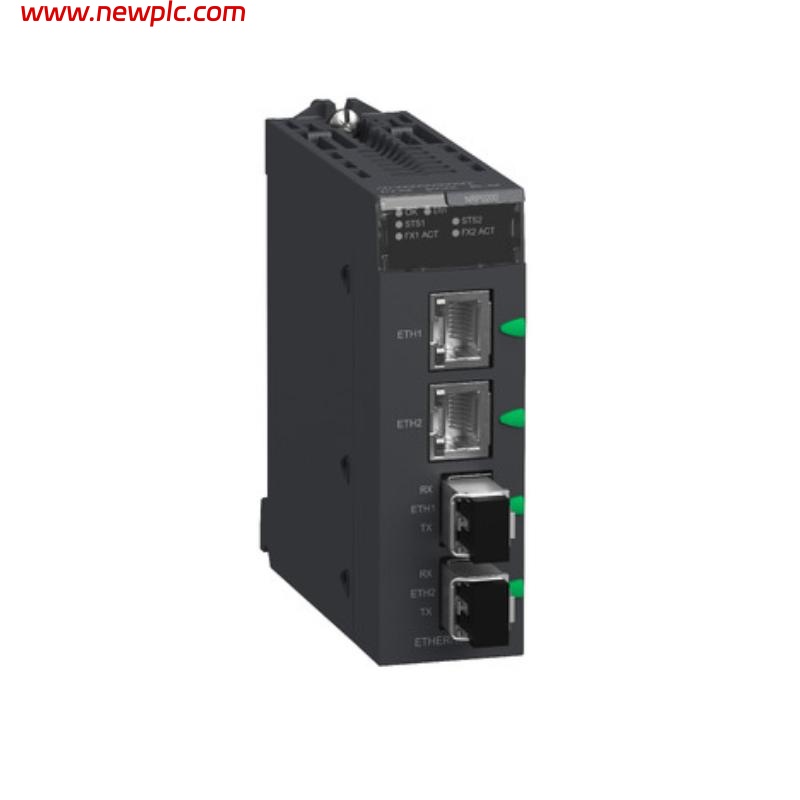

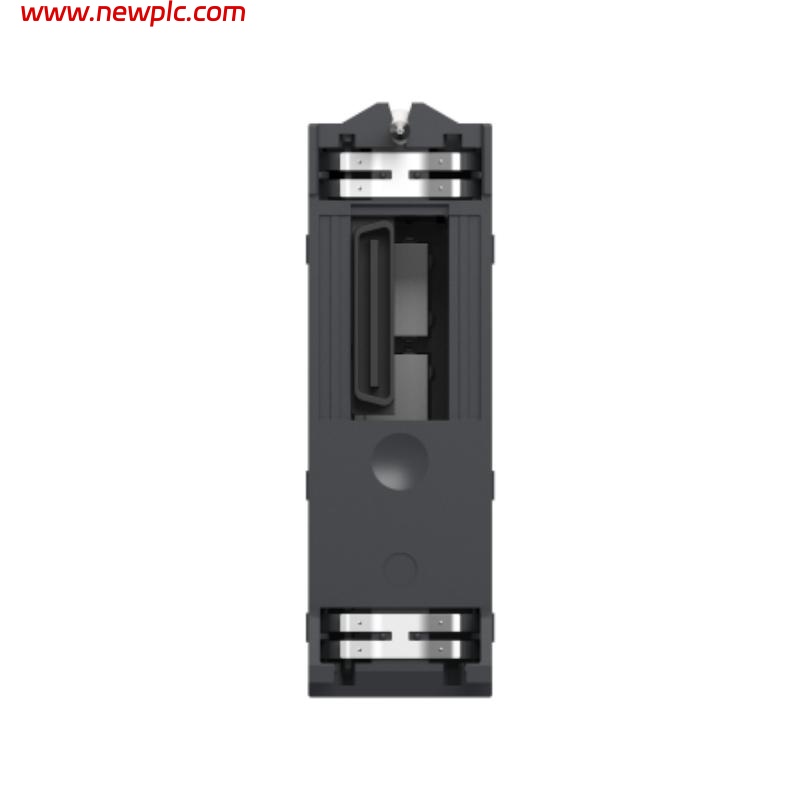

Schneider BMXNRP0200 Fiber Optic Converters

FAQ

Q1: What type of module is the Schneider BMXNRP0200?
A1: The BMXNRP0200 is a fiber optic converter module from Schneider Electric’s Modicon X80 series, designed to convert Ethernet signals to fiber optic signals for long-distance data transmission.

Q2: What fiber types does it support?
A2: The module supports multimode fiber with LC connectors.

Q3: How many Ethernet and fiber optic ports does the module provide?
A3: The module provides 2 RJ45 100BASE-TX Ethernet ports and 2 fiber optic 100BASE-FX ports.

Q4: What is the maximum transmission distance?
A4: The maximum transmission distance is up to 2000 meters, depending on the type and quality of the fiber used.

Q5: What are the power requirements for the module?
A5: The module operates at a rated voltage of 24 V DC, with a typical current of 140 mA and a maximum current of 200 mA.

Q6: What are the operating and storage temperature ranges?
A6: The operating temperature range is from 0°C to +60°C, and the storage temperature range is from -40°C to +85°C.

Q7: How is the module installed?
A7: The module supports hot swapping and can be installed on Modicon X80 series controllers, facilitating easy replacement and maintenance in the field.

Q8: What certifications does the module comply with?
A8: The module complies with CE, UL, CSA, ATEX, and IECEx certifications, making it suitable for industrial applications worldwide.

BMXNRP0200 Fiber Optic Converters Schneider
