Technical Specifications
| Parameter | Description |
|---|---|

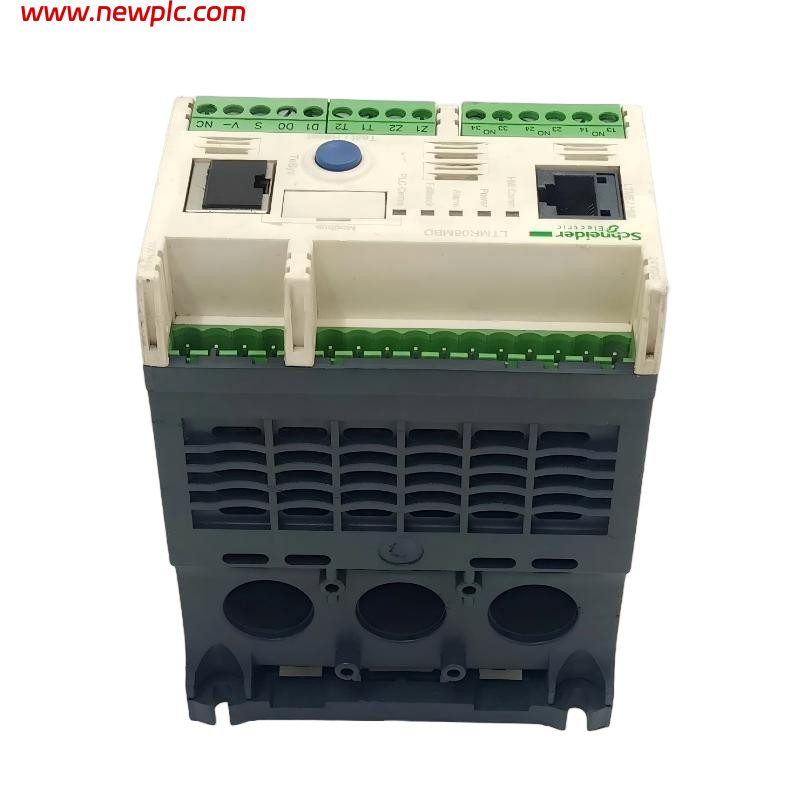

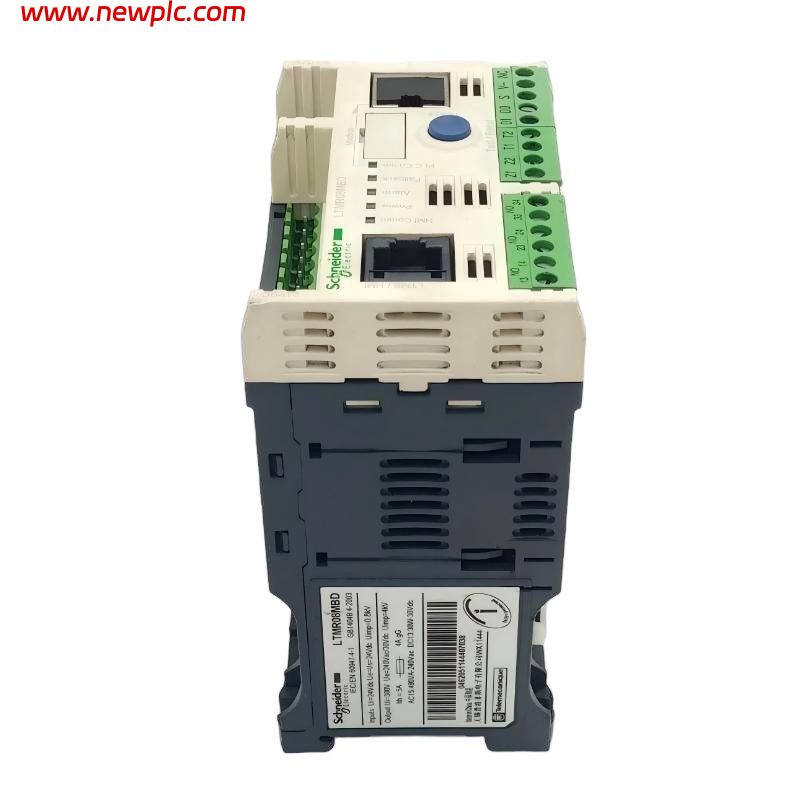

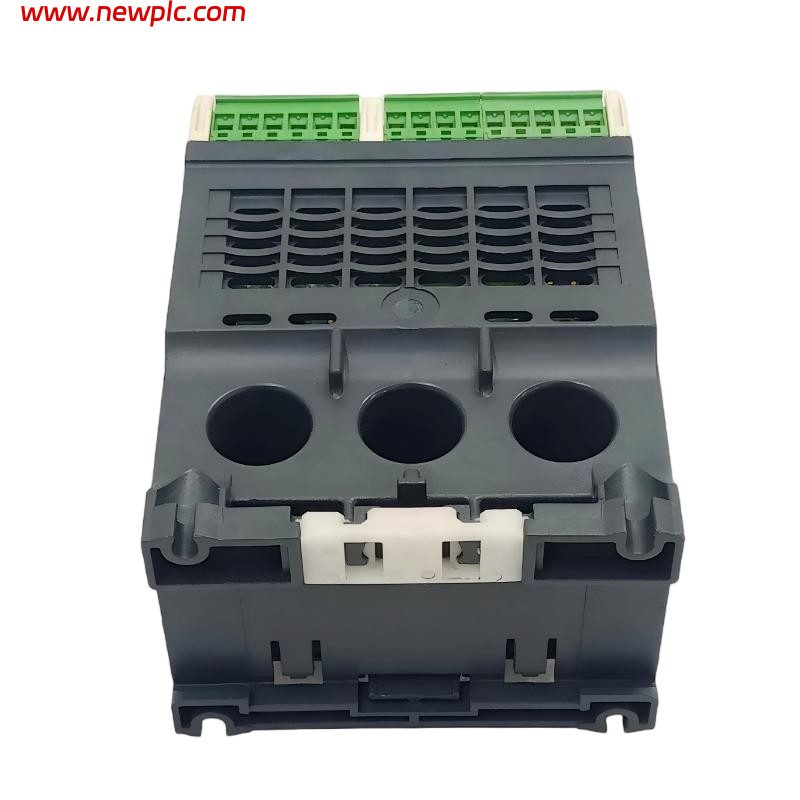

| Product Model | Schneider Electric LTMR08MBD |
| Manufacturer | Schneider Electric |
| Product Series | TeSys T |
| Product Type | Motor Management Controller |
| Application | Motor monitoring, protection and control |
| Motor Current Range | 0.4–8 A |
| Rated Control Supply | 24 VDC |
| Supply Voltage Range | 20.4–26.24 VDC |
| Communication | Modbus RTU |
| Communication Interface | RS485 |
| Communication Connector | RJ45 / terminal block |
| Digital Inputs | 6 |
| Relay Outputs | 3 logic relay outputs |
| Additional Contacts | 1 NC + 4 NO auxiliary contacts |
| Electronic Outputs | 3 |
| Current Measurement | Phase current, average current, imbalance current |
| Earth-Fault Detection | Yes |
| Temperature Monitoring | Yes |
| Motor Protection | Overload, phase loss, phase imbalance, locked rotor, thermal protection, earth leakage and load fluctuation |
| Power Monitoring | Active power, reactive power and power factor |
| Short-Circuit Withstand | Up to 100 kA |
| Protection Rating | IP20 |
| Mounting | DIN rail / mounting plate |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Maximum Operating Altitude | 2000 m without derating |
| Dimensions | 91 × 61 × 122.5 mm (W × H × D) |
| Product Weight | Approx. 0.53 kg |
| Package Dimensions | Approx. 100 × 72 × 136 mm |
| Package Weight | Approx. 0.515 kg |
FAQ
FAQ
Q1: What is the Schneider Electric LTMR08MBD used for?
A: It is a TeSys T motor management controller used for monitoring, protection and control of industrial motors.
Q2: What motor current range does the LTMR08MBD support?
A: It supports an adjustable motor current range of 0.4–8 A.
Q3: What power supply does the LTMR08MBD require?
A: It requires a 24 VDC control supply, with a specified range of approximately 20.4–26.24 VDC.
Q4: Does the LTMR08MBD support Modbus communication?
A: Yes. It supports Modbus RTU over RS485, with RJ45 and terminal-block connection options.
Q5: How many digital inputs does the LTMR08MBD have?
A: It provides 6 logic inputs for motor control and monitoring functions.
Q6: What motor protection functions are available?
A: Protection includes overload, thermal overload, phase failure, phase imbalance, locked rotor, earth leakage, load fluctuation and power-factor-related monitoring.
Q7: What are the dimensions and weight of the LTMR08MBD?
A: The controller measures approximately 91 × 61 × 122.5 mm (W × H × D) and weighs approximately 0.53 kg.
Q8: Is the LTMR08MBD still available?
A: Schneider Electric currently lists the model as scheduled for discontinuation on September 30, 2026, with end of standard service on January 31, 2027. No direct replacement is currently listed by Schneider Electric.
