Technical Specifications
| Parameter | Description |
|---|---|

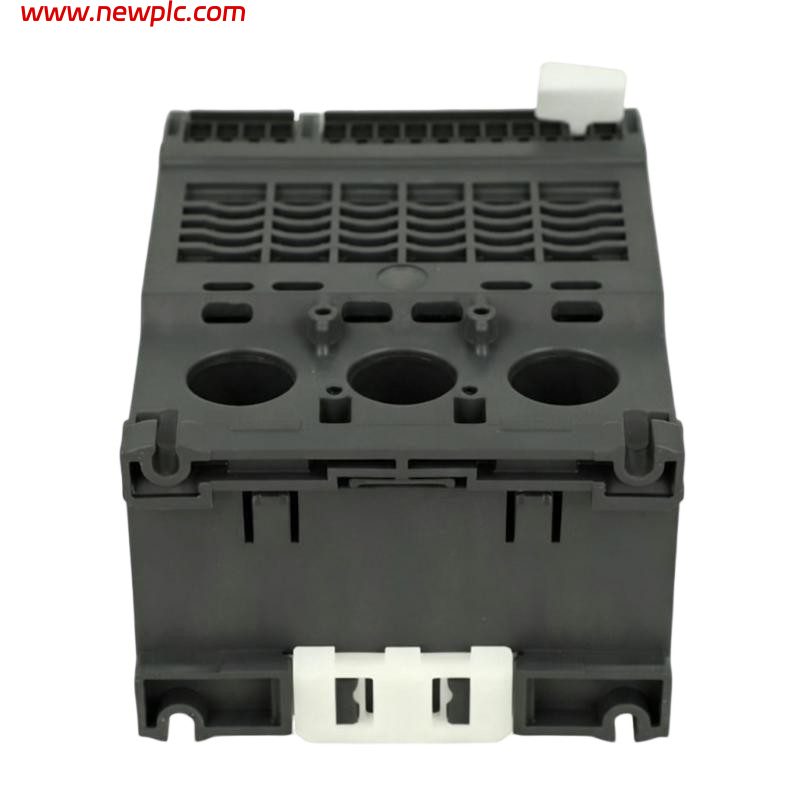

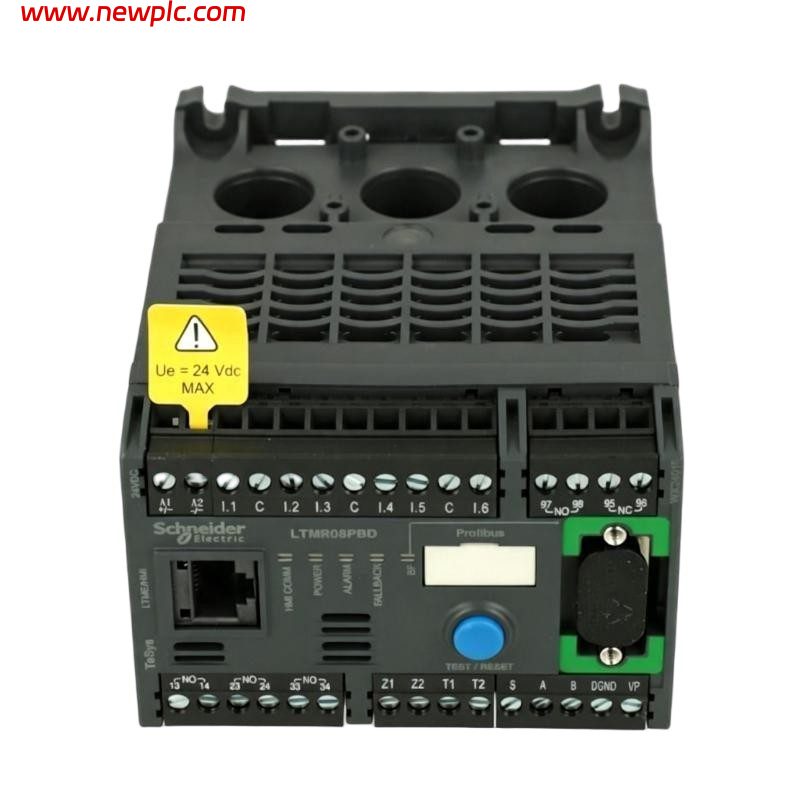

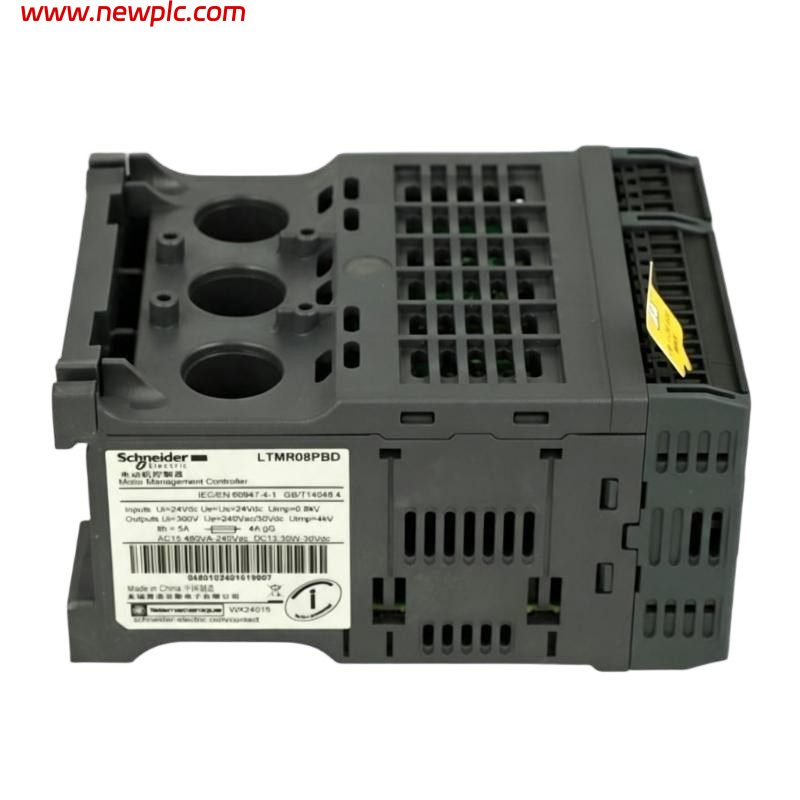

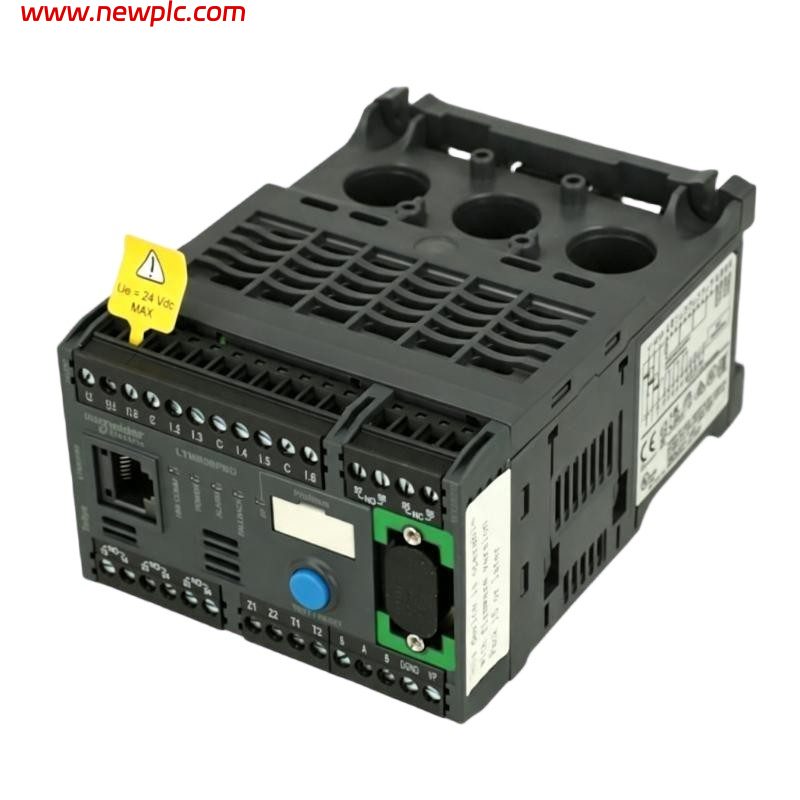

| Product Model | Schneider Electric LTMR08PBD |
| Manufacturer | Schneider Electric |
| Product Series | TeSys T |
| Product Type | Motor Management Controller |
| Application | Motor monitoring, protection and control |
| Motor Current Range | 0.4–8 A |
| Rated Control Supply | 24 VDC |
| Supply Voltage Range | 20.4–26.24 VDC |
| Current Consumption | 56–127 mA |
| Communication Protocol | PROFIBUS DP |
| Communication Interface | PROFIBUS DP / RS485 |
| PROFIBUS Address | 1–125 |
| Transmission Rate | 9.6 kbit/s–12 Mbit/s |
| PROFIBUS Connector | SUB-D 9-pin / terminal block |
| Digital Inputs | 6 |
| Relay Logic Outputs | 3 |
| Auxiliary Contacts | 1 NC + 4 NO |
| Motor Protection | Overload, thermal, phase loss, phase imbalance, locked rotor, earth leakage |
| Current Measurement | Phase current, average current and current imbalance |
| Thermal Protection | Yes |
| Earth-Leakage Protection | Yes |
| Reverse-Polarity Protection | Yes |
| Short-Circuit Withstand | 100 kA |
| Rated Insulation Voltage | 690 V |
| Mounting | DIN rail / mounting plate |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Dimensions | 91 × 61 × 122.5 mm (W × H × D) |
| Product Weight | Approx. 0.53 kg |
FAQ
FAQ
Q1: What is the Schneider Electric LTMR08PBD used for?
A: It is a TeSys T motor management controller used for monitoring, protection and control of industrial motors.
Q2: What motor current range does the LTMR08PBD support?
A: It supports a motor measurement current range of 0.4–8 A.
Q3: What power supply does the LTMR08PBD require?
A: It requires a 24 VDC control supply, with a specified range of 20.4–26.24 VDC.
Q4: Does the LTMR08PBD support PROFIBUS?
A: Yes. It uses PROFIBUS DP over RS485, with transmission speeds from 9.6 kbit/s to 12 Mbit/s.
Q5: How many digital inputs and outputs does it have?
A: The LTMR08PBD provides 6 logic inputs and 3 relay logic outputs.
Q6: What motor protection functions are available?
A: Protection includes thermal overload, overload, phase failure, phase imbalance, locked rotor and earth-leakage protection, together with other diagnostic functions.
Q7: Is the LTMR08PBD different from the LTMR08MBD?
A: Yes. Both are TeSys T motor controllers for the 0.4–8 A range, but LTMR08PBD uses PROFIBUS DP, whereas LTMR08MBD uses Modbus communication.
Q8: What are the dimensions and weight of the LTMR08PBD?
A: The controller measures approximately 91 × 61 × 122.5 mm (W × H × D) and weighs approximately 0.53 kg.
