Technical Specifications
| Parameter | Description |
|---|---|

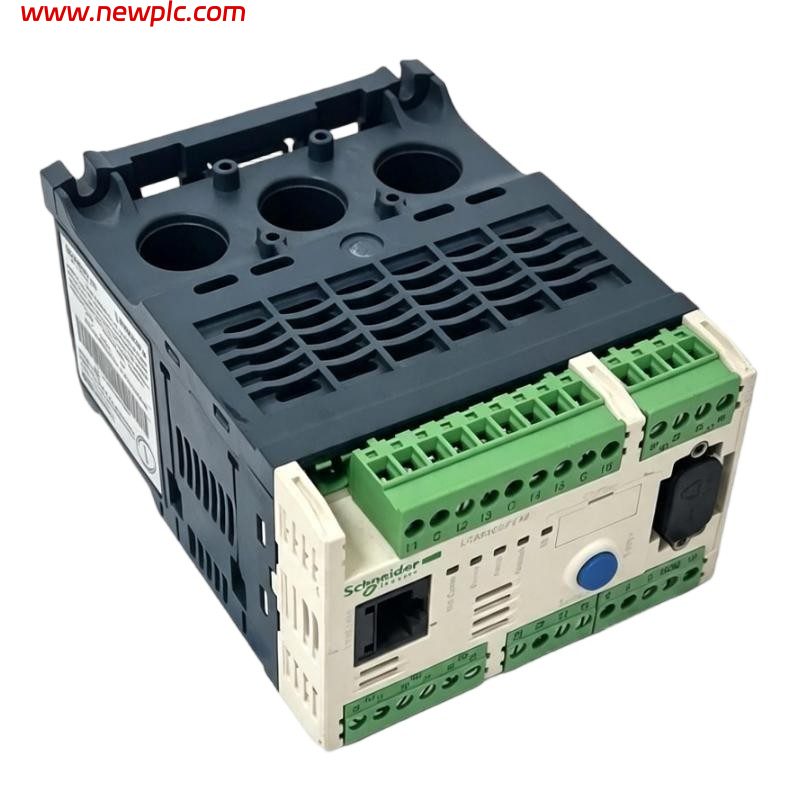

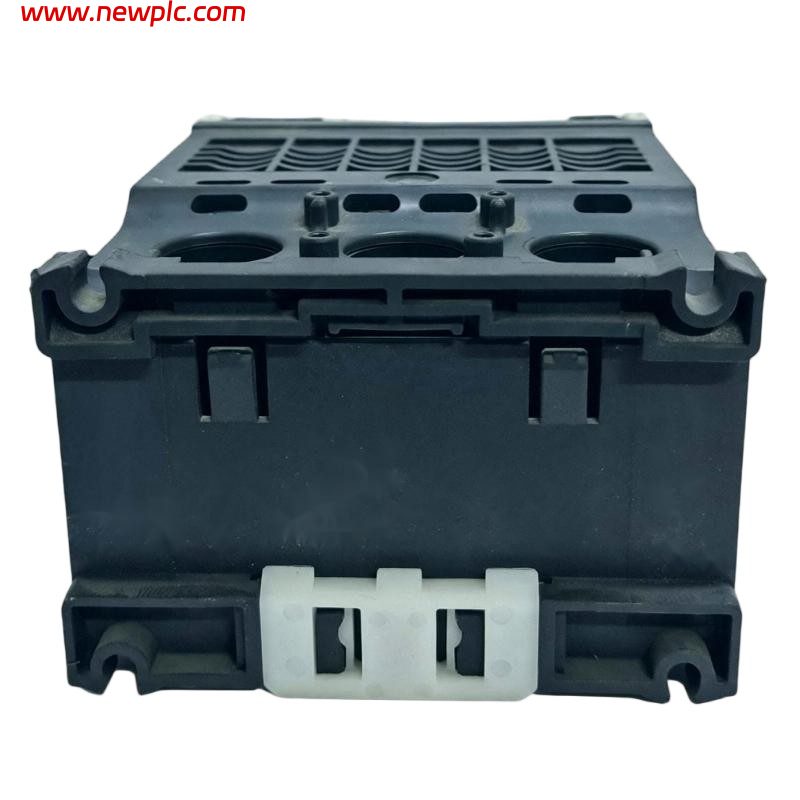

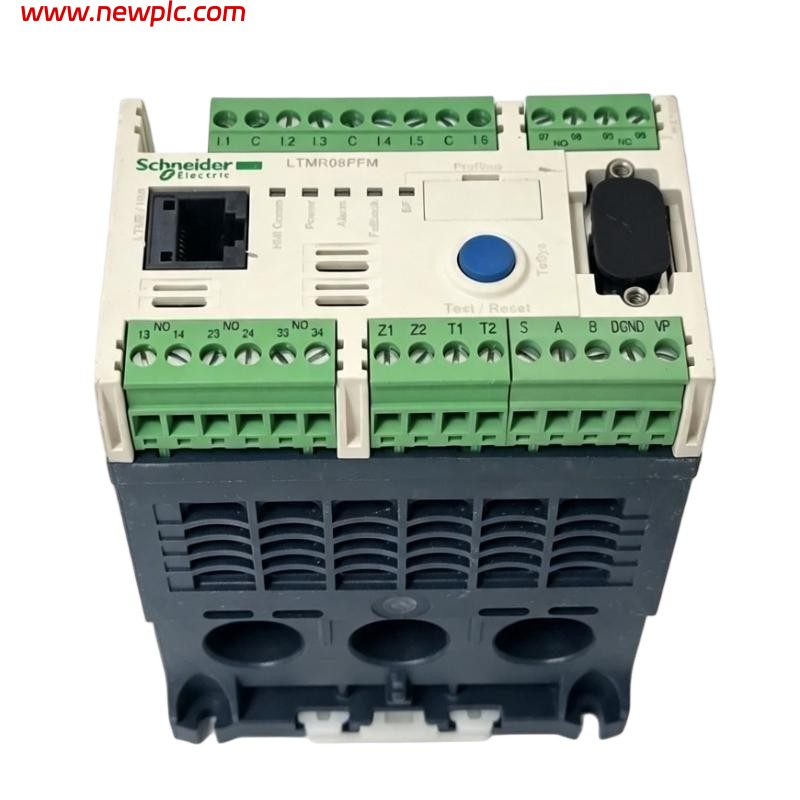

| Product Model | Schneider Electric LTMR08PFM |
| Manufacturer | Schneider Electric |
| Product Series | TeSys T |
| Product Type | Motor Management Controller |
| Application | Motor monitoring, protection and control |
| Motor Current Range | 0.4–8 A |
| Rated Supply Voltage | 100–240 VAC, 50/60 Hz |
| Supply Voltage Range | 93.5–264 VAC |
| Communication Protocol | PROFIBUS DP |
| Communication Interface | PROFIBUS DP / RS485 |
| PROFIBUS Address | 1–125 |
| Transmission Rate | 9.6 kbit/s–12 Mbit/s |
| Communication Connector | 9-pin SUB-D / terminal block |
| Digital Inputs | 6 |
| Logic Outputs | 3 |
| Fault Signaling Contacts | 1 NO + 1 NC |
| Additional NO Contacts | 3 |
| Output Rating | 5 A at 250 VAC / 5 A at 30 VDC |
| Rated Insulation Voltage | 690 V |
| Short-Circuit Withstand | 100 kA |
| Motor Protection | Overload, thermal overload, phase failure, phase imbalance, locked rotor, earth leakage |
| Monitoring Functions | Current, voltage, temperature, power factor, active/reactive power |
| Earth-Fault Protection | Yes |
| Reverse Polarity Protection | Yes |
| Mounting | DIN rail / mounting plate |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Dimensions | 91 × 61 × 122.5 mm (W × H × D) |
| Product Weight | Approx. 0.53 kg |
FAQ
FAQ
Q1: What is the Schneider Electric LTMR08PFM used for?
A: It is a TeSys T motor management controller used for monitoring, protection and control of industrial motors.
Q2: What motor current range does the LTMR08PFM support?
A: It supports a motor measurement-current range of 0.4–8 A.
Q3: What power supply does the LTMR08PFM require?
A: It requires 100–240 VAC, 50/60 Hz, with a permitted supply range of approximately 93.5–264 VAC.
Q4: Does the LTMR08PFM support PROFIBUS communication?
A: Yes. It uses PROFIBUS DP over a 2-wire RS485 interface, supporting addresses from 1 to 125 and transmission rates from 9.6 kbit/s to 12 Mbit/s.
Q5: How many digital inputs and outputs does it have?
A: The controller provides 6 logic inputs and 3 logic outputs. It also has 1 NO + 1 NC fault-signaling contact and 3 additional NO contacts.
Q6: What motor protection functions are available?
A: It supports thermal overload, overload, phase failure, phase imbalance, locked rotor, earth leakage, load fluctuation and power-factor variation monitoring/protection.
Q7: What is the difference between LTMR08PFM and LTMR08PBD?
A: Both are 0.4–8 A TeSys T PROFIBUS DP controllers, but the LTMR08PFM uses 100–240 VAC, whereas the LTMR08PBD uses 24 VDC.
Q8: What are the dimensions and weight of the LTMR08PFM?
A: The controller measures approximately 91 × 61 × 122.5 mm (W × H × D) and weighs approximately 0.53 kg.
