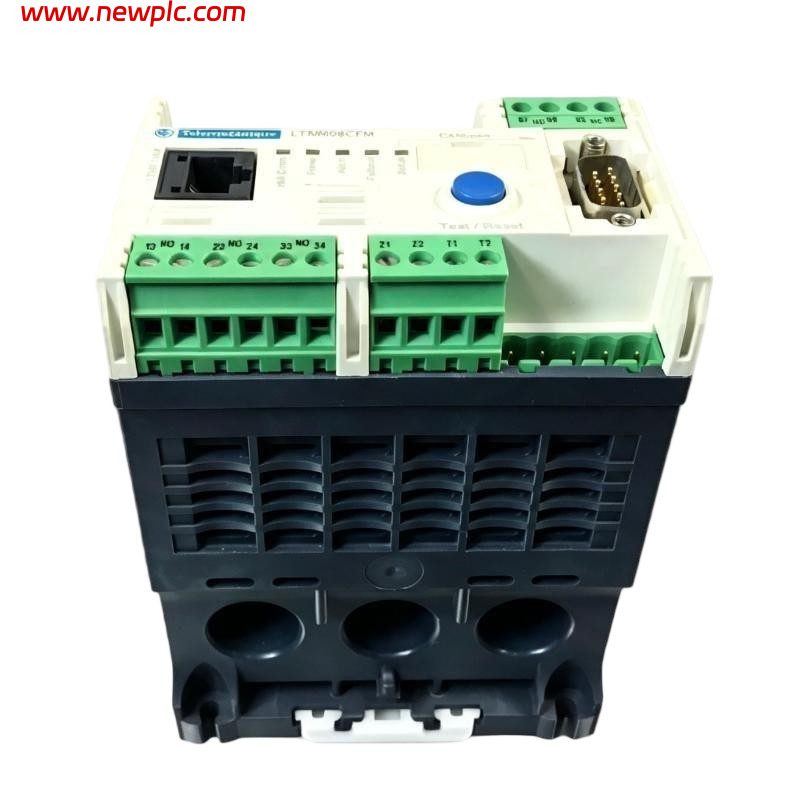

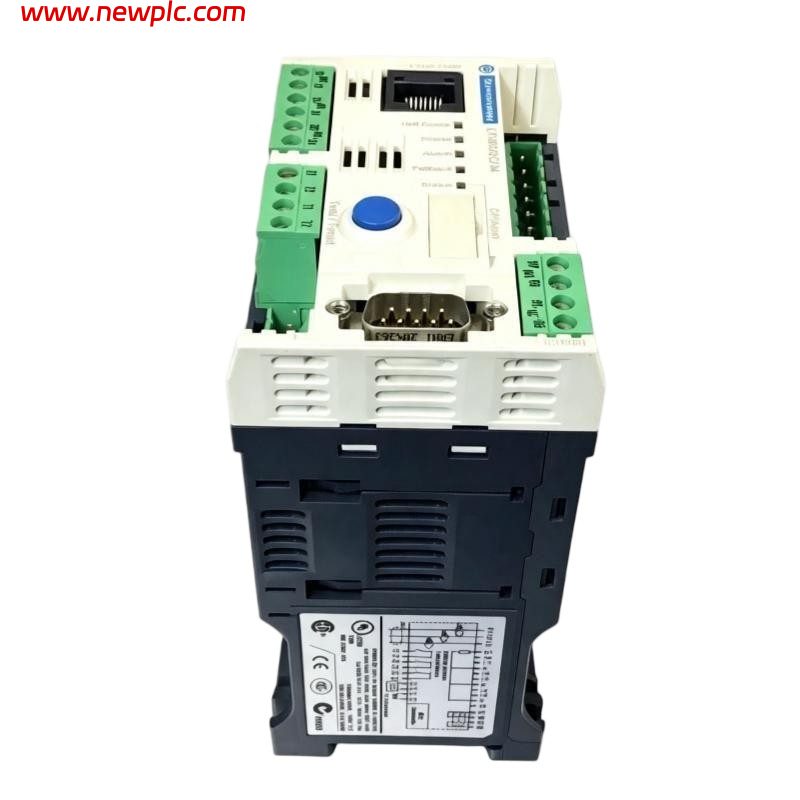

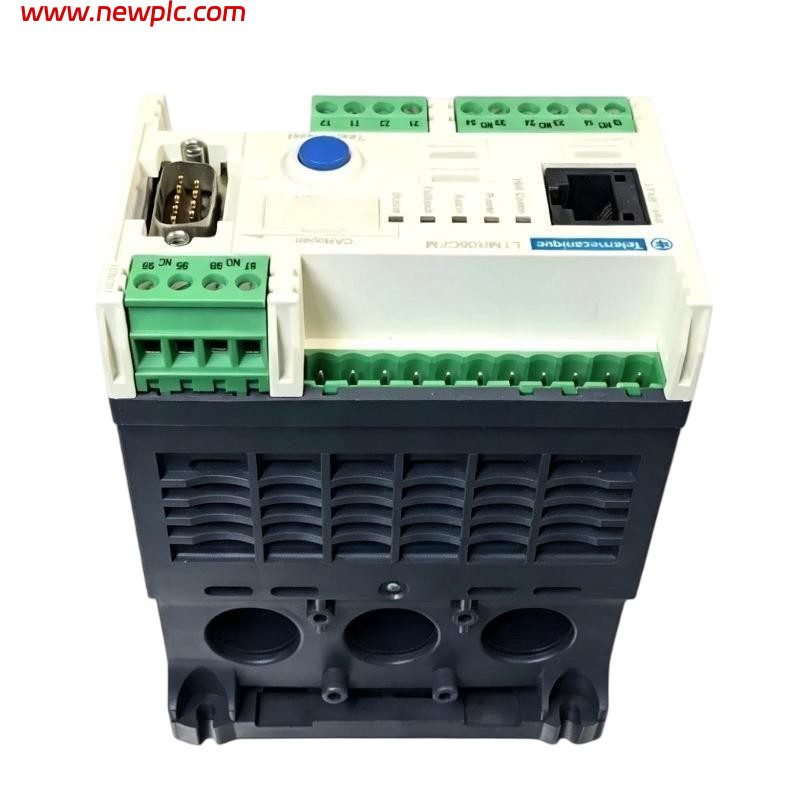

Schneider LTMR08CFM Motor Management Controller

FAQ

Q1: What is the Schneider Electric LTMR08CFM used for?
A: It is a TeSys T motor management controller used for monitoring, protection and control of industrial motors.

Q2: What motor current range does the LTMR08CFM support?
A: It supports a motor-current range of 0.4–8 A.

Q3: What power supply does the LTMR08CFM require?
A: It requires 100–240 VAC, 50/60 Hz, with a specified operating range of approximately 93.5–264 VAC.

Q4: Does the LTMR08CFM support CANopen communication?
A: Yes. The LTMR08CFM is specifically the CANopen version of the TeSys T motor controller.

Q5: How many digital inputs and outputs does it have?
A: It provides 6 digital/logic inputs and 3 relay logic outputs. It also has a total of 5 contact outputs according to supplier specifications.

Q6: What motor protection functions are available?
A: The controller provides motor protection and monitoring functions including overload, thermal protection, phase loss, phase imbalance, locked rotor and earth-fault monitoring.

Q7: What is the difference between LTMR08CFM and LTMR08PFM?
A: Both models use 100–240 VAC and support the 0.4–8 A motor-current range. The key difference is communication: LTMR08CFM uses CANopen, while LTMR08PFM uses PROFIBUS DP.

Q8: What are the dimensions and weight of the LTMR08CFM?
A: The controller measures approximately 91 × 61 × 122.5 mm (W × H × D) and weighs approximately 0.53 kg.

LTMR08CFM Schneider
