Technical Specifications
| Parameter | Description |
|---|---|

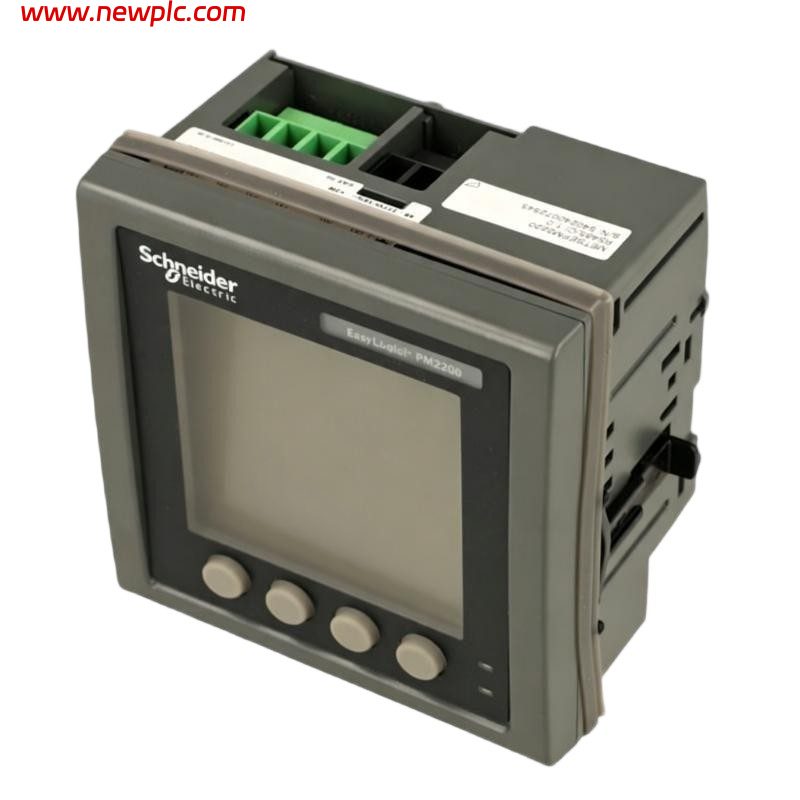

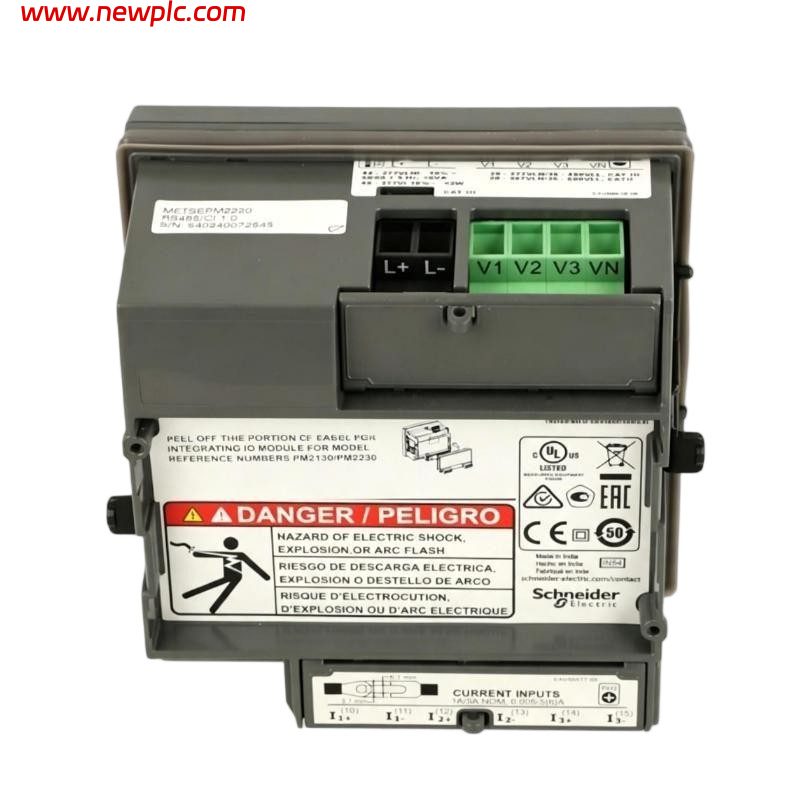

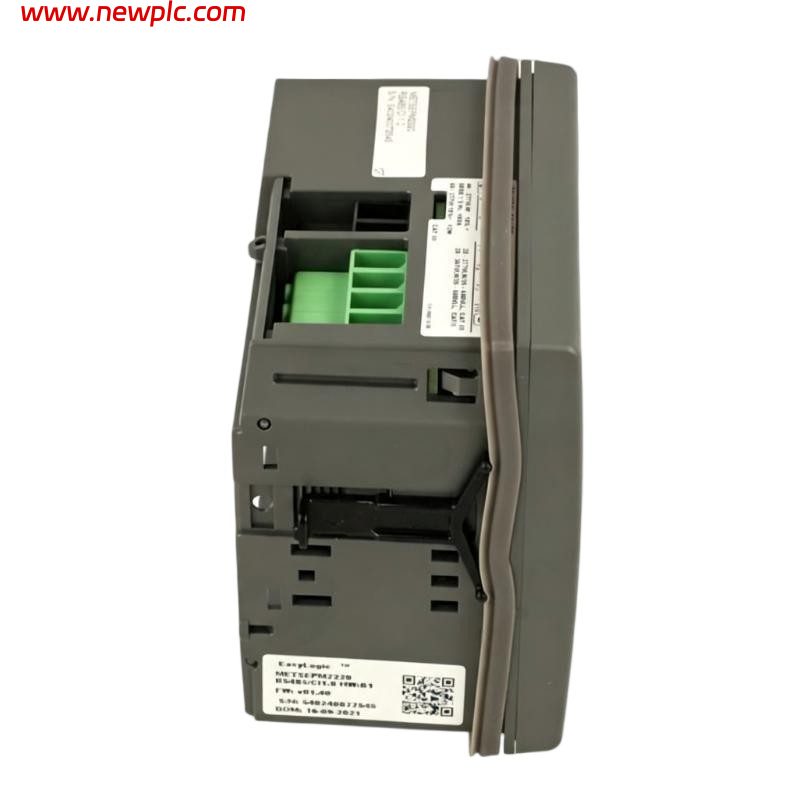

| Product Model | Schneider Electric METSEPM2220 |
| Manufacturer | Schneider Electric |
| Product Series | EasyLogic PM2000 / PM2200 |
| Product Type | Power & Energy Meter |
| Device Model | PM2220 |
| Application | Power monitoring, energy metering, sub-billing and power quality analysis |
| Measurement System | Single-phase / 2-phase / 3-phase |
| Current Input | 1 A or 5 A CT secondary |
| Voltage Measurement | Up to 480 V AC line-to-line |
| Voltage L-N | Up to 277 V AC |
| Frequency | 45–65 Hz |
| Accuracy Class | Class 1 active energy / Class 1 reactive energy |
| Active Energy Accuracy | ±1% |
| Reactive Energy Accuracy | ±1% |
| Voltage Accuracy | ±0.5% |
| Power Factor Accuracy | ±0.01 |
| Harmonic Measurement | Up to 15th harmonic |
| THD Measurement | Voltage and current THD |
| Sampling Rate | 64 samples/cycle |
| Display | Backlit LCD |
| Communication | RS485 |
| Communication Protocol | Modbus RTU |
| Communication Connection | Screw terminal |
| Rated Supply Voltage | 44–277 V AC/DC, depending on connection |
| Power Measurement | Active, reactive and apparent power |
| Energy Measurement | Active, reactive and apparent energy |
| Frequency Measurement | Yes |
| Current Measurement | Current per phase, average and minimum/maximum |
| Voltage Measurement | Phase-to-phase and phase-to-neutral |
| Power Factor | Per phase / total |
| Demand Measurement | Current and active/reactive/apparent power demand |
| Data Recording | Time-stamped data |
| Real-Time Clock | Yes |
| Min/Max Records | Up to 8 parameters |
| Alarm / Relay | 2 Form A relay outputs |
| Mounting | Panel / flush mounting |
| Panel Cutout | 90 × 90 mm |
| Front Dimensions | 96 × 96 mm |
| Total Depth | 76.09 mm |
| Embedded Depth | 61.64 mm |
| Front Protection | IP54 |
| Body Protection | IP30 |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Measurement Category | CAT III 480 V / CAT II 600 V |
| Dimensions | 96 × 96 × 76.09 mm (W × H × D) |
| Product Weight | Approx. 0.30 kg |
| Material | Polycarbonate |
FAQ
FAQ
Q1: What is the Schneider Electric METSEPM2220 used for?
A: It is an EasyLogic power and energy meter used for monitoring electrical parameters, energy consumption, sub-billing and power-quality analysis.
Q2: What electrical parameters can the METSEPM2220 measure?
A: It can measure voltage, current, active power, reactive power, apparent power, energy, frequency, power factor and harmonic distortion.
Q3: Does the METSEPM2220 support harmonic measurement?
A: Yes. It measures voltage and current THD and supports harmonic analysis up to the 15th harmonic.
Q4: What communication protocol does the METSEPM2220 use?
A: It provides RS485 communication using Modbus RTU, allowing connection to PLCs, SCADA systems and building or energy-management systems.
Q5: What current transformer inputs are supported?
A: The meter supports 1 A or 5 A CT secondary inputs.
Q6: What is the accuracy class of the METSEPM2220?
A: It provides Class 1 accuracy for active and reactive energy, with approximately ±0.5% voltage measurement accuracy.
Q7: What are the panel dimensions required for installation?
A: The front of the meter measures 96 × 96 mm, and the required panel cutout is approximately 90 × 90 mm.
Q8: What are the dimensions and weight of the METSEPM2220?
A: The meter measures approximately 96 × 96 × 76.09 mm (W × H × D) and weighs approximately 0.30 kg.
