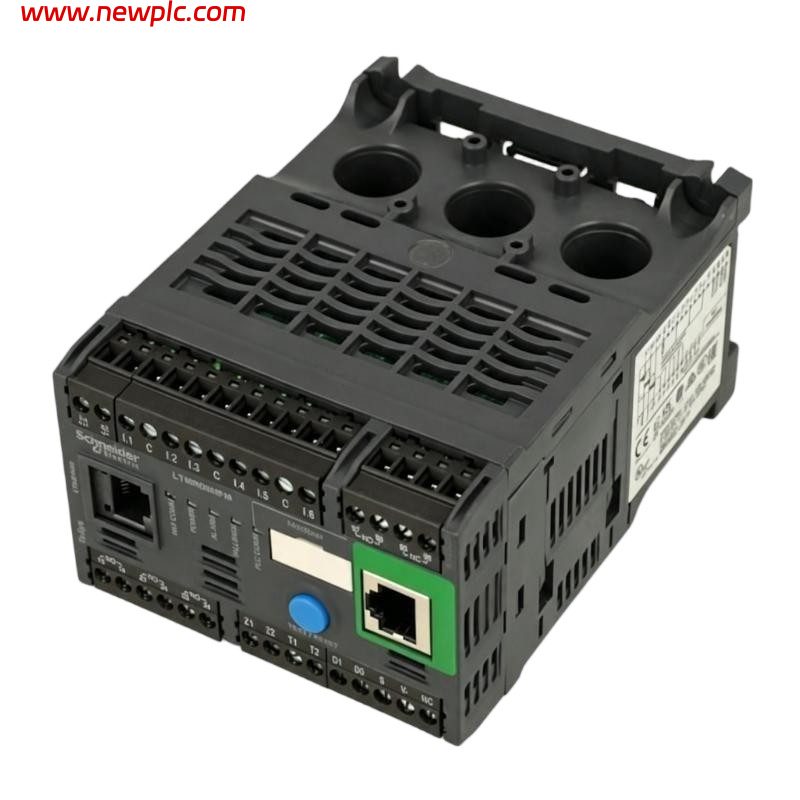

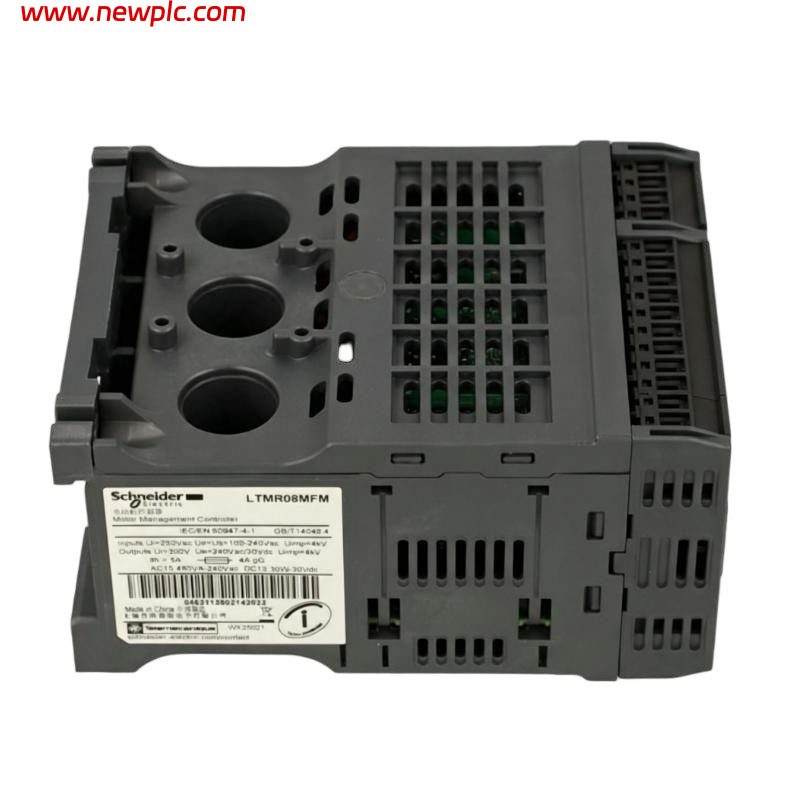

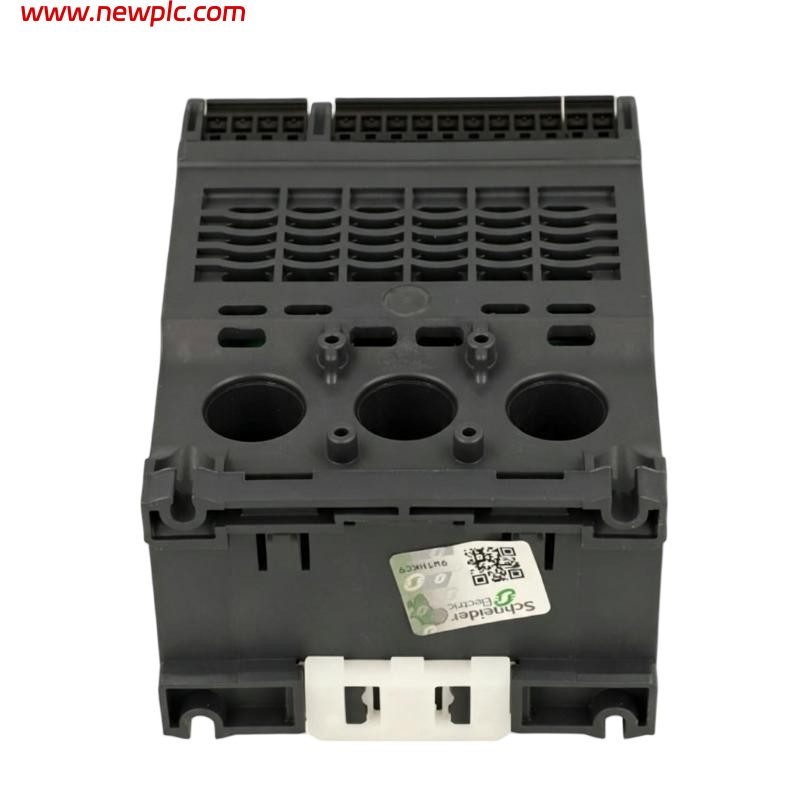

Schneider LTMR08MFM Motor Management Controller

FAQ

Q1: What is the Schneider Electric LTMR08MFM used for?
A: It is a TeSys T motor management controller used for monitoring, protection and control of industrial motors.

Q2: What motor current range does the LTMR08MFM support?
A: It supports a measurement-current range of 0.4–8 A.

Q3: What power supply does the LTMR08MFM require?
A: It requires 100–240 VAC, 50/60 Hz, with a supply operating range of approximately 93.5–264 VAC.

Q4: Does the LTMR08MFM support Modbus communication?
A: Yes. It supports Modbus RTU over 2-wire RS485, with addresses from 1–247 and communication speeds up to 19.2 kbit/s.

Q5: How many inputs and outputs does it have?
A: It provides 6 logic inputs and 3 relay logic outputs, with auxiliary contacts consisting of 4 NO and 1 NC.

Q6: What protection functions are available?
A: Protection includes overload, thermal overload, phase failure, phase imbalance, locked rotor, earth leakage, load fluctuation and power-factor variation.

Q7: Can the LTMR08MFM measure voltage, power and energy?
A: The basic controller primarily measures motor current and related motor conditions. An optional expansion module can add voltage, power and energy measurement.

Q8: What are the dimensions and weight of the LTMR08MFM?
A: The controller measures approximately 91 × 61 × 122.5 mm (W × H × D) and weighs approximately 0.52 kg.

LTMR08MFM Schneider
