Technical Specifications
| Item | Specification |
|---|---|

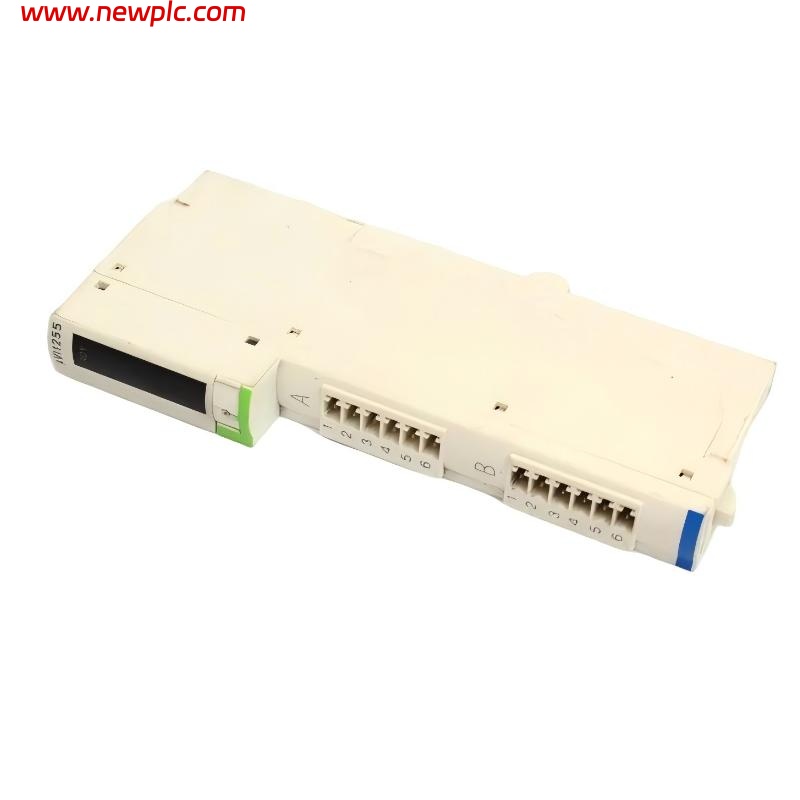

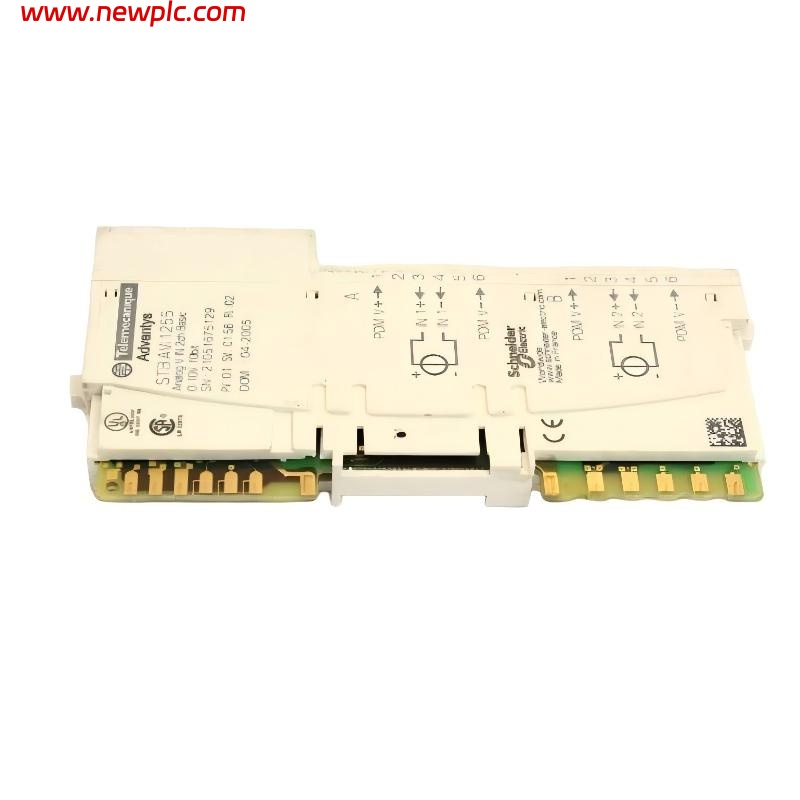

| Module Type | Basic Analog Input Module |
| Model | Schneider STBAVI1255 |
| Number of Input Channels | 2 analog inputs |
| Input Signal Type | Voltage / Current (depending on configuration) |
| Input Range | 0–10 V DC / 0–20 mA or 4–20 mA |
| Resolution | 12-bit |
| Conversion Type | Successive approximation |
| Sampling Time | Approx. 5 ms per channel |
| Accuracy | ±0.1% of full scale |
| Operating Voltage | 24 V DC |
| Power Consumption | Approx. 0.8 W |
| Isolation | Channel-to-bus isolation |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −25°C to 70°C |
| Dimensions | 70 x 18.4 x 128.3 mm |
| Weight | 0.116 kg |
FAQ
FAQ
Q1: What type of signals does the STBAVI1255 support?
A1: It supports both voltage and current analog input signals depending on the configuration.
Q2: Can this module be used in a mixed analog/digital I/O island?
A2: Yes, the STBAVI1255 is compatible with STB distributed I/O islands and can operate with other module types.
Q3: Does it offer channel-to-channel isolation?
A3: It provides channel-to-bus isolation, but channels share a common reference.
Q4: How accurate is the analog measurement?
A4: The module provides approximately ±0.1% full-scale accuracy under normal operating conditions.
Q5: What power supply does it require?
A5: It requires a 24 V DC supply sourced from the STB power distribution module.
Q6: Is calibration required during installation?
A6: No additional calibration is typically needed beyond standard system configuration.
Q7: What is the resolution of the analog conversion?
A7: It uses a 12-bit resolution A/D converter.
Q8: Can it work in high-temperature industrial environments?
A8: Yes, it supports an operating temperature range from 0°C to 60°C.
