Technical Specifications
| Parameter | Description |
|---|---|

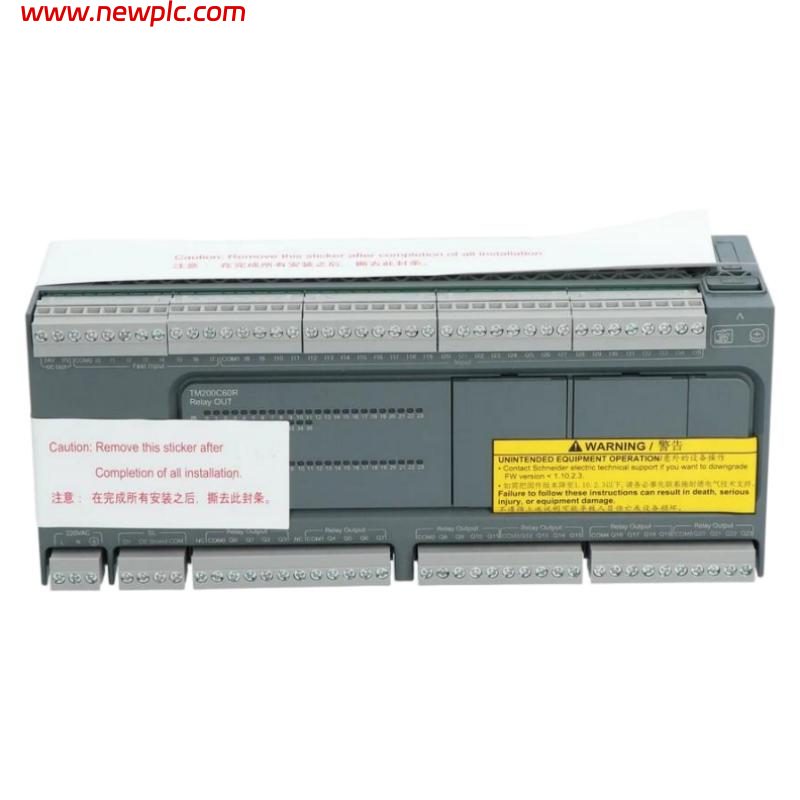

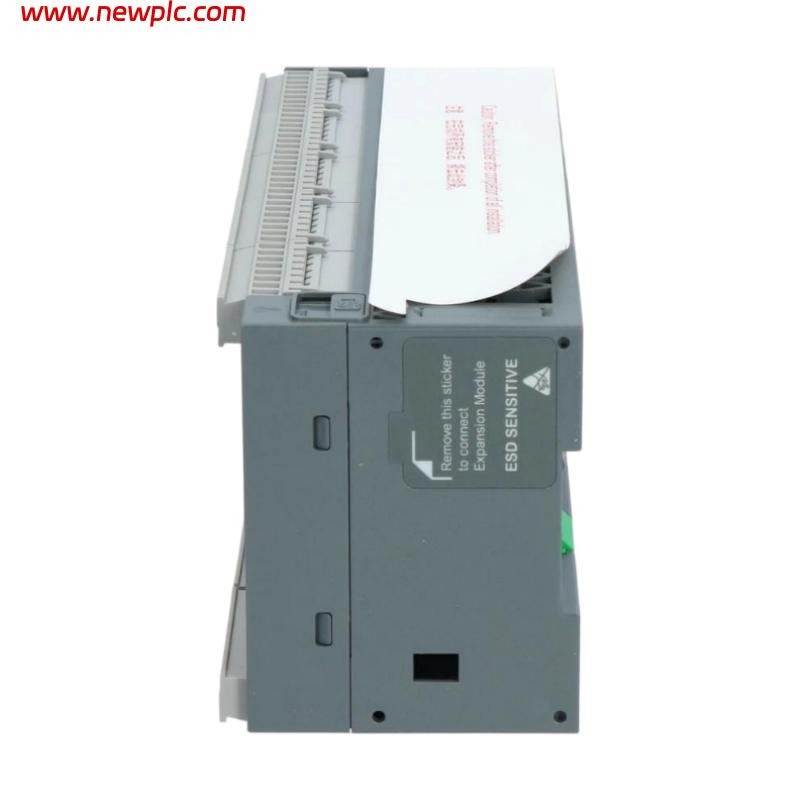

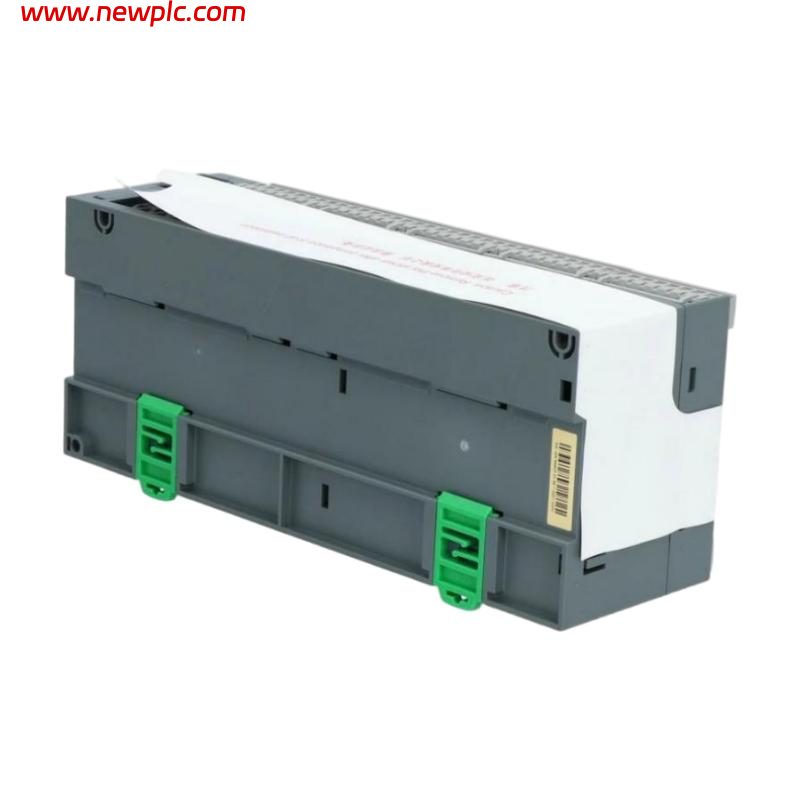

| Product Model | Schneider Electric TM200C60R |
| Manufacturer | Schneider Electric |
| Product Series | Easy Modicon M200 |
| Product Type | Compact Logic Controller (PLC) |
| Function | Programmable controller with integrated digital I/O for machine automation |
| Application | OEM machines, packaging lines, conveyors, assembly equipment, compact industrial automation systems |
| Power Supply | 100–240 VAC |
| Supply Voltage Range | 85–264 VAC |
| Frequency | 50/60 Hz |
| Total Digital I/O | 60 points |
| Digital Inputs | 36 inputs |
| Digital Outputs | 24 relay outputs |
| Input Voltage | 24 VDC |
| Input Type | Digital DC Input |
| Input Logic | Sink or Source (Positive/Negative Logic) |
| Input Standard | IEC 61131-2 Type 1 |
| Input Current | 7 mA per input |
| High-Speed Inputs | 4 channels (I0, I1, I6, I7) |
| Fast Inputs | 4 channels (I2–I5) |
| Regular Inputs | 28 channels (I8–I35) |
| Output Type | Relay Normally Open (NO) |
| Output Channels | 24 relay outputs |
| Output Voltage | 24 VDC / 220 VAC |
| Output Current | 2 A per output channel |
| Maximum Switching Voltage | 250 VAC / 30 VDC |
| Expansion Capability | Up to 4 TM3 expansion modules |
| Maximum I/O Capacity | Up to 196 I/O points |
| Motion Control | Supports up to 2-axis motion control |
| Communication Interface | Ethernet / Serial communication (depending on configuration) |
| Programming Interface | USB programming port |
| Memory Support | Micro SD card |
| Internal Memory | 512 KB flash memory |
| Power Consumption | 61–74 VA at 100–240 VAC (maximum I/O load) |
| Inrush Current | 50 A |
| Output Response Time | Approx. 10 ms ON/OFF |
| High-Speed Input Response Time | Approx. 5 μs |
| Fast Input Response Time | Approx. 35–100 μs |
| Protection Rating | IP20 |
| Installation | DIN rail mounting |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 225 × 70 × 90 mm (W × H × D) |
| Weight | Approx. 0.684 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM200C60R used for?
A: The TM200C60R is used for controlling larger compact automation systems, including packaging machines, production equipment, conveyors, and OEM machinery.
Q2: How many inputs and outputs does the TM200C60R have?
A: The PLC provides 60 digital I/O points, including 36 digital inputs and 24 relay outputs.
Q3: What type of outputs does the TM200C60R use?
A: The TM200C60R uses relay normally open outputs, supporting 24 VDC and 220 VAC loads, with a maximum output current of 2 A per channel.
Q4: What is the difference between TM200C60R and TM200C60T?
A: The TM200C60R uses relay outputs for flexible load control, while the TM200C60T uses transistor outputs for faster switching and pulse control applications.
Q5: Does the TM200C60R support high-speed inputs?
A: Yes. The controller includes 4 high-speed inputs and 4 fast inputs for applications such as high-speed counting and signal processing.
Q6: Can the TM200C60R be expanded with additional modules?
A: Yes. The controller supports up to 4 TM3 expansion modules, allowing additional I/O expansion for larger control systems.
Q7: Does the TM200C60R support motion control?
A: Yes. The Easy Modicon M200 series supports basic motion functions including up to 2-axis motion control.
Q8: What are the dimensions and weight of the TM200C60R?
A: The PLC dimensions are approximately 225 × 70 × 90 mm, with a weight of about 0.684 kg.
