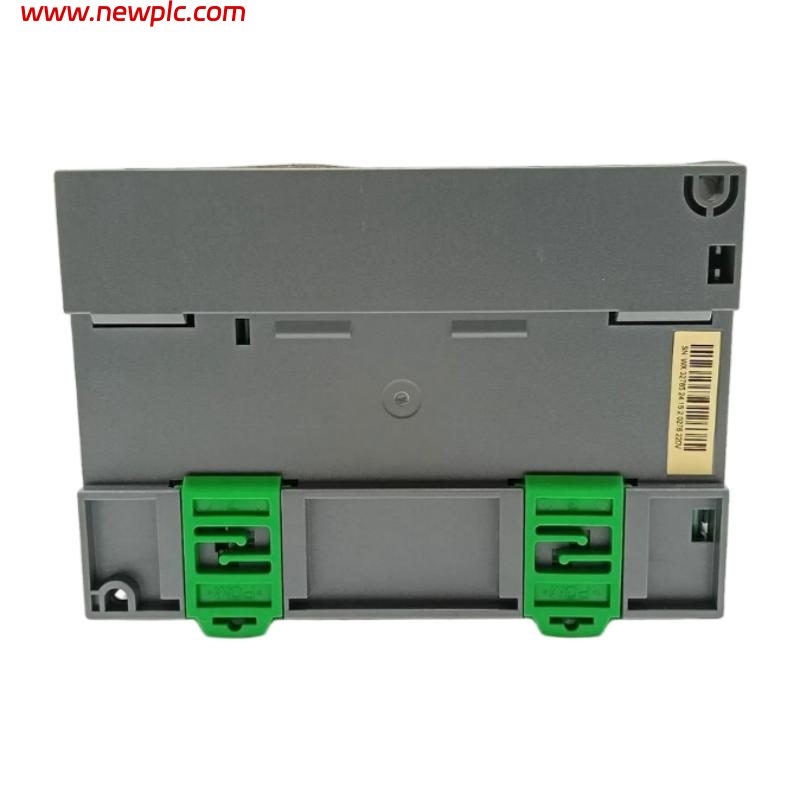

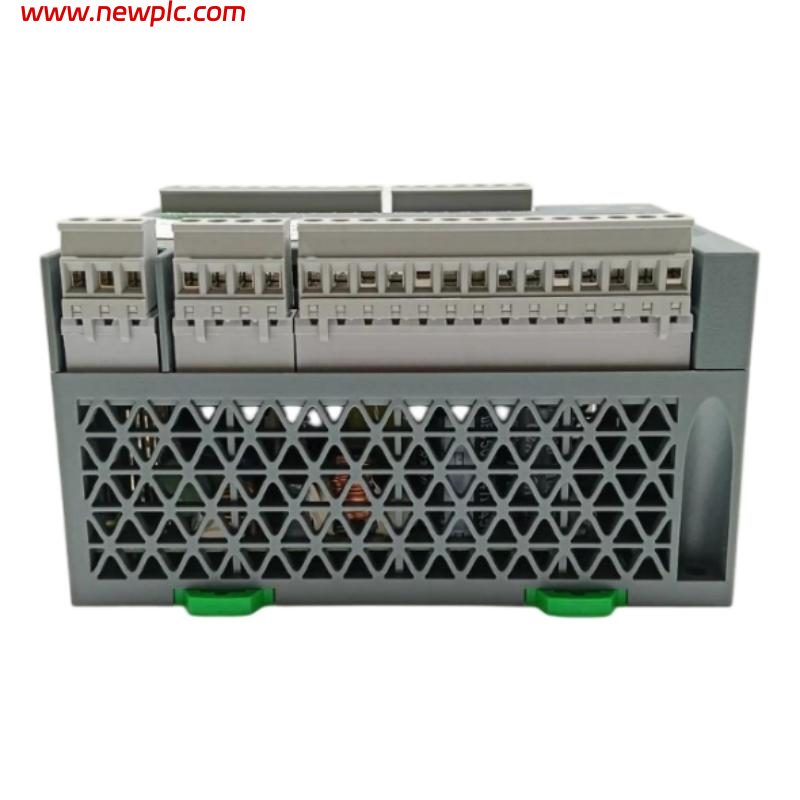

Technical Specifications

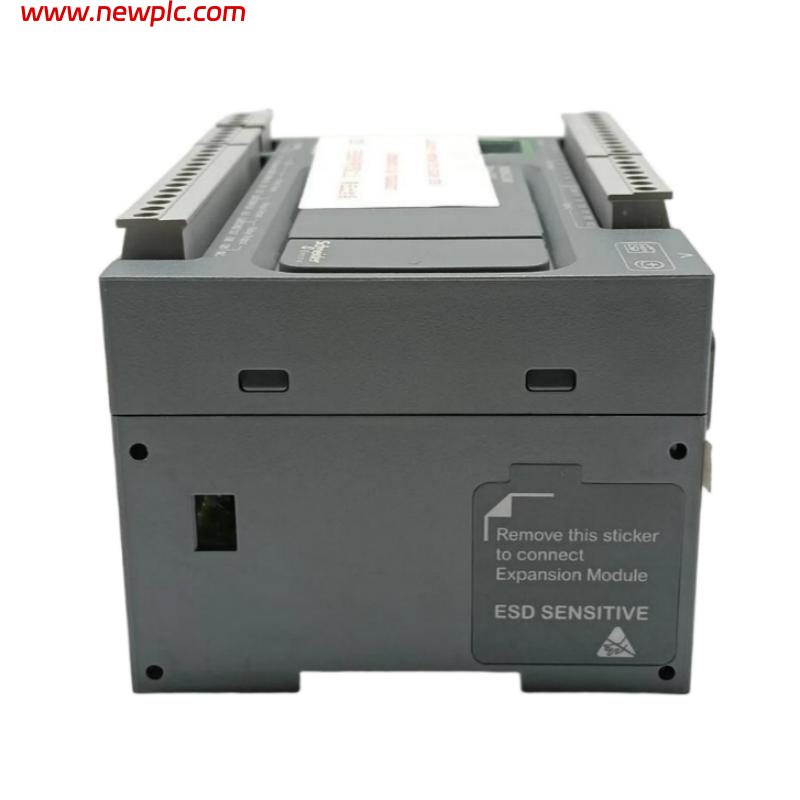

| Parameter | Description |
|---|---|
| Product Model | Schneider Electric TM200CE24R |
| Manufacturer | Schneider Electric |
| Product Series | Easy Modicon M200 |
| Product Type | Compact Logic Controller (PLC) |
| Function | Programmable controller with integrated digital I/O and Ethernet communication |
| Application | OEM machines, packaging equipment, conveyors, assembly systems, compact industrial automation |
| Power Supply | 100–240 VAC |
| Supply Voltage Range | 85–264 VAC |
| Frequency | 50/60 Hz |
| Total Digital I/O | 24 points |
| Digital Inputs | 14 inputs |
| Digital Outputs | 10 relay outputs |
| Input Voltage | 24 VDC |
| Input Type | Digital DC Input |
| Input Logic | Sink or Source (Positive/Negative Logic) |
| Input Standard | IEC 61131-2 Type 1 |
| Input Current | 7 mA per input |
| High-Speed Inputs | 4 channels (I0, I1, I6, I7) |
| Fast Inputs | 4 channels (I2–I5) |
| Regular Inputs | 6 channels (I8–I13) |
| Output Type | Relay Normally Open (NO) |
| Output Voltage | 24 VDC / 220 VAC |
| Output Current | 2 A per output channel |
| Maximum Switching Voltage | 250 VAC / 30 VDC |
| Relay Output Quantity | 10 channels |
| Ethernet Communication | Yes, RJ45 Ethernet port |
| Serial Communication | RS485 Serial Link |
| Expansion Capability | Up to 4 TM3 I/O expansion modules |
| Maximum I/O Capacity | Up to 196 I/O points |
| Motion Control | Supports up to 2-axis motion control |
| Programming Interface | USB programming port |
| Memory Support | Micro SD card |
| Internal Memory | 512 KB flash memory |
| Power Consumption | 52–64 VA (maximum I/O load) |
| Inrush Current | 50 A |
| Relay Response Time | Approx. 10 ms ON/OFF |
| High-Speed Input Response Time | Approx. 5 μs |
| Fast Input Response Time | Approx. 35–100 μs |
| Protection Rating | IP20 |
| Installation | DIN rail mounting |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 130 × 70 × 90 mm (W × H × D) |
| Weight | Approx. 0.413 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM200CE24R used for?
A: The TM200CE24R is used for compact machine automation applications, including packaging machines, conveyors, assembly equipment, and OEM control systems.
Q2: How many inputs and outputs does the TM200CE24R have?
A: The PLC provides 24 digital I/O points, including 14 digital inputs and 10 relay outputs.
Q3: What type of outputs does the TM200CE24R use?
A: The TM200CE24R uses relay normally open outputs, supporting 24 VDC and 220 VAC loads, with a maximum current of 2 A per output channel.
Q4: What is the difference between TM200CE24R and TM200C24R?
A: Both models have the same 24 I/O configuration, but the TM200CE24R adds Ethernet communication, while the TM200C24R is the non-Ethernet version.
Q5: Does the TM200CE24R support Ethernet communication?
A: Yes. The TM200CE24R includes an Ethernet RJ45 communication interface for programming, monitoring, and industrial networking.
Q6: What power supply does the TM200CE24R require?
A: The controller requires a 100–240 VAC power supply, with an operating range of 85–264 VAC.
Q7: Can the TM200CE24R be expanded with additional modules?
A: Yes. The controller supports up to 4 TM3 expansion modules for additional I/O capacity.
Q8: What are the dimensions and weight of the TM200CE24R?
A: The PLC dimensions are approximately 130 × 70 × 90 mm, with a weight of about 0.413 kg.
