Technical Specifications
| Parameter | Description |
|---|---|

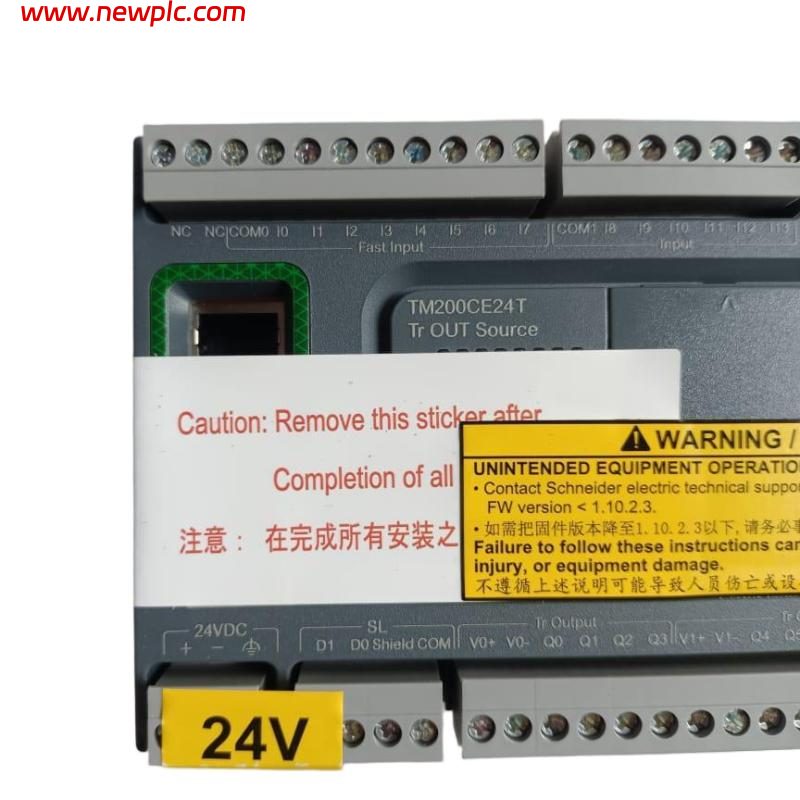

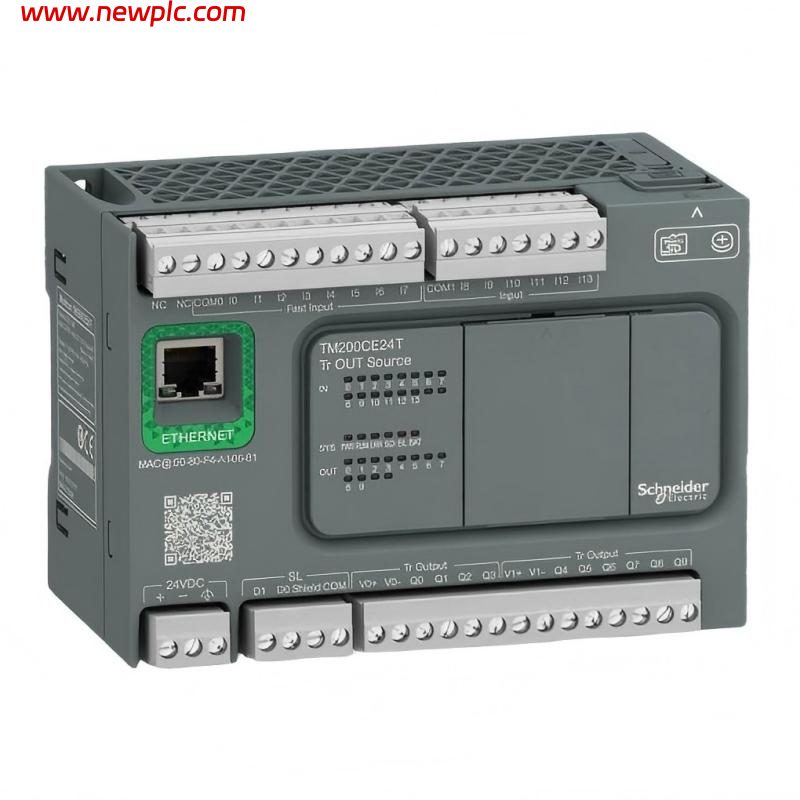

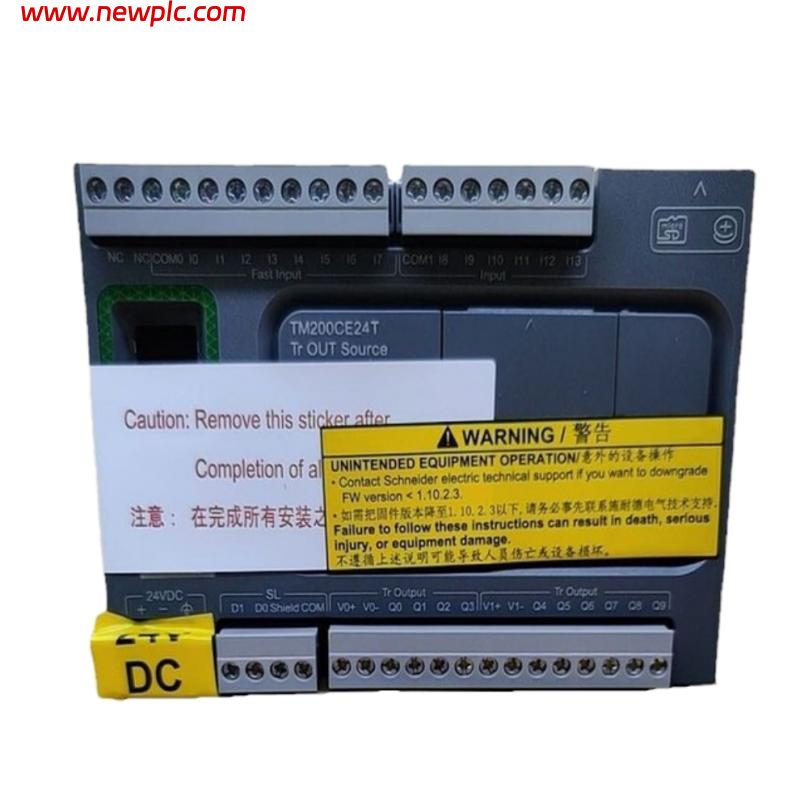

| Product Model | Schneider Electric TM200CE24T |
| Manufacturer | Schneider Electric |
| Product Series | Easy Modicon M200 |
| Product Type | Compact Logic Controller (PLC) |
| Function | Programmable controller with integrated digital I/O and Ethernet communication |
| Application | OEM machines, packaging equipment, conveyors, assembly systems, compact industrial automation |
| Power Supply | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Total Digital I/O | 24 points |
| Digital Inputs | 14 inputs |
| Digital Outputs | 10 transistor outputs |
| Input Voltage | 24 VDC |
| Input Type | Digital DC Input |
| Input Logic | Sink or Source (Positive/Negative Logic) |
| Input Standard | IEC 61131-2 Type 1 |
| Input Current | 7 mA per input |
| High-Speed Inputs | 4 channels (I0, I1, I6, I7) |
| Fast Inputs | 4 channels (I2–I5) |
| Regular Inputs | 6 channels (I8–I13) |
| Output Type | Source Transistor Output |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per channel |
| Output Channels | 10 transistor outputs |
| Output Logic | Positive Logic (Source / PNP) |
| Fast Outputs | Q0–Q1 support PLS / PWM / PTO functions |
| Output Protection | Overload and short-circuit protection |
| Ethernet Communication | Yes, RJ45 Ethernet port |
| Communication Protocol | Modbus TCP/IP, Modbus RTU/ASCII |
| Serial Communication | RS485 Serial Link |
| Expansion Capability | Up to 4 TM3 expansion modules |
| Maximum I/O Capacity | Up to 196 I/O points |
| Motion Control | Supports up to 2-axis motion control |
| Programming Interface | USB programming port |
| Memory Support | Micro SD card |
| Internal Memory | 512 KB flash memory |
| Power Consumption | Approx. 16 W at 24 VDC (maximum I/O load) |
| Inrush Current | 35 A |
| Output Response Time | Approx. 1 ms ON/OFF |
| High-Speed Input Response Time | Approx. 5 μs |
| Fast Input Response Time | Approx. 35–100 μs |
| Protection Rating | IP20 |
| Installation | DIN rail mounting |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 110 × 70 × 90 mm (W × H × D) |
| Weight | Approx. 0.59 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM200CE24T used for?
A: The TM200CE24T is used for compact machine automation applications such as packaging machines, conveyors, assembly equipment, and OEM control systems.
Q2: How many inputs and outputs does the TM200CE24T have?
A: The PLC provides 24 digital I/O points, including 14 digital inputs and 10 transistor outputs.
Q3: What type of outputs does the TM200CE24T use?
A: The TM200CE24T uses 24 VDC source transistor outputs (PNP) with a rated current of 0.5 A per output channel.
Q4: What is the difference between TM200CE24T and TM200CE24R?
A: The TM200CE24T uses transistor outputs, which provide faster switching and support pulse functions such as PWM and PTO. The TM200CE24R uses relay outputs, which are better suited for general-purpose ON/OFF load control.
Q5: Does the TM200CE24T support Ethernet communication?
A: Yes. The TM200CE24T includes an Ethernet interface for programming, monitoring, and industrial network communication.
Q6: What power supply does the TM200CE24T require?
A: The controller requires a 24 VDC power supply, with an operating range of 20.4–28.8 VDC.
Q7: Can the TM200CE24T be expanded with additional modules?
A: Yes. The controller supports up to 4 TM3 expansion modules, allowing additional I/O expansion for larger automation systems.
Q8: What are the dimensions and weight of the TM200CE24T?
A: The PLC dimensions are approximately 110 × 70 × 90 mm, with a weight of about 0.59 kg.
