Technical Specifications
| Parameter | Description |
|---|---|

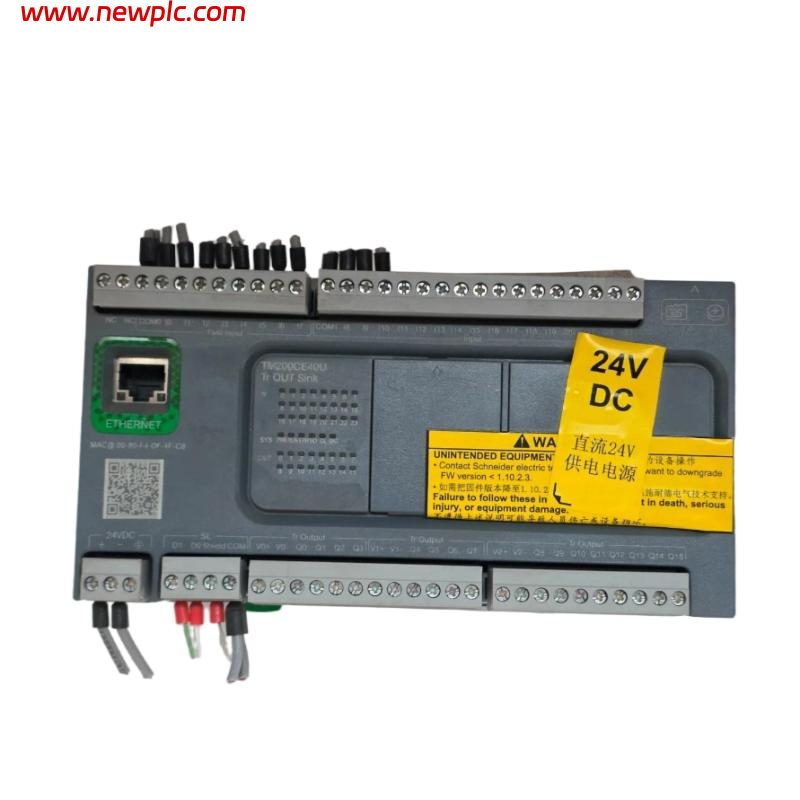

| Product Model | Schneider Electric TM200CE40T |
| Manufacturer | Schneider Electric |
| Product Series | Easy Modicon M200 |
| Product Type | Compact Logic Controller (PLC) |
| Function | Programmable controller with integrated digital I/O and Ethernet communication |
| Application | Packaging machinery, conveyors, assembly equipment, OEM machines, and industrial automation systems |
| Power Supply | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Total Digital I/O | 40 points |
| Digital Inputs | 24 inputs |
| Digital Outputs | 16 transistor outputs |
| Input Voltage | 24 VDC |
| Input Type | Digital DC Input |
| Input Logic | Sink or Source (Positive/Negative Logic), IEC 61131-2 Type 1 |
| Input Current | 7 mA per input |
| High-Speed Inputs | 4 channels (I0, I1, I6, I7) |
| Fast Inputs | 4 channels (I2–I5) |
| Regular Inputs | 16 channels (I8–I23) |
| Output Type | Source Transistor (PNP) |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per channel |
| Output Channels | 16 transistor outputs (Q0–Q15) |
| Fast Outputs | Q0–Q1 support PTO, PWM, and PLS functions |
| Maximum Output Frequency | 100 kHz (fast outputs) |
| Output Protection | Overload and short-circuit protection |
| Ethernet Communication | RJ45 Ethernet |
| Communication Protocols | Modbus TCP, Modbus RTU/ASCII |
| Serial Communication | RS485 |

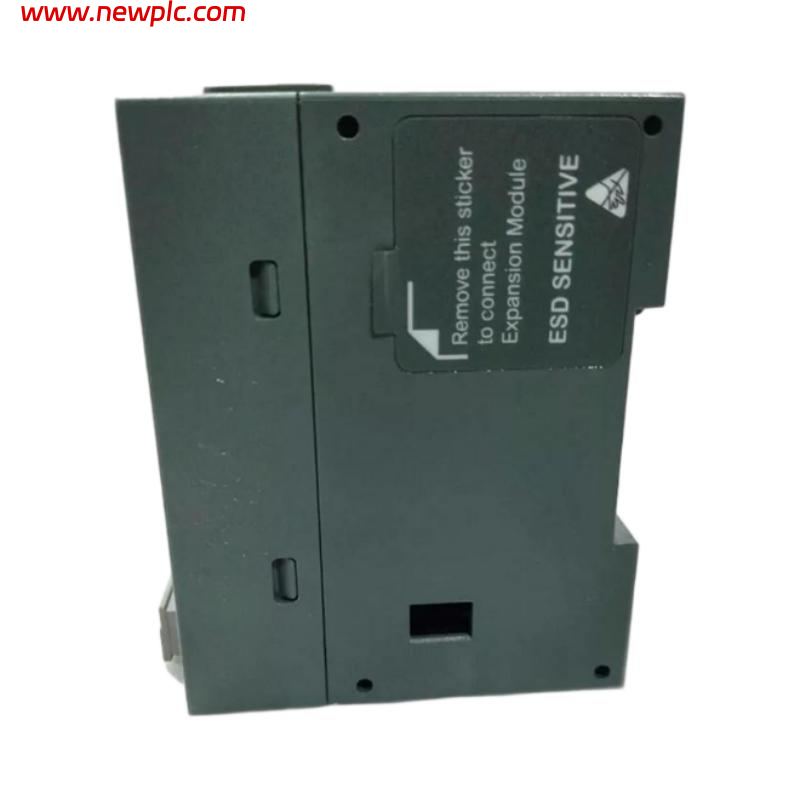

| Expansion Capability | Up to 4 TM3 I/O expansion modules |
| Maximum I/O Capacity | Up to 196 I/O points |
| Motion Control | Supports up to 2-axis motion control |
| Programming Interface | USB Mini-B |
| Memory Support | Micro SD card |
| Internal Memory | 512 KB Flash |
| Power Consumption | Approx. 18 W (maximum I/O load) |
| Inrush Current | 35 A |
| Output Response Time | 1 ms ON/OFF |
| High-Speed Input Response Time | 5 μs |
| Fast Input Response Time | 35–100 μs |
| Protection Rating | IP20 |

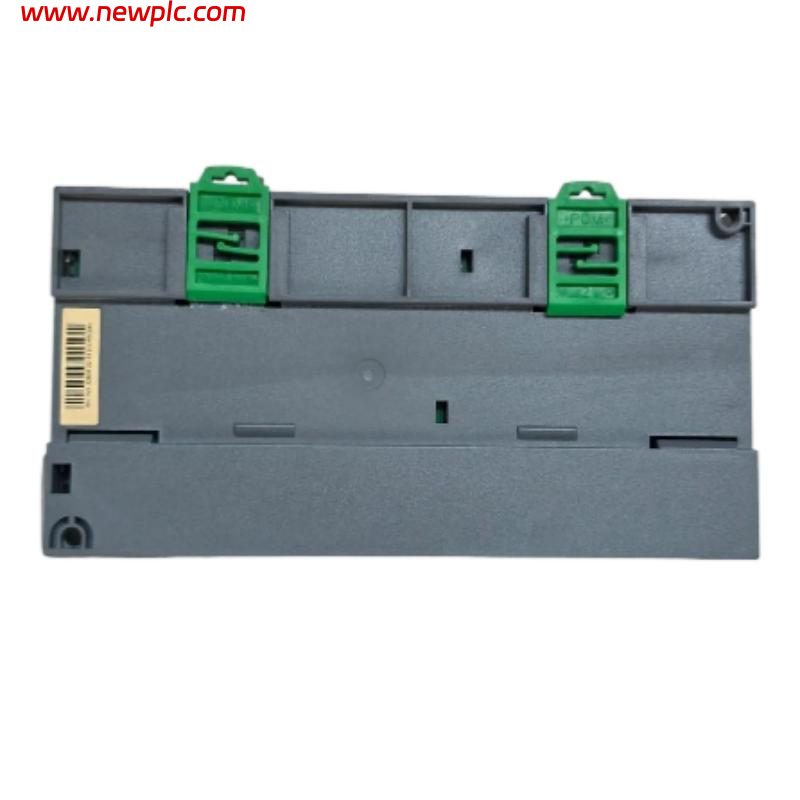

| Installation | DIN rail mounting |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 175 × 70 × 90 mm (W × H × D) |
| Weight | Approx. 0.73 kg (gross) |
FAQ
FAQ
Q1: What is the Schneider Electric TM200CE40T used for?
A: It is designed for compact industrial automation systems such as packaging machines, conveyor systems, assembly equipment, material handling machines, and OEM applications.
Q2: How many inputs and outputs does the TM200CE40T have?
A: The controller provides 40 built-in digital I/O points, including 24 digital inputs and 16 transistor outputs.
Q3: What type of outputs does the TM200CE40T provide?
A: It features 24 VDC PNP (source) transistor outputs, rated at 0.5 A per channel, with built-in overload and short-circuit protection.
Q4: Does the TM200CE40T support high-speed motion control?
A: Yes. Two fast outputs (Q0–Q1) support PTO, PWM, and PLS functions with output frequencies up to 100 kHz, and the controller supports 2-axis motion control.
Q5: Does the TM200CE40T support Ethernet communication?
A: Yes. It includes an RJ45 Ethernet port supporting Modbus TCP, along with an RS485 serial interface for industrial communications.
Q6: Can the TM200CE40T be expanded with additional I/O modules?
A: Yes. The controller supports up to 4 TM3 expansion modules, allowing the system to expand to 196 I/O points.
Q7: What power supply does the TM200CE40T require?
A: The controller operates from a 24 VDC power supply with an allowable voltage range of 20.4–28.8 VDC.
Q8: What are the dimensions and weight of the TM200CE40T?
A: The controller measures approximately 175 × 70 × 90 mm and has a gross weight of approximately 0.73 kg.
