Technical Specifications
| Parameter | Description |
|---|---|

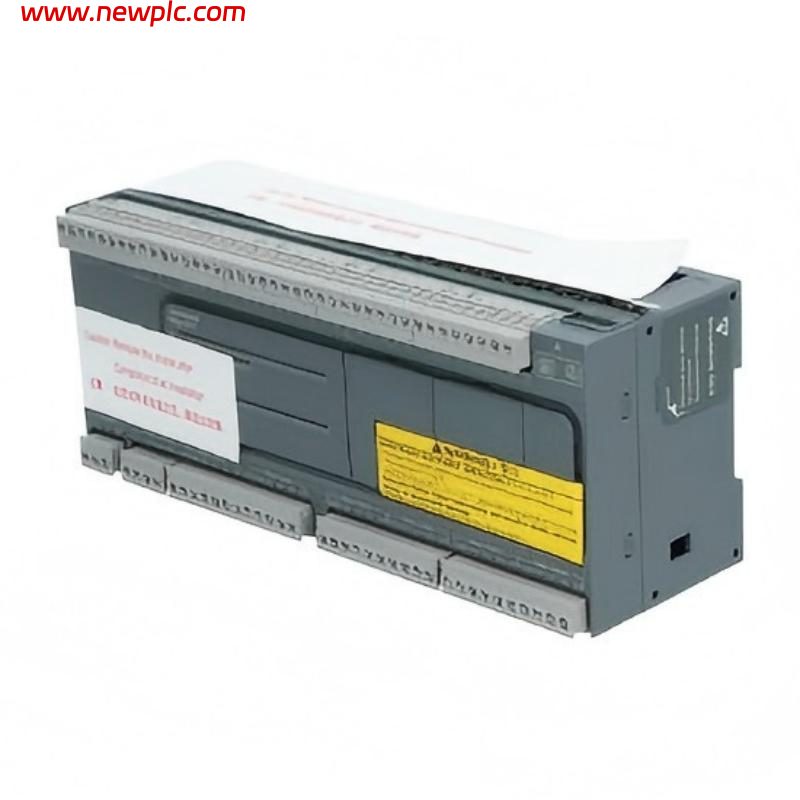

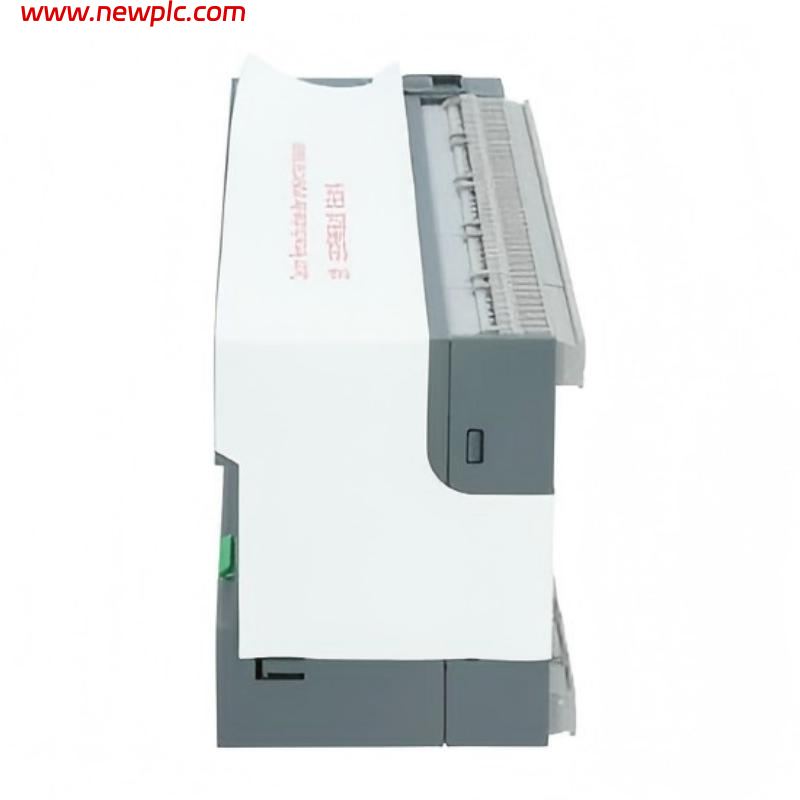

| Product Model | Schneider Electric TM200CE60R |
| Manufacturer | Schneider Electric |
| Product Series | Easy Modicon M200 |
| Product Type | Compact Logic Controller (PLC) |
| Function | Programmable controller with integrated digital I/O and Ethernet communication |
| Application | Packaging machines, conveyor systems, assembly equipment, material handling, OEM machinery, and industrial automation |
| Power Supply | 100–240 VAC |
| Supply Voltage Range | 85–264 VAC |
| Frequency | 50/60 Hz |
| Total Digital I/O | 60 points |
| Digital Inputs | 36 inputs |
| Digital Outputs | 24 relay outputs |
| Input Voltage | 24 VDC |
| Input Type | Digital DC Input |
| Input Logic | Sink or Source (Positive/Negative Logic), IEC 61131-2 Type 1 |
| Input Current | 7 mA per input |
| High-Speed Inputs | 4 channels (I0, I1, I6, I7) |
| Fast Inputs | 4 channels (I2–I5) |
| Regular Inputs | 28 channels (I8–I35) |
| Output Type | Relay Normally Open (NO) |
| Output Voltage | 24 VDC / 250 VAC |
| Output Current | 2 A per output channel |
| Ethernet Communication | RJ45 Ethernet |
| Communication Protocols | Modbus TCP, Modbus RTU/ASCII |
| Serial Communication | RS485 |
| Expansion Capability | Up to 4 TM3 I/O expansion modules |
| Maximum I/O Capacity | Up to 196 I/O points |
| Motion Control | Supports up to 2-axis motion control |
| Programming Interface | USB Mini-B |
| Memory Support | Micro SD card |
| Internal Memory | 512 KB Flash |
| Power Consumption | 61–74 VA (maximum I/O load) |
| Inrush Current | 50 A |
| Relay Response Time | 10 ms ON/OFF |
| High-Speed Input Response Time | 5 μs |
| Fast Input Response Time | 35–100 μs |
| Protection Rating | IP20 |

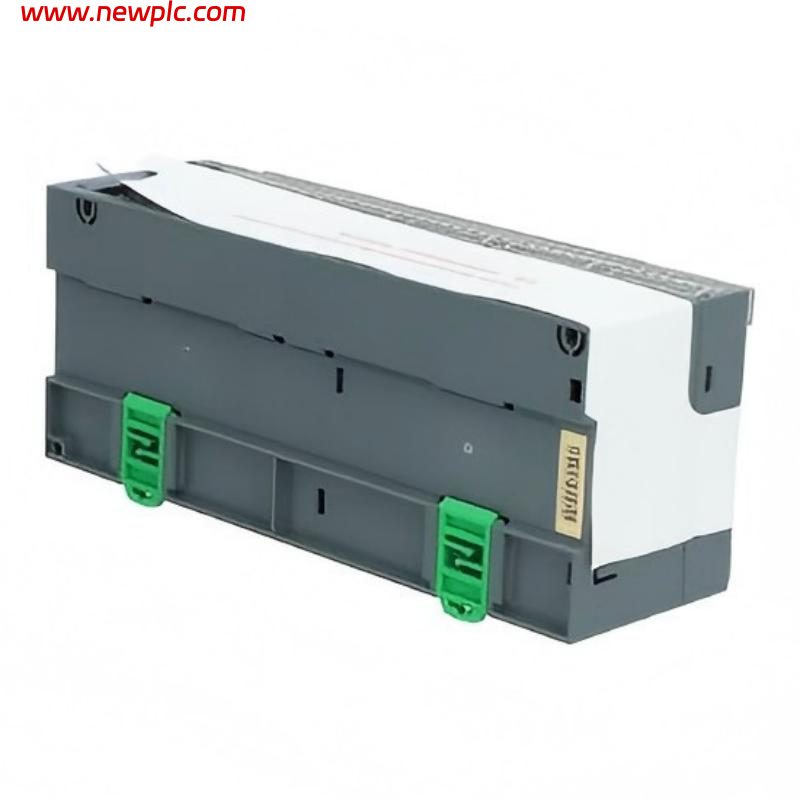

| Installation | DIN rail mounting |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 225 × 70 × 90 mm (W × H × D) |
| Weight | Approx. 0.702 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM200CE60R used for?
A: It is designed for industrial automation applications such as packaging machines, conveyor systems, assembly lines, material handling equipment, and OEM machinery.
Q2: How many inputs and outputs does the TM200CE60R have?
A: The controller provides 60 built-in digital I/O points, including 36 digital inputs and 24 relay outputs.
Q3: What type of outputs does the TM200CE60R provide?
A: It features 24 normally open relay outputs, each rated at 2 A, capable of switching 24 VDC or up to 250 VAC loads.
Q4: Does the TM200CE60R support Ethernet communication?
A: Yes. It includes an RJ45 Ethernet port supporting Modbus TCP communication, together with an RS485 serial interface for industrial networking.
Q5: Can the TM200CE60R be expanded with additional I/O modules?
A: Yes. The controller supports up to 4 TM3 expansion modules, allowing the system to expand to a maximum of 196 I/O points.
Q6: What power supply does the TM200CE60R require?
A: The controller operates from a 100–240 VAC power supply with an allowable input range of 85–264 VAC, 50/60 Hz.
Q7: Does the TM200CE60R support motion control?
A: Yes. The Easy Modicon M200 platform supports up to 2-axis motion control, as well as high-speed counting and fast input processing for motion-related applications.
Q8: What are the dimensions and weight of the TM200CE60R?
A: The controller measures approximately 225 × 70 × 90 mm (W × H × D) and weighs approximately 0.702 kg.
