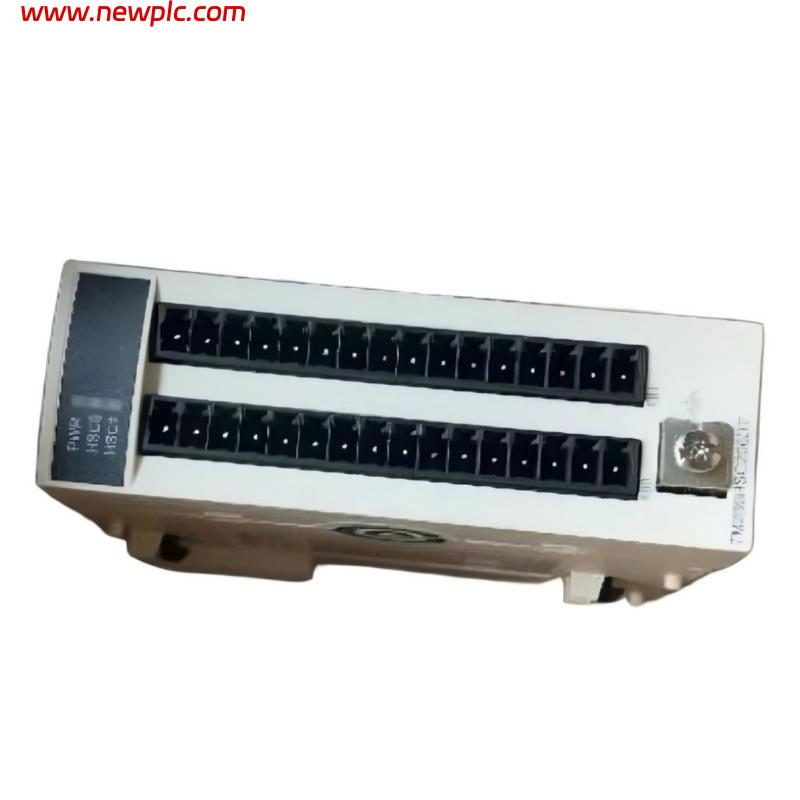

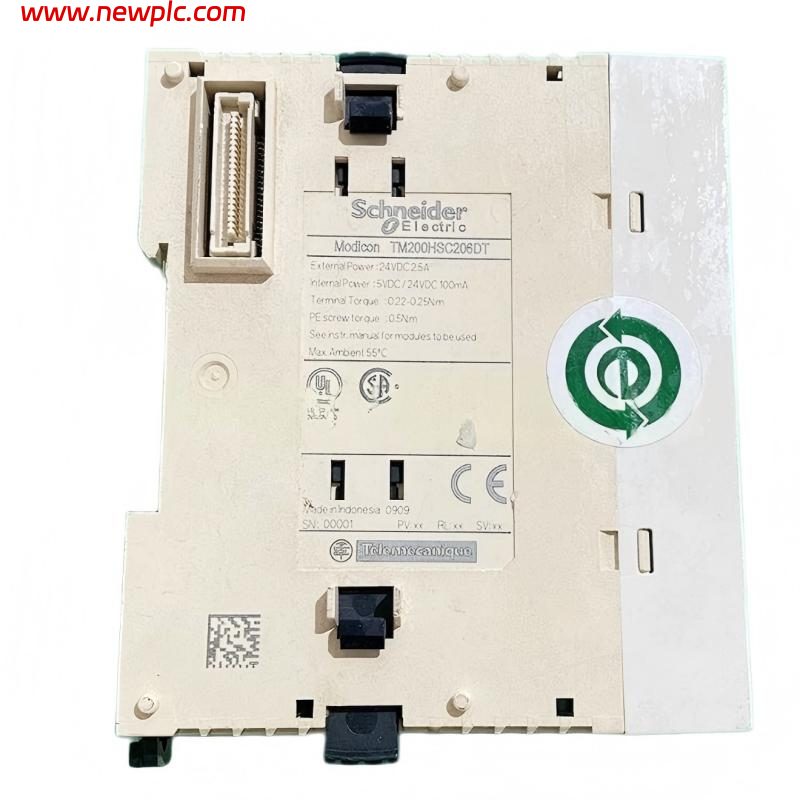

Technical Specifications

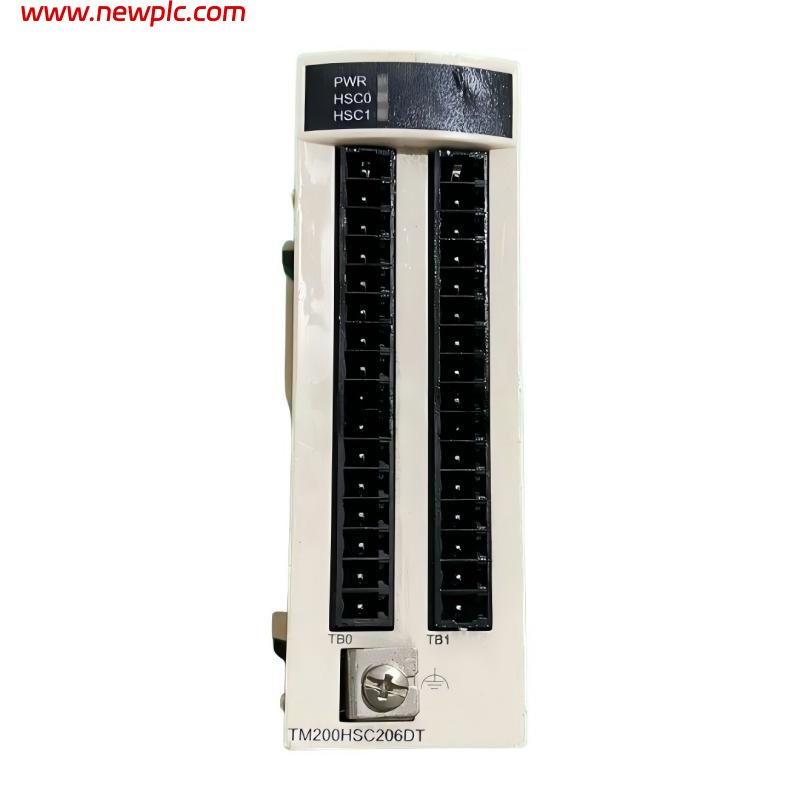

| Parameter | Description |
|---|---|
| Product Model | Schneider Electric TM200HSC206DT |
| Manufacturer | Schneider Electric |
| Product Series | Modicon TM2 Expert Module |
| Product Type | High-Speed Counter Expansion Module |
| Compatible Controllers | Modicon M238 Logic Controller / HMI Controller XBTGC |
| Function | High-speed pulse counting, encoder signal processing, frequency measurement |
| Application | Position control, encoder feedback, speed measurement, axis following, counting applications |
| Module Type | Expert I/O Counter Module |
| Number of Counter Channels | 2 channels |
| Counting Frequency | 60 kHz per channel |
| Counter Resolution | 31 bits + sign |
| Input Channels | 12 digital inputs |
| Output Channels | 4 digital outputs |
| Input Voltage | 24 VDC |
| Input Type | IEC 61131-2 Type 1 digital inputs |
| Sensor Compatibility | 2-wire / 3-wire 24 V sensors, incremental encoders with 15–30 V source outputs |
| Output Type | Digital transistor outputs |
| Output Voltage | 24 VDC |
| Connection Type | Removable screw terminal blocks |
| Terminal Blocks | 2 × 16 contacts |
| Counting Modes | Up counting, down counting, frequency meter, period measurement, frequency generator, axis following |
| Configurable Modes | 8 configurable counting modes |
| High-Speed Functions | Pulse counting, encoder tracking, frequency measurement |
| Cycle Time | 1 ms |
| Channel Isolation | 1500 V for 1 minute |
| Cable Requirement | Shielded cable recommended |
| Maximum Modules per Controller | Up to 3 TM2 expert modules |
| Mounting Method | Expansion module connection |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 23.65 × 95 × 85 mm (W × H × D) |
| Weight | Approx. 0.12 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM200HSC206DT used for?
A: The TM200HSC206DT is used for high-speed pulse counting, encoder feedback processing, frequency measurement, and positioning applications in industrial automation systems.
Q2: How many high-speed counter channels does the TM200HSC206DT provide?
A: The module provides 2 independent high-speed counter channels, each supporting up to 60 kHz counting frequency.
Q3: What controllers are compatible with the TM200HSC206DT?
A: The module is designed for Modicon M238 logic controllers and compatible HMI controller systems.
Q4: What types of sensors can be connected to the TM200HSC206DT?
A: It supports 24 VDC two-wire and three-wire sensors, limit switches, and incremental encoders with 15–30 V source outputs.
Q5: What counting functions does the TM200HSC206DT support?
A: It supports up-counting, down-counting, frequency meter, period measurement, frequency generator, and axis-following functions.
Q6: How does TM200HSC206DT connect to the controller?
A: The module connects through the expansion bus and uses two removable screw terminal blocks for field wiring.
Q7: Can multiple TM200HSC206DT modules be installed together?
A: Yes. Up to 3 TM2 expert modules can be installed on a compatible controller system.
Q8: What is the difference between TM200HSC206DT and TM200HSC206DF?
A: Both modules provide the same 2-channel 60 kHz high-speed counting functions. The main difference is the wiring connection method: TM200HSC206DT uses removable screw terminals, while TM200HSC206DF uses spring terminals.
