Technical Specifications
| Parameter | Description |
|---|---|

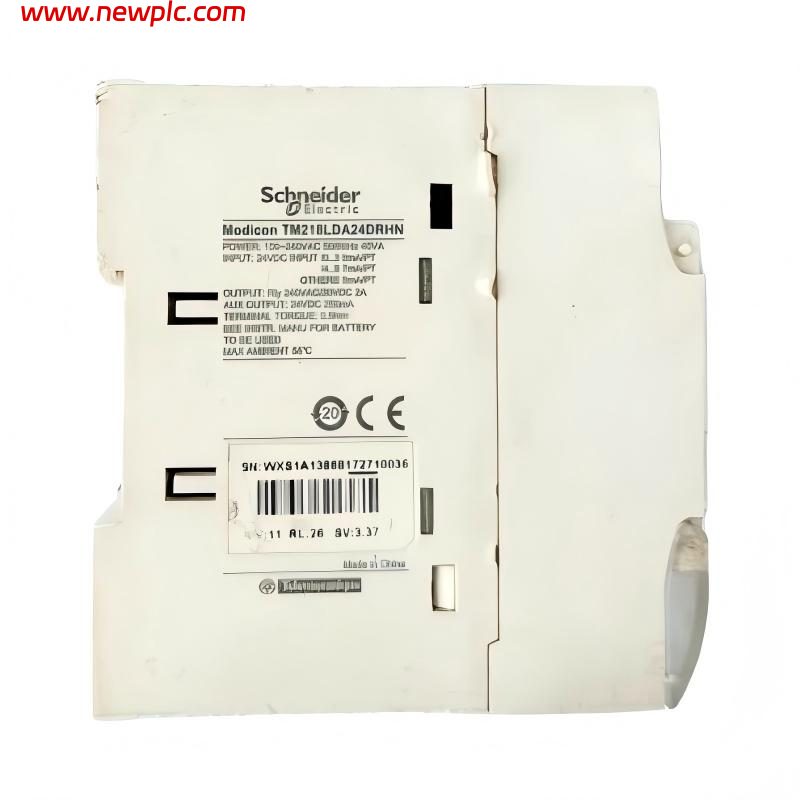

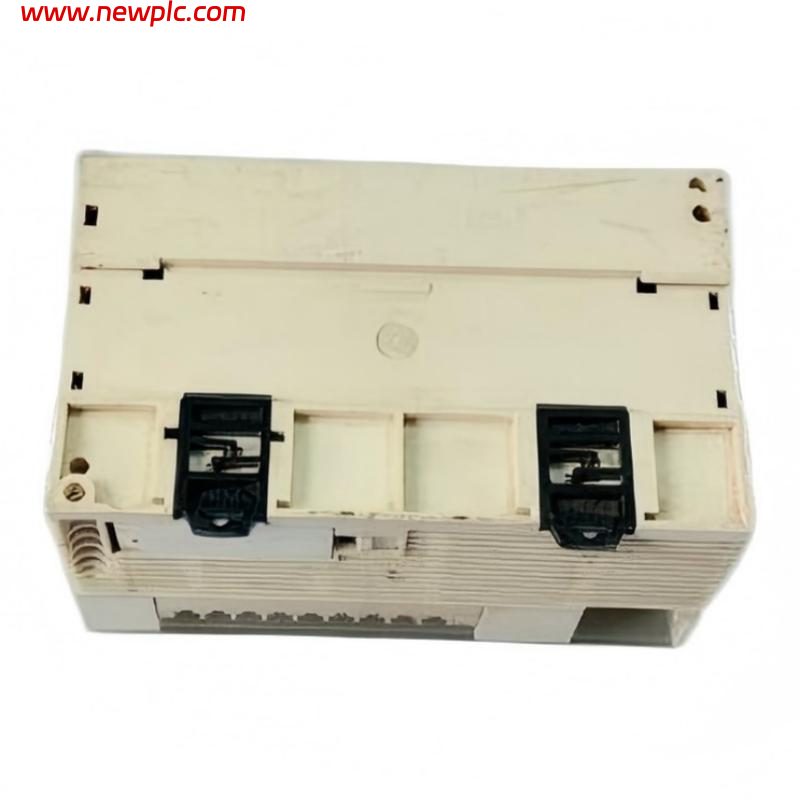

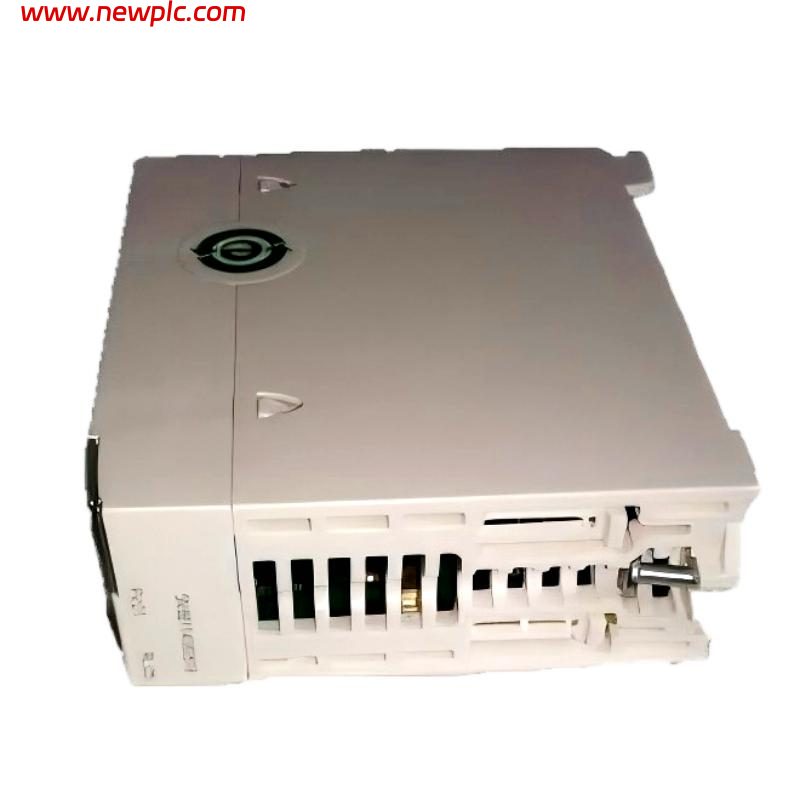

| Product Model | Schneider Electric TM218LDA24DRHN |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M218 |
| Product Type | Logic Controller / Compact PLC |
| Integrated Digital I/O | 24 points |
| Digital Inputs | 14 inputs |
| Fast Inputs | 4 inputs |
| Regular Inputs | 10 inputs |
| Digital Outputs | 10 relay outputs |
| Input Voltage | 24 VDC |
| Input Type | Sink/Source |
| Input Standard | IEC 61131-2 |
| Rated Input Current | 5 mA standard / 7 mA enhanced |
| High-Speed Functions | HSC, PTO, PWM, Frequency Generator |
| High-Speed Counter Inputs | 4 channels |
| Output Type | Relay |
| Relay Output Quantity | 10 |
| Relay Rated Voltage | 24 VDC / 220 VAC |
| Relay Input Range | 5–30 VDC / 100–250 VAC |
| Relay Rated Current | 2 A per point |
| Maximum Switching Voltage | 250 VAC / 30 VDC |
| Maximum Current per Group | 4 A for 4 outputs |
| Relay Contact Opening Time | Typically 5 ms |
| Relay Contact Closing Time | Typically 2 ms |
| Power Supply | 100–240 VAC |
| Supply Voltage Range | 85–264 VAC |
| Frequency | 50/60 Hz |
| Continuous Output Power | 25 W |
| USB Interface | USB programming port |
| Serial Communication | Serial Link 1 with RJ45 + Serial Link 2 |
| Expansion Capability | Up to 4 expansion modules |
| Maximum I/O Capacity | Up to 152 I/O points |
| Maximum Relay Outputs with Expansion | Up to 42 |
| Analog Inputs | No integrated analog input |
| Analog Outputs | No integrated analog output |
| Programming | Schneider Electric Machine Expert |
| Mounting | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Operating Altitude | 0–2000 m |
| Storage Altitude | 0–3000 m |
| Relative Humidity | Up to 95%, non-condensing |
| Dimensions | Approx. 112 × 95 × 70 mm (W × H × D) |
| Shipping Weight | Approx. 2 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM218LDA24DRHN used for?
A: The TM218LDA24DRHN is a Modicon M218 PLC designed for machine automation applications such as packaging equipment, conveyors, assembly machines, material handling systems, and OEM machinery.
Q2: How many I/O points does the TM218LDA24DRHN have?
A: It has 24 integrated digital I/O points, including 14 digital inputs and 10 relay outputs.
Q3: What power supply does the TM218LDA24DRHN require?
A: The controller requires a 100–240 VAC power supply, with an allowable supply range of 85–264 VAC.
Q4: What type of outputs does the TM218LDA24DRHN use?
A: It uses 10 relay outputs, rated up to 2 A per output point. The relay outputs can switch both DC and AC loads.
Q5: Does the TM218LDA24DRHN support high-speed counting?
A: Yes. Four inputs can be used as high-speed counter inputs, and the controller also supports functions such as PTO, PWM, and frequency generation.
Q6: What communication interfaces are available?
A: The controller provides a USB programming port, Serial Link 1 with an RJ45 connection, and Serial Link 2.
Q7: Can the TM218LDA24DRHN be expanded?
A: Yes. The M218 system supports up to 4 expansion modules and can reach up to 152 I/O points depending on the configuration.
Q8: What are the dimensions and weight of the TM218LDA24DRHN?
A: The controller is approximately 112 × 95 × 70 mm (W × H × D). The commonly listed shipping weight is approximately 2 kg.
