Technical Specifications
| Parameter | Description |
|---|---|

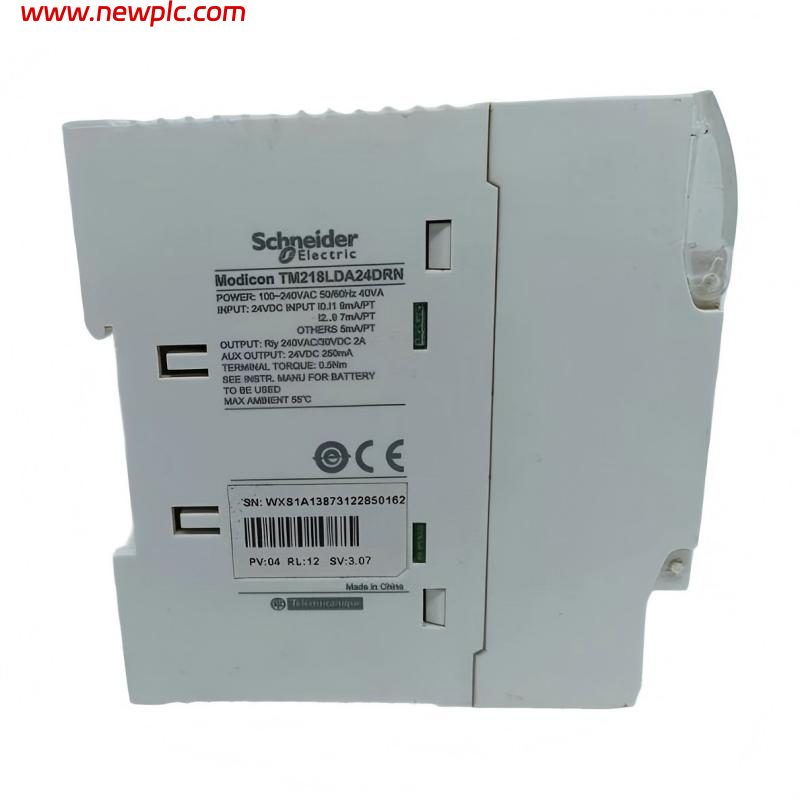

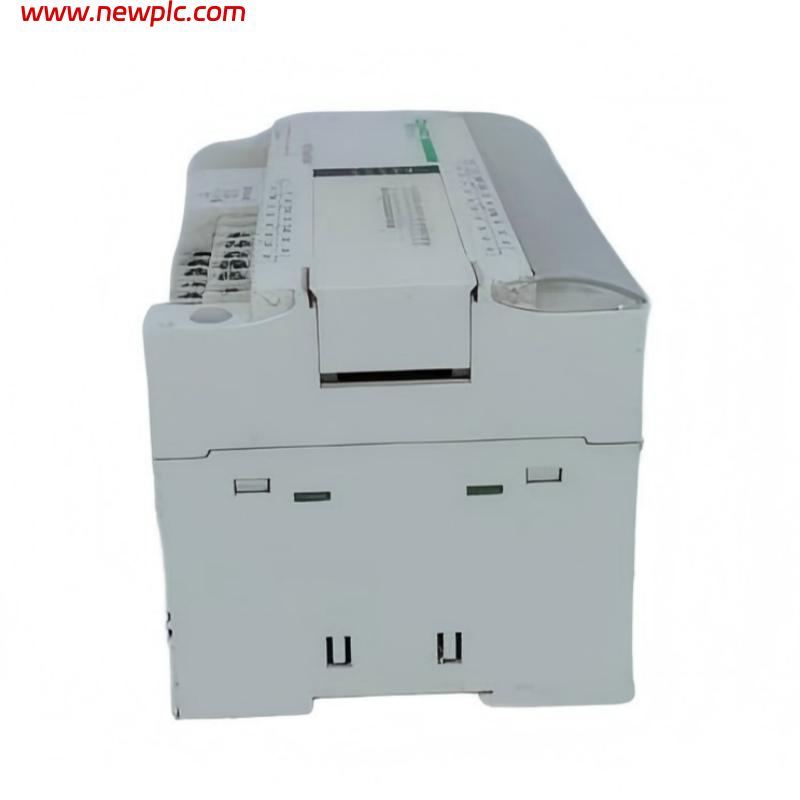

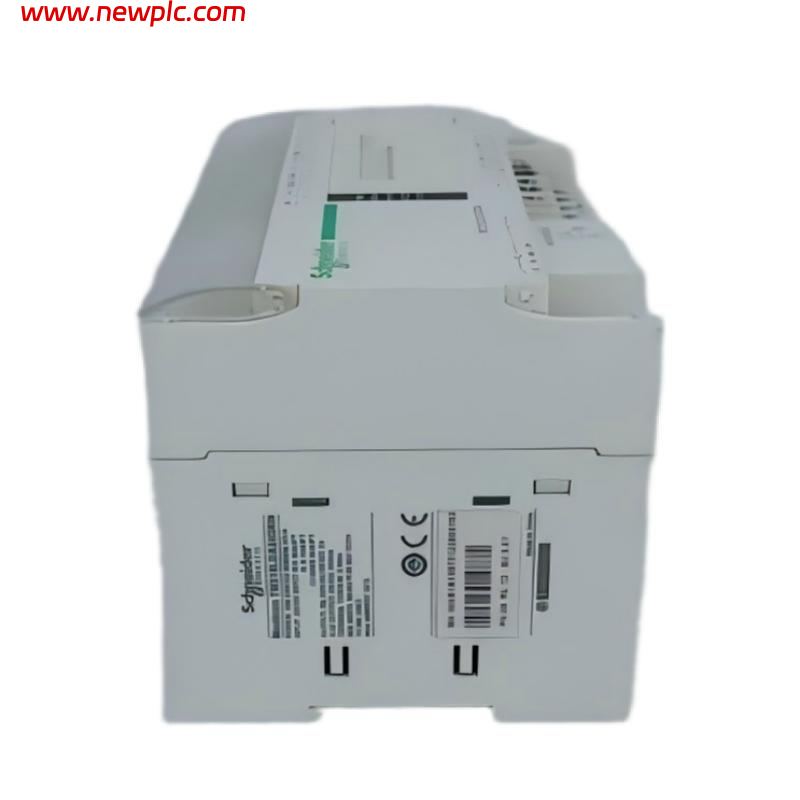

| Product Model | Schneider Electric TM218LDA24DRN |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M218 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 24 points |
| Digital Inputs | 14 inputs |
| Regular Inputs | 12 inputs |
| Fast Inputs | 2 inputs |
| Digital Outputs | 10 relay outputs |
| Input Voltage | 24 VDC |
| Input Type | Sink/Source |
| Input Range | 0–28.8 VDC |
| Rated Input Current | 5 mA standard / 7 mA enhanced |
| High-Speed Functions | High-Speed Counter (HSC) |
| Output Type | Relay |
| Relay Outputs | 10 channels |
| Relay Rated Current | 2 A per output |
| Relay Switching Voltage | Up to 250 VAC / 30 VDC |
| Power Supply | 100–240 VAC |
| Supply Voltage Range | 85–264 VAC |
| Communication | Serial Link 1 + Serial Link 2 |
| Serial Link 1 | RJ45 |
| Programming Interface | USB |
| Expansion Capability | Up to 4 expansion modules |
| Maximum I/O Capacity | Up to 152 I/O points |
| Mounting | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | Approx. 112 × 95 × 70 mm (W × H × D) |
| Weight | Approx. 0.54 kg |
| Shipping Weight | Approx. 2 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM218LDA24DRN used for?
A: The TM218LDA24DRN is designed for machine automation applications such as packaging equipment, conveyors, assembly machines, material handling systems, and OEM machinery.
Q2: How many I/O points does the TM218LDA24DRN have?
A: It has 24 integrated digital I/O points, including 14 digital inputs and 10 relay outputs.
Q3: What type of outputs does the TM218LDA24DRN use?
A: It uses 10 relay outputs, with a rated current of up to 2 A per output.
Q4: What power supply does the TM218LDA24DRN require?
A: The controller operates from a 100–240 VAC power supply.
Q5: Does the TM218LDA24DRN support high-speed counting?
A: Yes. It has 2 fast inputs that can be assigned to high-speed counter functions.
Q6: What communication interfaces are available?
A: The controller provides a USB programming port, Serial Link 1 with an RJ45 connector, and Serial Link 2.
Q7: Can the TM218LDA24DRN be expanded?
A: Yes. The M218 platform supports expansion modules, allowing the controller system to handle substantially more I/O than the 24 integrated points.
Q8: What are the dimensions and weight of the TM218LDA24DRN?
A: The controller is approximately 112 × 95 × 70 mm (W × H × D). A commonly listed shipping weight is approximately 2 kg, while distributor listings give a product weight of about 1.2 lb (0.54 kg).
