Technical Specifications
| Parameter | Description |
|---|---|

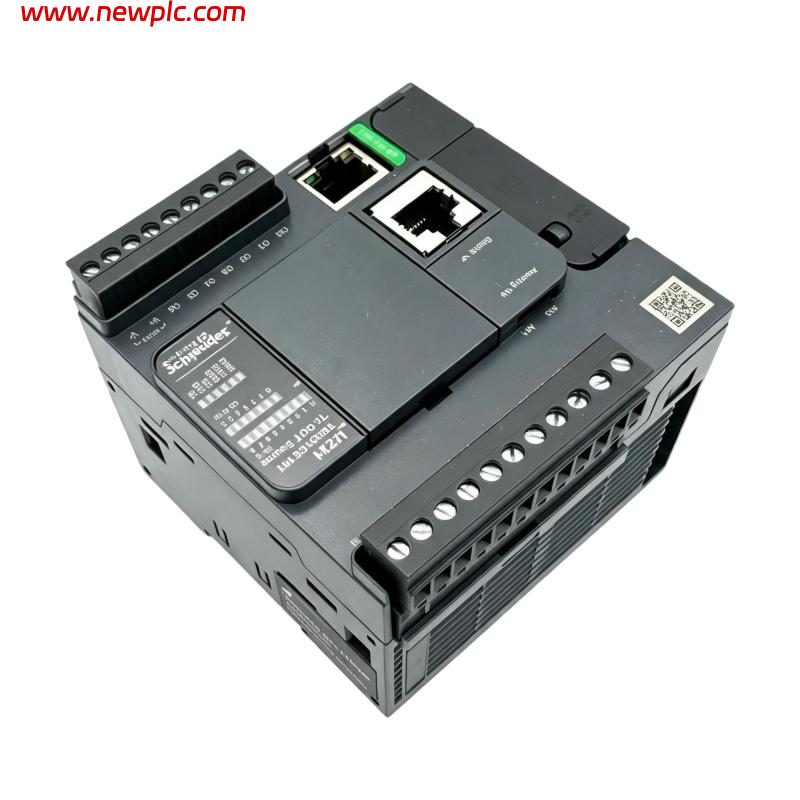

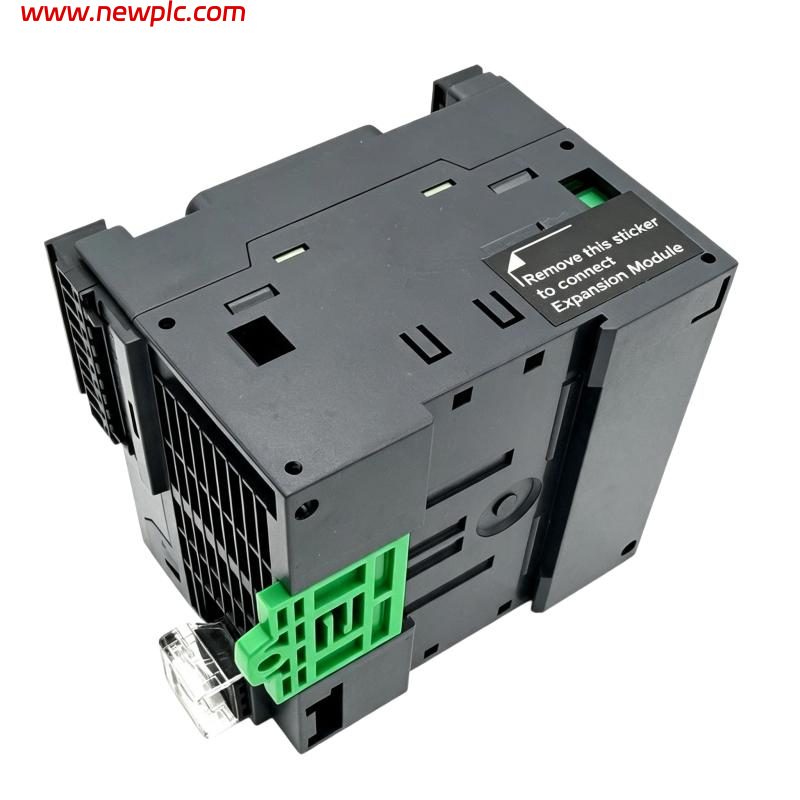

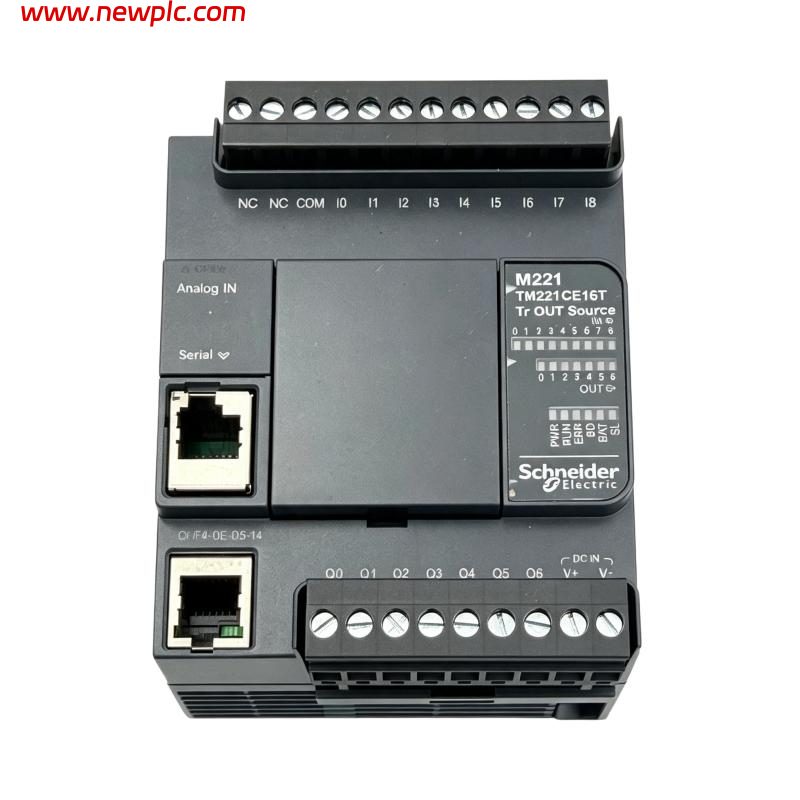

| Product Model | Schneider Electric TM221C16T |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M221 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 16 points |
| Digital Inputs | 9 inputs |
| Analog Inputs | 2 inputs, configurable as 0–10 V |
| Digital Outputs | 7 transistor outputs |
| Output Type | PNP transistor / Source |
| Input Voltage | 24 VDC |
| Supply Voltage | 24 VDC |
| High-Speed Inputs | 4 inputs |
| High-Speed Functions | HSC, pulse, frequency, PTO, PWM, PLS |
| Output Protection | Overload and short-circuit protection |
| Communication | Ethernet + Serial Line |
| Ethernet Port | RJ45 |
| Serial Link 1 | RJ45, RS485 |
| Serial Link 2 | RJ45, RS232/RS485 |
| USB Port | Mini-B USB 2.0 |
| SD Card | Supported |
| Expansion Capability | Up to 8 TM3 expansion modules |
| Programming Software | EcoStruxure Machine Expert |
| Mounting | DIN rail or panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 95 × 90 × 70 mm (W × H × D) |
| Product Weight | 0.346 kg |
| Package Weight | Approx. 0.551 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM221C16T used for?
A: The TM221C16T is designed for machine automation applications such as packaging equipment, conveyors, assembly machines, material handling systems and OEM machinery.
Q2: How many I/O points does the TM221C16T have?
A: It has 16 integrated I/O points, including 9 digital inputs and 7 transistor outputs.
Q3: What type of outputs does the TM221C16T use?
A: It uses 7 PNP transistor outputs, also known as source outputs. These are suitable for applications requiring fast switching and pulse control.
Q4: What power supply does the TM221C16T require?
A: The controller requires a 24 VDC power supply.
Q5: Does the TM221C16T support high-speed functions?
A: Yes. It supports high-speed counting as well as PTO, PWM, PLS and frequency-generator functions.
Q6: Does the TM221C16T support Ethernet communication?
A: Yes. It has an RJ45 Ethernet port in addition to its serial communication interfaces.
Q7: Can the TM221C16T be expanded?
A: Yes. The Modicon M221 platform supports connection to TM3 expansion modules, with up to 8 expansion modules supported.
Q8: What are the dimensions and weight of the TM221C16T?
A: The PLC measures approximately 95 × 90 × 70 mm (W × H × D) and has a net weight of approximately 0.346 kg. The individual package weighs approximately 0.551 kg.
