Technical Specifications
| Parameter | Description |
|---|---|

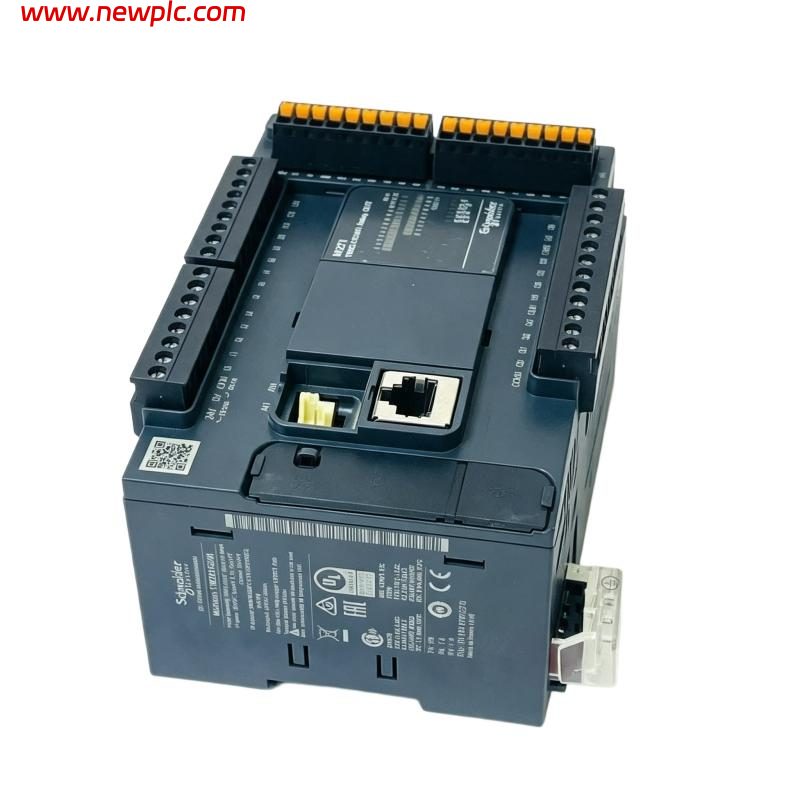

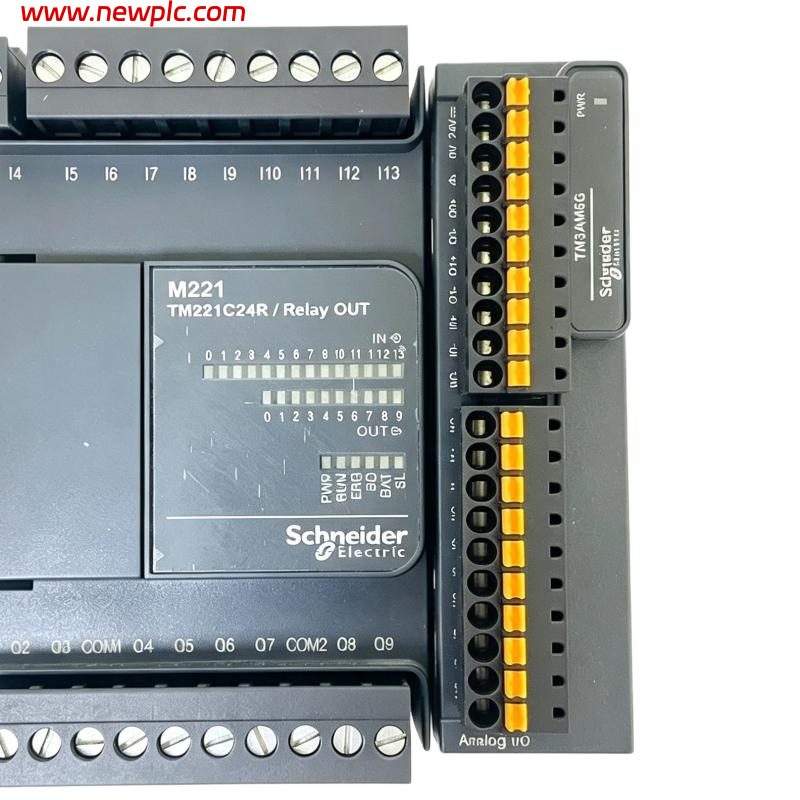

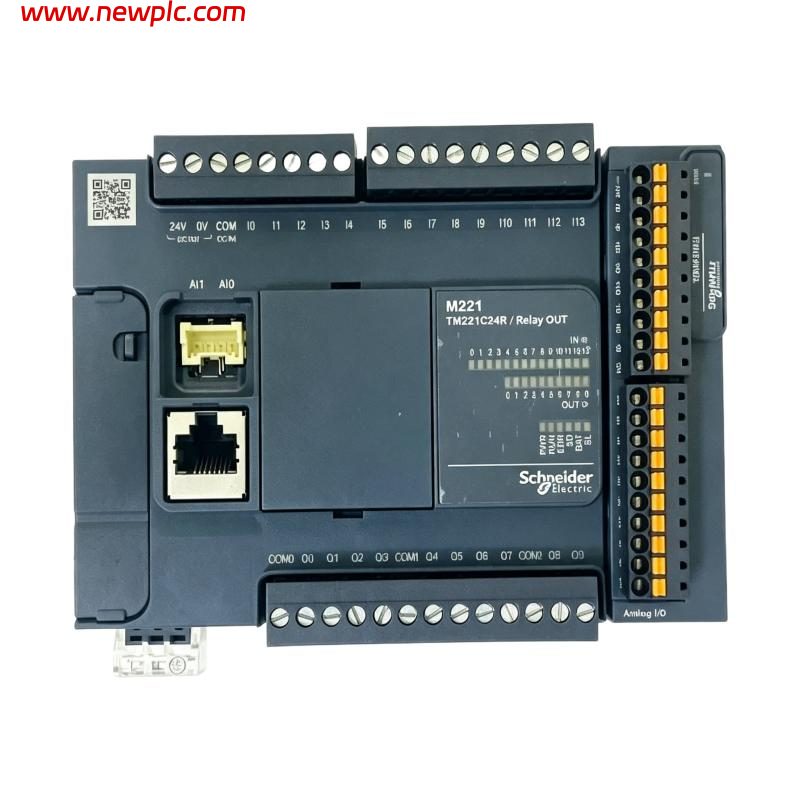

| Product Model | Schneider Electric TM221C24R |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M221 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 24 points |
| Digital Inputs | 14 inputs |
| Analog-Capable Inputs | 2 inputs, configurable for 0–10 V |
| Fast Inputs | 4 high-speed inputs |
| Digital Outputs | 10 relay outputs |
| Output Type | Relay |
| Relay Rated Current | 2 A per output |
| Maximum Switching Voltage | 250 VAC / 125 VDC |
| Input Voltage | 24 VDC |
| Power Supply | 100–240 VAC |
| Supply Voltage Range | 85–264 VAC |
| Communication | Ethernet + Serial Line |
| Ethernet Port | RJ45 |
| Serial Communication | RS232 / RS485 |
| USB Port | USB programming port |
| SD Card | Supported |
| Expansion Capability | TM3 expansion modules |
| Programming Software | EcoStruxure Machine Expert |
| Mounting | DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 110 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.395 kg |
| Gross / Package Weight | Approx. 0.62 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM221C24R used for?
A: It is a compact Modicon M221 PLC designed for machine automation applications such as packaging, conveyors, assembly equipment, material handling and OEM machinery.
Q2: How many I/O points does the TM221C24R have?
A: It provides 24 integrated I/O points, consisting of 14 digital inputs and 10 relay outputs.
Q3: Can the inputs be used for analog signals?
A: Yes. 2 of the 14 inputs can be configured as 0–10 V analog inputs.
Q4: What type of outputs does the TM221C24R use?
A: It uses 10 relay outputs, with a maximum rated current of 2 A per output.
Q5: What power supply does the TM221C24R require?
A: The PLC operates from a 100–240 VAC power supply.
Q6: Does the TM221C24R support Ethernet communication?
A: Yes. It includes an RJ45 Ethernet port as well as serial communication interfaces.
Q7: Can the TM221C24R be expanded?
A: Yes. The M221 platform supports Modicon TM3 expansion modules for additional I/O and other functions.
Q8: What are the dimensions and weight of the TM221C24R?
A: The PLC measures approximately 110 × 90 × 70 mm (W × H × D) and has a net weight of approximately 0.395 kg. The packaged weight is approximately 0.62 kg.
