Technical Specifications
| Parameter | Description |
|---|---|

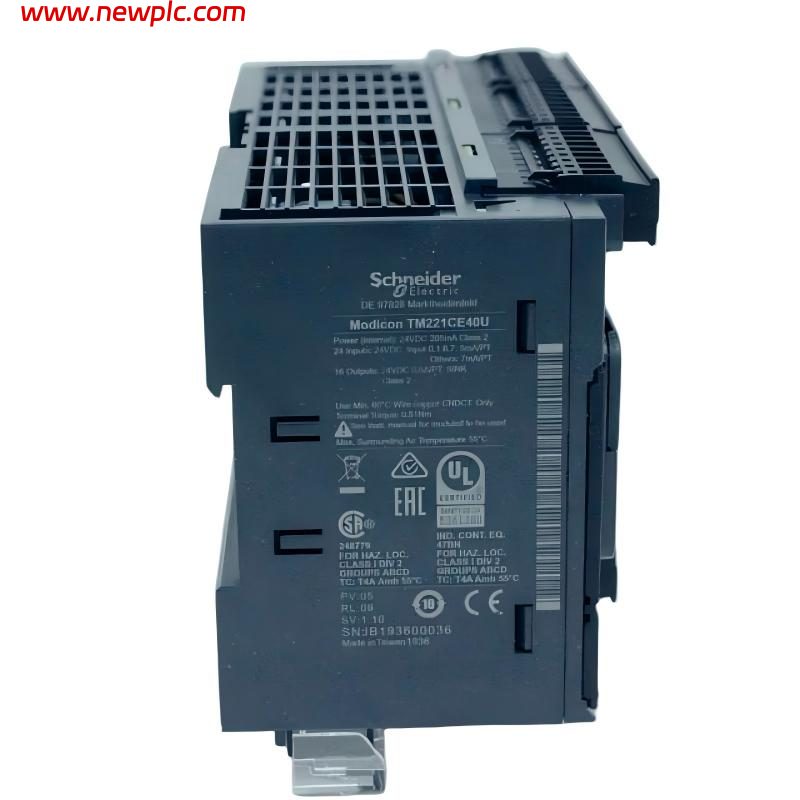

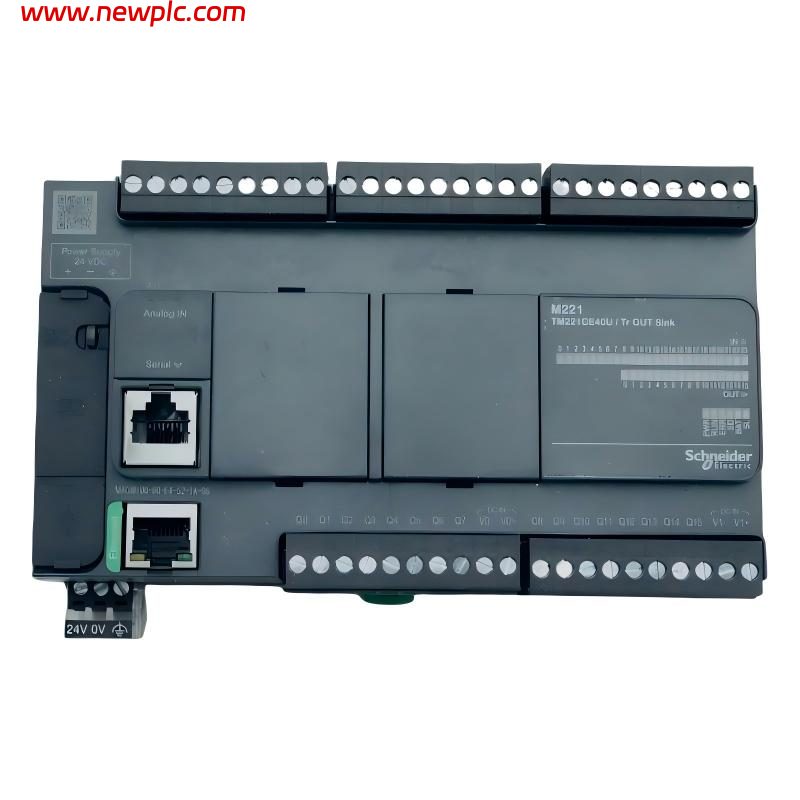

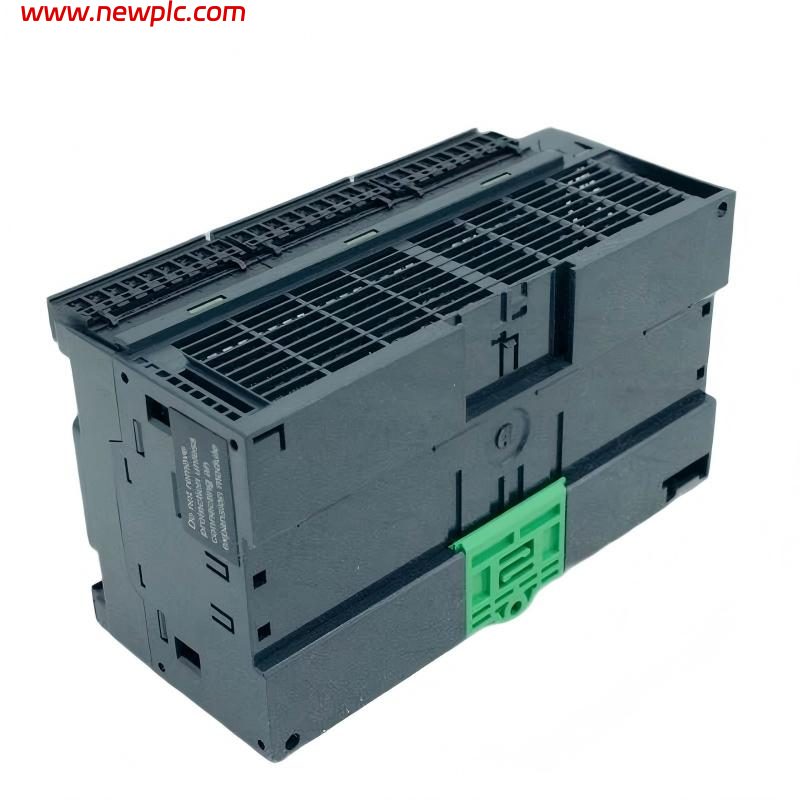

| Product Model | Schneider Electric TM221CE40U |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M221 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 40 points |
| Digital Inputs | 24 inputs |
| Fast Inputs | 4 high-speed inputs |
| Analog Inputs | 2 inputs, configurable 0–10 V |
| Digital Outputs | 16 transistor outputs |
| Output Type | NPN transistor / Sink output |
| Fast Outputs | 4 fast transistor outputs |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per output |
| Maximum Current per Output Common | 4 A |
| Input Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| High-Speed Functions | HSC, PTO, PWM, PLS, Frequency Generator |
| High-Speed Counter | 4 channels, up to 100 kHz, 32-bit |
| Motion Functions | Pulse/Direction, Single Phase, A/B Encoder |
| Ethernet Communication | Yes |
| Ethernet Port | RJ45 10/100 Mbps |
| Ethernet Protocol | Modbus TCP, Modbus TCP Server/Client, Ethernet/IP Adapter |
| Serial Communication | RS232 / RS485 Serial Link |
| USB Interface | Mini-B USB 2.0 programming port |
| SD Card | Supported (up to 2 GB) |
| Memory | 256 kB application and data memory |
| Expansion Capability | TM3 expansion modules |
| Maximum Expansion | Up to 7 TM3 modules |
| Programming Software | EcoStruxure Machine Expert / Machine Expert Basic |
| Mounting | DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 160 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.456 kg |
| Package Weight | Approx. 0.736 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM221CE40U used for?
A: The TM221CE40U is used for industrial automation applications such as packaging machines, conveyors, assembly equipment, production lines, material handling systems and OEM machinery.
Q2: How many I/O points does the TM221CE40U have?
A: It provides 40 integrated I/O points, including 24 digital inputs, 2 analog inputs and 16 NPN transistor outputs.
Q3: What type of outputs does the TM221CE40U use?
A: It uses 16 NPN transistor outputs (sink outputs), including 4 fast transistor outputs, suitable for fast switching and pulse-control applications.
Q4: What power supply does the TM221CE40U require?
A: The controller requires a 24 VDC power supply, with an operating range of approximately 20.4–28.8 VDC.
Q5: Does the TM221CE40U support analog inputs?
A: Yes. It provides 2 analog inputs that can be configured for 0–10 V signals.
Q6: Does the TM221CE40U support Ethernet communication?
A: Yes. The PLC includes an RJ45 Ethernet port and supports industrial communication protocols such as Modbus TCP and Ethernet/IP Adapter.
Q7: Can the TM221CE40U be expanded?
A: Yes. The Modicon M221 platform supports TM3 expansion modules for additional I/O and system expansion in local, remote or distributed configurations.
Q8: What are the dimensions and weight of the TM221CE40U?
A: The PLC dimensions are approximately 160 × 90 × 70 mm (W × H × D), with a product weight of approximately 0.456 kg.
