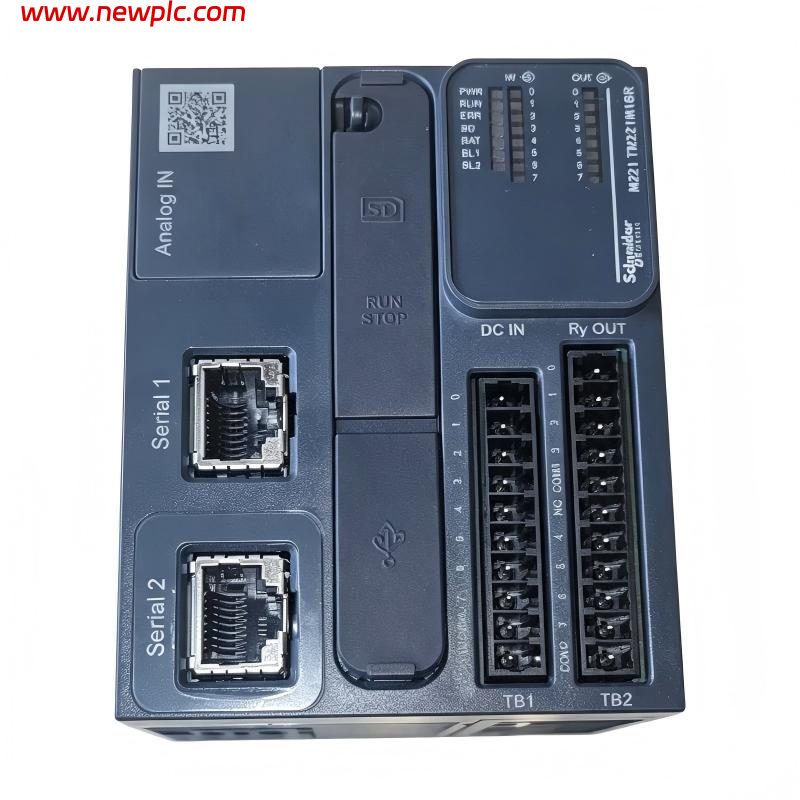

Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | Schneider Electric TM221M16R |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M221 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 16 points |
| Digital Inputs | 8 inputs |
| Analog Inputs | 2 inputs (0–10 V configurable) |
| Digital Outputs | 8 relay outputs |
| Output Type | Relay, Normally Open (NO) |
| Relay Rated Current | 2 A per output |
| Output Voltage | 5–250 VAC / 5–125 VDC |
| Input Voltage | 24 VDC |
| Supply Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Input Logic | Sink or Source |
| Analog Input Resolution | 10 bit |
| Fast Inputs | Supported |
| High-Speed Functions | High-speed counting, pulse counting |
| Communication | Ethernet + Serial Line |
| Ethernet Port | RJ45 |
| Serial Communication | RS232 / RS485 |
| USB Interface | Mini-B USB 2.0 programming port |
| SD Card | Supported |
| Memory | 256 kB application memory |

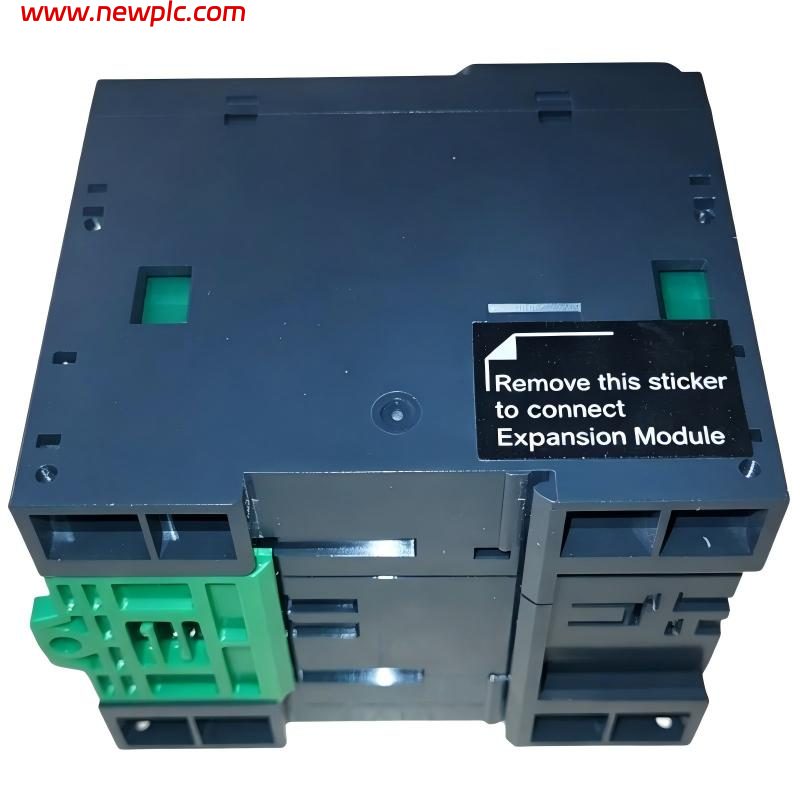

| Expansion Capability | TM3 expansion modules |
| Maximum Expansion | Up to 7 TM3 modules |
| Programming Software | EcoStruxure Machine Expert / Machine Expert Basic |
| Mounting | DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 95 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.263 kg |
| Package Weight | Approx. 0.44 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM221M16R used for?
A: The TM221M16R is used for small industrial automation applications, including packaging equipment, conveyors, pumps, HVAC systems and OEM machines.
Q2: How many I/O points does the TM221M16R have?
A: It provides 16 integrated I/O points, including 8 digital inputs and 8 relay outputs.
Q3: What type of outputs does the TM221M16R use?
A: It uses 8 relay outputs (normally open contacts), suitable for switching AC and DC loads. Each output supports up to 2 A.
Q4: What power supply does the TM221M16R require?
A: The PLC requires a 24 VDC power supply, with an operating range of 20.4–28.8 VDC.
Q5: Does the TM221M16R support analog inputs?
A: Yes. It provides 2 analog inputs, supporting 0–10 V signals with 10-bit resolution.
Q6: Does the TM221M16R support Ethernet communication?
A: Yes. The TM221M16R includes Ethernet and serial communication interfaces for industrial networking and programming.
Q7: Can the TM221M16R be expanded?
A: Yes. The controller supports Modicon TM3 expansion modules for additional I/O and functional expansion.
Q8: What are the dimensions and weight of the TM221M16R?
A: The PLC dimensions are approximately 95 × 90 × 70 mm (W × H × D), with a product weight of approximately 0.263 kg.
