Technical Specifications
| Parameter | Description |
|---|---|

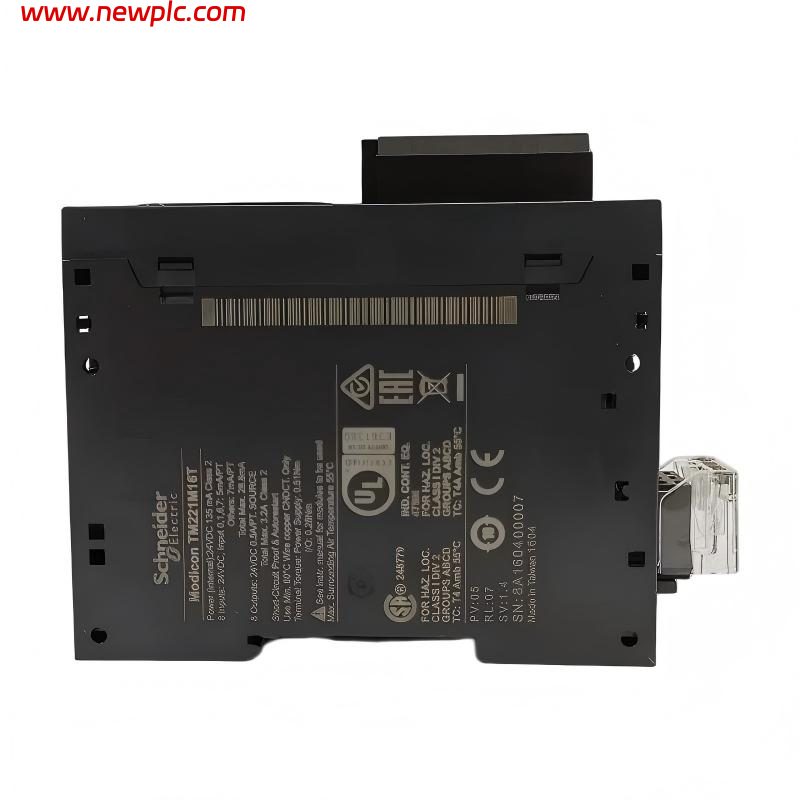

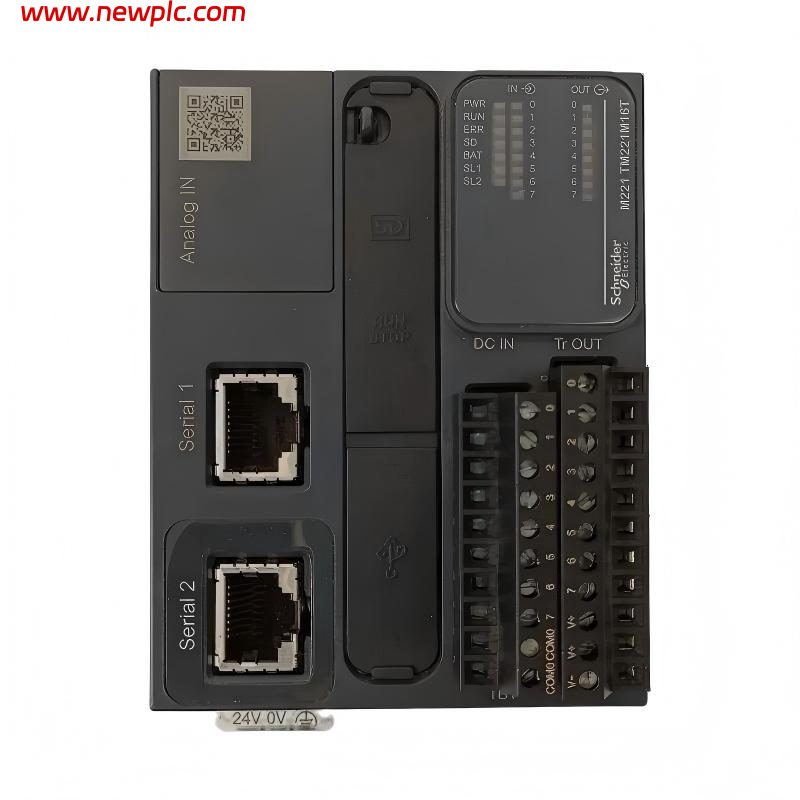

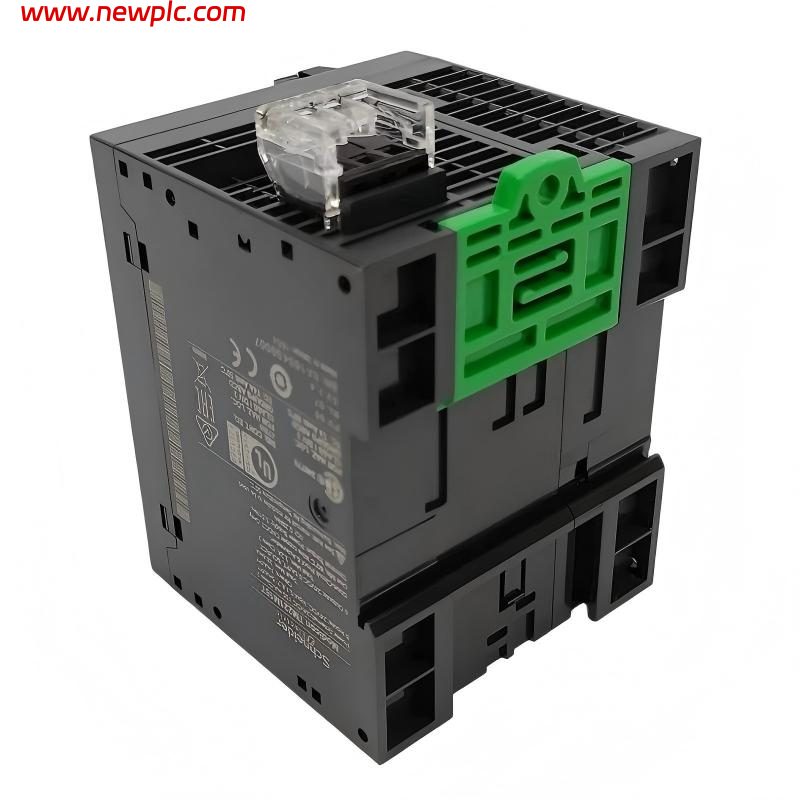

| Product Model | Schneider Electric TM221M16T |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M221 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 16 points |
| Digital Inputs | 8 inputs |
| Fast Inputs | 4 high-speed inputs |
| Analog Inputs | 2 inputs, 0–10 V configurable |
| Digital Outputs | 8 transistor outputs |
| Output Type | PNP transistor / Source output |
| Fast Outputs | 2 fast transistor outputs |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per output |
| Input Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Input Logic | Sink or Source |
| Analog Input Resolution | 10 bit |
| High-Speed Functions | HSC, PTO, PWM, PLS, Frequency Generator |
| Motion Functions | Pulse output, pulse/direction control |
| Ethernet Communication | Supported |
| Ethernet Port | RJ45 |
| Serial Communication | RS232 / RS485 Serial Line |
| USB Interface | Mini-B USB 2.0 programming port |
| SD Card | Supported |
| Memory | 256 kB application memory |
| Expansion Capability | TM3 expansion modules |
| Maximum Expansion | Up to 7 TM3 modules |
| Programming Software | EcoStruxure Machine Expert / Machine Expert Basic |
| Mounting | DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 95 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.263 kg |
| Package Weight | Approx. 0.418 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM221M16T used for?
A: The TM221M16T is used for small industrial automation applications such as packaging machines, conveyors, pumps, assembly equipment and OEM machinery.
Q2: How many I/O points does the TM221M16T have?
A: It provides 16 integrated I/O points, including 8 digital inputs and 8 transistor outputs.
Q3: What type of outputs does the TM221M16T use?
A: It uses 8 PNP transistor outputs (source outputs) with a rated output current of 0.5 A per channel. Two outputs support fast switching functions.
Q4: What power supply does the TM221M16T require?
A: The PLC requires a 24 VDC power supply, with an operating range of approximately 20.4–28.8 VDC.
Q5: Does the TM221M16T support analog inputs?
A: Yes. It provides 2 analog inputs, supporting 0–10 V signals with 10-bit resolution.
Q6: Does the TM221M16T support Ethernet communication?
A: Yes. The controller supports Ethernet and serial communication interfaces for industrial networking and programming.
Q7: Can the TM221M16T be expanded?
A: Yes. The Modicon M221 platform supports TM3 expansion modules for additional I/O and functional expansion.
Q8: What are the dimensions and weight of the TM221M16T?
A: The PLC dimensions are approximately 95 × 90 × 70 mm (W × H × D), with a product weight of approximately 0.263 kg.
