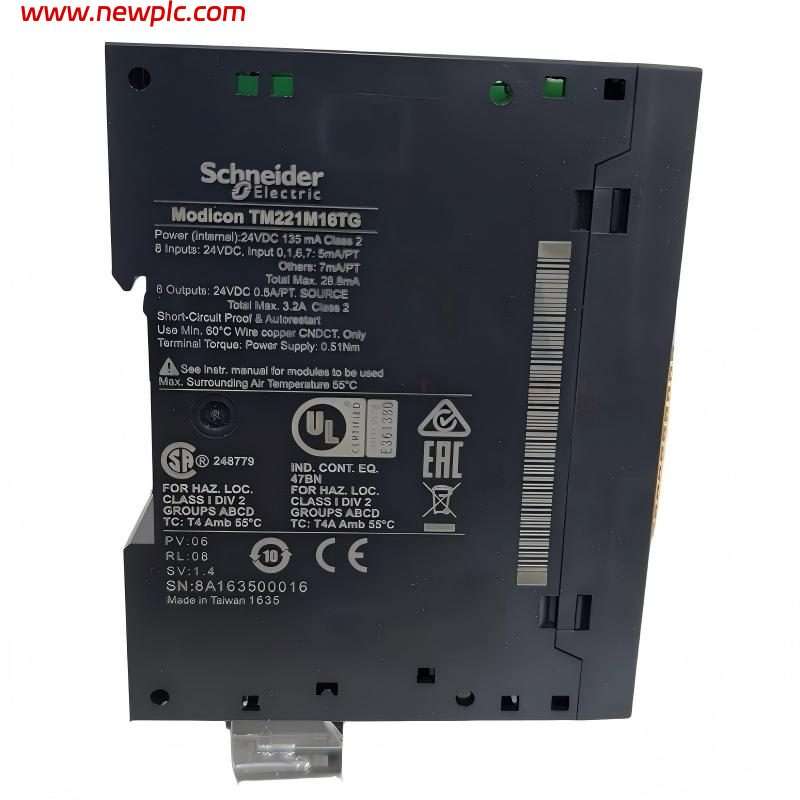

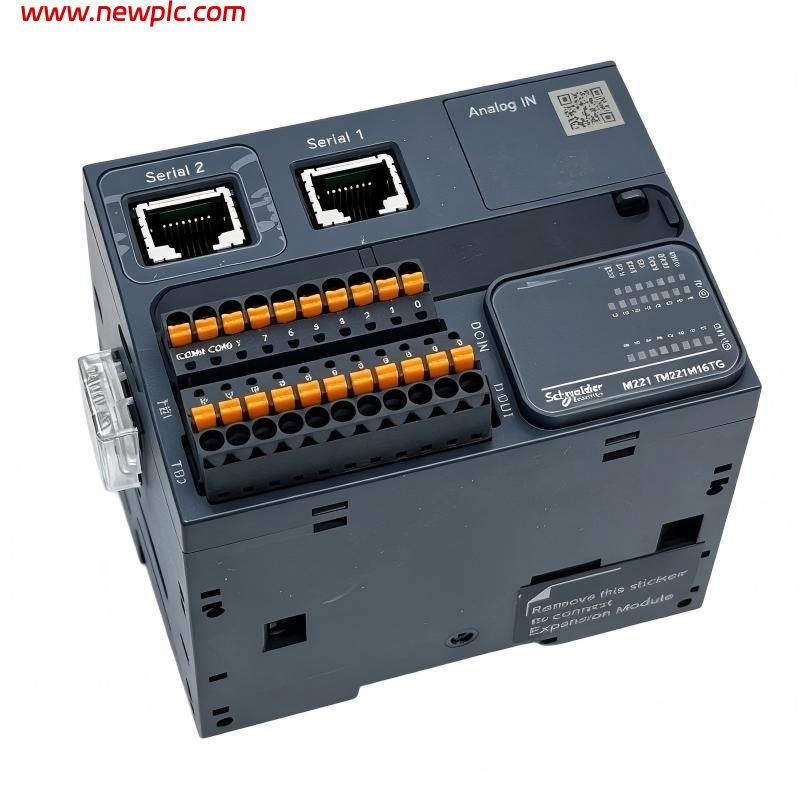

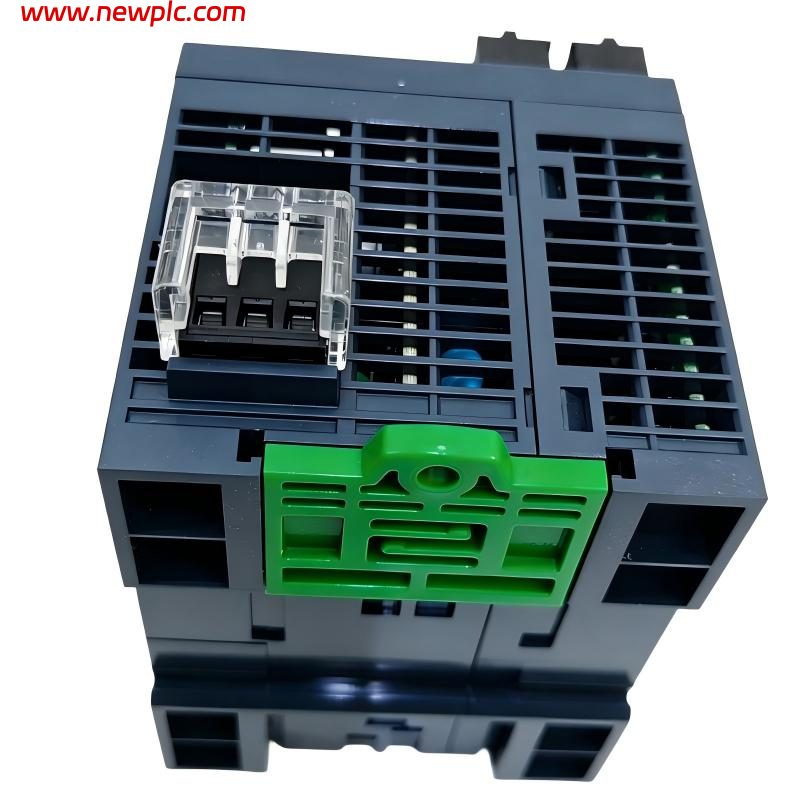

Schneider TM221M16TG Compact Logic Controller / PLC

FAQ

Q1: What is the Schneider Electric TM221M16TG used for?
A: The TM221M16TG is used for small industrial automation applications such as packaging machines, conveyors, assembly equipment, pumps, valves and OEM machinery.

Q2: How many I/O points does the TM221M16TG have?
A: It provides 16 integrated I/O points, including 8 digital inputs and 8 transistor outputs.

Q3: What type of outputs does the TM221M16TG use?
A: It uses 8 PNP transistor outputs (source outputs), including 2 fast outputs, with a rated output current of 0.5 A per channel.

Q4: What power supply does the TM221M16TG require?
A: The PLC requires a 24 VDC power supply, with an operating range of approximately 20.4–28.8 VDC.

Q5: Does the TM221M16TG support analog inputs?
A: Yes. It provides 2 analog inputs, supporting 0–10 V signals with 10-bit resolution.

Q6: What is the difference between TM221M16T and TM221M16TG?
A: Both models have the same PLC functions and I/O configuration. The main difference is the wiring terminal: TM221M16T uses screw terminals, while TM221M16TG uses spring terminals.

Q7: Can the TM221M16TG be expanded?
A: Yes. The Modicon M221 platform supports TM3 expansion modules, allowing additional I/O and functional modules to be added.

Q8: What are the dimensions and weight of the TM221M16TG?
A: The PLC dimensions are approximately 95 × 90 × 70 mm (W × H × D), with a product weight of approximately 0.263 kg.
