Technical Specifications
| Parameter | Description |
|---|---|

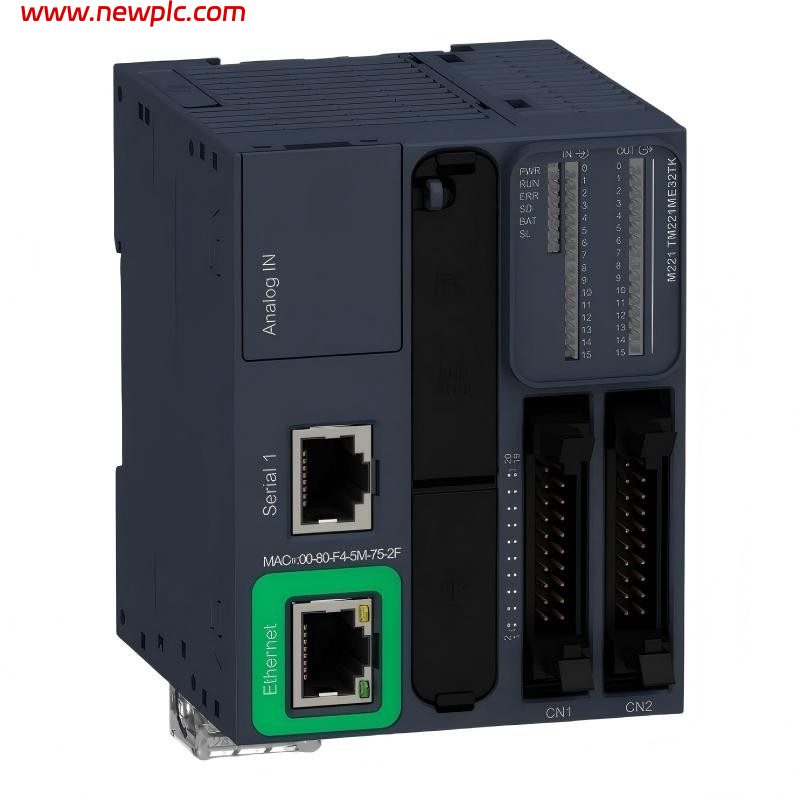

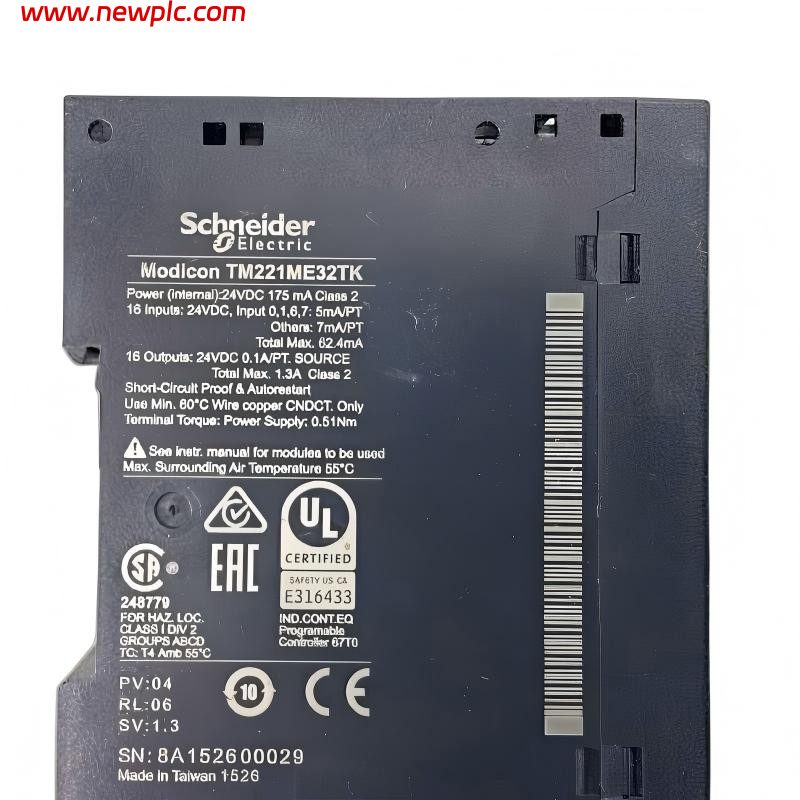

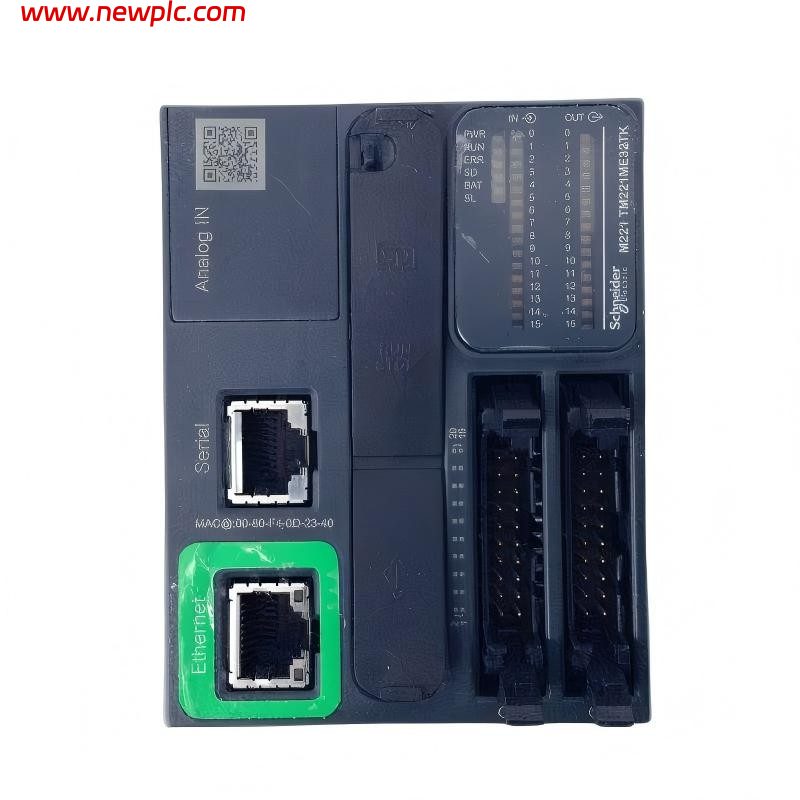

| Product Model | Schneider Electric TM221M32TK |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M221 |
| Product Type | Compact Logic Controller / PLC |
| Integrated Digital I/O | 32 points |
| Digital Inputs | 16 inputs |
| Fast Inputs | 4 high-speed inputs |
| Analog Inputs | 2 inputs, 0–10 V configurable |
| Digital Outputs | 16 transistor outputs |
| Output Type | PNP transistor / Source output |
| Fast Outputs | 2 fast transistor outputs |
| Output Voltage | 24 VDC |
| Output Current | 0.1 A per output |
| Input Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Power Consumption | 3.5 W (without expansion modules) |
| Analog Input Resolution | 10 bit |
| High-Speed Functions | HSC, PTO, PWM, PLS, Frequency Generator |
| Motion Functions | Pulse output, pulse/direction control |
| Communication Ports | Ethernet + Serial Line |
| Ethernet Port | RJ45 10/100 Mbps |
| Communication Protocols | Modbus TCP, Ethernet/IP Adapter |
| Serial Communication | RS232 / RS485 |
| USB Interface | Mini-B USB 2.0 programming port |
| SD Card | Supported |
| Memory | 256 kB application memory |
| Expansion Capability | TM3 expansion modules |
| Maximum Expansion | Up to 7 TM3 modules |
| Terminal Type | Screw terminal block |
| Programming Software | EcoStruxure Machine Expert / Machine Expert Basic |
| Mounting | DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 110 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.33 kg |
| Package Weight | Approx. 0.42 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM221M32TK used for?
A: The TM221M32TK is used for industrial automation applications such as packaging machines, conveyors, assembly equipment, production lines, and OEM machinery.
Q2: How many I/O points does the TM221M32TK have?
A: It provides 32 integrated I/O points, including 16 digital inputs and 16 transistor outputs.
Q3: What type of outputs does the TM221M32TK use?
A: It uses 16 PNP transistor outputs (source outputs), including 2 fast outputs, with a rated output voltage of 24 VDC.
Q4: What power supply does the TM221M32TK require?
A: The PLC requires a 24 VDC power supply, with an operating range of 20.4–28.8 VDC.
Q5: Does the TM221M32TK support analog inputs?
A: Yes. It provides 2 analog inputs supporting 0–10 V signals with 10-bit resolution.
Q6: Does the TM221M32TK support Ethernet communication?
A: Yes. The controller includes an RJ45 Ethernet port and supports industrial communication functions including Modbus TCP.
Q7: Can the TM221M32TK be expanded?
A: Yes. The Modicon M221 platform supports TM3 expansion modules for additional I/O and functional expansion.
Q8: What are the dimensions and weight of the TM221M32TK?
A: The PLC dimensions are approximately 110 × 90 × 70 mm (W × H × D), with a product weight of approximately 0.33 kg.
