Technical Specifications
| Parameter | Description |
|---|---|

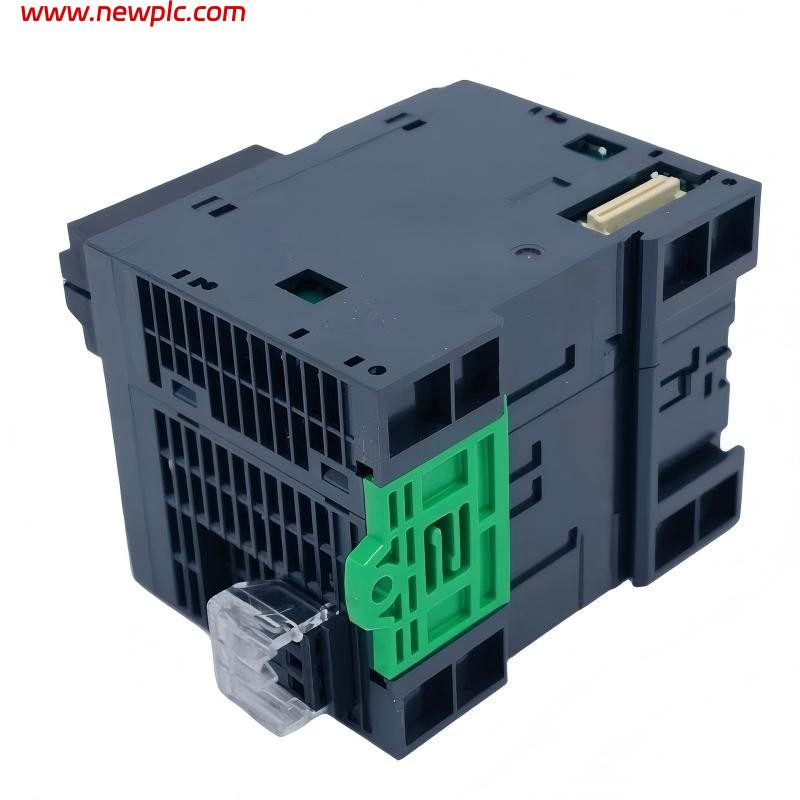

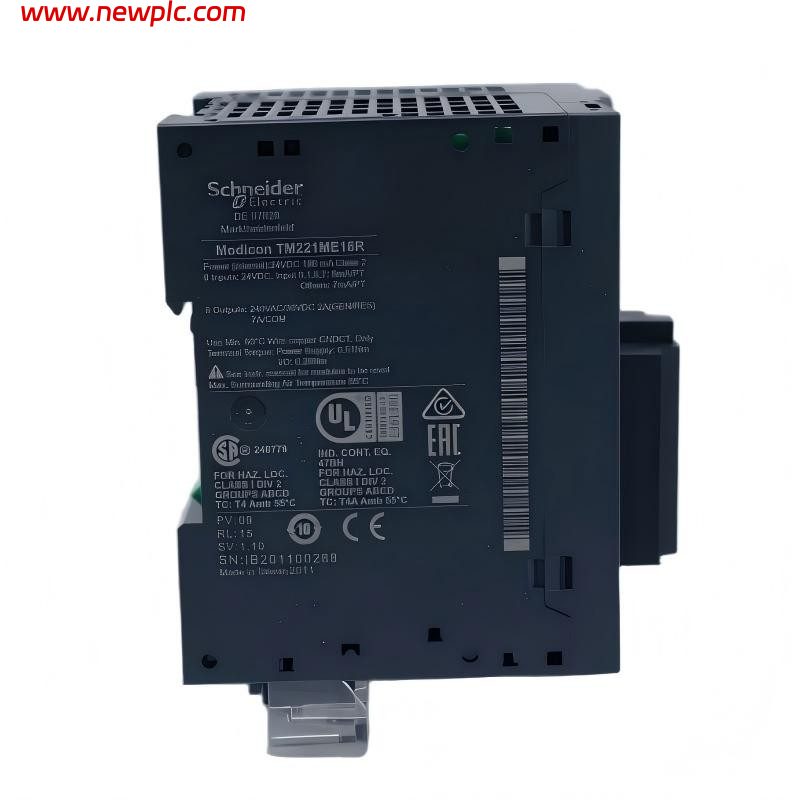

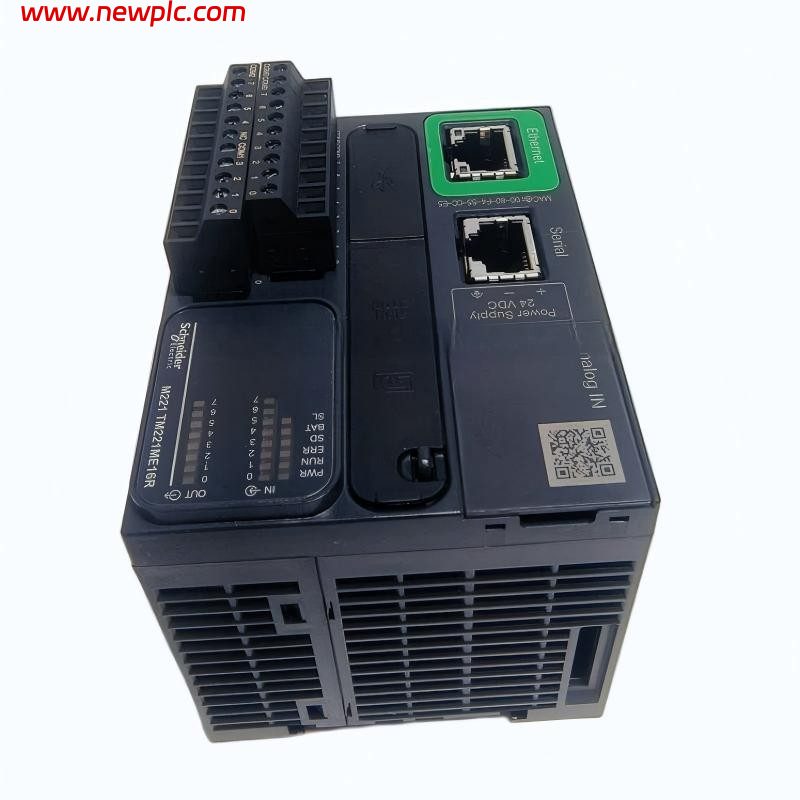

| Product Model | Schneider Electric TM221ME16R |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M221 |
| Product Type | Compact Logic Controller / PLC |
| Integrated I/O | 16 points |
| Digital Inputs | 8 inputs |
| Analog Inputs | 2 inputs |
| Digital Outputs | 8 relay outputs |
| Output Type | Relay |
| Supply Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Relay Output Rating | Up to 2 A per output, depending on load category |
| High-Speed Functions | HSC, PTO, PWM, PLS, frequency generator |
| Motion Control | Single-phase, A/B, pulse/direction |
| Ethernet | Yes |
| Ethernet Port | RJ45, 10/100BASE-TX |
| Ethernet Protocols | Modbus TCP, Ethernet/IP Adapter |
| Serial Communication | RS232/RS485, Modbus RTU/ASCII |
| USB Port | Mini-B USB 2.0 |
| SD Card | Supported |
| Application Memory | 256 kB |
| Expansion | Modicon TM3 expansion modules |
| Maximum Expansion | Up to 7 modules |
| Programming Software | EcoStruxure Machine Expert / Machine Expert Basic |
| Mounting | DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 70 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.264 kg |
| Package Dimensions | Approx. 97 × 128 × 107 mm |
| Package Weight | Approx. 0.442 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM221ME16R used for?
A: The TM221ME16R is a Modicon M221 compact PLC for machine automation, including conveyors, packaging equipment, assembly machines and general OEM applications.
Q2: How many I/O points does the TM221ME16R have?
A: It has 16 integrated I/O points, consisting of 8 digital inputs and 8 relay outputs, plus 2 analog inputs.
Q3: What type of outputs does the TM221ME16R use?
A: It uses 8 relay outputs, making it suitable for switching a variety of AC and DC loads.
Q4: What power supply does the TM221ME16R require?
A: The controller requires a 24 VDC power supply, with a specified operating range of approximately 20.4–28.8 VDC.
Q5: Does the TM221ME16R support Ethernet communication?
A: Yes. It includes an RJ45 Ethernet port supporting 10/100BASE-TX communication and protocols including Modbus TCP and Ethernet/IP Adapter.
Q6: Does the TM221ME16R have analog inputs?
A: Yes. The controller includes 2 analog inputs, in addition to its 8 digital inputs.
Q7: Can the TM221ME16R be expanded?
A: Yes. The M221 platform supports Modicon TM3 expansion modules, with up to 7 expansion modules supported.
Q8: What are the dimensions and weight of the TM221ME16R?
A: The controller measures approximately 70 × 90 × 70 mm (W × H × D) and weighs approximately 0.264 kg. The packaged unit is approximately 442 g.
