Technical Specifications
| Parameter | Description |
|---|---|

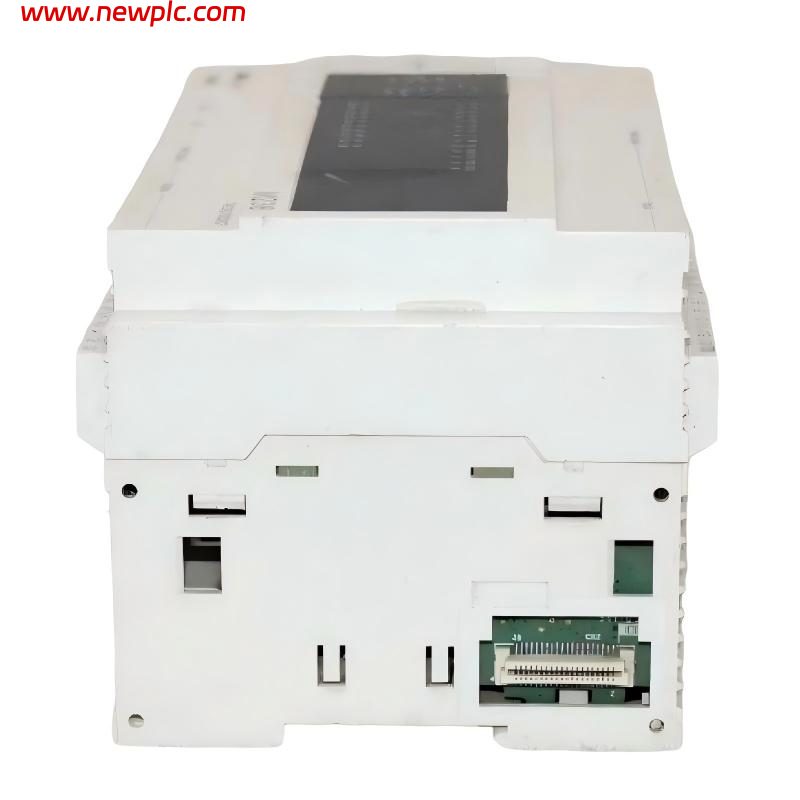

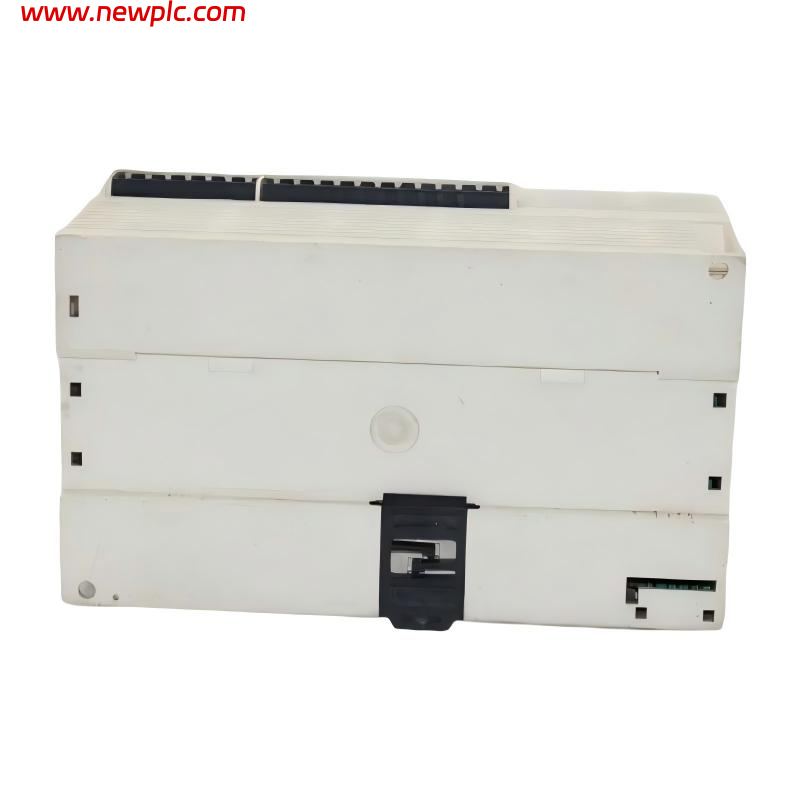

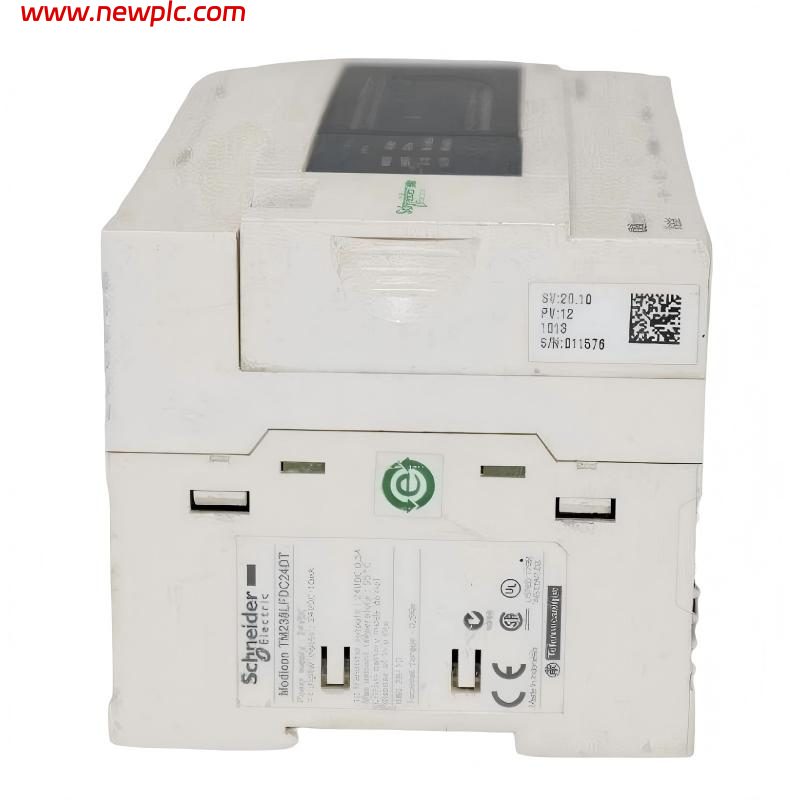

| Product Model | Schneider Electric TM238LFDC24DT |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M238 |
| Product Type | Compact Logic Controller / PLC |
| Integrated I/O | 24 points |
| Digital Inputs | 14 inputs |
| Fast Inputs | 8 |
| Digital Outputs | 10 transistor outputs |
| Fast Outputs | 4 |
| Output Type | 24 VDC transistor |
| Output Current | 500 mA per output |
| Supply Voltage | 24 VDC |
| Internal RAM | 1000 kB |
| High-Speed Functions | High-speed counting, pulse/PTO functions |
| Communication | CANopen, Modbus |
| Communication Ports | 2 |
| Serial Interface | RS232 / RS485 |
| USB Interface | Mini-B USB |
| Expansion | Up to 7 I/O expansion modules |
| Programming Software | SoMachine |
| Programming Language | IEC 61131-3 / Ladder Logic |
| Mounting | 35 mm DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | 157 × 118 × 86 mm (W × H × D) |
| Product Weight | Approx. 0.595 kg |
| Package Weight | Approx. 0.753 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM238LFDC24DT used for?
A: It is a Modicon M238 PLC designed for industrial machine automation, OEM equipment, motion-related applications and general control systems.
Q2: How many I/O points does the TM238LFDC24DT have?
A: It has 24 integrated I/O points, including 14 digital inputs and 10 transistor outputs.
Q3: How many high-speed inputs and outputs are available?
A: The controller provides 8 fast inputs and 4 fast outputs, suitable for high-speed counting and pulse-control applications.
Q4: What power supply does the TM238LFDC24DT require?
A: The controller requires a 24 VDC power supply.
Q5: What communication protocols does the TM238LFDC24DT support?
A: It supports CANopen and Modbus, with RS232/RS485 serial communication interfaces.
Q6: Can the TM238LFDC24DT be expanded?
A: Yes. The M238 controller supports up to 7 I/O expansion modules.
Q7: Is the TM238LFDC24DT still a current product?
A: No. The model is obsolete. Schneider Electric recommends TM241CEC24T as its functional replacement.
Q8: What are the dimensions and weight of the TM238LFDC24DT?
A: The PLC measures approximately 157 × 118 × 86 mm (W × H × D) and weighs approximately 0.595 kg.
