Technical Specifications
| Parameter | Description |
|---|---|

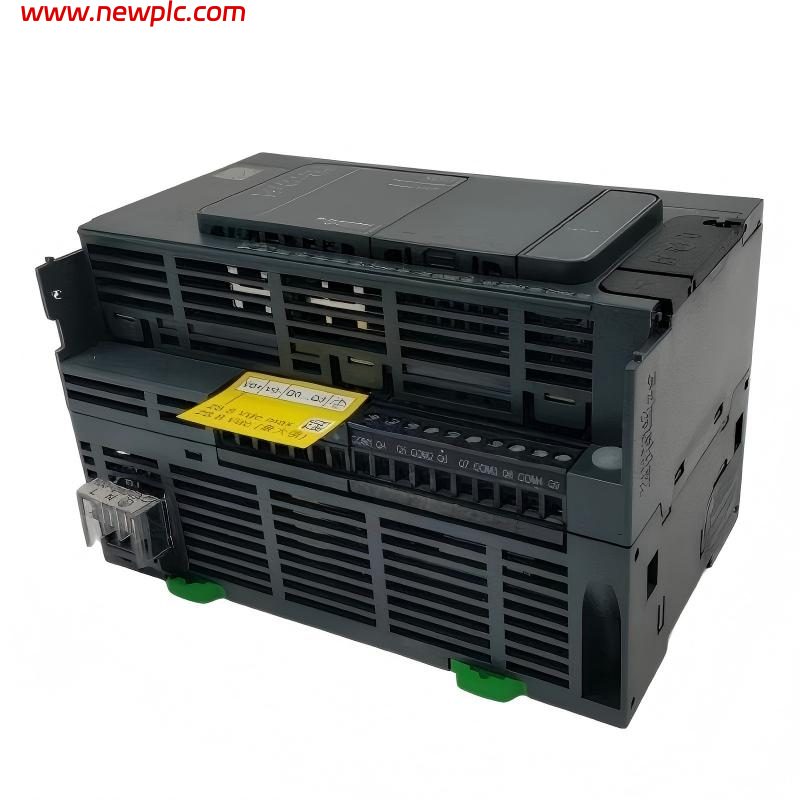

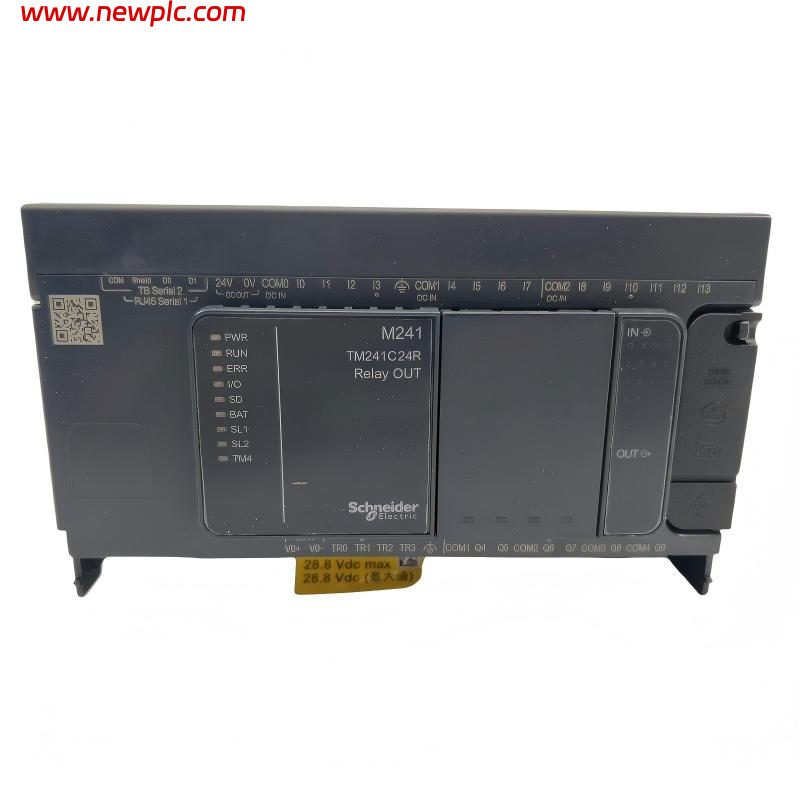

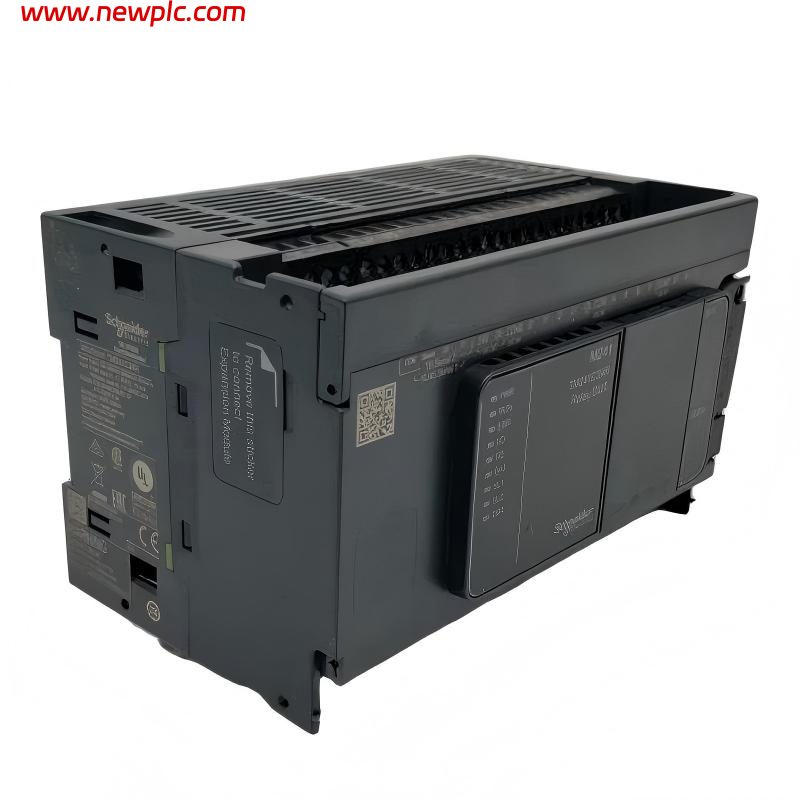

| Product Model | Schneider Electric TM241C24R |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M241 |
| Product Type | Compact Logic Controller / PLC |
| Integrated I/O | 24 points |
| Digital Inputs | 14 |
| Fast Inputs | 8 |
| Standard Inputs | 6 |
| Digital Outputs | 10 |
| Relay Outputs | 6 |
| Fast Transistor Outputs | 4 |
| Output Type | Relay + transistor |
| Relay Output Rating | 2 A |
| Supply Voltage | 100–240 VAC |
| Supply Frequency | 50/60 Hz |
| Sensor Supply | 24 VDC, 400 mA |
| High-Speed Counter | 4 fast inputs, up to 200 kHz |
| Pulse Output | 4 PTO outputs, up to 100 kHz |
| Ethernet | Yes |
| Ethernet Port | RJ45 |
| Serial Communication | RS232 / RS485 |
| USB Interface | Mini-B USB |
| Communication Protocol | Modbus RTU/ASCII, Modbus TCP |
| SD Card | Supported, up to 16 GB |
| Battery | BR2032 lithium, non-rechargeable |
| Expansion | Up to 7 local / 14 remote I/O expansion modules |
| Programming Software | EcoStruxure Machine Expert |
| Programming Standard | IEC 61131-3 |
| Mounting | 35 mm DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 150 × 90 × 95 mm (W × H × D) |
| Product Weight | Approx. 0.53 kg |
| Package Weight | Approx. 0.75 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM241C24R used for?
A: It is a Modicon M241 PLC designed for industrial machine automation, packaging machines, conveyors, assembly equipment and OEM control systems.
Q2: How many I/O points does the TM241C24R have?
A: It has 24 integrated I/O points, including 14 digital inputs and 10 outputs.
Q3: What type of outputs does the TM241C24R use?
A: It combines 6 relay outputs rated at 2 A with 4 fast transistor outputs.
Q4: What power supply does the TM241C24R require?
A: The controller operates from a 100–240 VAC supply at 50/60 Hz.
Q5: Does the TM241C24R support high-speed functions?
A: Yes. It provides 4 high-speed inputs for HSC functions up to 200 kHz and 4 PTO outputs up to 100 kHz.
Q6: What communication interfaces are available?
A: The TM241C24R provides RJ45 Ethernet, RS232/RS485 serial communication and a Mini-B USB programming port.
Q7: Can the TM241C24R be expanded?
A: Yes. It supports up to 7 local I/O expansion modules and up to 14 remote I/O expansion modules.
Q8: What are the dimensions and weight of the TM241C24R?
A: The PLC measures approximately 150 × 90 × 95 mm (W × H × D) and weighs approximately 0.53 kg.
