Technical Specifications
| Parameter | Description |
|---|---|

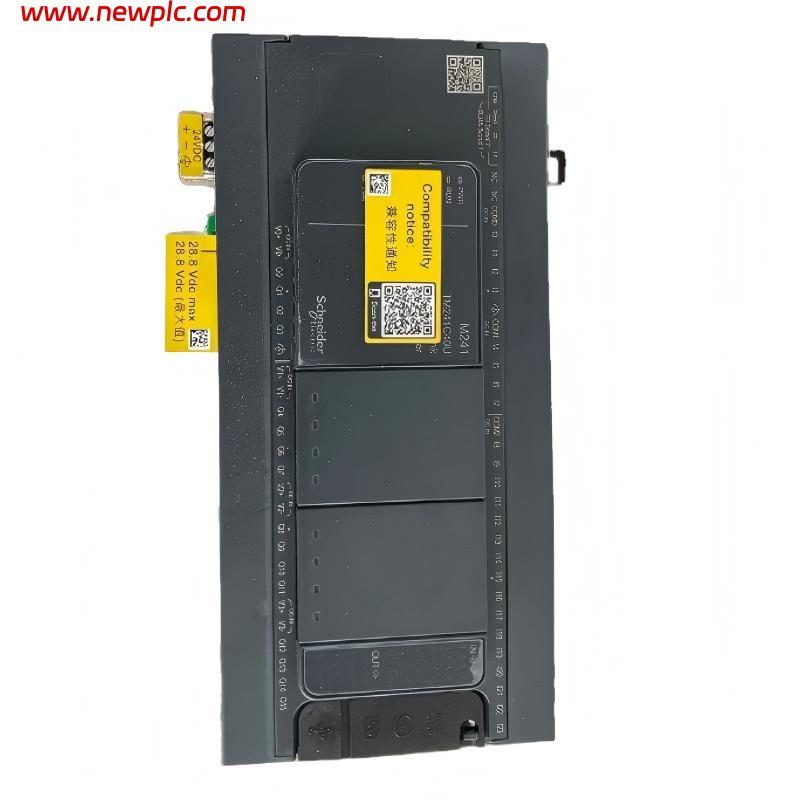

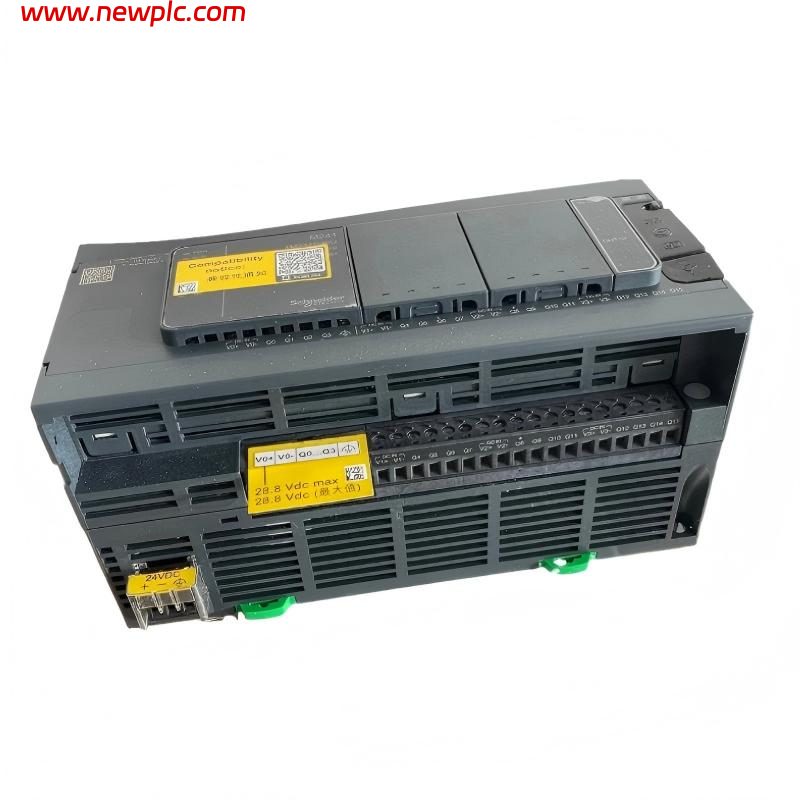

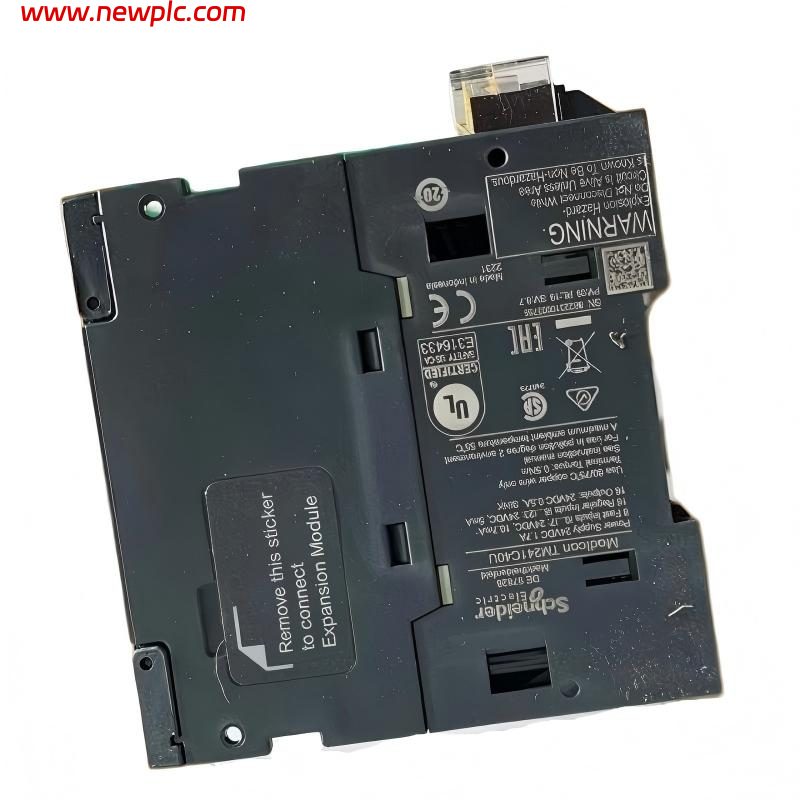

| Product Model | Schneider Electric TM241C40U |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M241 |
| Product Type | Compact Logic Controller / PLC |
| Integrated I/O | 40 points |
| Digital Inputs | 24 |
| Fast Inputs | 8 |
| Regular Inputs | 16 |
| Digital Outputs | 16 |
| Output Type | NPN transistor / Sink |
| Fast Outputs | 4 |
| Regular Outputs | 12 |
| Supply Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Standard Output Current | 0.5 A per output |
| Fast Output Current | 0.1 A |
| High-Speed Counter | Up to 200 kHz |
| Pulse Output | 4 PTO outputs, up to 100 kHz |
| Ethernet | Yes |
| Ethernet Port | RJ45 |
| Serial Communication | 2 serial ports |
| Serial Interfaces | RS232 / RS485 |
| USB Interface | Mini-B USB |
| SD Card | Supported |
| Communication Protocols | Modbus TCP, Modbus RTU/ASCII |
| Expansion | TM3 / TM4 expansion modules |
| Maximum Expansion | Up to 21 modules |
| Programming Software | EcoStruxure Machine Expert |
| Programming Standard | IEC 61131-3 |
| Mounting | 35 mm DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 190 × 90 × 95 mm (W × H × D) |
| Product Weight | Approx. 0.62 kg |
| Shipping Weight | Approx. 1.00 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM241C40U used for?
A: It is a Modicon M241 PLC designed for industrial machine automation, packaging, conveyors, assembly equipment, positioning and OEM machinery.
Q2: How many I/O points does the TM241C40U have?
A: It provides 40 integrated I/O points, consisting of 24 digital inputs and 16 transistor outputs.
Q3: What type of outputs does the TM241C40U use?
A: It uses 16 NPN transistor/sink outputs, including 4 fast outputs and 12 regular outputs.
Q4: What power supply does the TM241C40U require?
A: The controller requires a 24 VDC power supply, with an operating range of approximately 20.4–28.8 VDC.
Q5: Does the TM241C40U support high-speed functions?
A: Yes. It provides 8 fast inputs, high-speed counter functions up to 200 kHz, and four fast PTO outputs supporting frequencies up to 100 kHz.
Q6: What communication interfaces are available?
A: The TM241C40U provides Ethernet, two serial communication ports and a Mini-B USB programming port. The serial interfaces support RS232/RS485.
Q7: Can the TM241C40U be expanded?
A: Yes. The M241 platform supports TM3/TM4 expansion modules, with up to 21 modules supported.
Q8: What are the dimensions and weight of the TM241C40U?
A: The PLC measures approximately 190 × 90 × 95 mm (W × H × D) and weighs approximately 0.62 kg.
