Technical Specifications
| Parameter | Description |
|---|---|

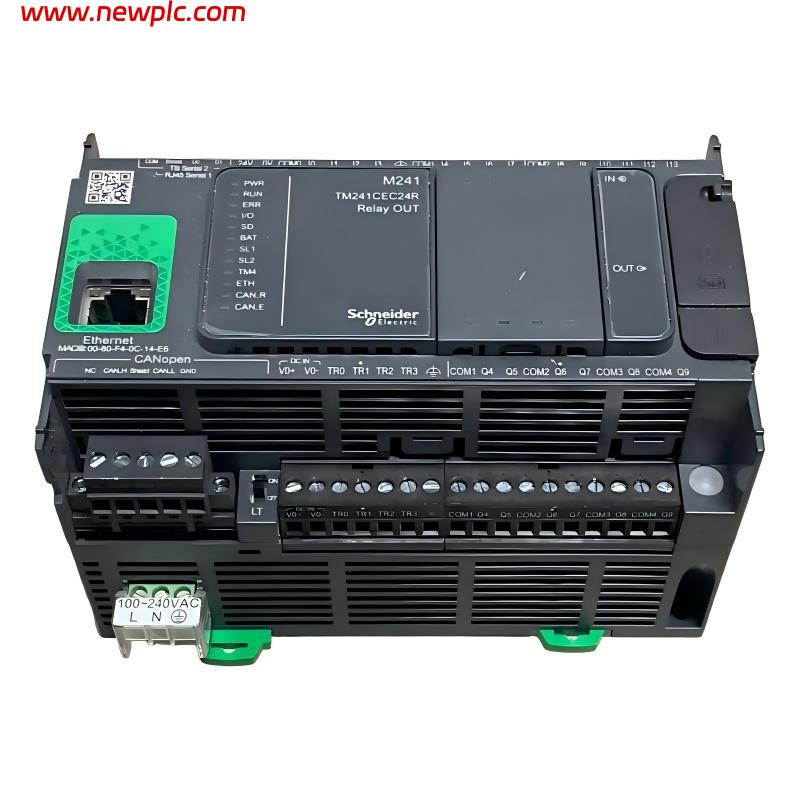

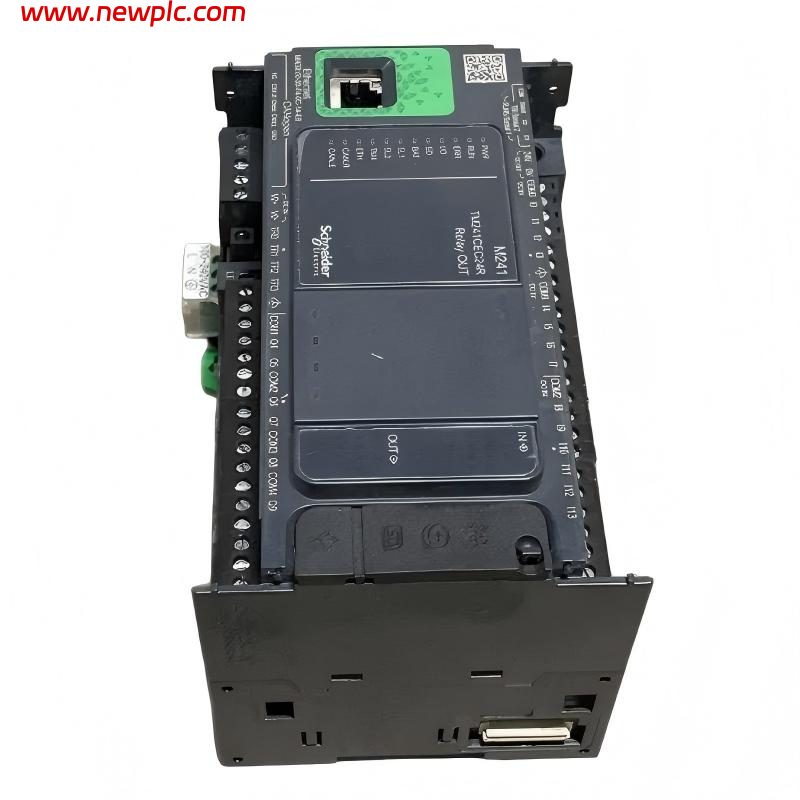

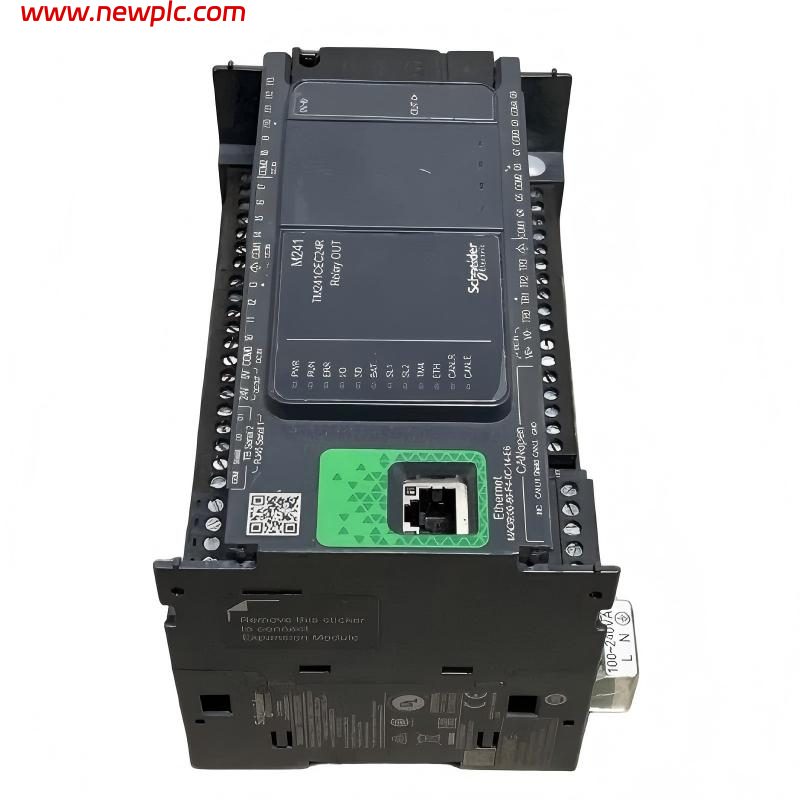

| Product Model | Schneider Electric TM241CE24R |
| Product Series | Modicon M241 |
| Product Type | Compact Logic Controller / PLC |
| Integrated I/O | 24 points |
| Digital Inputs | 14 |
| Fast Inputs | 8 |
| Regular Inputs | 6 |
| Digital Outputs | 10 |
| Fast Transistor Outputs | 4 |
| Relay Outputs | 6 |
| Relay Output Rating | 2 A per output |
| Output Type | Relay + transistor |
| Supply Voltage | 100–240 VAC |
| Supply Frequency | 50/60 Hz |
| Sensor Supply | 24 VDC, 400 mA |
| High-Speed Counter | Up to 200 kHz |
| Pulse Output | 4 PTO outputs, up to 100 kHz |
| Ethernet | Yes |
| Ethernet Port | RJ45 |
| Serial Communication | 2 serial ports |
| Serial Interfaces | RS232 / RS485 |
| USB Interface | Mini-B USB |
| SD Card | Supported |
| Communication Protocols | Modbus TCP, Modbus RTU/ASCII, Ethernet/IP |
| Web Server | Supported |
| Expansion | TM3 / TM4 expansion modules |
| Maximum Expansion | Up to 21 modules |
| Programming Software | EcoStruxure Machine Expert |
| Programming Standard | IEC 61131-3 |
| Mounting | 35 mm DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 150 × 90 × 95 mm (W × H × D) |
| Product Weight | Approx. 0.53 kg |
| Package Weight | Approx. 0.54 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM241CE24R used for?
A: It is a Modicon M241 PLC designed for industrial machine automation, packaging equipment, conveyors, assembly systems, positioning and OEM applications.
Q2: How many I/O points does the TM241CE24R have?
A: It provides 24 integrated I/O points, including 14 digital inputs and 10 digital outputs.
Q3: What type of outputs does the TM241CE24R use?
A: It combines 6 relay outputs rated at 2 A with 4 fast transistor outputs.
Q4: What power supply does the TM241CE24R require?
A: The controller requires a 100–240 VAC power supply at 50/60 Hz.
Q5: Does the TM241CE24R support high-speed functions?
A: Yes. It provides 8 fast inputs and 4 fast outputs, supporting high-speed counting and pulse-train output functions.
Q6: What communication interfaces are available?
A: The TM241CE24R provides Ethernet, two serial communication ports and a Mini-B USB programming port. The serial ports support RS232/RS485.
Q7: Can the TM241CE24R be expanded?
A: Yes. The M241 platform supports TM3/TM4 expansion modules, with up to 21 expansion modules supported.
Q8: What are the dimensions and weight of the TM241CE24R?
A: The PLC measures approximately 150 × 90 × 95 mm (W × H × D) and weighs approximately 0.53 kg.
