Technical Specifications
| Parameter | Description |
|---|---|

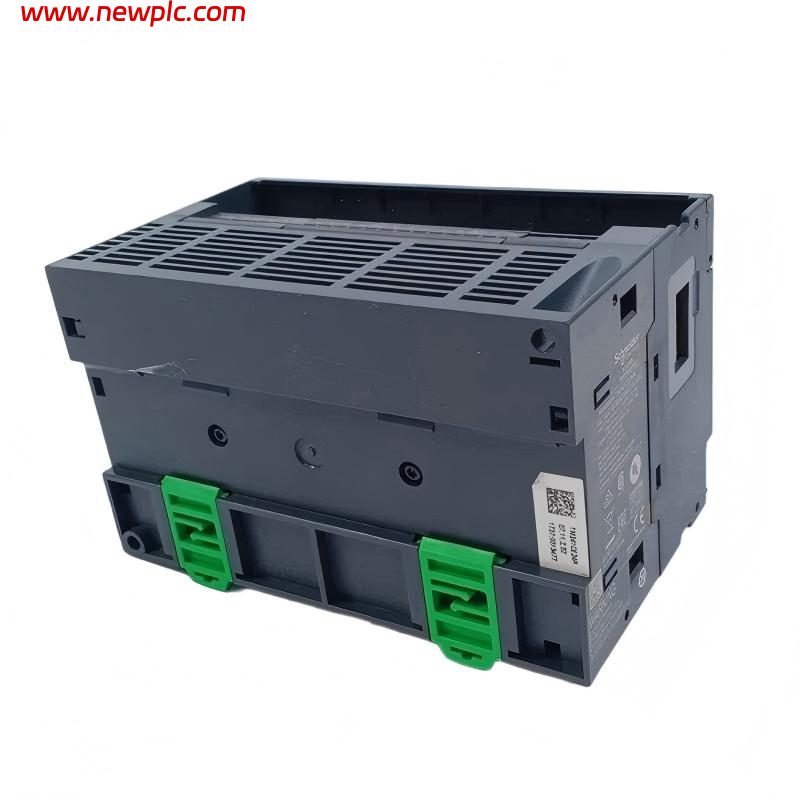

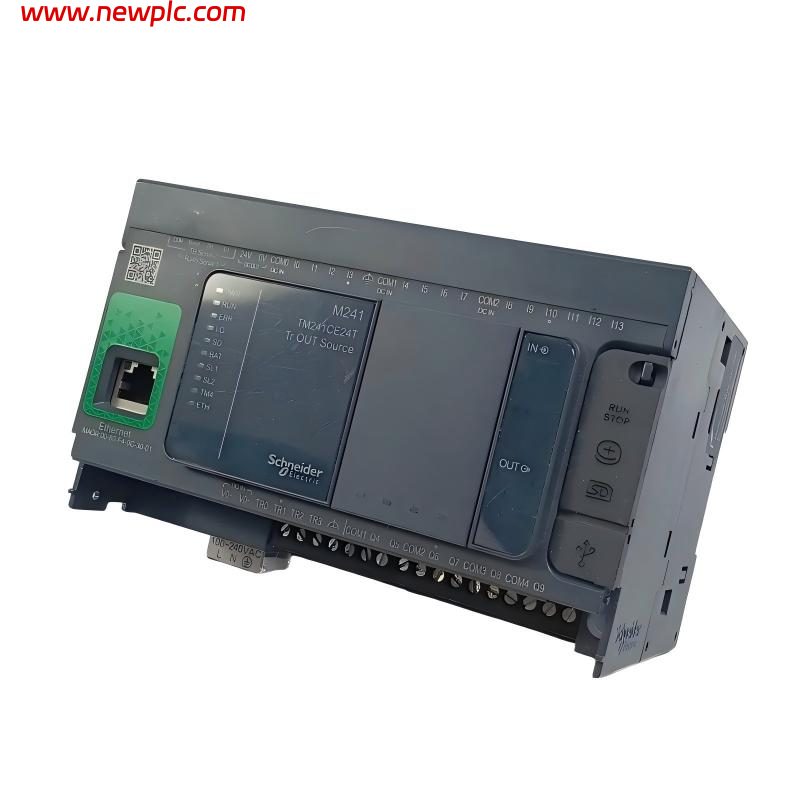

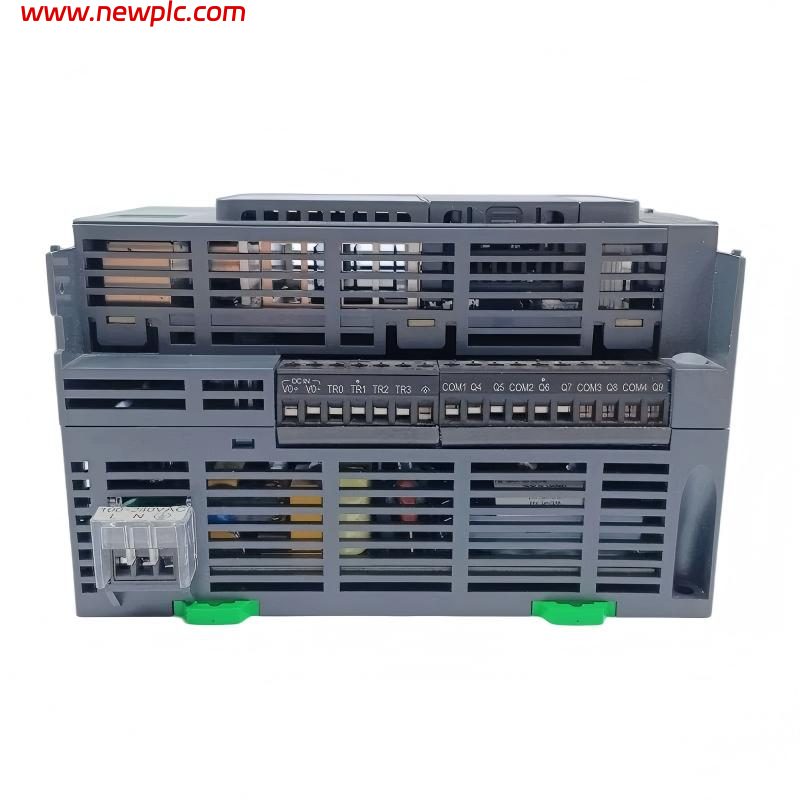

| Product Model | Schneider Electric TM241CE24T |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M241 |
| Product Type | Compact Logic Controller / PLC |
| Integrated I/O | 24 points |
| Digital Inputs | 14 |
| Fast Inputs | 8 |
| Regular Inputs | 6 |
| Digital Outputs | 10 |
| Output Type | PNP transistor |
| Fast Outputs | 4 |
| Regular Outputs | 6 |
| Supply Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Output Voltage | 24 VDC |
| Standard Output Current | 0.5 A per output |
| Fast Output Current | 0.1 A in PTO mode |
| High-Speed Counter | Up to 200 kHz |
| PTO Output | 4 channels, up to 100 kHz |
| Ethernet | Yes |
| Ethernet Port | RJ45 |
| Serial Communication | 2 serial ports |
| Serial Interface | RS232 / RS485 |
| USB Interface | Mini-B USB programming port |
| SD Card | Supported |
| Communication Protocols | Modbus TCP, Modbus RTU/ASCII, Ethernet/IP |
| Web Server | Yes |
| Local I/O Expansion | Up to 7 modules |
| Remote I/O Expansion | Up to 14 modules |
| Programming Software | EcoStruxure Machine Expert |
| Programming Standard | IEC 61131-3 |
| Mounting | 35 mm DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 150 × 90 × 95 mm (W × H × D) |
| Product Weight | Approx. 0.53 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM241CE24T used for?
A: It is a Modicon M241 PLC designed for machine automation, packaging equipment, conveyors, assembly systems, positioning and OEM applications.
Q2: How many I/O points does the TM241CE24T have?
A: It provides 24 integrated I/O points, consisting of 14 digital inputs and 10 transistor outputs.
Q3: What type of outputs does the TM241CE24T use?
A: It uses 10 PNP transistor outputs, including 4 fast outputs and 6 regular outputs. Standard outputs are rated at 0.5 A, while fast outputs are rated at 0.1 A in PTO mode.
Q4: What power supply does the TM241CE24T require?
A: The controller requires a 24 VDC power supply, with an operating range of 20.4–28.8 VDC.
Q5: Does the TM241CE24T support high-speed functions?
A: Yes. It provides 8 fast inputs, high-speed counter functions up to 200 kHz, and four PTO outputs supporting frequencies up to 100 kHz.
Q6: What communication interfaces are available?
A: The TM241CE24T provides Ethernet, two serial ports and a Mini-B USB programming port. The serial interfaces support RS232/RS485.
Q7: Can the TM241CE24T be expanded?
A: Yes. It supports up to 7 local expansion modules and 14 remote I/O expansion modules.
Q8: What are the dimensions and weight of the TM241CE24T?
A: The PLC measures approximately 150 × 90 × 95 mm (W × H × D) and weighs approximately 0.53 kg.
