Technical Specifications
| Parameter | Description |
|---|---|

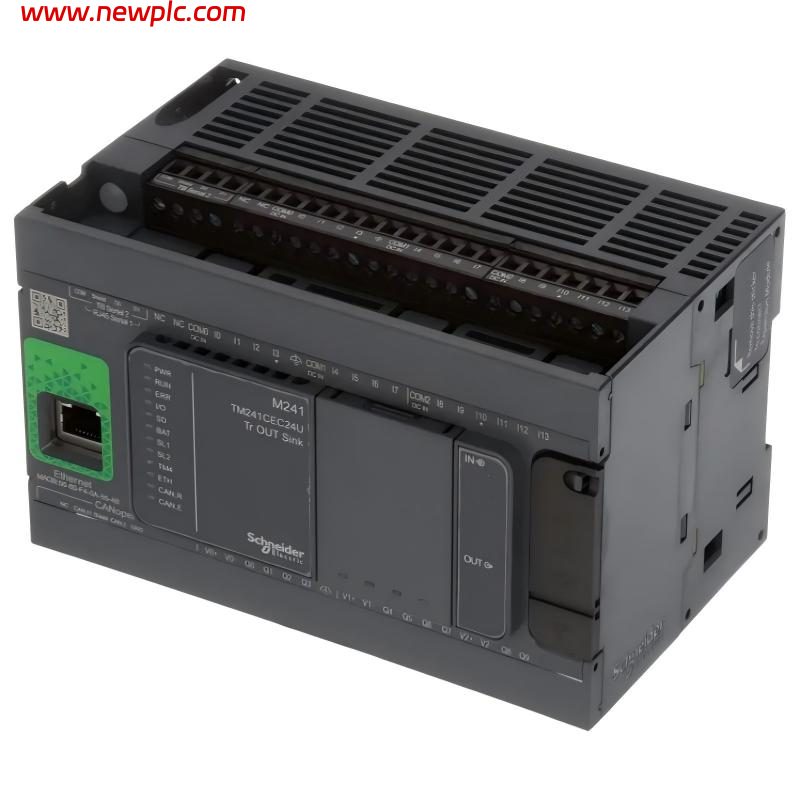

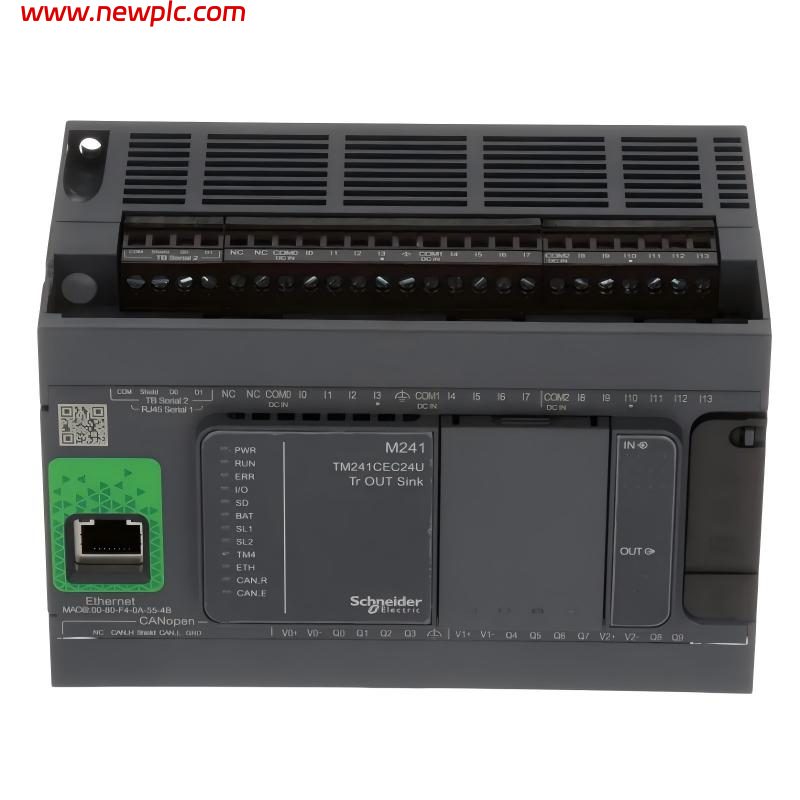

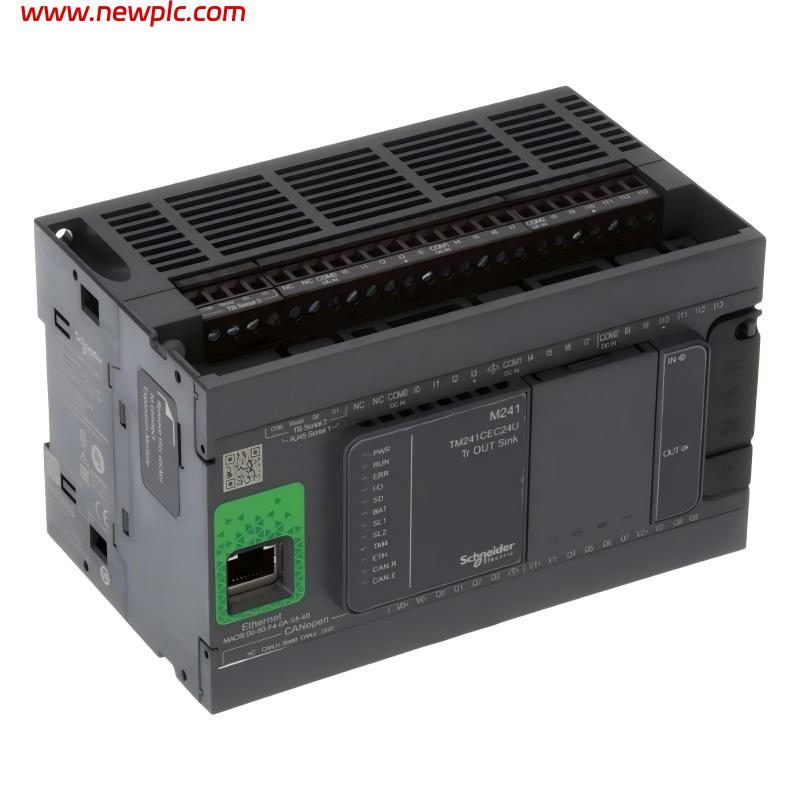

| Product Model | Schneider Electric TM241CE24U |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M241 |
| Product Type | Compact Logic Controller / PLC |
| Integrated I/O | 24 points |
| Digital Inputs | 14 |
| Fast Inputs | 8 |
| Regular Inputs | 6 |
| Digital Outputs | 10 |
| Output Type | NPN transistor / Sink |
| Fast Outputs | 4 |
| Regular Outputs | 6 |
| Supply Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Standard Output Current | 0.5 A per output |
| Fast Output Current | 0.1 A in PTO mode |
| High-Speed Counter | Up to 200 kHz |
| Pulse Train Output | 4 PTO outputs, up to 100 kHz |
| Ethernet | Yes |
| Ethernet Port | RJ45, 10/100BASE-TX |
| Serial Communication | 2 serial ports |
| Serial Interfaces | RS232 / RS485 |
| USB Interface | Mini-B USB programming port |
| SD Card | Supported |
| Communication Protocols | Modbus TCP, Modbus RTU/ASCII, Ethernet/IP |
| Web Server | Yes |
| Program Backup Memory | 128 MB built-in Flash |
| Expansion | TM3 / TM4 expansion modules |
| Local Expansion | Up to 7 modules |
| Remote Expansion | Up to 14 modules |
| Maximum Expansion | 21 modules |
| Programming Software | EcoStruxure Machine Expert |
| Programming Standard | IEC 61131-3 |

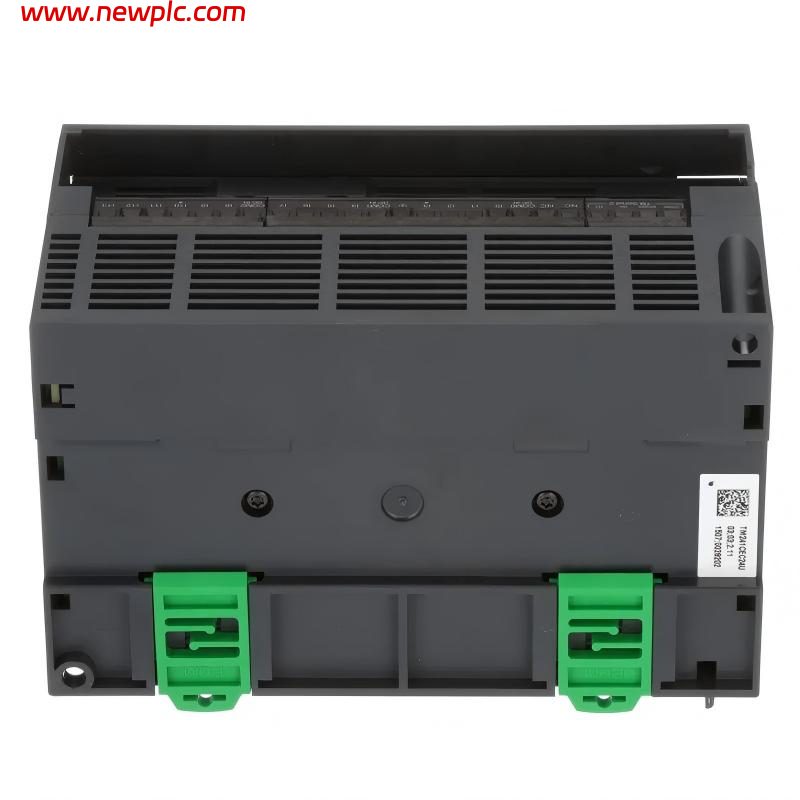

| Mounting | 35 mm DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 150 × 90 × 95 mm (W × H × D) |
| Product Weight | Approx. 0.53 kg |
| Shipping Weight | Approx. 0.80–1.00 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM241CE24U used for?
A: It is a Modicon M241 PLC designed for machine automation, packaging equipment, conveyors, assembly systems, positioning and OEM applications.
Q2: How many I/O points does the TM241CE24U have?
A: It provides 24 integrated I/O points, consisting of 14 digital inputs and 10 transistor outputs.
Q3: What type of outputs does the TM241CE24U use?
A: It uses 10 NPN transistor/sink outputs, including 4 fast outputs. Standard outputs are rated at 0.5 A, while the fast outputs are rated at 0.1 A in PTO mode.
Q4: What power supply does the TM241CE24U require?
A: The controller requires a 24 VDC power supply, with an operating range of 20.4–28.8 VDC.
Q5: Does the TM241CE24U support high-speed functions?
A: Yes. It provides 8 fast inputs, high-speed counter functions and 4 fast PTO outputs, with pulse output frequencies up to 100 kHz.
Q6: What communication interfaces are available?
A: The TM241CE24U provides Ethernet, two serial communication ports and a Mini-B USB programming port.
Q7: Can the TM241CE24U be expanded?
A: Yes. It supports up to 7 local expansion modules and 14 remote expansion modules, for a maximum of 21 expansion modules.
Q8: What are the dimensions and weight of the TM241CE24U?
A: The PLC measures approximately 150 × 90 × 95 mm (W × H × D) and weighs approximately 0.53 kg.
