Technical Specifications
| Parameter | Description |
|---|---|

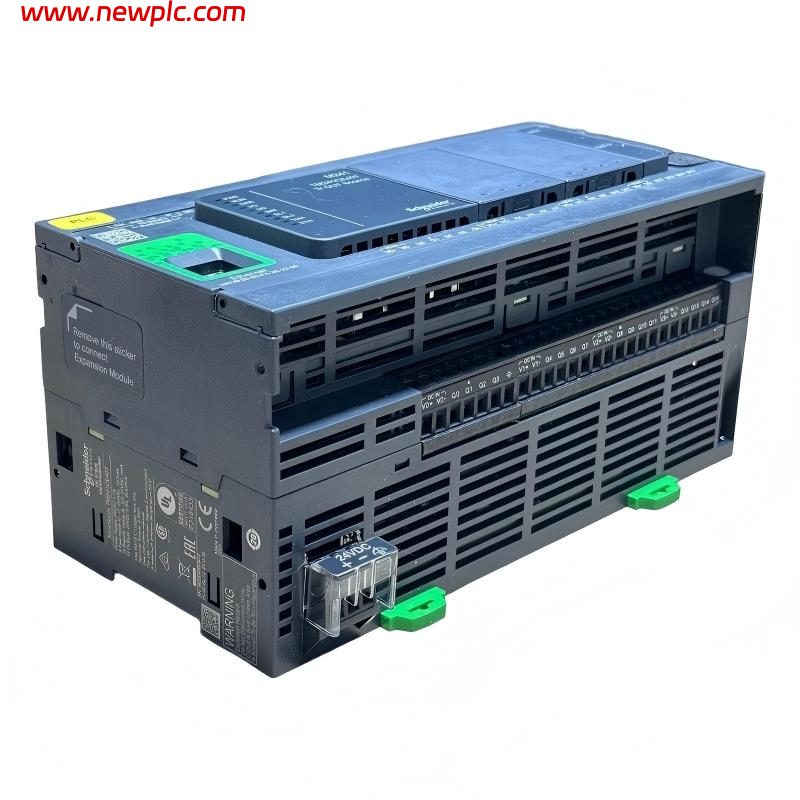

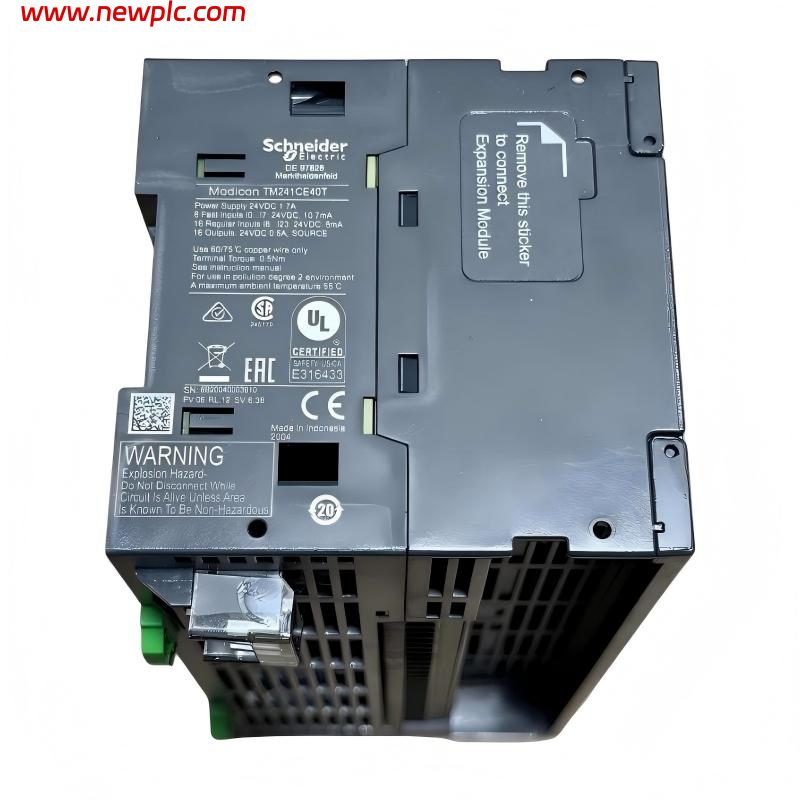

| Product Model | Schneider Electric TM241CE40T |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M241 |
| Product Type | Compact Logic Controller / PLC |
| Integrated I/O | 40 points |
| Digital Inputs | 24 |
| Fast Inputs | 8 |
| Digital Outputs | 16 |
| Output Type | PNP transistor / solid-state |
| Fast Outputs | 4 |
| Supply Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Standard Output Current | 0.5 A per output |
| Fast Output Current | 0.1 A in PTO mode |
| High-Speed Counter | Up to 200 kHz |
| Pulse Train Output | 4 PTO outputs, up to 100 kHz |
| Ethernet | Yes |
| Ethernet Port | RJ45 |
| Serial Communication | 2 serial ports |
| Serial Interfaces | RS232 / RS485 |
| USB Interface | Mini-B USB |
| SD Card | Supported |
| Program Memory | 8 MB |
| System RAM | 64 MB |
| Backup Flash Memory | 128 MB |
| Communication Protocols | Modbus TCP, Modbus RTU/ASCII, Ethernet/IP |
| Embedded Web Server | Yes |
| Expansion | TM3 / TM4 expansion modules |
| Maximum Expansion | 21 modules |
| Programming Software | EcoStruxure Machine Expert |
| Programming Standard | IEC 61131-3 |

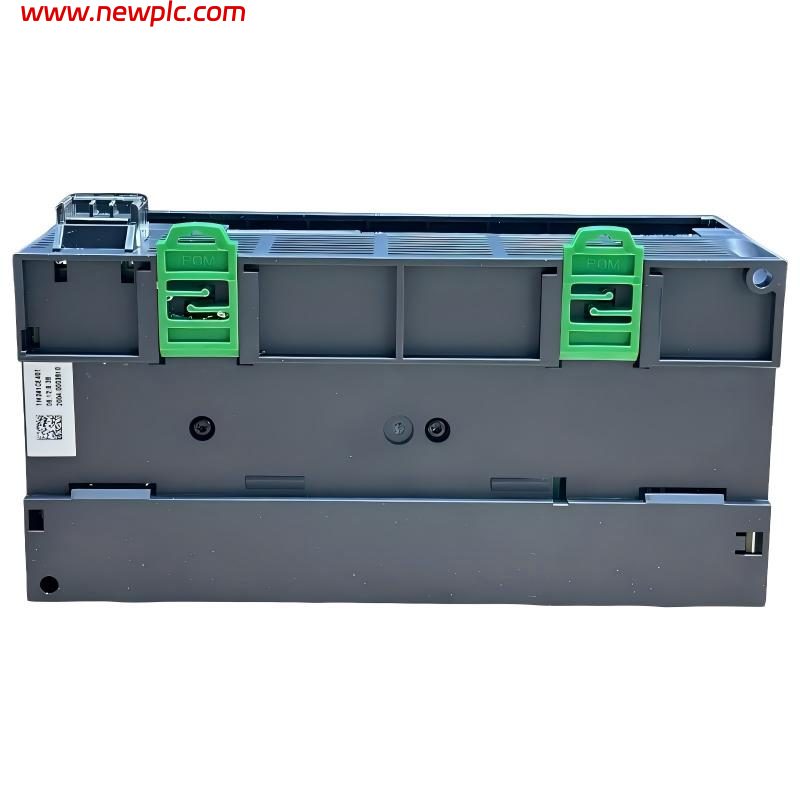

| Mounting | 35 mm DIN rail / panel mounting |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +50°C vertical; -10°C to +55°C horizontal |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 190 × 90 × 95 mm (W × H × D) |
| Product Weight | Approx. 0.62 kg |
| Shipping Weight | Approx. 1.00 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM241CE40T used for?
A: It is a Modicon M241 PLC designed for industrial machine automation, packaging equipment, conveyors, assembly systems, positioning and OEM machinery.
Q2: How many I/O points does the TM241CE40T have?
A: It provides 40 integrated I/O points, consisting of 24 digital inputs and 16 transistor outputs.
Q3: What type of outputs does the TM241CE40T use?
A: It uses 16 PNP transistor outputs, including 4 fast outputs. The standard transistor outputs are rated at 0.5 A, while the fast outputs support high-speed pulse functions.
Q4: What power supply does the TM241CE40T require?
A: The controller requires a 24 VDC power supply, with a specified operating range of approximately 20.4–28.8 VDC.
Q5: Does the TM241CE40T support high-speed functions?
A: Yes. It supports high-speed counting up to 200 kHz and pulse-train output functions up to 100 kHz.
Q6: What communication interfaces are available?
A: The TM241CE40T provides Ethernet, two serial communication ports and a Mini-B USB programming port. The serial interfaces support RS232/RS485.
Q7: Can the TM241CE40T be expanded?
A: Yes. The M241 platform supports TM3/TM4 expansion modules, with up to 21 modules supported.
Q8: What are the dimensions and weight of the TM241CE40T?
A: The PLC measures approximately 190 × 90 × 95 mm (W × H × D) and weighs approximately 0.62 kg. The shipping weight is approximately 1 kg.
