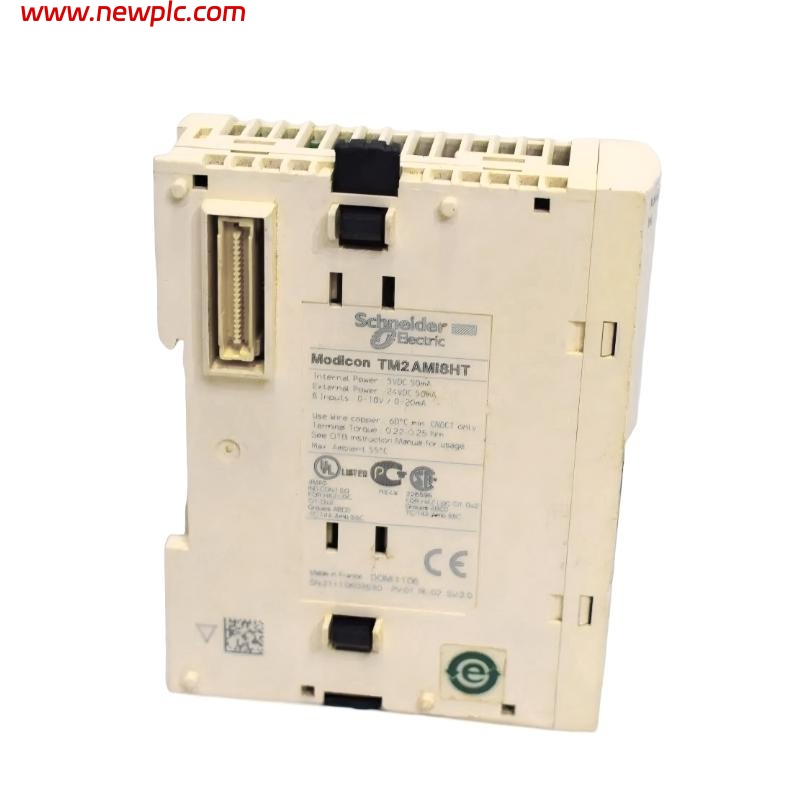

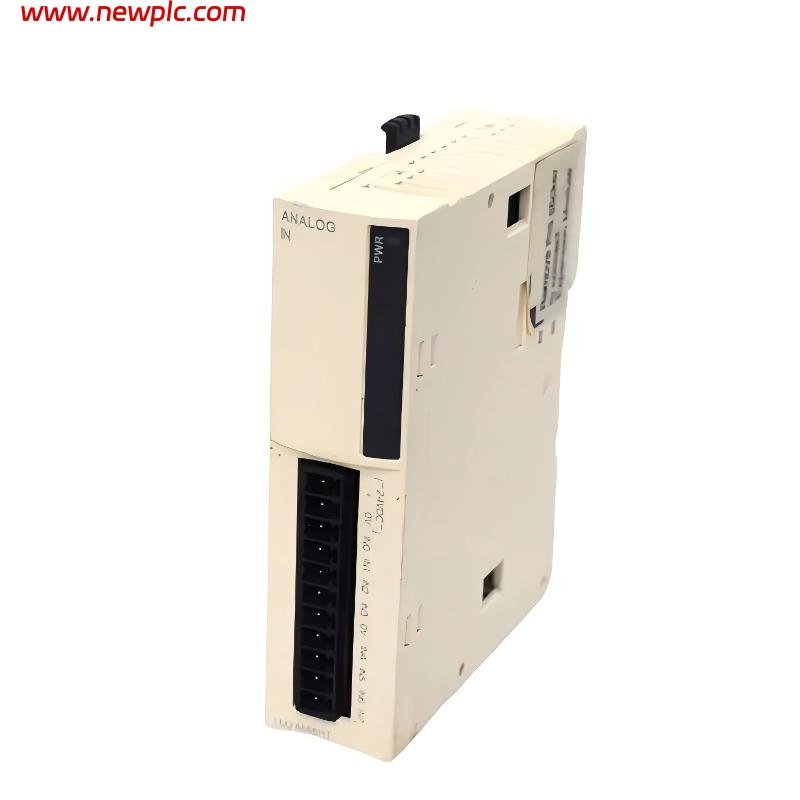

Schneider TM2AMI8HT Analog Input Module

FAQ

Q1: What types of analog signals are supported by this module?
A1: The module accepts both voltage signals (0–10 VDC) and current signals (4–20 mA).

Q2: How many analog input channels are available?
A2: The module provides 8 independent analog input channels.

Q3: Is electrical isolation provided between the inputs and the logic circuit?
A3: Yes, galvanic isolation protects the control system from electrical interference and field-side faults.

Q4: What is the typical conversion speed of the module?
A4: The conversion cycle is under 10 ms, allowing fast and stable signal updates.

Q5: How accurate are the measurements?
A5: The module delivers ±0.2% full-scale accuracy with 12-bit resolution.

Q6: Can different signal types be mixed across channels?
A6: Yes, each channel may be configured independently for voltage or current input.

Q7: What communication protocol does the module use?
A7: It communicates through the TM2 bus to exchange data with the main controller.

Q8: Does the module require on-site calibration?
A8: No calibration is required during installation; all configuration is handled through the control system software.

Analog Input Module Schneider TM2AMI8HT
