Technical Specifications
| Item | Specification |
|---|---|

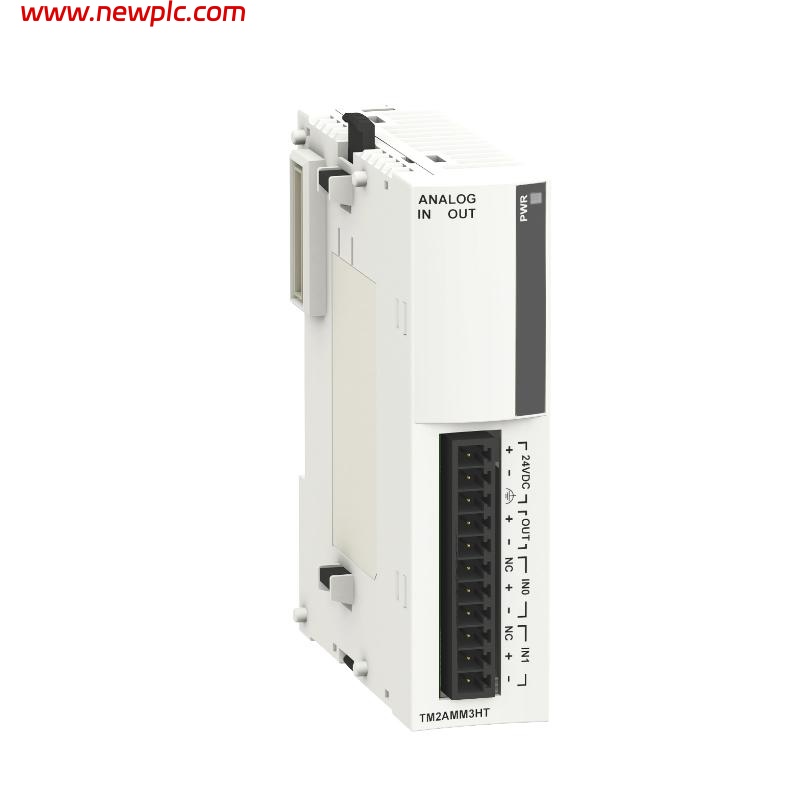

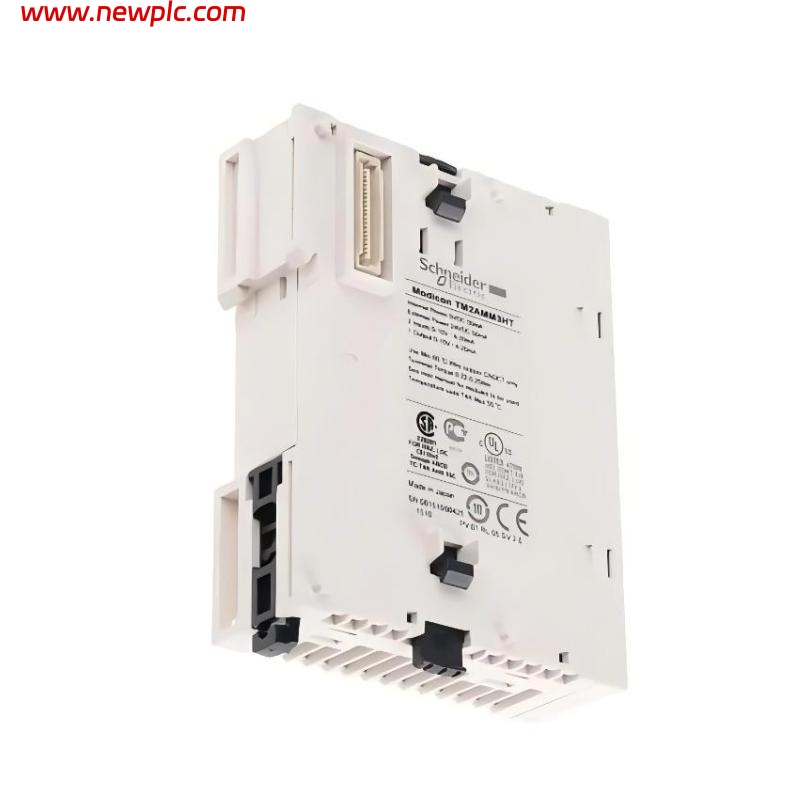

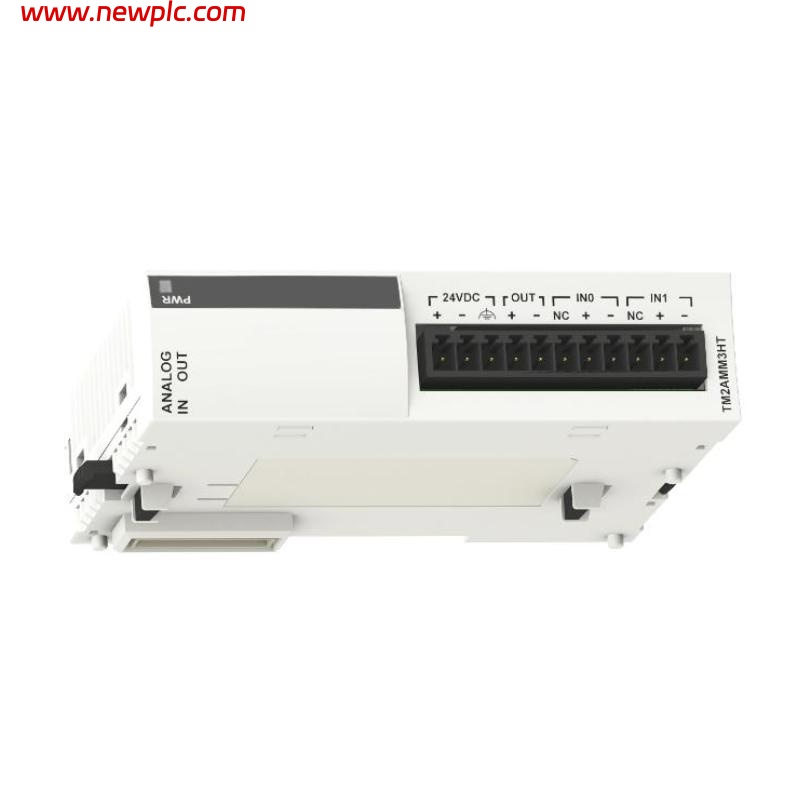

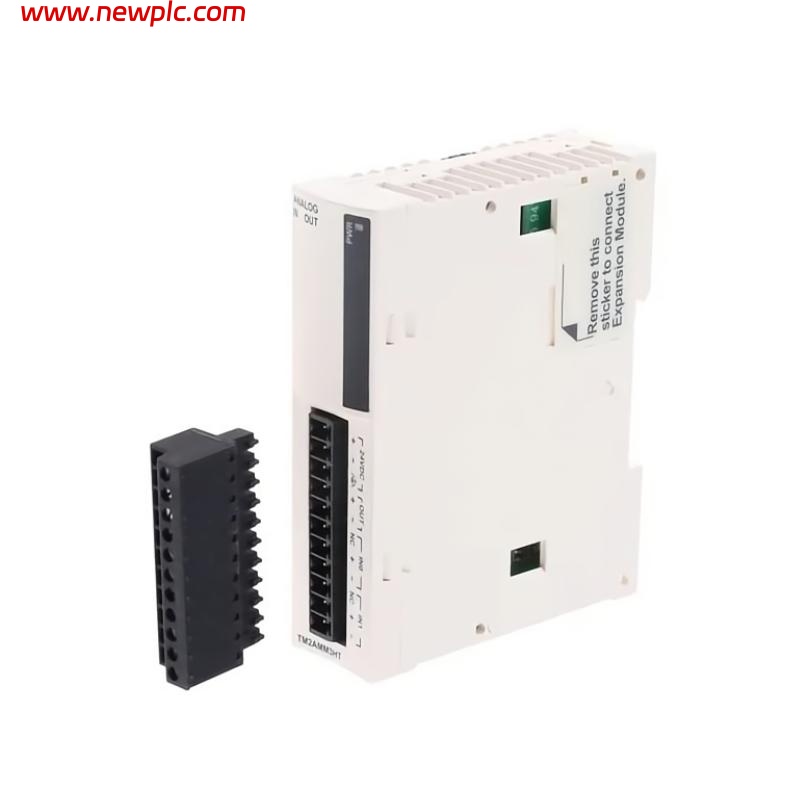

| Model | Schneider TM2AMM3HT |
| Product Type | Analog Input / Output Module |
| Function | Signal acquisition and analog output control for PLC systems |
| Input Signal Types | 0–10 V, 4–20 mA |
| Output Signal Types | 0–10 V, 4–20 mA |
| Number of Input Channels | 3 |
| Number of Output Channels | 3 |
| Input Impedance | 10 kΩ (voltage), 250 Ω (current) |
| Output Load Range | Voltage: ≥ 1 kΩ, Current: ≤ 500 Ω |
| Resolution | 12-bit |
| Accuracy | ±0.2% full scale |
| Electrical Isolation | Isolation between I/O and internal logic |
| Conversion Principle | Successive approximation ADC / DAC |
| Response Time | < 10 ms per channel |
| Communication Interface | TM2 system bus |
| Mounting Type | DIN rail |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Power Consumption | < 4.5 W |
| Dimensions (L × W × H) | 23.5 × 70 × 90 mm |
| Weight | 0.085 kg |
FAQ
FAQ
Q1: What is the function of the TM2AMM3HT module?
A1: It combines analog input acquisition and analog output control within a single module for compact automation architectures.
Q2: What signal types can be connected to the inputs and outputs?
A2: The module supports 0–10 V and 4–20 mA for both input and output channels.
Q3: How many channels are available for input and output?
A3: The module provides three analog inputs and three analog outputs.
Q4: Are the input and output circuits electrically isolated?
A4: Yes, isolation is provided to reduce electrical noise and prevent damage from wiring faults.
Q5: How fast does the module process signals?
A5: Each channel is updated in under 10 ms, suitable for real-time control applications.
Q6: Can voltage and current signals be mixed on the same module?
A6: Yes, each channel can be configured independently as voltage or current.
Q7: What level of precision does the module provide?
A7: It offers 12-bit resolution with stable measurement accuracy suitable for industrial control tasks.
Q8: How is the module configured during commissioning?
A8: All channel settings are defined through the control software without any mechanical adjustment.
