Technical Specifications
| Item | Specification |
|---|---|

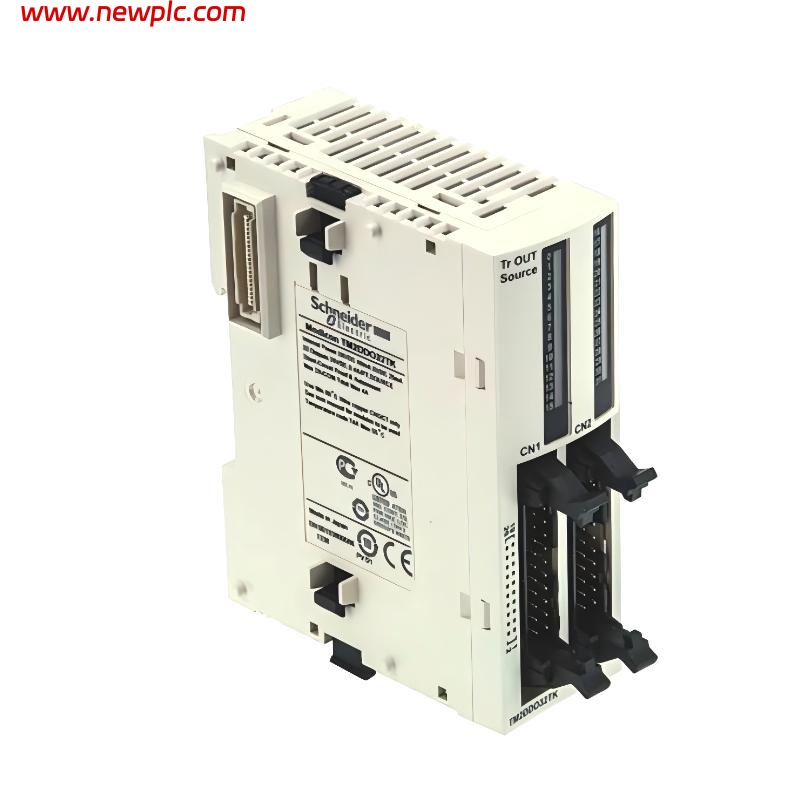

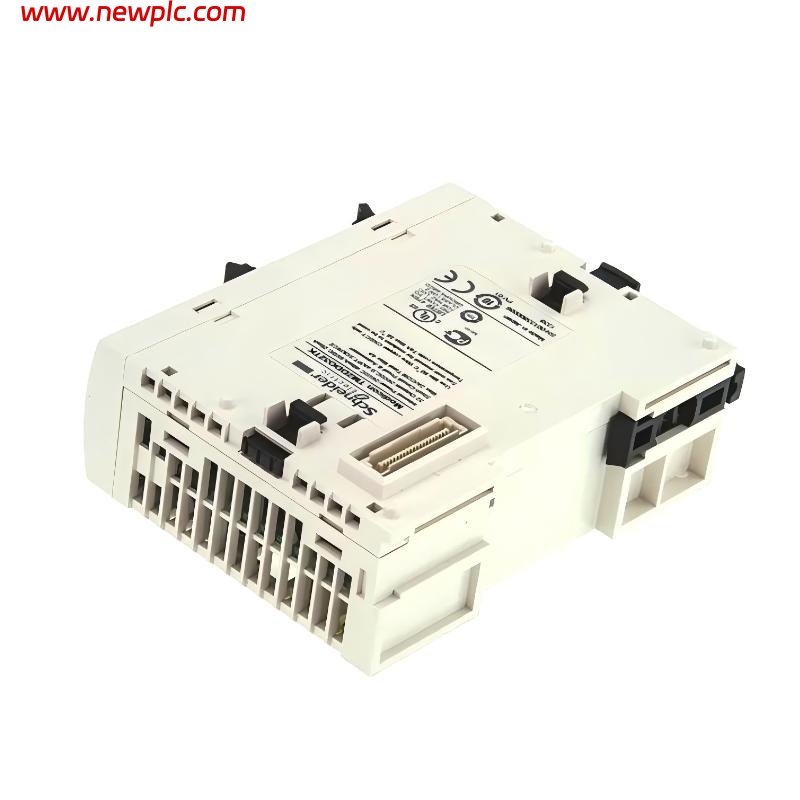

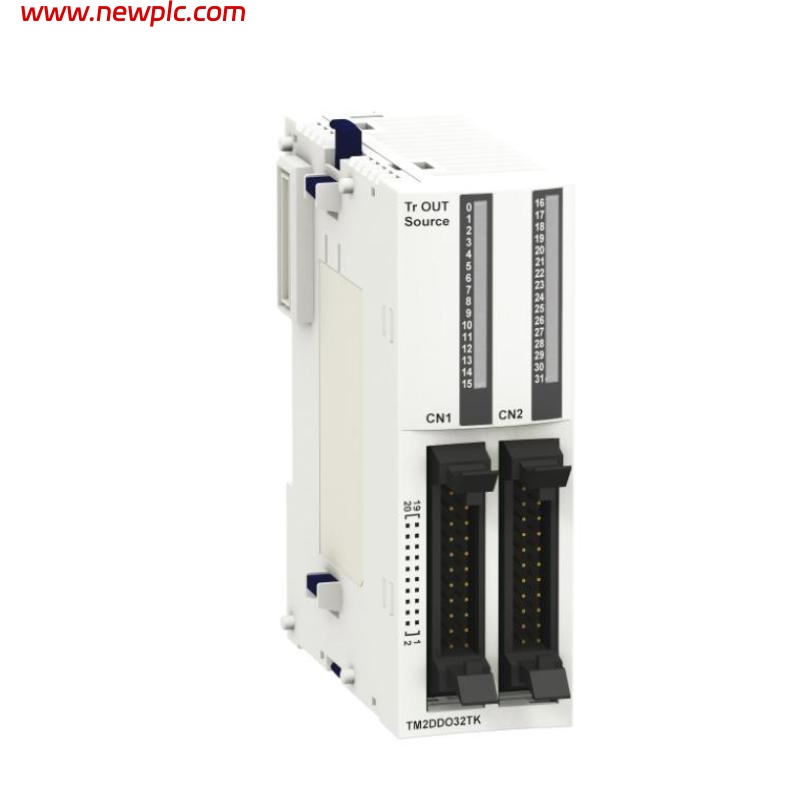

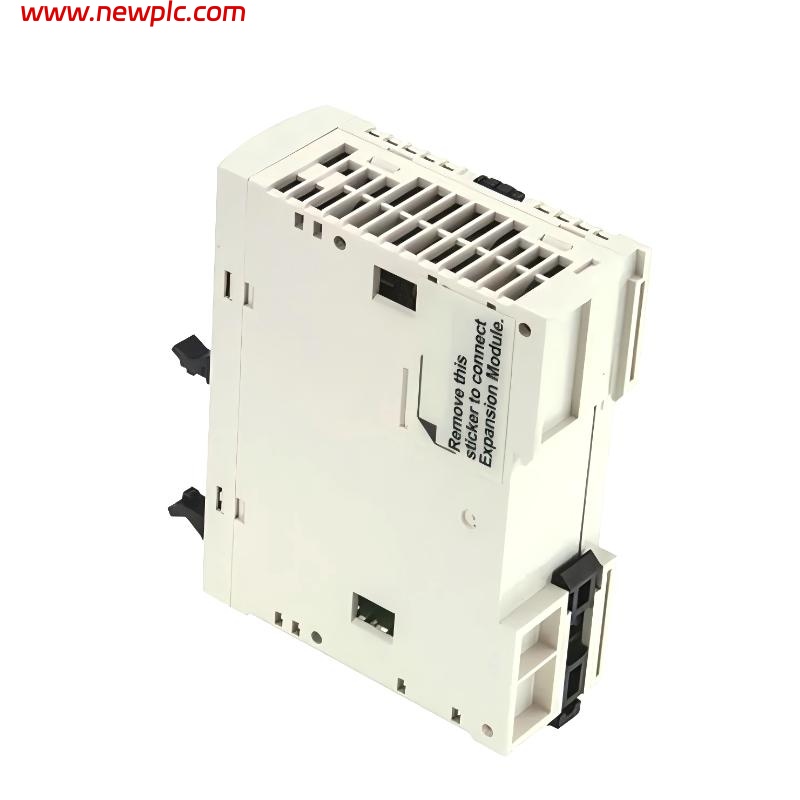

| Model | Schneider TM2DDO32TK |
| Product Type | Discrete Output Module |
| Output Type | Transistor outputs |
| Number of Output Channels | 32 |
| Output Voltage Range | 24 V DC |
| Maximum Output Current | 0.5 A per channel |
| Total Output Current | 8 A maximum |
| Output Protection | Overcurrent and thermal protection |
| Output Polarity | Sourcing (PNP) |
| External Power Supply | 24 V DC |
| Electrical Isolation | Isolation between output channels and logic circuit |
| Response Time | < 1 ms |
| Surge Suppression | Integrated flyback protection |
| Output Status Indication | Individual LED indicators |
| Communication Interface | TM2 system bus |
| Connection Method | Screw terminal |
| Mounting Type | DIN rail |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Typical Power Consumption | < 5.5 W |
| Dimensions (L × W × H) | 81.3 × 90 × 33.5 mm |
| Weight | 0.105 kg |
FAQ
FAQ
Q1: What type of outputs are used in this module?
A1: The module uses transistor-based DC outputs with sourcing (PNP) logic.
Q2: Can the outputs directly drive solenoids and relays?
A2: Yes, the outputs are designed to drive relay coils, contactors, and solenoid valves within rated current limits.
Q3: Is short-circuit protection included?
A3: The module provides built-in electronic protection against overcurrent and overheating.
Q4: Does each channel have an independent status indicator?
A4: Yes, individual LEDs display the state of each output channel for easy diagnostics.
Q5: Is external power required for field devices?
A5: Yes, a 24 V DC field power supply must be connected to drive connected loads.
Q6: Can all outputs operate at maximum current simultaneously?
A6: Total current is limited; system design should ensure the overall load remains within the rated value.
Q7: What kind of load types are supported?
A7: The module supports resistive, inductive, and lamp loads within electrical limits.
Q8: How are the outputs configured in the control system?
A8: Configuration is carried out through the PLC programming environment via the system bus.
