Technical Specifications
| Item | Specification |
|---|---|

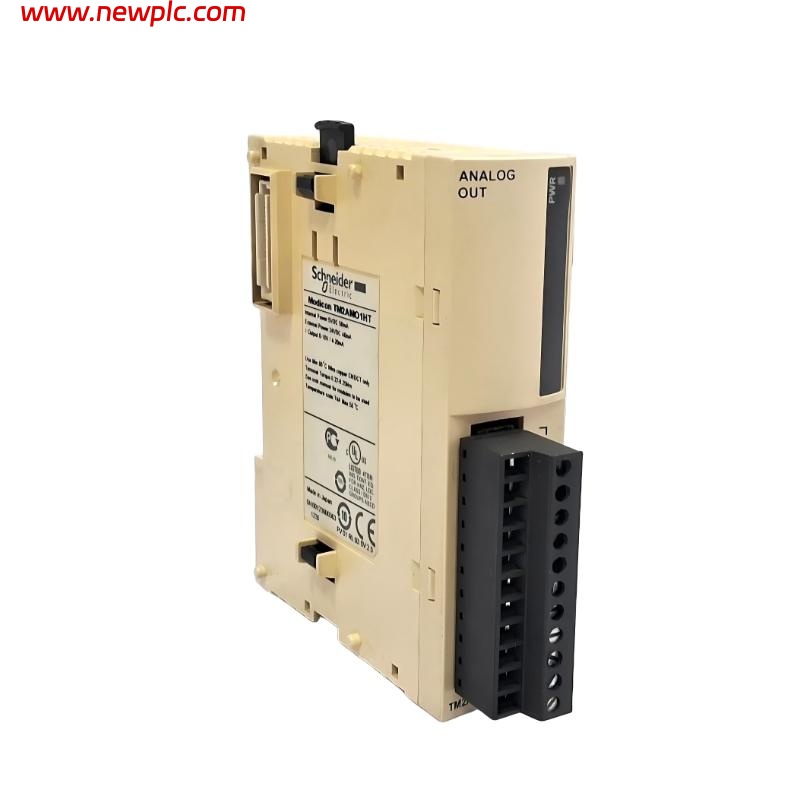

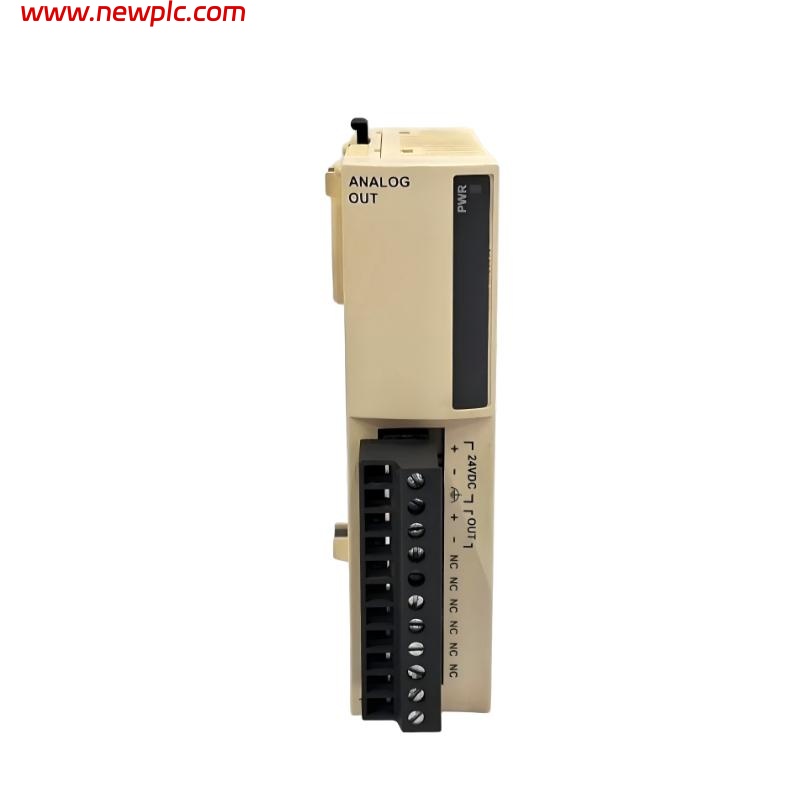

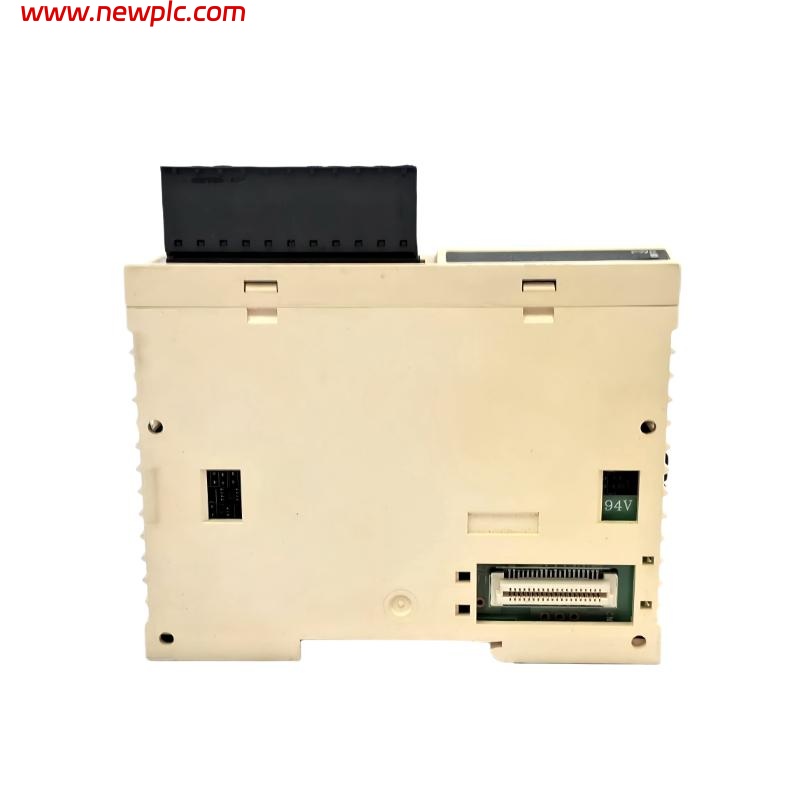

| Model | Schneider TM2AMO1HT |
| Product Type | Analog Output Module |
| Function | Converts control system signals to analog outputs for process devices |
| Output Signal Type | 0–10 VDC, 4–20 mA |
| Number of Output Channels | 1 |
| Output Load | Max 500 Ω (current), Min 2 kΩ (voltage) |
| Resolution | 12-bit |
| Accuracy | ±0.2% full scale |
| Isolation | Galvanic isolation between output and module logic |
| Response Time | < 10 ms |
| Communication Interface | TM2 bus |
| Mounting Type | DIN rail |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5–95% RH (non-condensing) |
| Power Consumption | < 1.5 W |
| Dimensions (L × W × H) | 23.5 × 70 × 90 mm |
| Weight | 0.085 kg |
FAQ
FAQ
Q1: What types of analog output signals does the module support?
A1: The module supports voltage outputs (0–10 VDC) and current outputs (4–20 mA).
Q2: How many output channels are available?
A2: The module provides 1 analog output channel.
Q3: Is the output isolated from the control logic?
A3: Yes, galvanic isolation separates the output from the module’s logic to prevent interference.
Q4: What is the response time of the analog output?
A4: The typical response time is under 10 ms, ensuring fast signal updates.
Q5: What is the accuracy of the output signal?
A5: The output accuracy is ±0.2% full scale with 12-bit resolution.
Q6: What are the load requirements for the output?
A6: The module can drive loads up to 500 Ω for current signals and a minimum of 2 kΩ for voltage signals.
Q7: How is the module mounted in the control system?
A7: It is designed for standard DIN rail mounting in control panels.
Q8: Does the module require local configuration or software?
A8: No local configuration is required; all settings are managed through the TM2 bus and the main control system.
