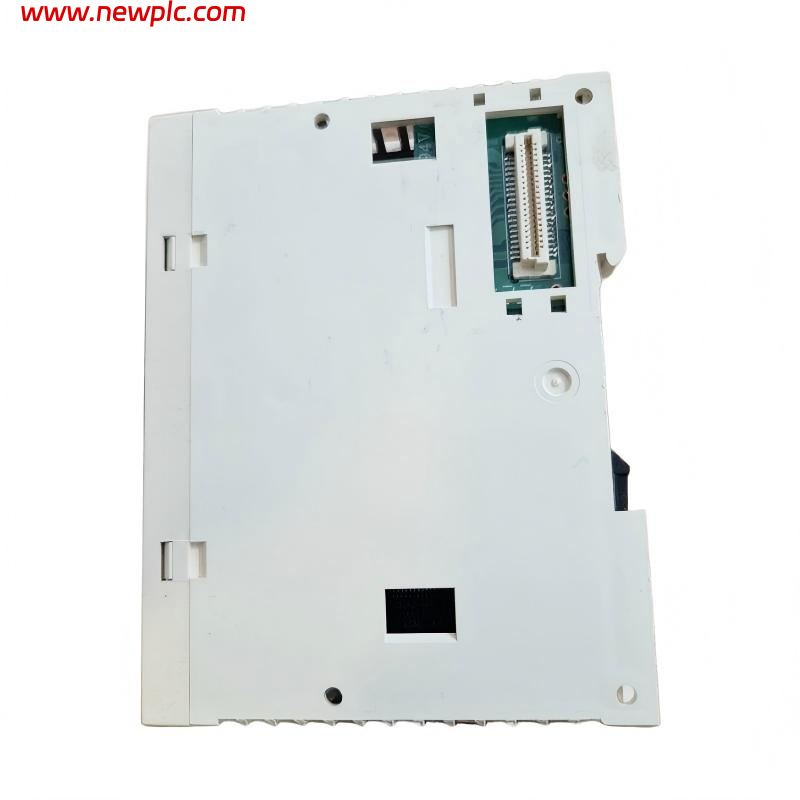

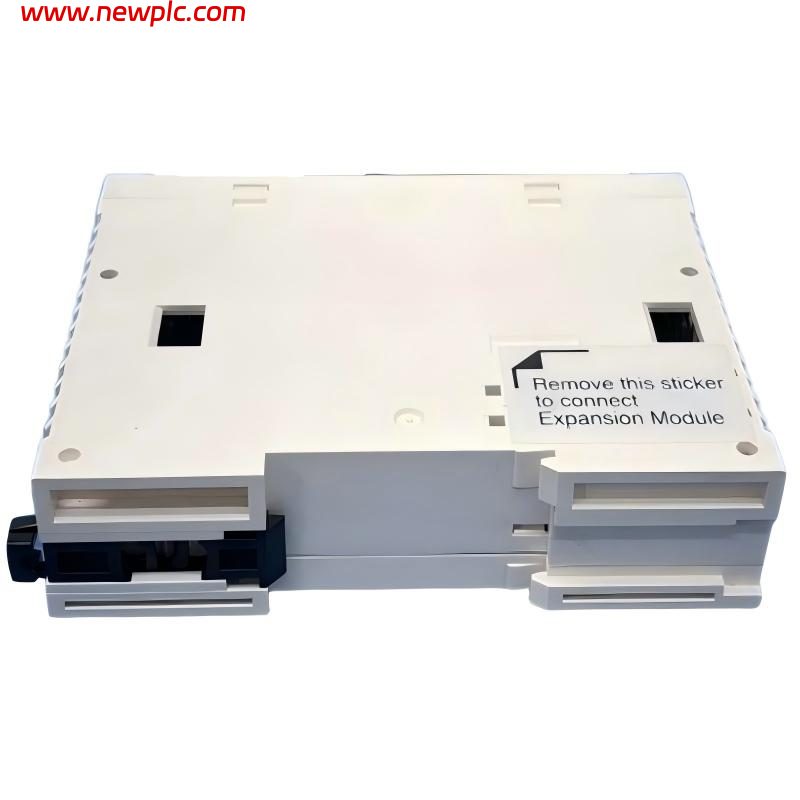

Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | Schneider Electric TM2AMO2HTN |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M218 / TM2 |
| Product Type | Analog Output Expansion Module |
| Number of Analog Outputs | 2 |
| Output Type | Voltage / Current |
| Voltage Output Range | -10 to +10 VDC / 0 to +10 VDC |
| Current Output Range | 0 to 20 mA / 4 to 20 mA |
| Output Type | Non-differential |
| Digital Resolution | 12 bits |
| Voltage Output LSB | 6 mV |
| Current Output LSB | 10 μA |
| Load Impedance | >2 kΩ for voltage / <300 Ω for current |
| Settling Time | 10 ms |
| Total Output Transfer Time | 10 ms + 1 scan time |
| Output Tolerance at 25°C | ±1% of full scale |
| Maximum Deviation | ±2.5% of full scale |
| Non-Linearity | ±0.5% of full scale |
| Temperature Drift | ±0.06% of full scale/°C |
| Output Ripple | ±50 mV |
| Short-Circuit Protection | Yes |
| Open-Circuit Detection | Yes |
| Output Isolation | Photocoupler between output and internal circuit |
| Cable Type | Shielded |
| Maximum Cable Length | 3 m for electromagnetic immunity |
| Rated Supply Voltage | 24 VDC |
| Supply Voltage Range | 20.4–28.8 VDC |
| Connection | Removable screw terminal |
| Mounting | DIN rail / expansion connection |
| Compatible Controller | Modicon M218 |
| Programming Software | EcoStruxure Machine Expert |
| Protection Rating | IP20 |
| Dimensions | 23.5 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.085 kg (85 g) |
| Shipping Weight | Approx. 0.68 kg |
FAQ
FAQ
Q1: What is the Schneider Electric TM2AMO2HTN used for?
A: It is a 2-channel analog output expansion module used with Modicon M218 PLC systems for controlling devices such as valves, drives, actuators and other analog-controlled equipment.
Q2: How many analog outputs does the TM2AMO2HTN have?
A: It provides 2 analog output channels.
Q3: What voltage output ranges are supported?
A: The module supports -10 to +10 VDC and 0 to +10 VDC outputs.
Q4: What current output ranges are supported?
A: It supports both 0–20 mA and 4–20 mA output signals.
Q5: What is the resolution of the TM2AMO2HTN?
A: The module provides 12-bit digital resolution, with a voltage LSB of approximately 6 mV and current LSB of approximately 10 μA.
Q6: What power supply does the TM2AMO2HTN require?
A: It requires a 24 VDC supply, with an operating range of 20.4–28.8 VDC.
Q7: Is the TM2AMO2HTN compatible with the M218 controller?
A: Yes. Schneider Electric documentation identifies the TM2AMO2HTN as an analog output expansion module for the Modicon M218 platform.
Q8: What are the dimensions and weight of the TM2AMO2HTN?
A: The module measures approximately 23.5 × 90 × 70 mm (W × H × D) and weighs approximately 0.085 kg (85 g).
