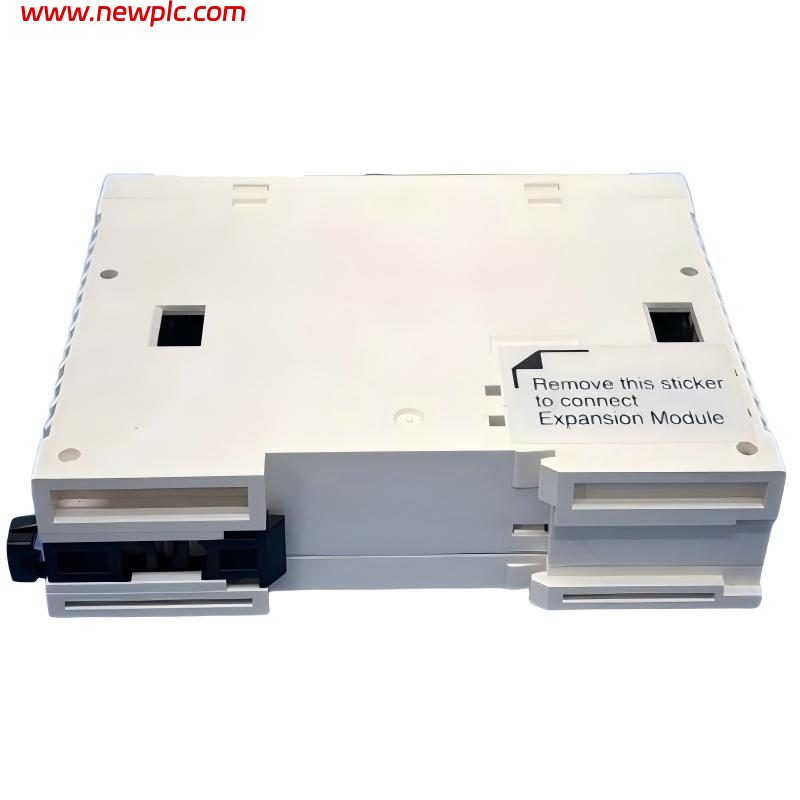

Technical Specifications
| Parameter | Description |
|---|---|

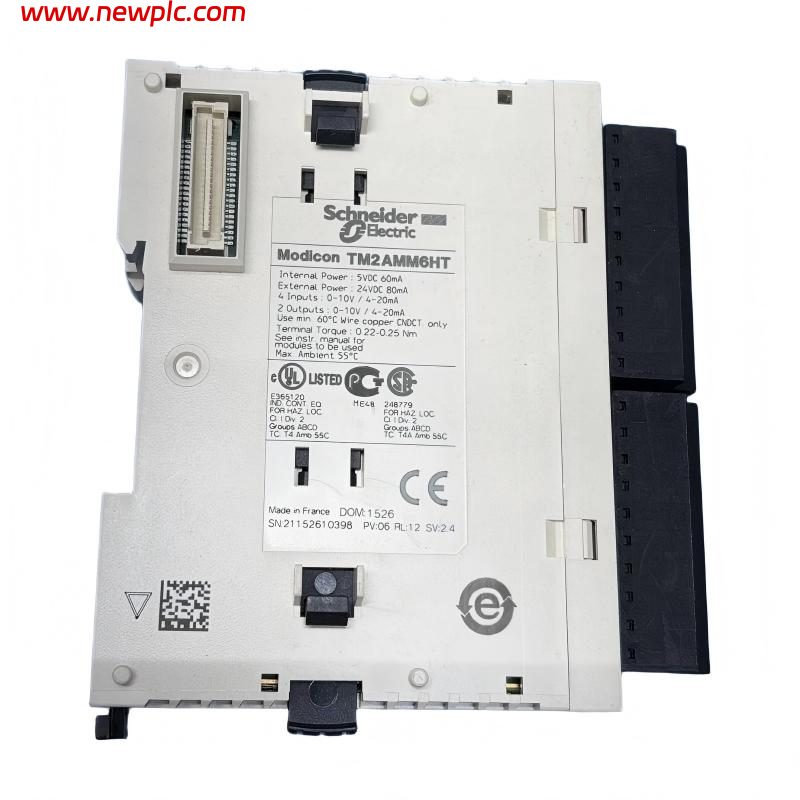

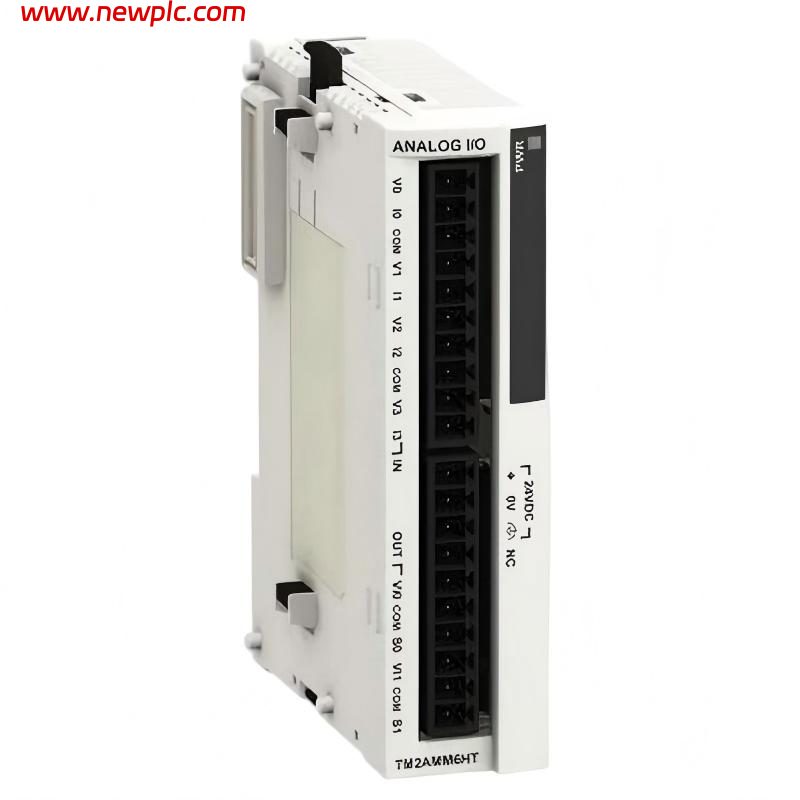

| Product Model | Schneider Electric TM2AMM6HT |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M238 / Twido |
| Product Type | Analog Input/Output Expansion Module |
| Number of I/O Channels | 6 |
| Analog Inputs | 4 |
| Analog Outputs | 2 |
| Input Signal | 0–10 VDC / 4–20 mA |
| Input Type | Non-differential |
| Output Signal | 0–10 VDC / 4–20 mA |
| Analog Input Resolution | 12 bits / 4096 increments |
| Analog Output Resolution | 12 bits / 4096 increments |
| Input Impedance | ≥1 MΩ for voltage / <250 Ω for current |
| Output Load | ≥2 kΩ voltage / ≤300 Ω current |
| Input Sampling Time | Up to 64 ms |
| Output Settling Time | 20 ms |
| Conversion Type | Sigma-Delta ADC |
| Rated Supply Voltage | 24 VDC |
| Supply Voltage Range | 19.2–30 VDC |
| Internal 5 VDC Consumption | 60 mA |
| External 24 VDC Consumption | 80 mA |
| Electrical Connection | Removable screw terminal block |
| Isolation | Photocoupler / galvanic isolation |
| Mounting | DIN rail / controller expansion |
| Compatible Systems | Modicon M238, Twido, Advantys OTB |
| Programming Software | EcoStruxure Machine Expert |
| Protection Rating | IP20 |
| Dimensions | 23.5 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.085 kg (85 g) |
| Package Weight | Approx. 0.17 kg |
| Country of Origin | France |
FAQ
FAQ
Q1: What is the Schneider Electric TM2AMM6HT used for?
A: It is an analog I/O expansion module used for acquiring voltage/current signals and generating analog control signals in Modicon M238 and compatible automation systems.
Q2: How many analog channels does the TM2AMM6HT have?
A: It provides 6 analog channels, consisting of 4 inputs and 2 outputs.
Q3: What input signals does the TM2AMM6HT support?
A: The four analog inputs support 0–10 VDC and 4–20 mA signals.
Q4: What output signals does the TM2AMM6HT provide?
A: The two analog outputs support 0–10 VDC and 4–20 mA signals.
Q5: What is the resolution of the TM2AMM6HT?
A: Both the analog inputs and outputs provide 12-bit resolution, equivalent to 4096 increments.
Q6: What power supply does the TM2AMM6HT require?
A: The module uses a 24 VDC supply, with an allowable range of 19.2–30 VDC.
Q7: Which PLC systems are compatible with the TM2AMM6HT?
A: It is designed for the Modicon M238 platform and is also compatible with Twido and Advantys OTB systems.
Q8: What are the dimensions and weight of the TM2AMM6HT?
A: The module measures approximately 23.5 × 90 × 70 mm (W × H × D) and weighs approximately 0.085 kg (85 g).
