Technical Specifications
| Parameter | Description |
|---|---|

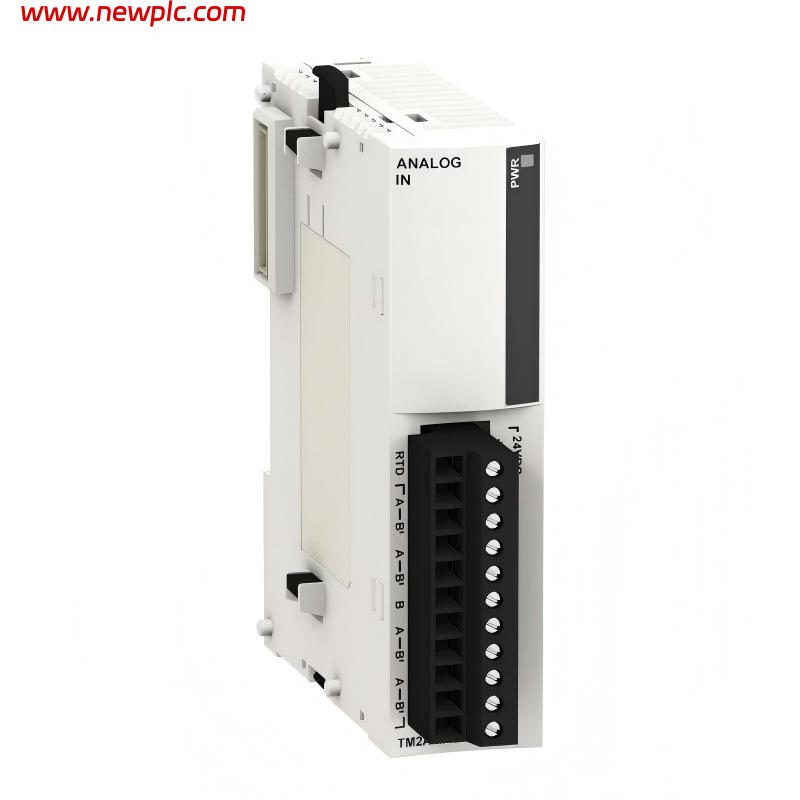

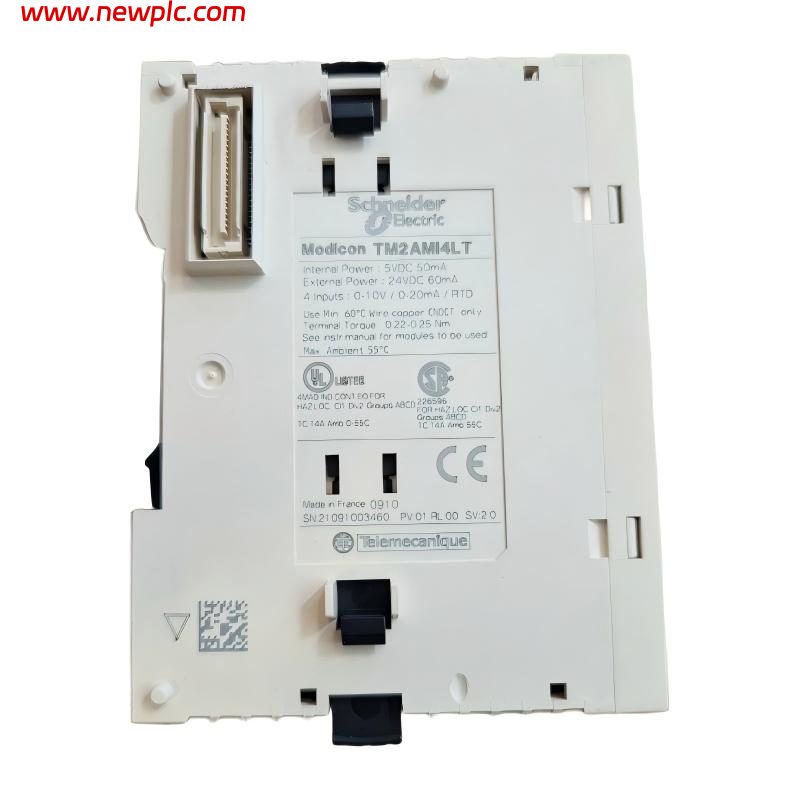

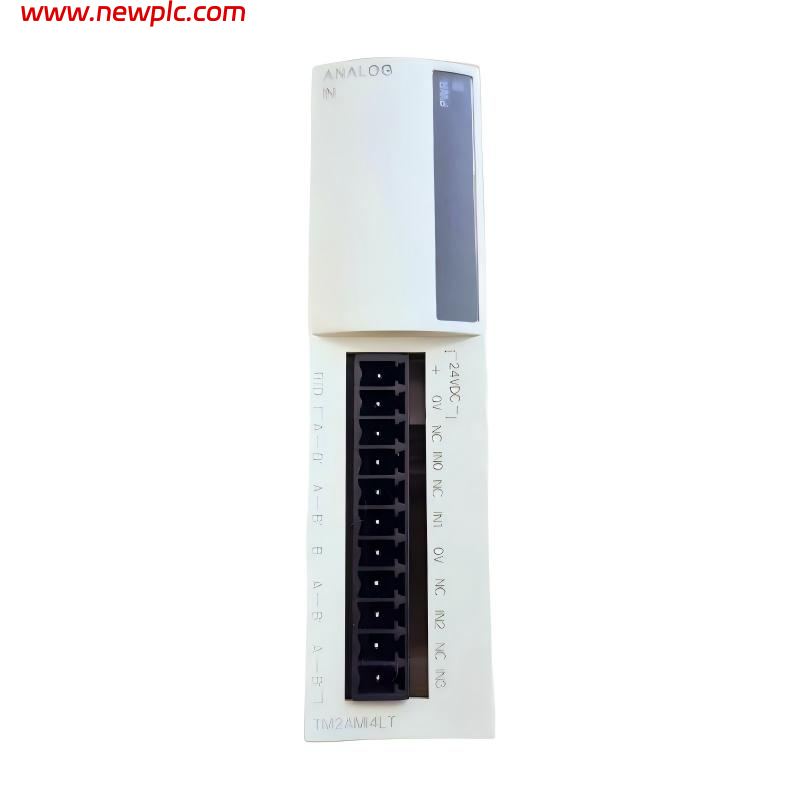

| Product Model | Schneider Electric TM2AMI4LT |
| Manufacturer | Schneider Electric |
| Product Series | Modicon M238 / Twido |
| Product Type | Analog Input Expansion Module |
| Number of Analog Inputs | 4 |
| Input Type | Voltage / Current / Temperature |
| Voltage Input Range | 0–10 VDC |
| Current Input Range | 0–20 mA |
| Temperature Inputs | Pt100, Pt1000, Ni100, Ni1000 |
| Pt Sensor Range | -200 to +600°C |
| Ni Sensor Range | -50 to +150°C |
| Input Type | Non-differential |
| Analog Resolution | 12 bits |
| Conversion Type | Sigma-Delta ADC |
| Sampling Duration | 160 ms |
| Input Impedance | >10 kΩ voltage / <250 Ω current |
| Accuracy at 25°C | ±0.2% FS; temperature input ±0.4% FS |
| Repeat Accuracy | ±0.1% FS |
| Non-linearity | ±0.02% FS |
| Rated Supply Voltage | 24 VDC |
| Supply Voltage Range | 19.2–30 VDC |
| Internal 5 VDC Consumption | 50 mA |
| External 24 VDC Consumption | 60 mA |
| Electrical Connection | 1 removable screw terminal block |
| Isolation | Photocoupler between I/O and internal logic |
| Dielectric Strength | 2500 V |
| Mounting | DIN rail / expansion connection |
| Compatible Controllers | Modicon M238, Twido; compatible Advantys OTB applications |
| Dimensions | 23.5 × 90 × 70 mm (W × H × D) |
| Product Weight | Approx. 0.085 kg (85 g) |
| Package Weight | Approx. 0.146 kg |
| Country of Origin | France |
FAQ
FAQ
Q1: What is the Schneider Electric TM2AMI4LT used for?
A: It is an analog input expansion module used with Modicon M238 and Twido PLC systems for measuring voltage, current and temperature signals.
Q2: How many analog inputs does the TM2AMI4LT have?
A: It provides 4 analog input channels.
Q3: What signal types does the TM2AMI4LT support?
A: It supports 0–10 VDC voltage, 0–20 mA current, Pt100/Pt1000 RTD and Ni100/Ni1000 RTD inputs.
Q4: What is the analog resolution?
A: The TM2AMI4LT provides 12-bit analog resolution.
Q5: What power supply does the TM2AMI4LT require?
A: It uses a 24 VDC supply, with an allowable range of approximately 19.2–30 VDC.
Q6: What temperature range can it measure?
A: Pt100/Pt1000 sensors can measure approximately -200 to +600°C, while Ni100/Ni1000 sensors support approximately -50 to +150°C.
Q7: What are the dimensions and weight of the TM2AMI4LT?
A: The module measures approximately 23.5 × 90 × 70 mm (W × H × D) and weighs approximately 0.085 kg (85 g).
Q8: Is the TM2AMI4LT still available from Schneider Electric?
A: No. Schneider Electric lists it as discontinued. The recommended replacement family is the Modicon TM3 expansion I/O series.
