Technical Specifications
| Item | Specification |
|---|---|

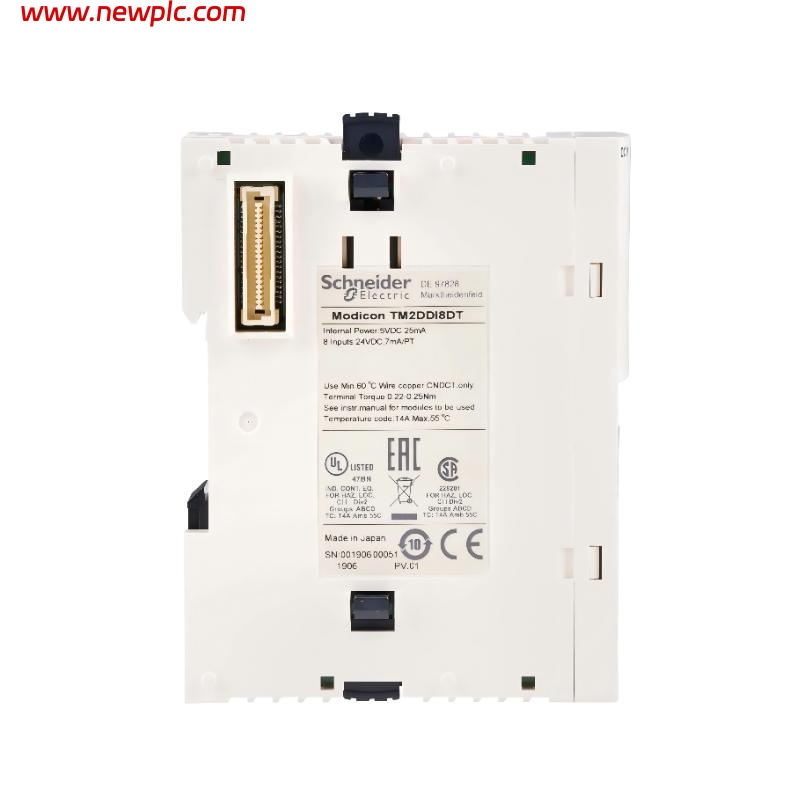

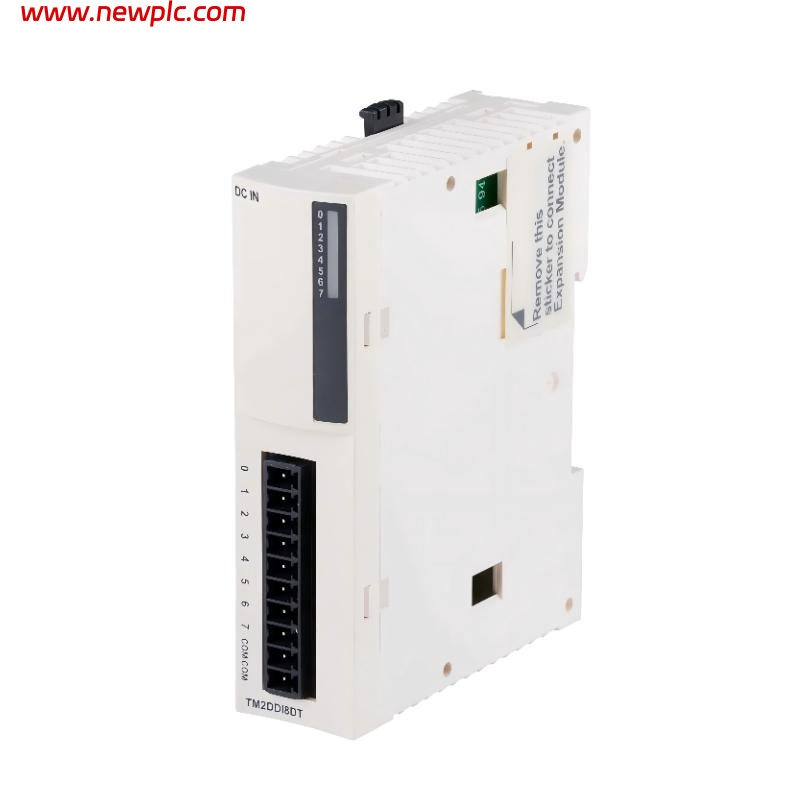

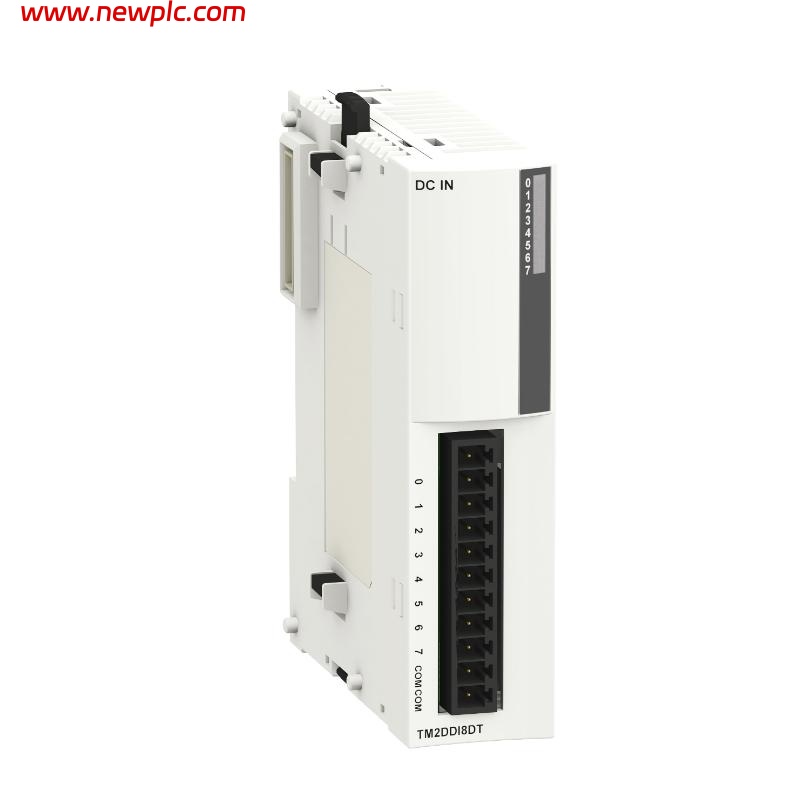

| Model | TM2DDI8DT |
| Product Name | Discrete Input Module |
| Manufacturer | Schneider Electric |
| Series | Modicon TM2 |
| Product Type | Digital input module |
| Number of Inputs | 8 channels |
| Input Type | Discrete |
| Input Voltage | 24 V DC |
| Input Logic | Positive logic (sourcing) |
| Electrical Isolation | Channel-to-backplane isolation |
| Input Filtering | Integrated digital input filter |
| Typical Response Time | High-speed input scan |
| Max Input Current | Low current consumption per channel |
| Status Indication | LED indicator for each input |
| Diagnostic Features | Signal monitoring and fault reporting |
| Wiring Type | Spring terminal |
| Mounting Method | Modicon TM2 rack |
| Protection Functions | Overvoltage and reverse polarity protection |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| EMC Compliance | Industrial EMC standards |
| Dimensions (L × W × H) | 84.6 x 23.5 x 90 mm |
| Weight | 0.1 kg |
FAQ
FAQ
Q1: What type of signals can this module accept?
A1: It accepts standard 24 V DC discrete signals from field devices such as pushbuttons, limit switches, and proximity sensors.
Q2: How is the input logic defined on this module?
A2: This model supports positive logic (sourcing), meaning the field device supplies voltage to the input.
Q3: Are the input channels electrically isolated?
A3: Yes, internal isolation protects the controller from noise and external interference.
Q4: What role do the LEDs play during operation?
A4: Each LED shows the real-time state of its corresponding input channel for quick diagnosis.
Q5: Can response time be tuned in software?
A5: Filtering parameters are handled by the controller configuration to match application requirements.
Q6: How does the module protect against wiring errors?
A6: Integrated protection reduces the risk of damage from polarity reversal or voltage fluctuations.
Q7: Is the module suitable for high-speed signal detection?
A7: Yes, it supports fast acquisition for time-critical discrete inputs.
Q8: Can this module operate in harsh electrical environments?
A8: It is designed for industrial use with enhanced EMC resistance and stable operation under electrical noise.
