Technical Specifications
| Parameter | Description |
|---|---|

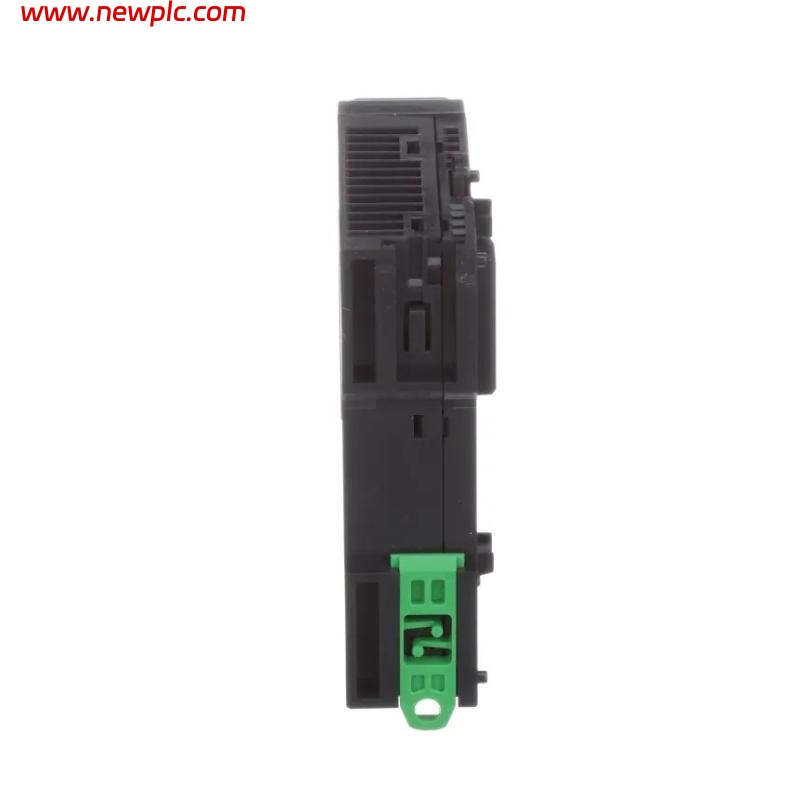

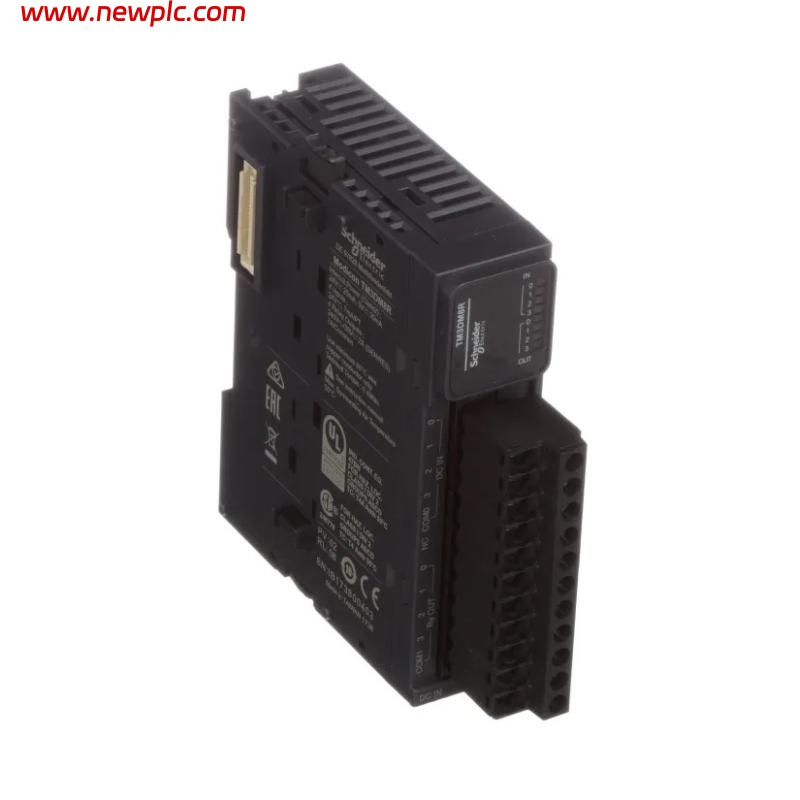

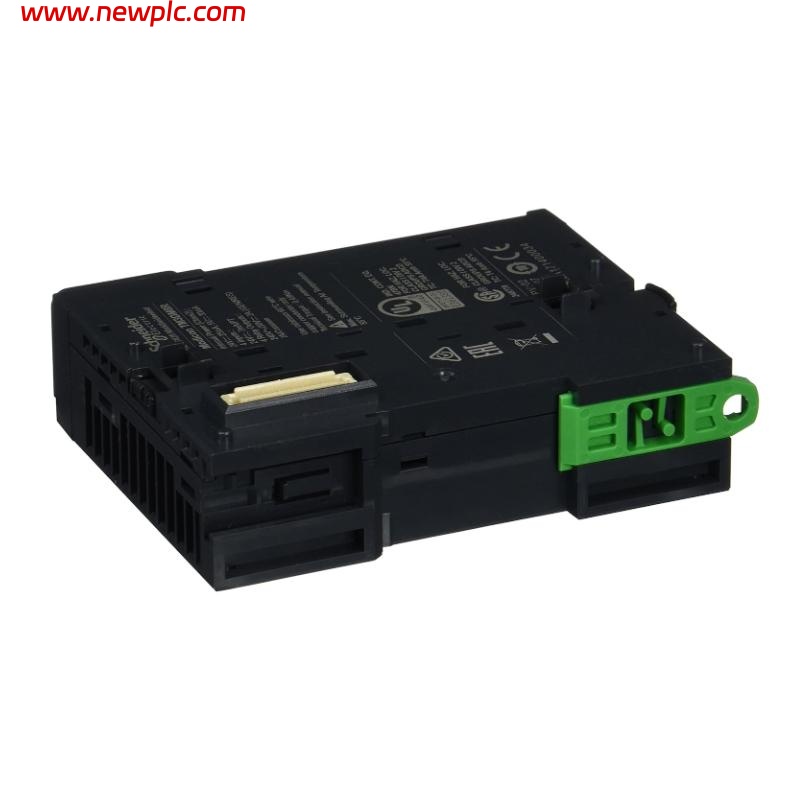

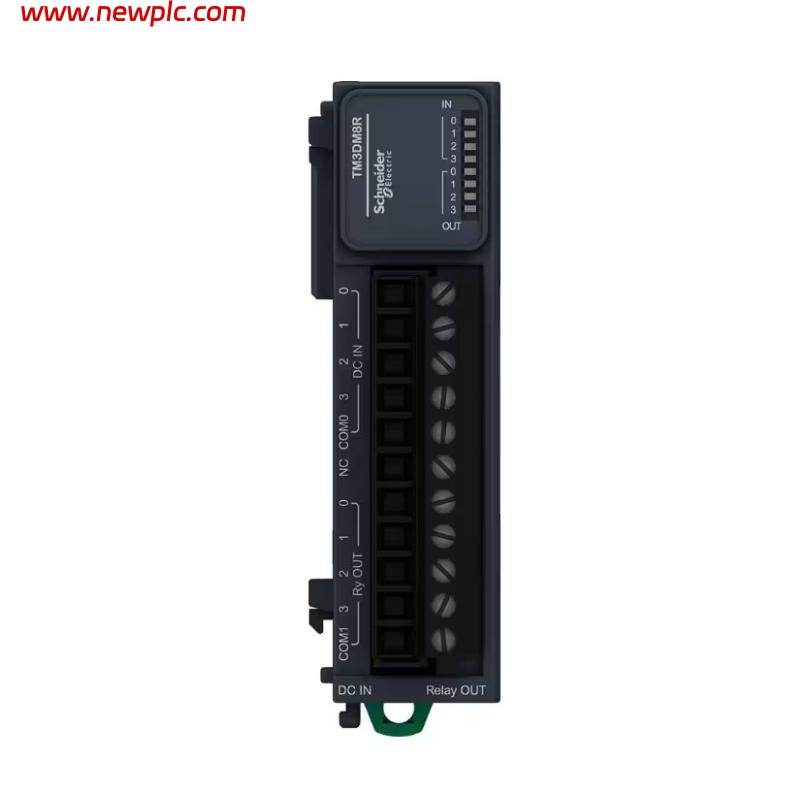

| Product Name | Schneider TM3DM8R Modicon TM3 Discrete I/O Module |
| Number of Input Channels | 4 inputs |
| Number of Output Channels | 4 relay outputs |
| Input Logic Type | Source/Sink (positive/negative logic) |
| Output Type | Relay |
| Output Voltage Range | 24V DC / 240V AC |
| Current Consumption | 65 mA total |
| Bus Connector Draw | 5 mA @ 5V DC via bus connector |
| I/O Isolation | 500V AC between inputs/outputs and internal logic |
| Group Isolation | 1500V AC between input/output groups; 750V AC across open contacts |
| I/O Internal Isolation | No isolation between inputs and outputs |
| Electrical Connection | Removable screw terminal, 5.08 mm pitch for I/O |
| Mounting Options | DIN rail TH35-15, TH35-7.5 (IEC 60715), or panel mount with fixing kit |
| Compatible Controllers | Modicon M221, M241, M251, M262 |
| Protection Rating | IP20 |
| Certifications | CE, CULus, C-Tick |
| Compliance Standards | EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Communication Method | Bus expansion connector for data and power distribution |
| Module Dimensions (H x D x W) | 90 mm x 84.6 mm x 27.4 mm |
| Module Weight | 0.120 kg |
FAQ
FAQ
Q1: What type of output does the TM3DM8R module support?
A1: It supports relay outputs, suitable for controlling both AC and DC loads.
Q2: Can the TM3DM8R be directly connected to a Modicon M241 controller?
A2: Yes, the TM3DM8R is fully compatible with the Modicon M241 controller.
Q3: Is there isolation between the input and output channels?
A3: No, inputs and outputs are not isolated from each other, but both are isolated from internal logic at 500V AC.
Q4: What is the operating voltage range for the outputs?
A4: The output supports a voltage range from 24V DC to 240V AC.
Q5: What mounting methods are supported by this module?
A5: It supports DIN rail mounting (TH35-15 or TH35-7.5) and panel mounting with a fixing kit.
Q6: Is the TM3DM8R internationally certified?
A6: Yes, it is certified with CE, CULus, and C-Tick.
Q7: What type of electrical connection does it use?
A7: It uses removable screw terminals with 5.08 mm pitch for both input and output connections.
Q8: How many input and output channels are available?
A8: It has 4 input channels and 4 output channels.
