Technical Specifications
| Parameter | Details |
|---|---|

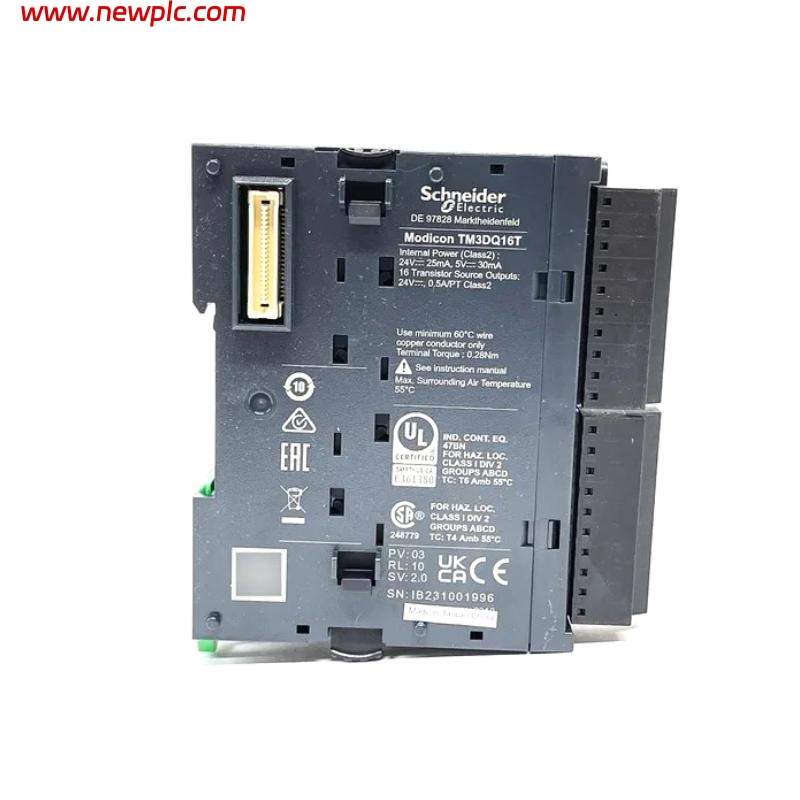

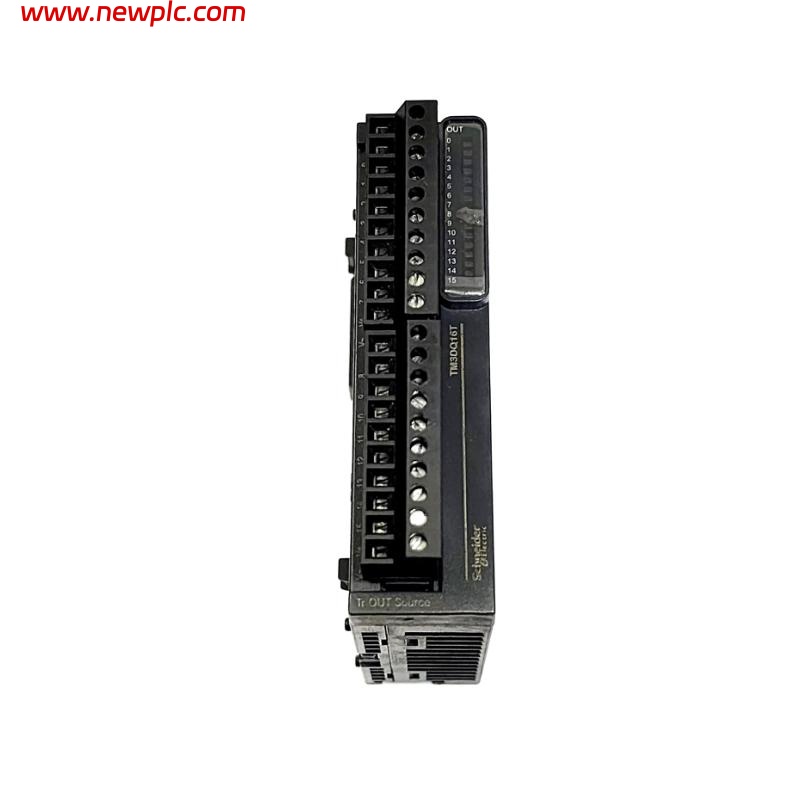

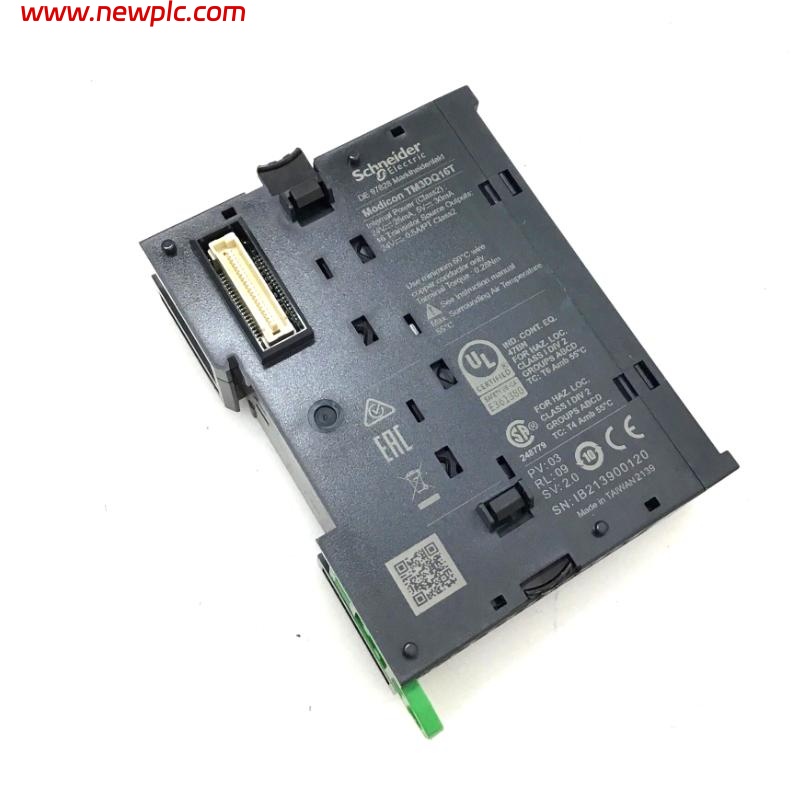

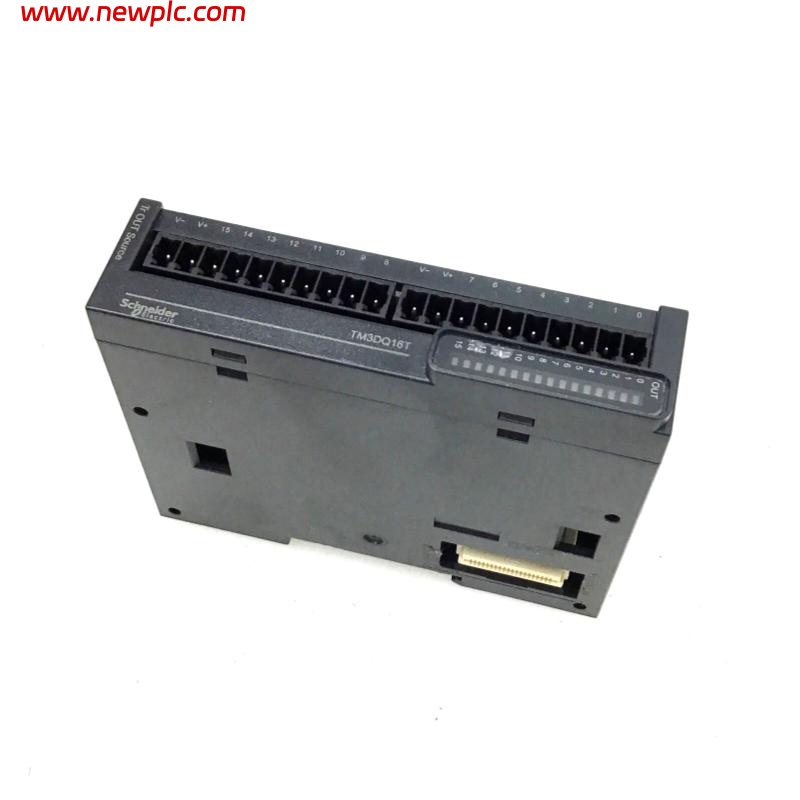

| Product Model | Schneider TM3DQ16T |
| Series | Modicon TM3 Expansion Modules |
| Output Type | Transistor output (sourcing, positive logic) |
| Number of Outputs | 16 channels |
| Output Voltage | 24V DC |
| Output Current | Max 0.5 A per channel |
| Current Consumption | 20 mA at 24V DC via bus connector |
| Isolation | Isolated between output and internal logic; not isolated between outputs |
| Terminal Type | Removable screw terminal, pitch 3.81 mm |
| Mounting Method | TH35-15 / TH35-7.5 DIN rail (IEC 60715 compliant) or panel mounting with kit |
| Protection Rating | IP20 |
| Compatible Controllers | Modicon M221, M241, M251, M262 |
| Standards Compliance | EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Certifications | CE, CULus, C-Tick |
| Dimensions (H x D x W) | 90 x 84.6 x 27.4 mm |
| Weight | 0.11 kg |
FAQ
FAQ
Q1: What type of outputs does the TM3DQ16T module support?
A1: The TM3DQ16T provides 16 sourcing (positive logic) transistor outputs.
Q2: What is the operating voltage of this module?
A2: The module operates at 24V DC.
Q3: What is the maximum current per output channel?
A3: Each output can handle up to 0.5 A.
Q4: Is there isolation between the output channels?
A4: No, the outputs are not isolated from each other, but they are isolated from the internal logic.
Q5: Which controllers are compatible with the TM3DQ16T?
A5: It is compatible with Modicon M221, M241, M251, and M262 controllers.
Q6: What type of wiring terminals does the module use?
A6: It uses removable screw terminals with a 3.81 mm pitch.
Q7: What mounting options are supported?
A7: It supports DIN rail mounting (TH35-15 or TH35-7.5 per IEC 60715) and panel mounting with a kit.
Q8: What certifications does this module have?
A8: It is certified with CE, CULus, and C-Tick.
