Technical Specifications
| Item | Specification |
|---|---|

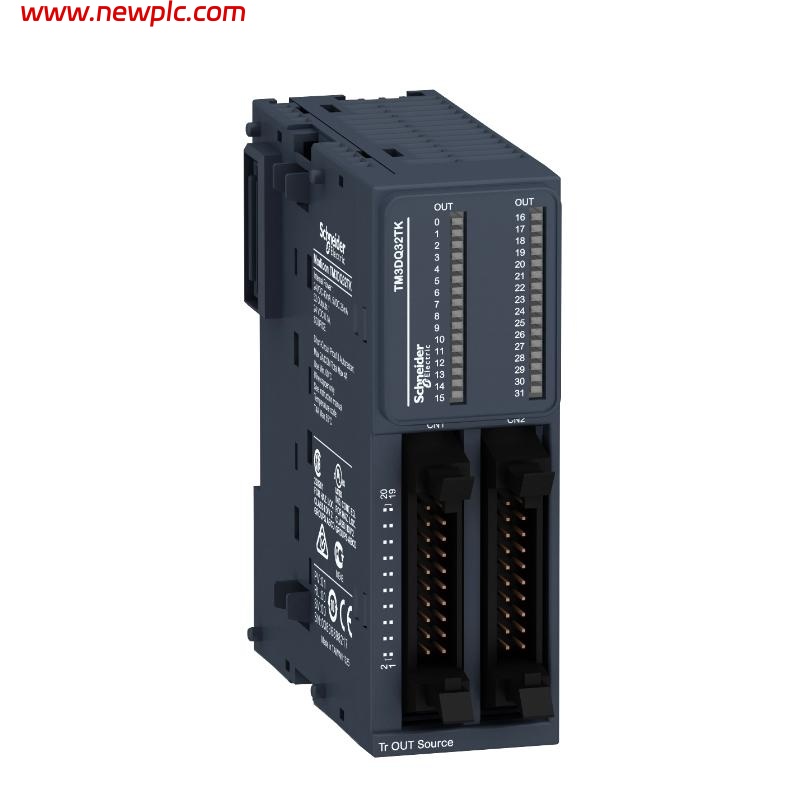

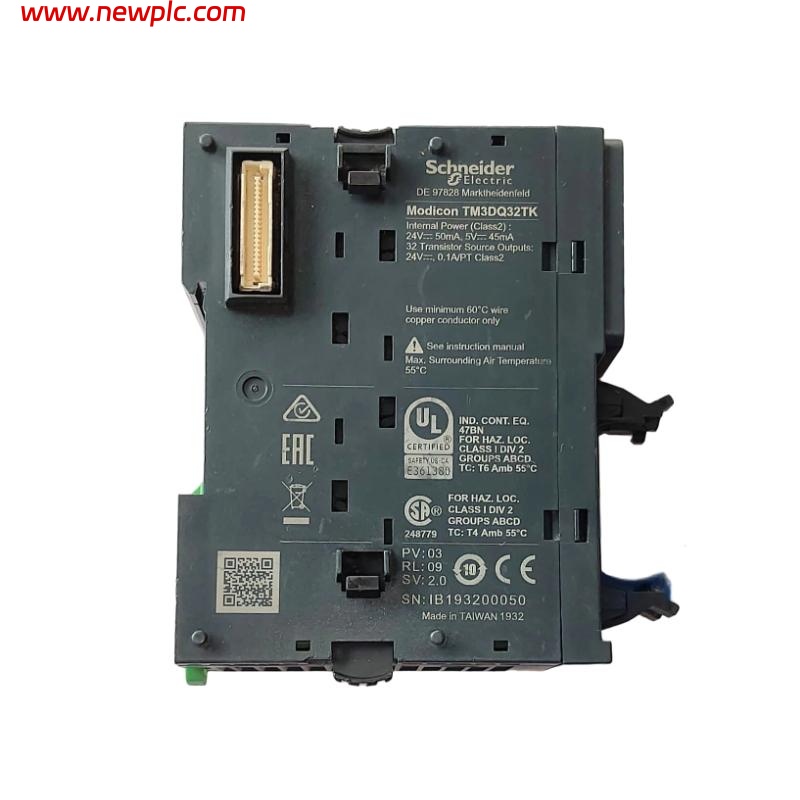

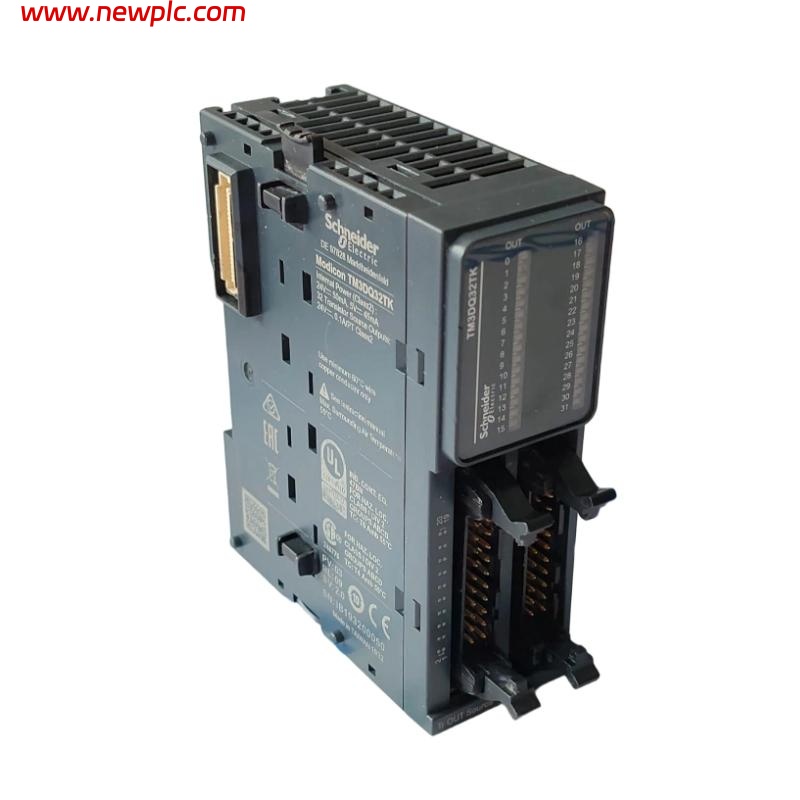

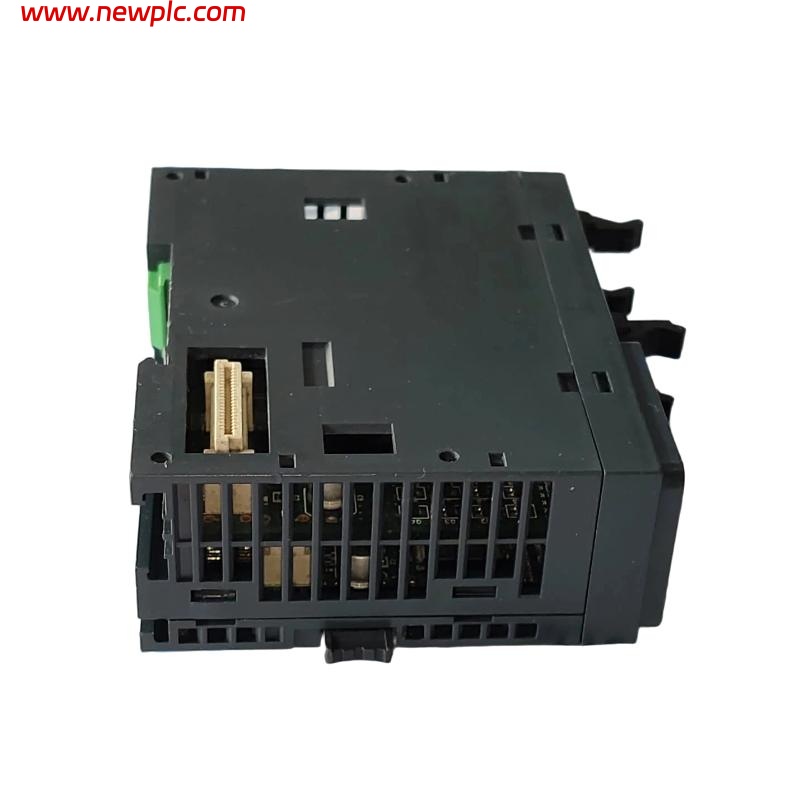

| Model | TM3DQ32TK |
| Product Name | Discrete Output Module |
| Manufacturer | Schneider Electric |
| Series | Modicon TM3 |
| Product Type | Digital output module |
| Number of Outputs | 32 channels |
| Output Type | Transistor / Discrete |
| Output Voltage | 24 V DC |
| Max Output Current | 0.5 A per channel |
| Electrical Isolation | Channel-to-backplane isolation |
| Status Indication | LED indicator for each output |
| Diagnostic Features | Short-circuit and load monitoring |
| Output Configuration | Sink/source configurable |
| Wiring Type | Spring terminal |
| Mounting Method | TM3 rack mounting |
| Protection Functions | Overvoltage, short-circuit protection |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| EMC Compliance | Industrial EMC standards |
| Dimensions (L × W × H) | 90 x 81.3 x 33.5 mm |
| Weight | 0.112 kg |
FAQ
FAQ
Q1: What kind of loads can the TM3DQ32TK module switch?
A1: It is designed to switch low-voltage DC loads such as solenoids, indicators, and relays.
Q2: How can I monitor the output status?
A2: Each channel has an LED that indicates whether the output is ON or OFF.
Q3: Does the module have overcurrent protection?
A3: Yes, all outputs include short-circuit and overcurrent protection.
Q4: Can the output configuration be modified?
A4: Yes, outputs can be configured as sink or source depending on system requirements.
Q5: Is this module suitable for industrial environments?
A5: Yes, it complies with industrial EMC standards to ensure reliable operation.
Q6: How does the module communicate faults to the controller?
A6: Load status and fault conditions are reported back to the connected controller.
Q7: Can the module operate in extreme temperatures?
A7: The module operates reliably from -20°C to +60°C and can be stored between -40°C and +85°C.
Q8: What wiring method is used for connecting outputs to devices?
A8: The module uses spring terminals for secure and reliable wiring of field devices.
